Egodrift

EGO-11770 Egodrift TENGU 4530HT / 550KV (12-14S) (6x35)

EGO-11770 Egodrift TENGU 4530HT / 550KV (12-14S) (6x35)

Regular price $399.99 USD
Regular price Sale price $399.99 USD
Sale Sold out
Shipping calculated at checkout.

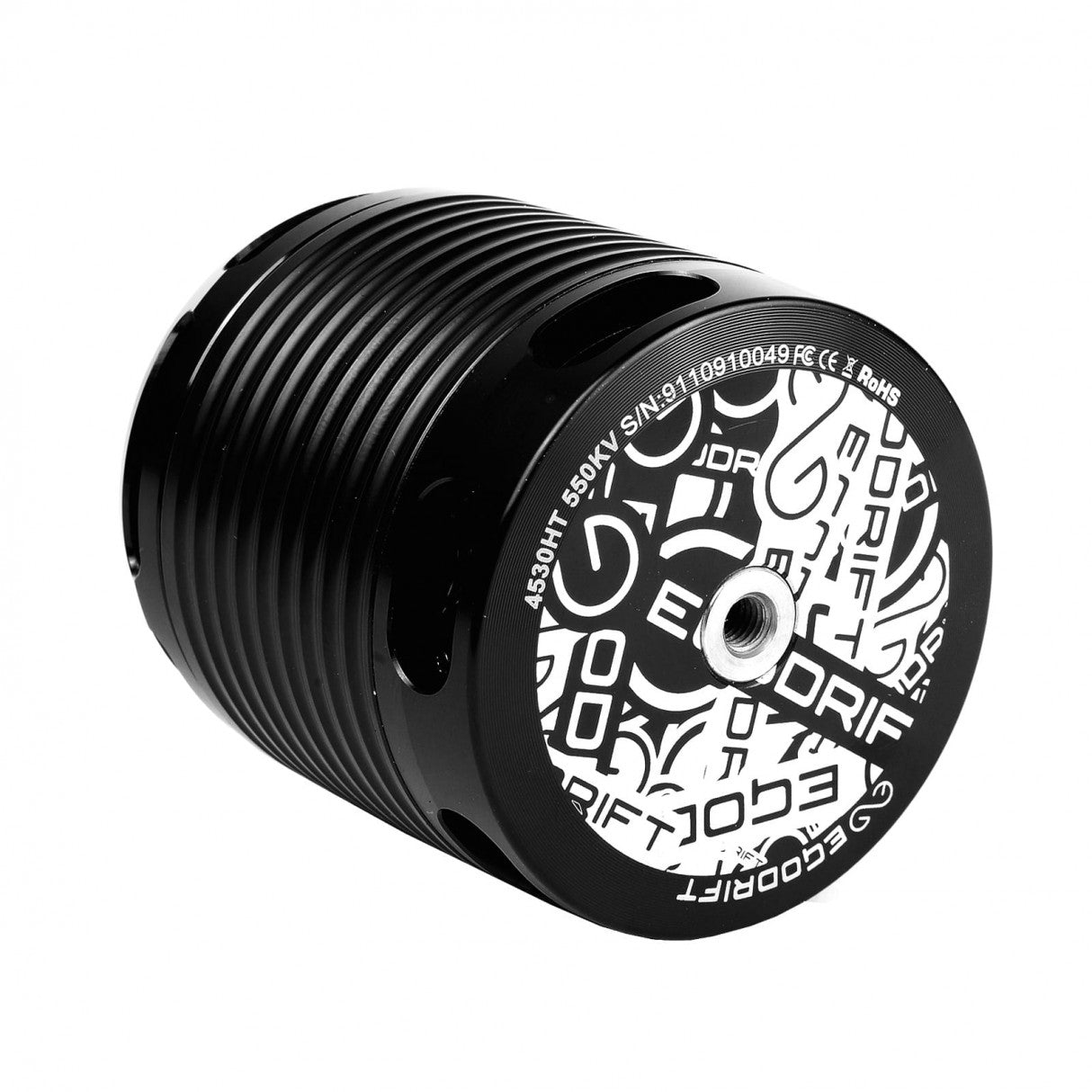

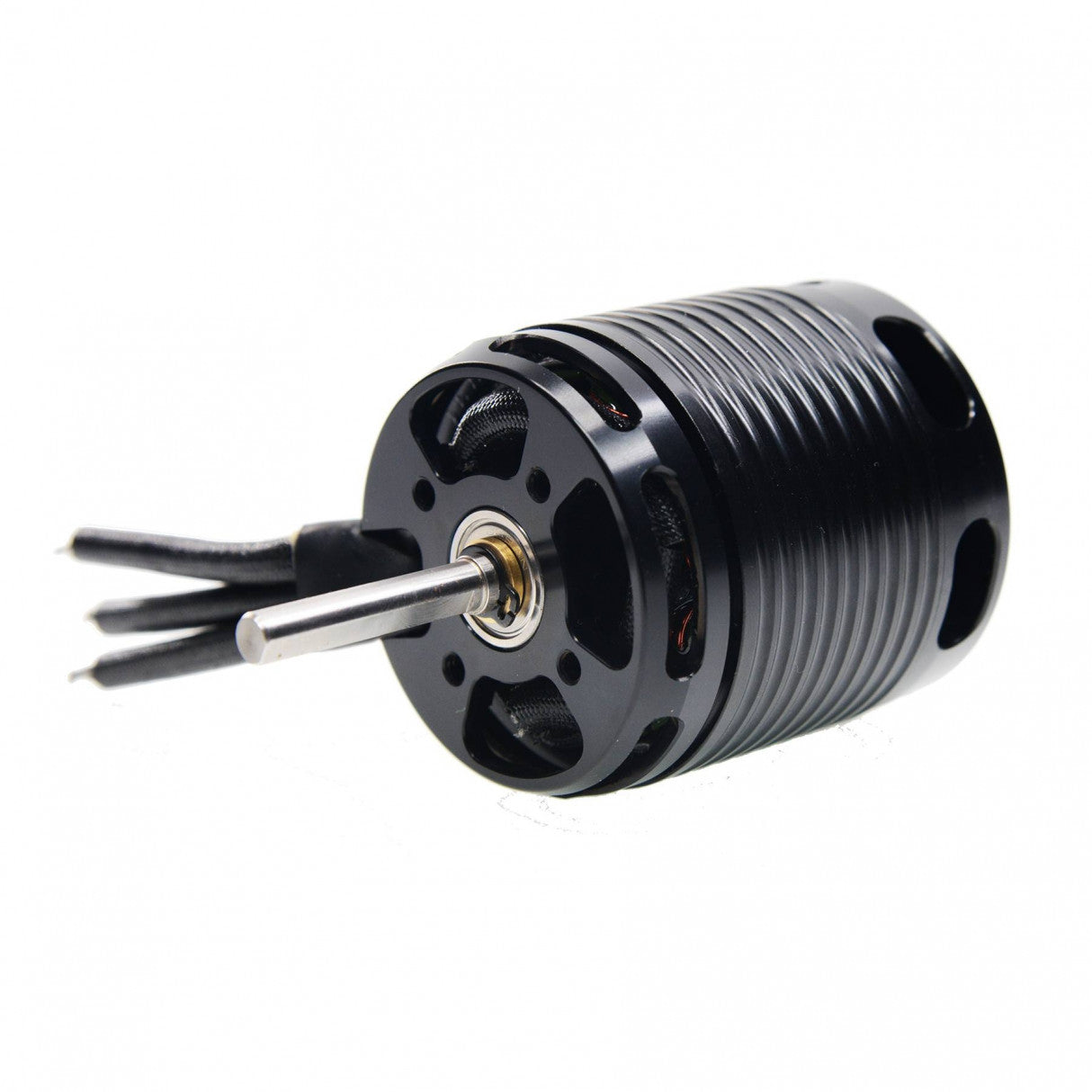

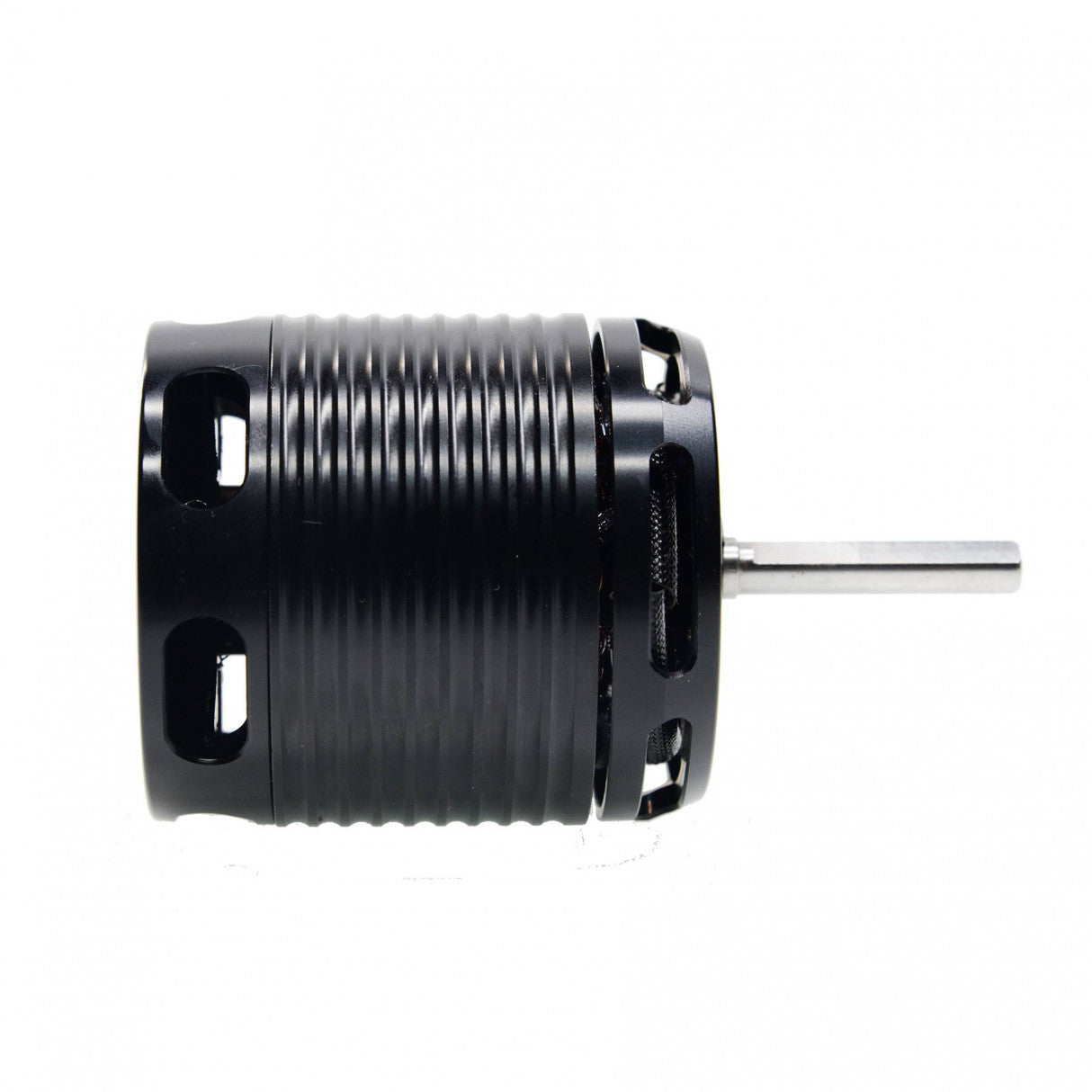

EGO-11770 Egodrift TENGU 4530HT / 550KV (12-14S) (6x35)

EGODRIFT Tengu high-performance brushless motor for RC Heli are the result of one year of development and testing. The 4530HT Tengu comes with a kV rating of 550kV and fits all 700mm class helicopters, such as the XLPower Specter 700 & Protos, SAB Goblin 700-770, Quest Impaction, Align T-Rex 700-800, Mikado 700 or Gaui 700 (and various other models).

All CNC parts are processed in our EGODRIFT factory on our Japanese Tsugami precision CNC machines for the utmost in precision and quality. We apply the same high standards to all other components used in the making of this motor, so it features EZO bearings, a custom made stator and special high temperature copper wire.

External length of the shaft: 35mm or 55mm (please choose)

EGODRIFT Tengu 4530 HS/HT Product Dimensions

SPECIFICATIONS

  • Manufacturer: EGODRIFT
  • Stator size: 4530
  • Motor configuration: 12N10P
  • Motor weight: 532g (18.77oz)
  • Wire colour: Copper
  • Motor wire type: High temperature copper wire
  • Motor wire: 1.4mm
  • Motor kV: 550 kV
  • Motor shaft: Hardened Steel
  • Shaft diameter: 6.0 mm
  • Mounting hole pattern: 4xM4(30)
  • Laser Design: EGODRIFT Stickerbomb
  • LiPo cells: 12S, 14S
  • Stator diameter: 45 mm
  • Stator height: 30 mm
  • Stator lamination: 0.15 mm (+)
  • Body Length: 60.58mm (2.39 inch)
  • Diameter: 56.40 mm (2.22 inch)
  • Idle current: 4.8A
  • Maximum Current: 145A (Peak: 265A / 2 seconds)
  • Maximum Power: 6960W (Peak: 13300W / 2 seconds)
  • Internal resistance: 9.9 mOhm
  • Connection: Wire / Gold plated plugs
  • Designer: Yutao Zou

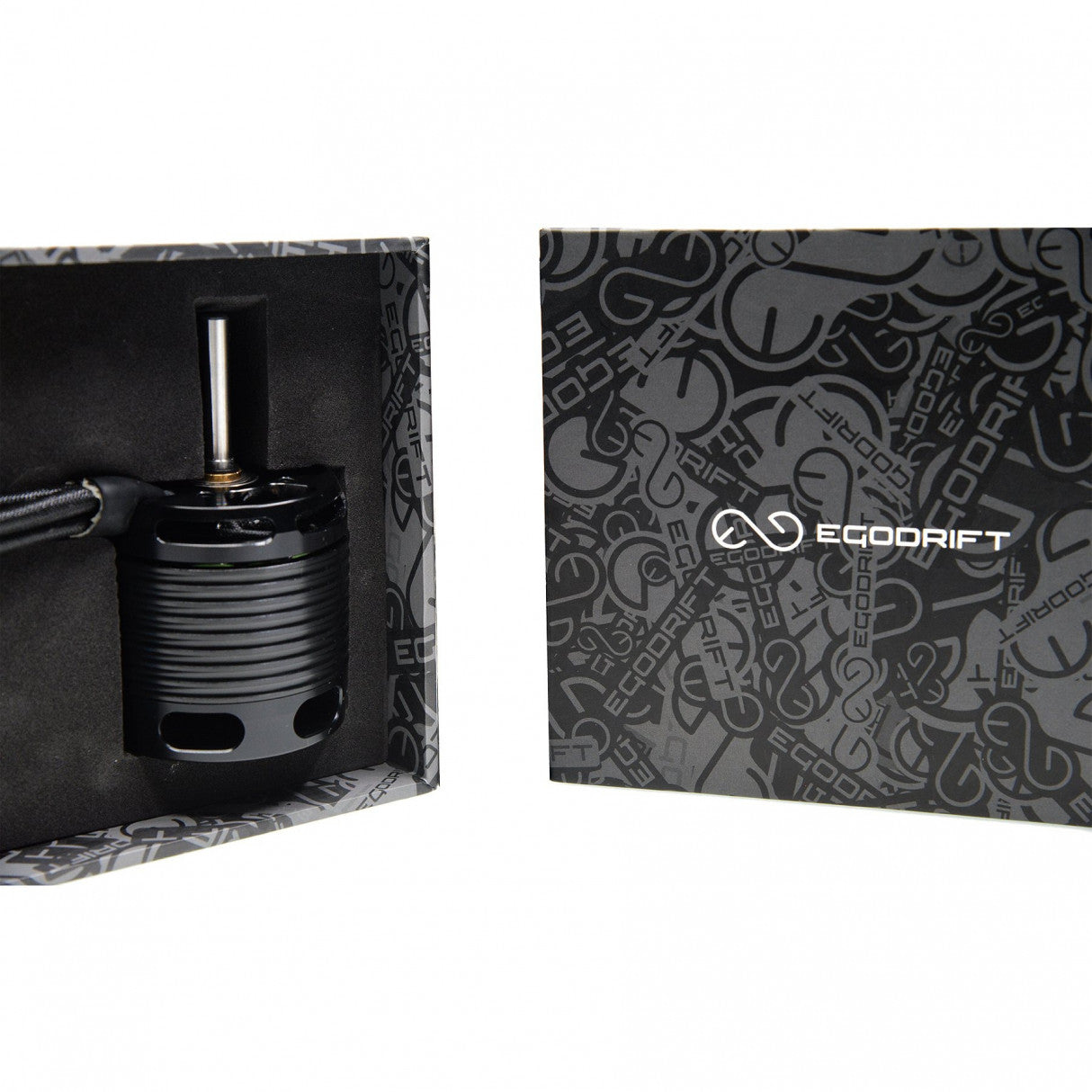

What's in the box

  • 1x Tengu 4530 HT Series/550kV motor
  • 35mm exterior length shaft
  • 3 x Gold plated connectors, Male
  • 3 x Gold plated connectors, Female
  • 4 x Mounting screws
  • 1 x Bell securing screw
