Egodrift

EGO-11938 Egodrift TENGU 4525HT / 530KV (12-14S) (6x35)

EGO-11938 Egodrift TENGU 4525HT / 530KV (12-14S) (6x35)

Regular price $339.99 USD
Regular price Sale price $339.99 USD
Sale Sold out
Shipping calculated at checkout.
EGO-11938 Egodrift TENGU 4525HT / 530KV (12-14S) (6x35)

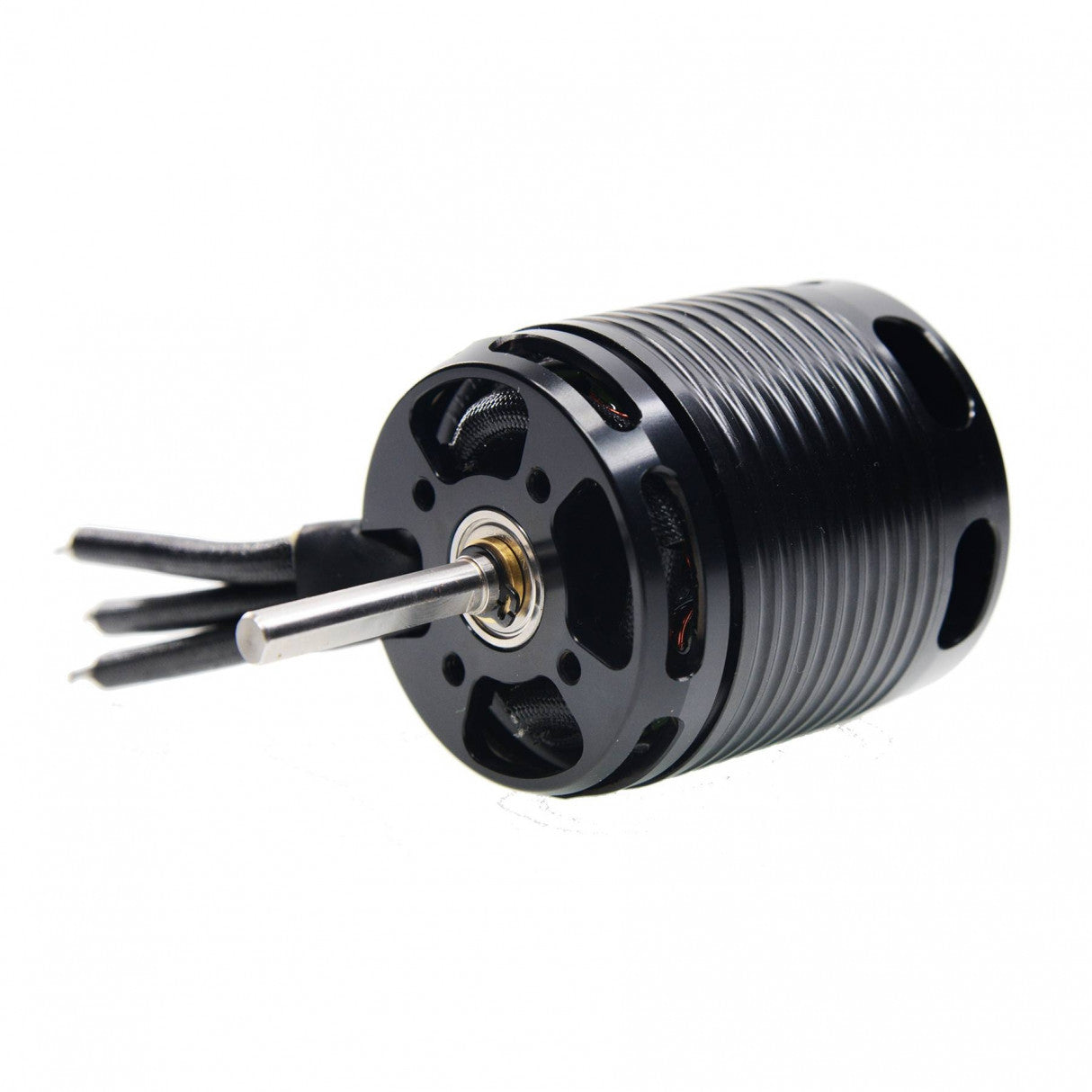

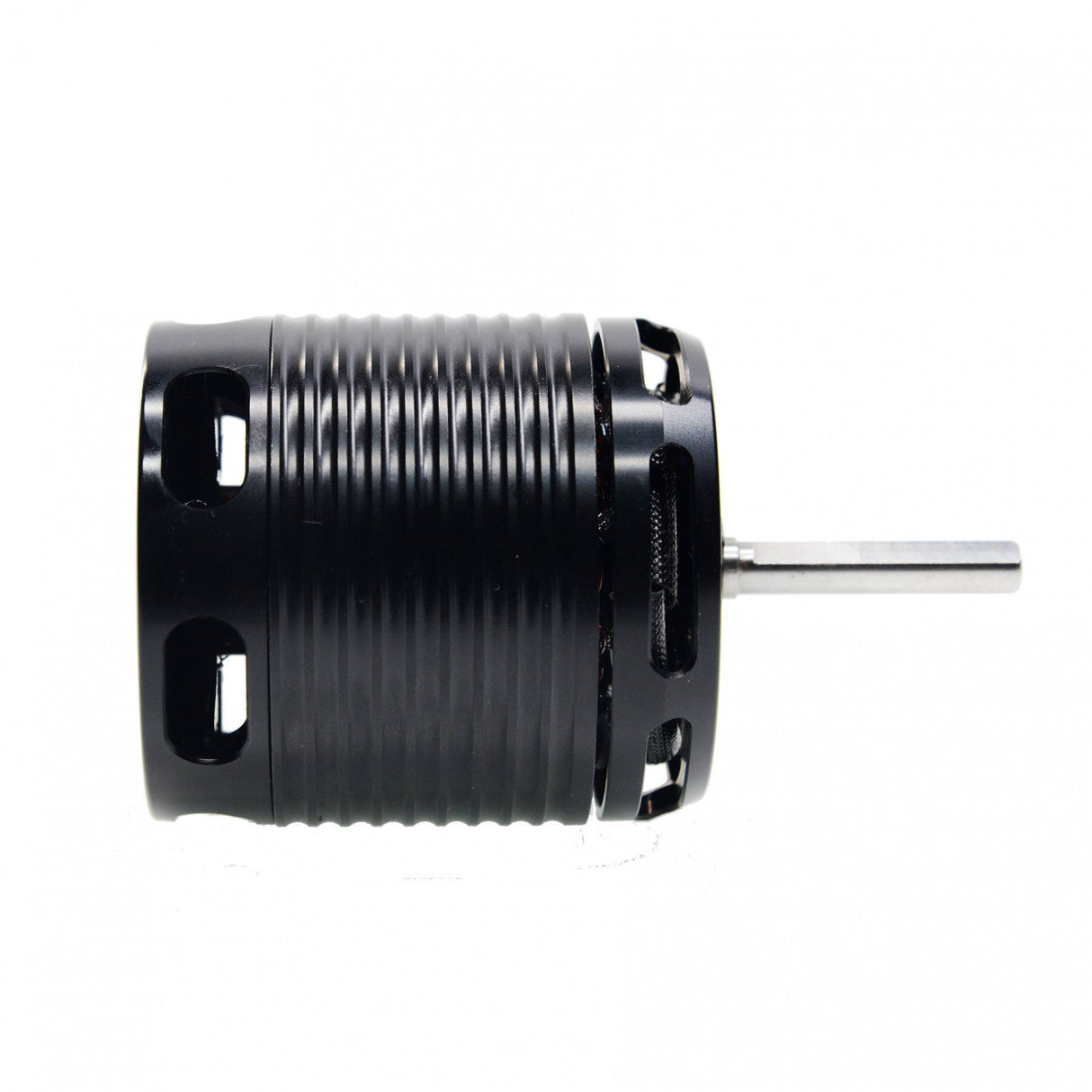

Hand-wound EGODRIFT Tengu 4525HT (High Torque) Series 530kV brushless motor for lightweight 700 class helicopters, such as the XLPower Specter NME Edition, SAB Goblin Raw 700, Tron 7.0, OXY Flash and others.

The all new Jason Russell Edition with 530kV fllls the gap between the existing 510 and 550kV options and with its low weight of only 470g and the ability to be ran on 130A speed controllers, plays perfectly into the trend of lightweight 700 performance machines. Ideal for those 9.5 to 10.0 gear ratios and recommended to be ran on a 9 degree fixed timing for the best efficiency (other timing options and gearings will work as well, of course).

Please select the correct external shaft length below:
35mm fits XLPower, SAB Goblin, Tron, SoXos models.
55mm fits Align, Mikado and Gaui models.

Full Disclaimer:
The following video and (playful) interview with Jason Russell was filmed live - and impromptu - during IRCHA in Munice, Indiana, and was shot right after the Jason Russell Edition was revealed to him. And while we are aware of the suboptimal audio quality - shout out (literally) to Leroy for the music - and satirical nature of the whole video (incl. its edit), we still wanted you to experience Jason's thoughts on the motor and its uses first hand, as well as to get to know the man behind it.

EGODRIFT Tengu high-performance brushless motor for RC Heli are the result of one year of development and testing. The 4525HT Jason Russell Edition Tengu comes with a kV rating of 530kV and is a great choice for the lightweight 700 models released by all major manufacturerers recently.

All CNC parts are processed in our EGODRIFT factory on our Japanese Tsugami precision CNC machines for the utmost in precision and quality. We apply the same high standards to all other components used in the making of this motor, so it features EZO bearings, a custom made stator and special high temperature copper wire.

External length of the shaft: 35mm or 55mm (please choose)

EGODRIFT Tengu 4525 HS/HT Product Dimensions
SPECIFICATIONS
  • Manufacturer: EGODRIFT
  • Stator size: 4525
  • Motor configuration: 12N10P
  • Motor weight: ~470g (16.58oz)
  • Wire colour: Copper
  • Motor wire type: High temperature copper wire
  • Motor kV: 530 kV
  • Motor shaft: Hardened Steel
  • Shaft diameter: 6.0 mm
  • Mounting hole pattern: 4xM4(30)

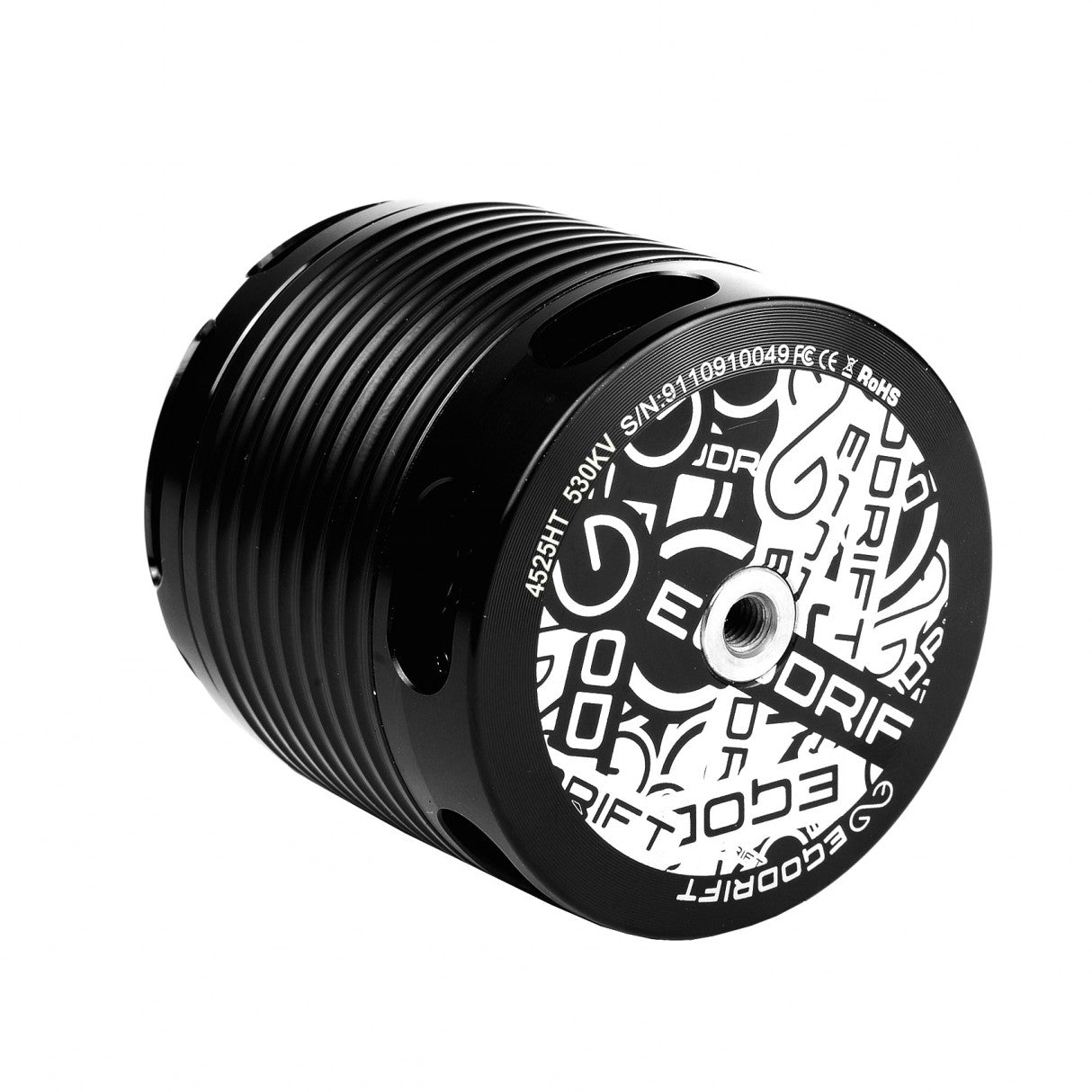

  • Laser Design: EGODRIFT Stickerbomb
  • LiPo cells: 12S, 14S
  • Stator diameter: 45 mm
  • Stator height: 25 mm
  • Stator lamination: 0.15 mm (+)
  • Body Length: 66.58mm (2.19 inch)
  • Diameter: 56.40 mm (2.22 inch)
  • Idle current: 3.6A
  • Maximum Current: 135A (Peak: 240A / 2 seconds)
  • Maximum Power: 6400W (Peak: 11500W / 2 seconds)
  • Internal resistance: 12 mOhm
  • Connection: Wire / Gold plated plugs
  • Designer: Yutao Zou

What's in the box

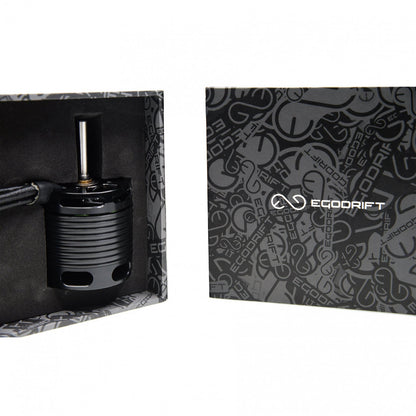

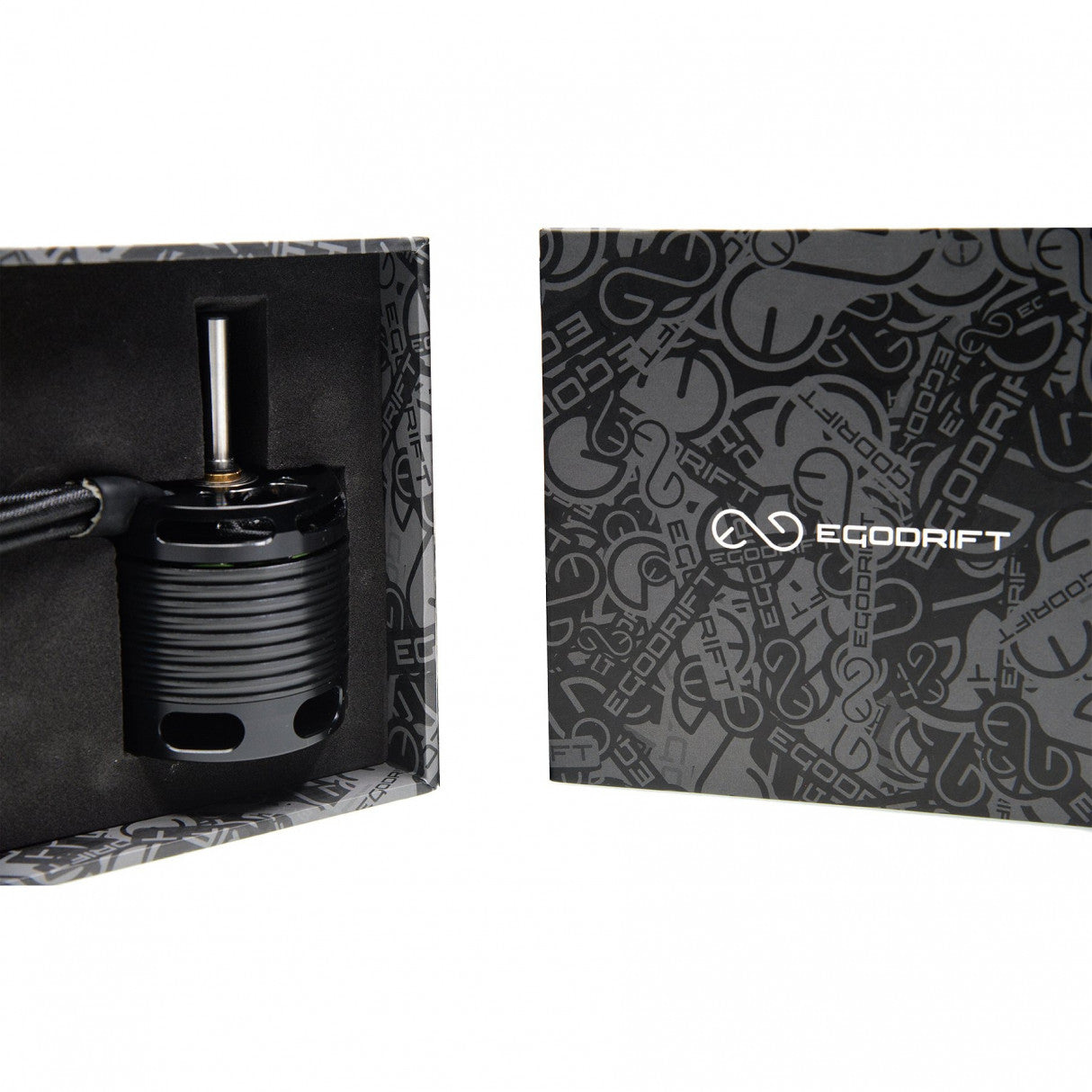

  • 1x Tengu 4525 HT Series/530kV motor
  • 35mm or 55mm exterior length shaft (please choose)
  • 3 x Gold plated connectors, Male
  • 3 x Gold plated connectors, Female
  • 4 x Mounting screws
  • 1 x Bell securing screw
