EGO-11973 Egodrift TENGU 4730 / 540KV (12-14S) (6x35)
EGO-11973 Egodrift TENGU 4730 / 540KV (12-14S) (6x35)
Couldn't load pickup availability
EGO-11973 Egodrift TENGU 4730 / 540KV (12-14S) (6x35)
The Tengu 4730EC Eclipse features world's first 0.1mm stator lamination by EGODRIFT for unprecedented torque and efficiency and sets the new standard for your 700 size helicopter.
Choose from 540Kv and 520Kv versions - or get in touch with us for custom winds as usual (at no extra charge).
Available shaft versions: 6x35mm and 6x55mm (8x5mm planned)
The 4730EC model of the Eclipse Series sets a new standard for power and efficiency. With an improved internal 8mm shaft diameter and enlarged bearings, it’s designed to handle immense torque effortlessly.
The 540KV version weighs only 554 grams, a mere 34 grams more than its 4530HT counterpart, despite its 2mm wider stator and increased shaft and bearings diameter. Perfect for pilots who demand top-tier performance, the 4730EC ensures cooler operation, enhanced efficiency for longer flight times, and a smooth, linear throttle response.
Key Features:
- World’s first 0.1mm stator laminations for unmatched efficiency
- Robust 8mm internal shaft and larger bearings
- Superior torque and power with cooler running temperatures
- Ideal for high-demand flight conditions
Available Kv versions:
- 540Kv
- 520Kv
- Additional Kv versions available on demand
Available shaft versions:
- 6x35mm (SAB, XLPower, Goosky, Omphobby, SoXos and others)
- 6x55mm (Align, Gaui, Scale)
- (8x55mm planned)
World’s First 0.1mm Lamination Heli Motors – Introducing the EGODRIFT 47EC Eclipse Series
Meet the all-new 4730EC and 4726EC Eclipse Series – the first and only heli motors in the world to feature revolutionary 0.1mm stator laminations, delivering unprecedented smoothness, efficiency, and responsiveness.
The reduced eddy currents and cleaner commutation result in a near-instantaneous throttle response and yet improved efficiency and performance. Experience a new generation of power, torque, and control with the 47EC Eclipse Series.

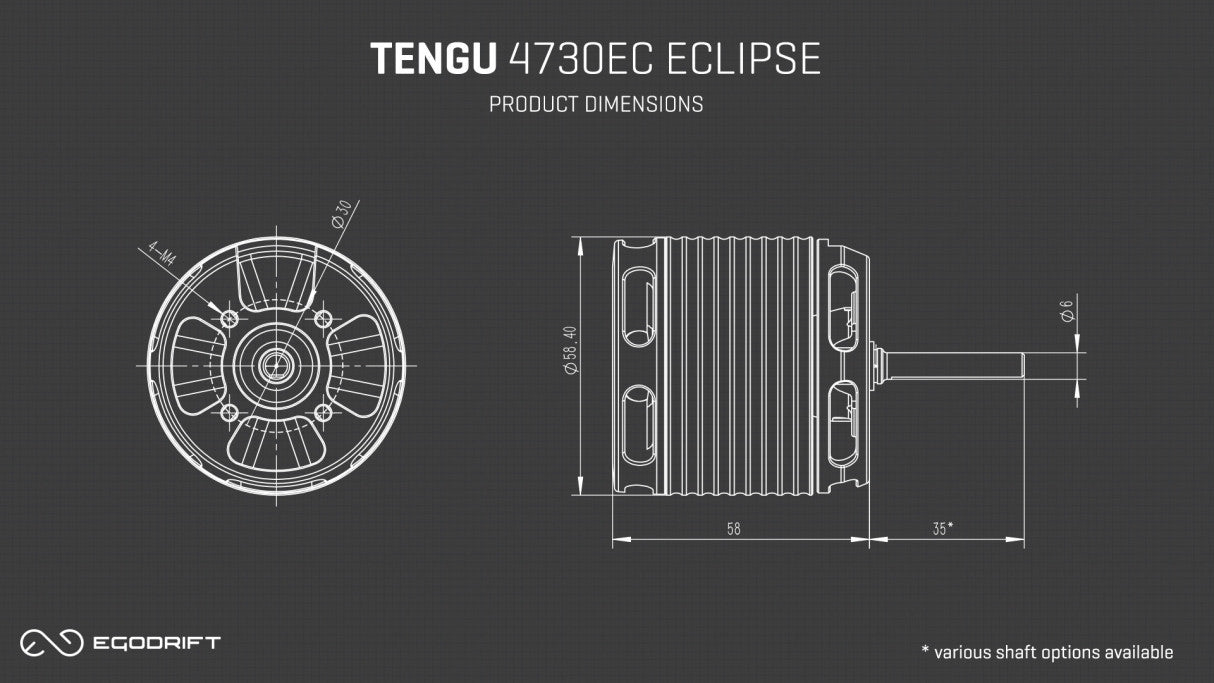

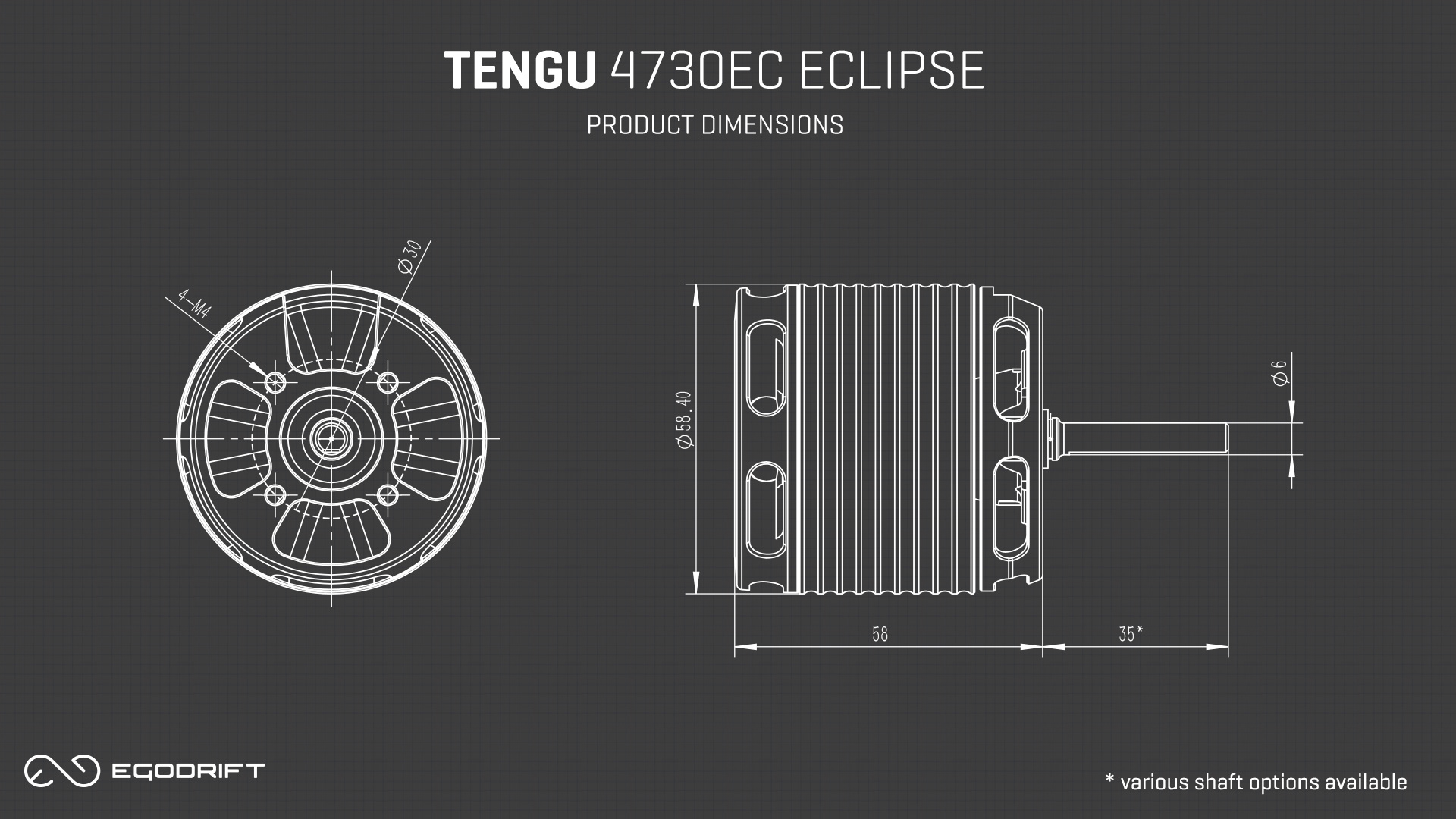

- Specifications:
-
- Manufacturer: EGODRIFT
- Stator size: 4730
- Motor configuration: 12N10P
- Motor weight: 554g (540Kv version)
- Motor wire type: High temperature copper wire
- Motor shaft: Hardened Steel
- Mounting hole pattern: 4xM4(30)
- Laser Design: EGODRIFT Stickerbomb
- LiPo cells: 12S, 14S
- Stator diameter: 47 mm
- Stator height: 30 mm
- Stator lamination: 0.1 mm (++)
- Body Length: 58.00 mm
- Diameter: 58.40 mm
-
Connection: Gold Plated Amass Bullet Connectors

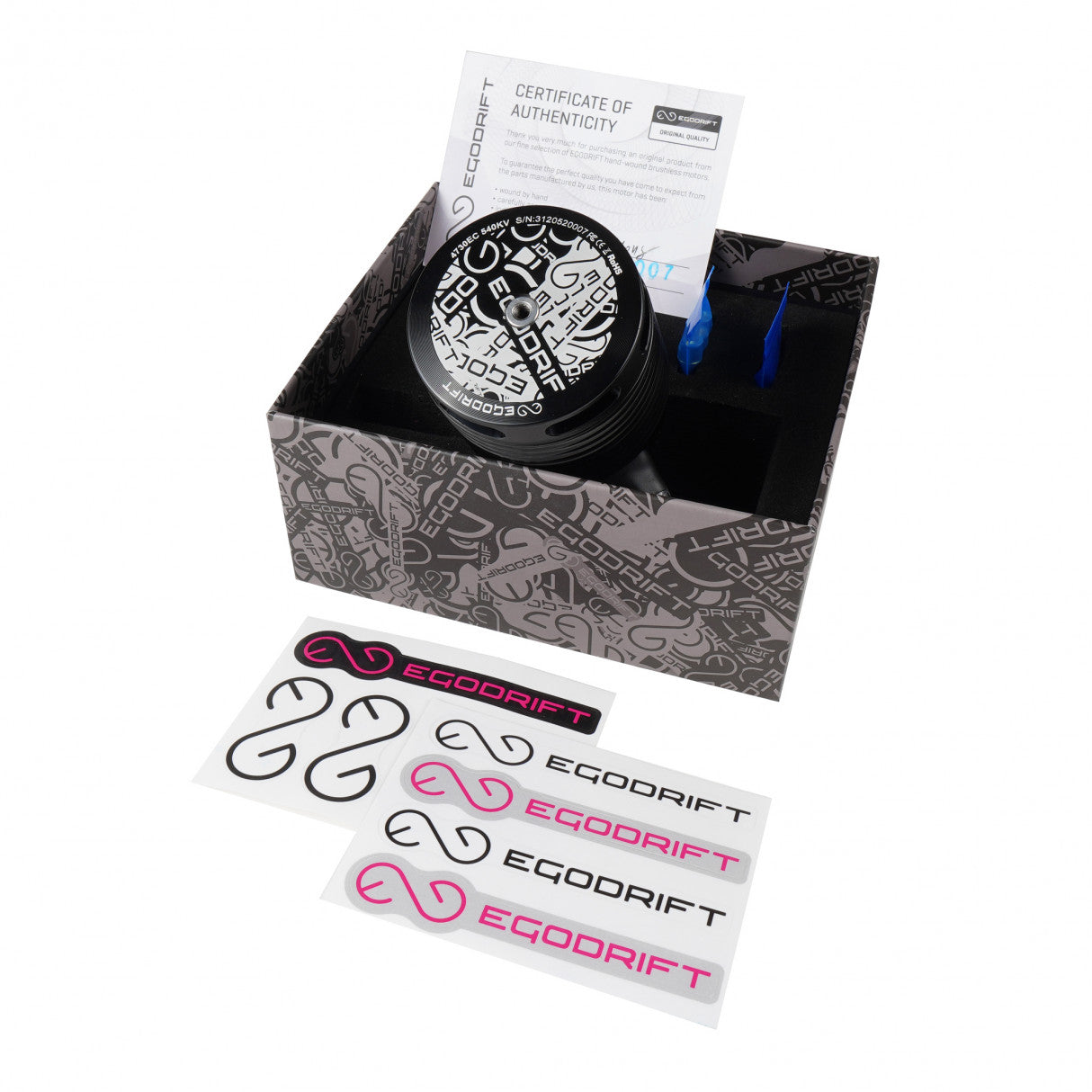

What's in the box
- Tengu 4730EC Eclipse Motor
- 3 Pairs Gold Plated Amass Bullet Connectors
- Mounting screws (generic, please ensure fit to your model)
- 2x EGODRIFT Decal Sheets
- Individual Certificate of Authenticity
