FD-PRO-ICM42688 Steam FlyDragon Pro Rotorflight ICM 42688 F722 FBL (Black/Red/Purple)

FD-PRO-ICM42688 Steam FlyDragon Pro Rotorflight ICM 42688 F722 FBL (Black/Red/Purple)

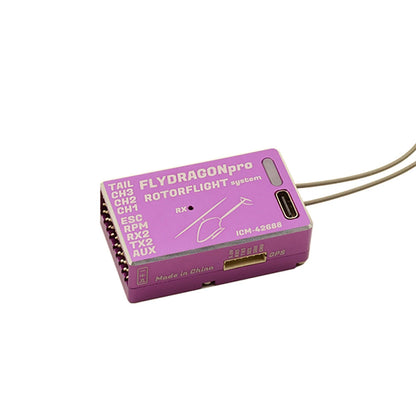

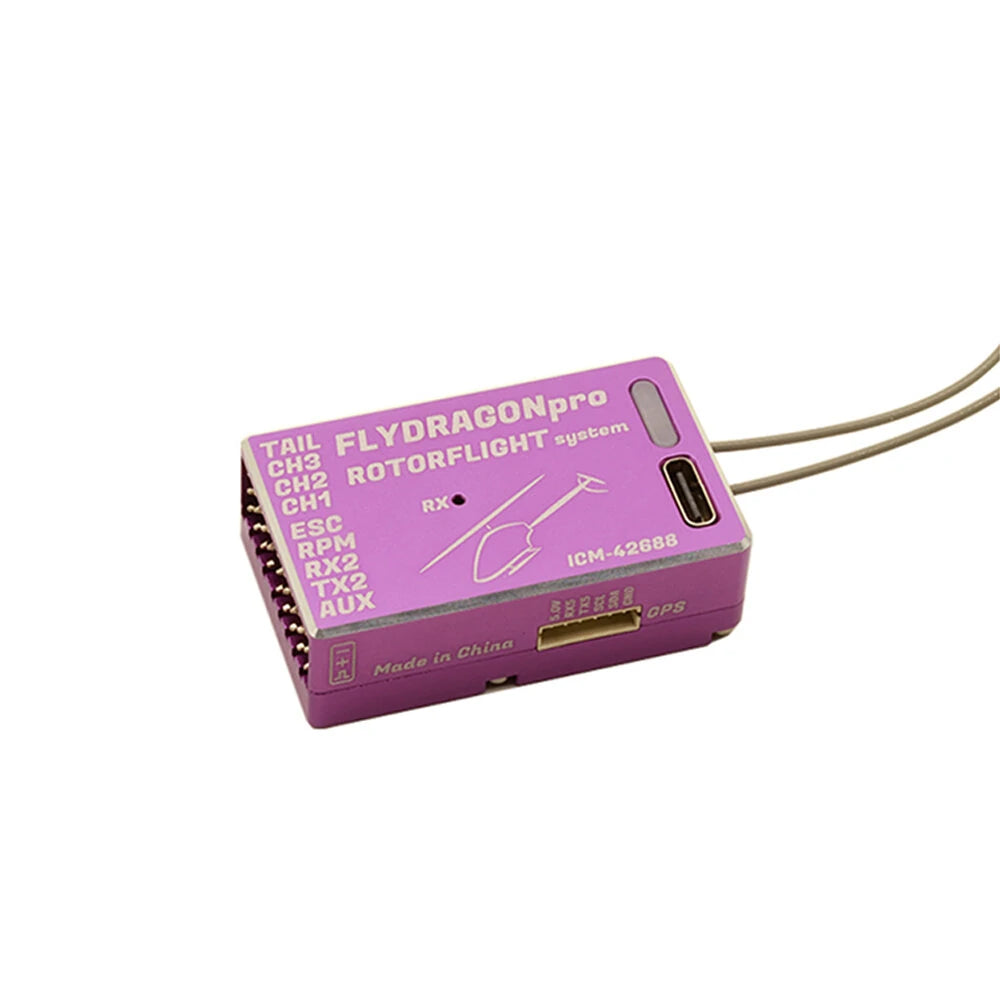

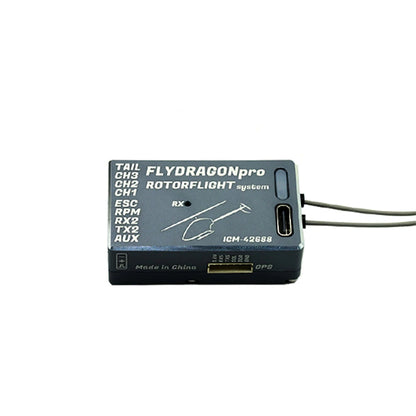

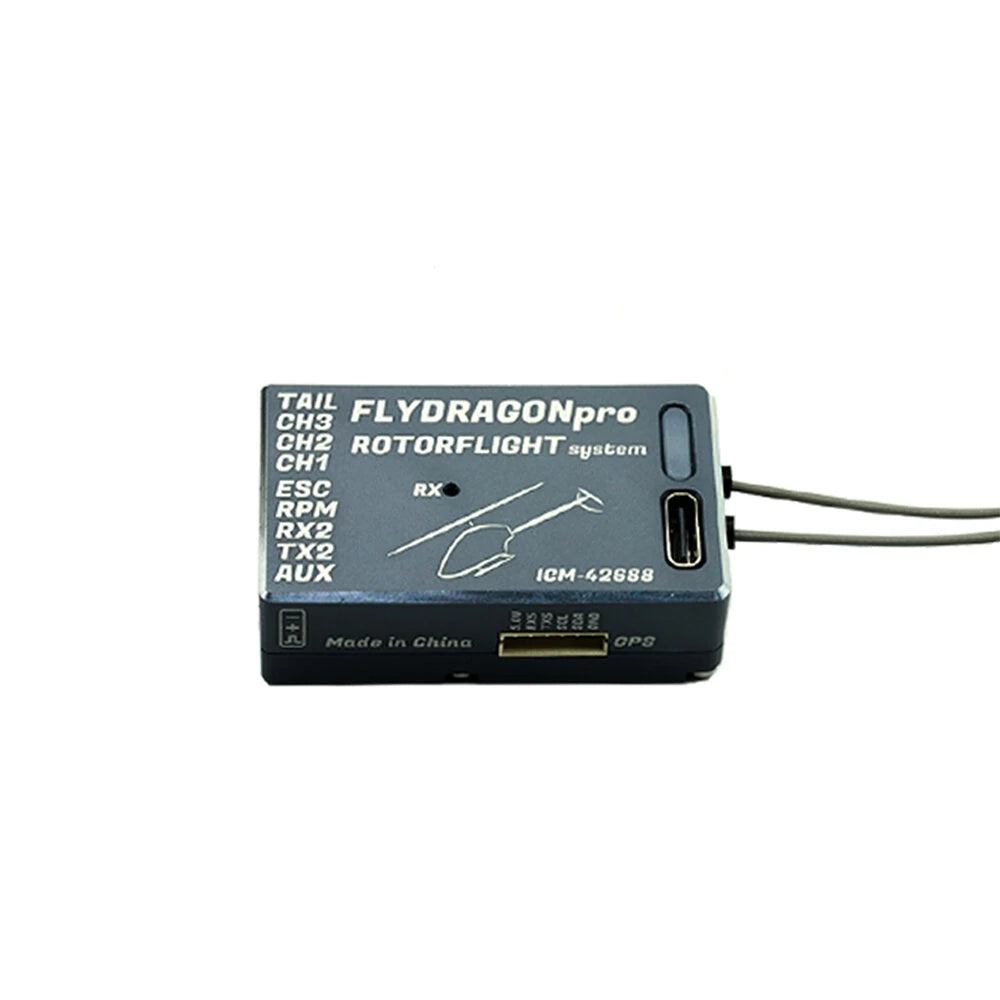

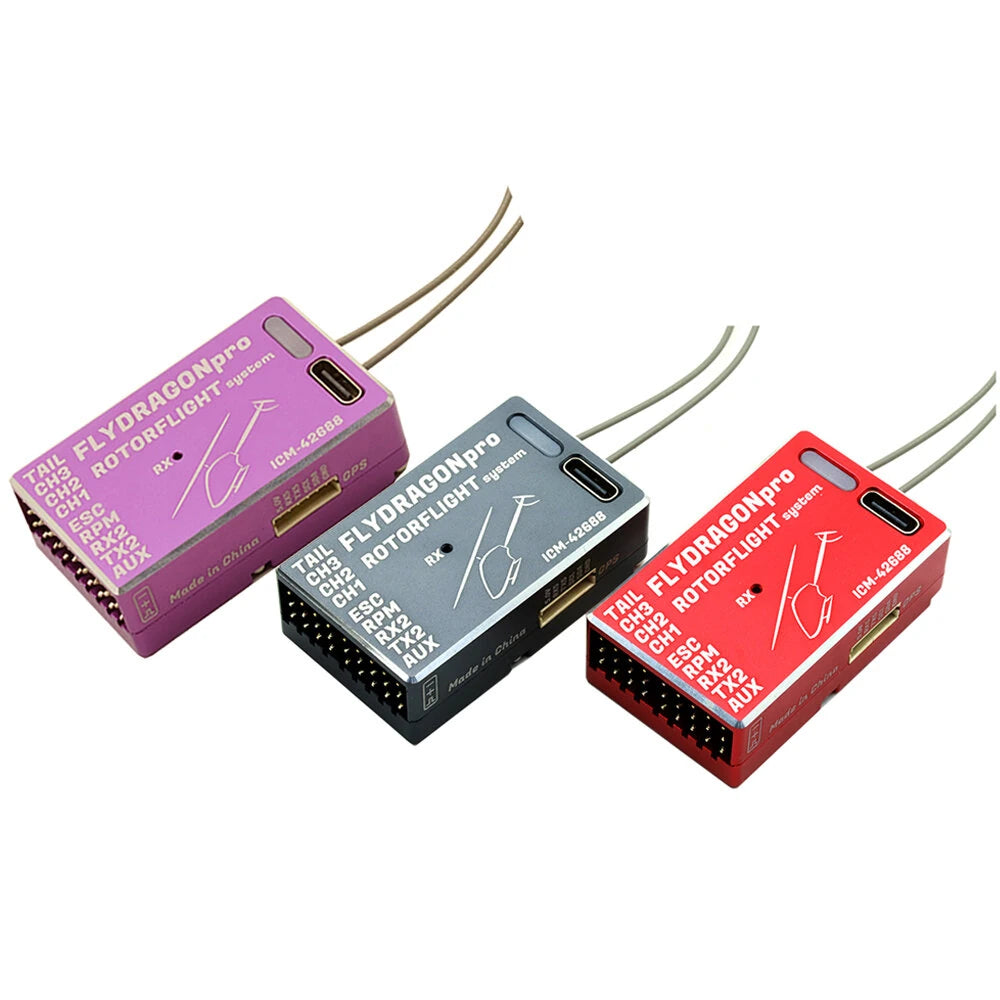

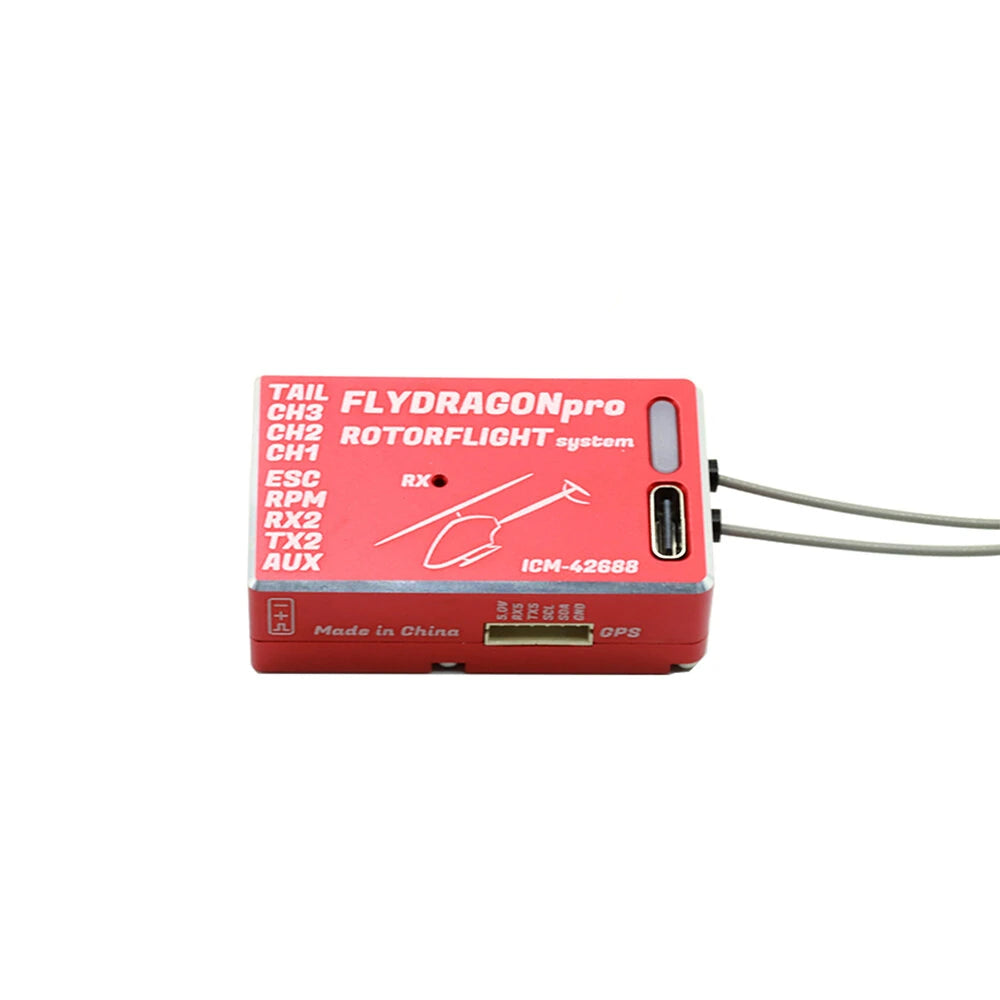

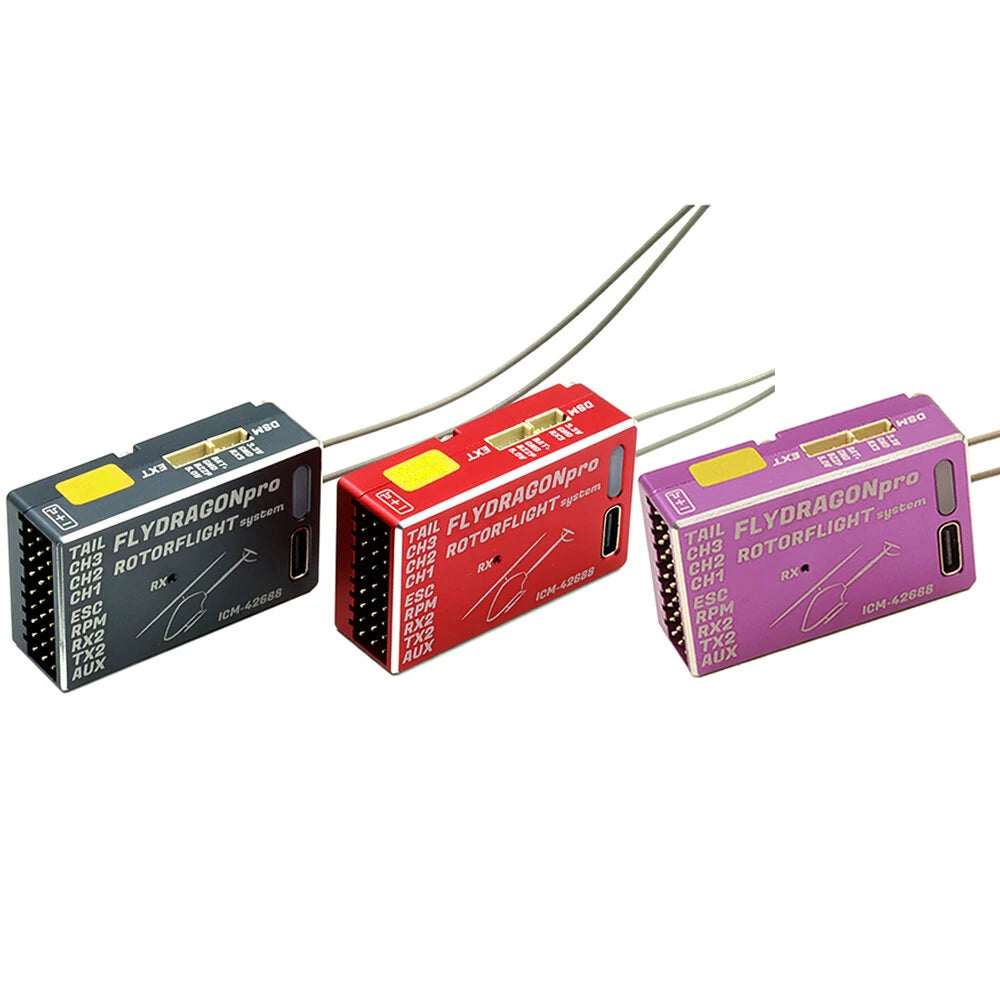

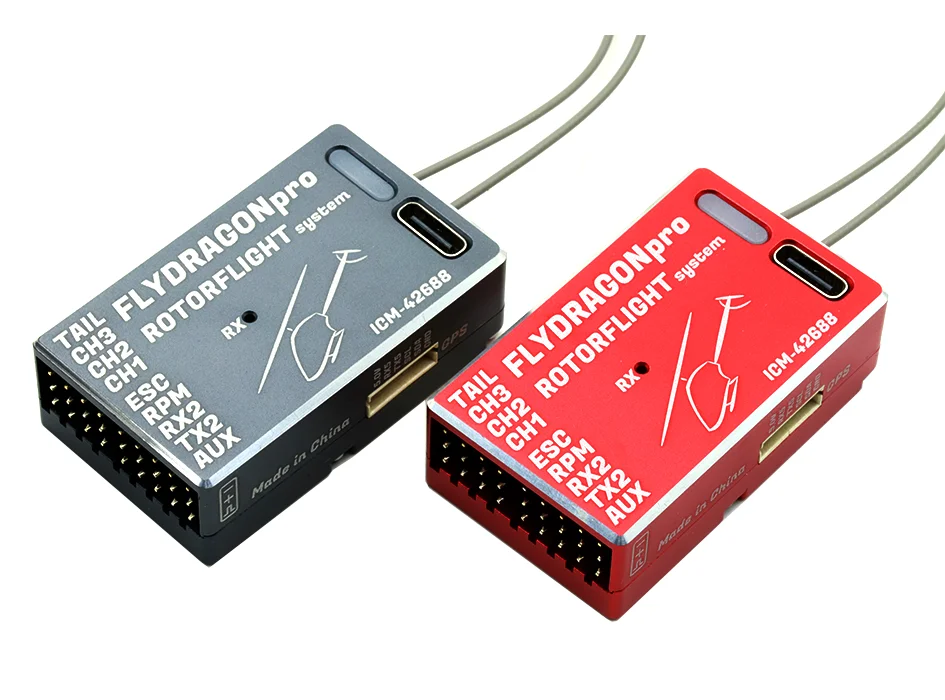

This is the latest updated version of the FlyDragon, PRO. Available in three anodized case colors.

The FLYDRAGON Pro gyroscope uses the open source Rotorflight firmware, which is based on Betaflight 4.5 and enjoys all the power of the Betaflight platform, as well as many new features added to the helicopter, Rotorflight also borrows ideas and code from Heliflight3D.

「Rotorflight Address」

• Link：https://github.com/rotorflight
• Flight mode: Self-stabilizing mode, semi-self-stabilizing mode, 3D mode, rescue mode.
• Hardware Configuration：
• Master Control：STM32F722RET6
• Gyroscope： ICM-42688-P
• Black Box：W25N01G（128MB）
• Barometer：SPL06-001（I2C2）
• Light：WS2812B
• Buzzer：5V Buzzer
• USB：Type-C
• Serial Port：UART2，UART3，UART5
• I2C：I2C1
• ADC：ADC_BATT（0-62V），ADC_BEC(0-30V)，ADC_BUS(0-8V)
• Servo Channel：CH1-CH2-CH3-TAIL
• Speed Input：RPM
• Accessory Channel：AUX
• Built-in Receiver：ELRS Two-antenna Receiver 2.4G（Serial Port1）
• External Receiver：TBS CRSF, Futaba S.BUS, Futaba S.BUS2, FrSky F.PORT, FrSky F.PORT2, FrSky FBUS, Spektrum DSM/1024, Spektrum DSM/2048, Spektrum DSMSRXL, Spektrum DSMSRXL2, ImmersionRC GHOST, Graupner SUMD, Graupner SUMH, Flysky IBUS, JR XBUS Mode A, JR XBUS Mode B, JR XBUSIRJ01, Jeti EXBUS, CPPM
• BEC Voltage：5-18V
• 5V Power Output：5V-2A
• ESC Protocols：PWM, ONESHOT125, ONESHOT42, MULTISHOT, BRUSHED, DSHOT150, DSHOT300, DSHOT600, PROSHOT, CASTLE
• ESC Telemetry：BLHeli32, Hobbywing Platinum V4 / FlyFun V5, Hobbywing Platinum V5, Scorpion, Kontronik, OMPHobby, ZTW, APD,OpenYGE, FLYROTOR, Graupner, XDFLY
• Size：45x27x14.5mm
• Weight：27g
