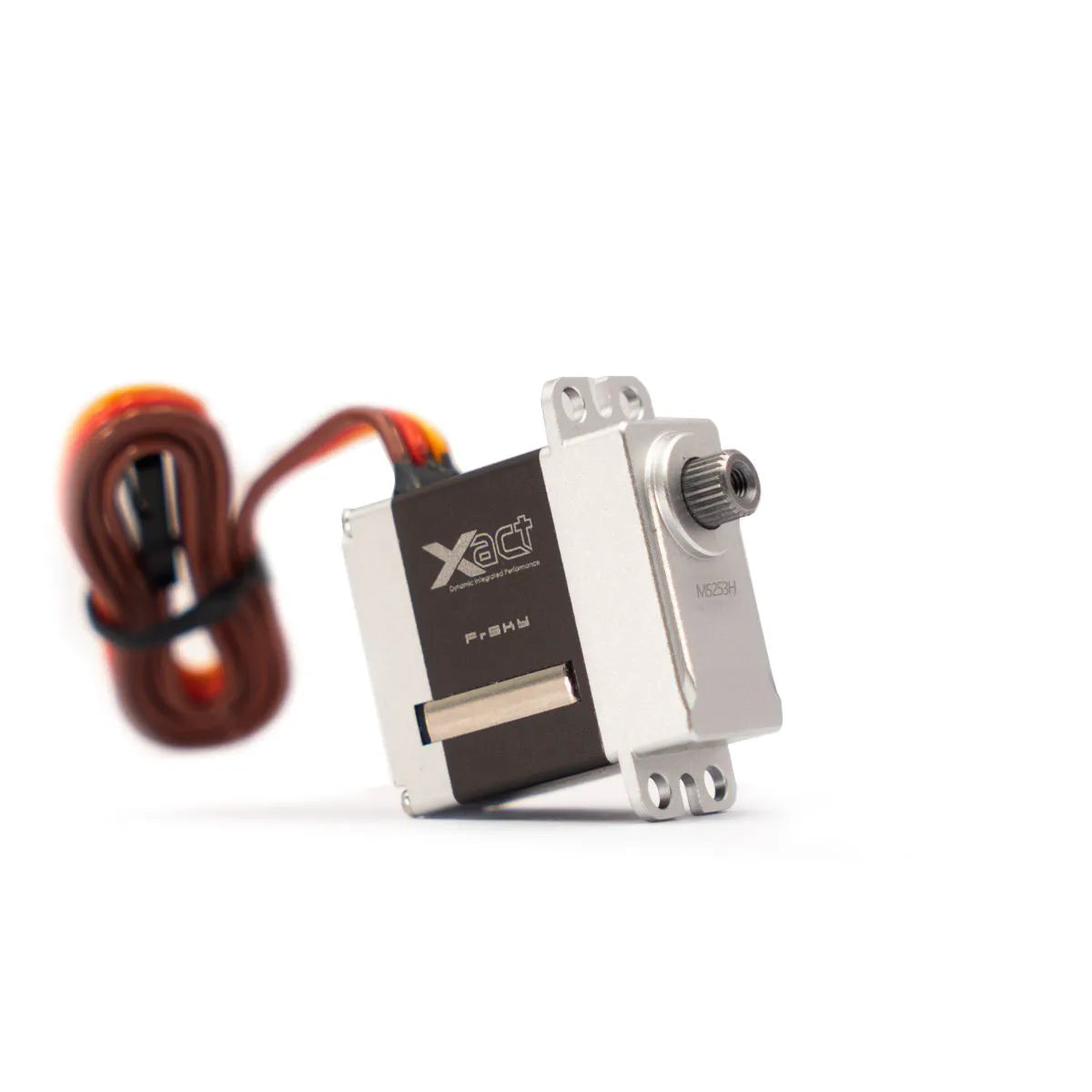

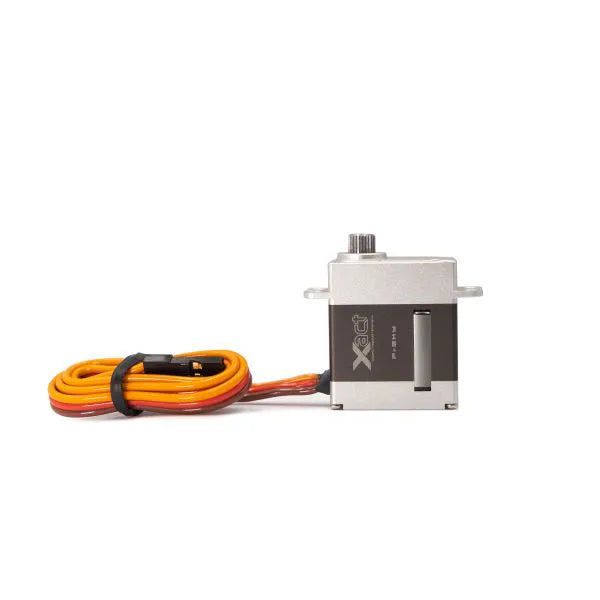

FrSky Coreless Xact 5200 Series Servos Micro HV 8.4V Capable M5251H / M5252H / M5253H

FrSky Coreless Xact 5200 Series Servos Micro HV 8.4V Capable M5251H / M5252H / M5253H

Do you want a great set of micro programmable HV servos for 380/420 size RC Helicopters? Try the new M5251H on Tail, and M5253H on Cyclic.

FrSky XACT Servos can be programmed in three different ways.

1. You can use any FrSky Archer/TD/TW to program them using FBUS
2. Plug them directly into FrSky Radio 3pin servo port on top of radio
3. Purchase the FrSky STK USB Toolkit (install FrSky FreeLink app and drivers) to program them ( https://www.frsky-rc.com/stk/ )

Yes you can adjust the 1520/760us pulse width, and program the neutral center point.

The Xact series coreless servos utilize a fully CNC machined aluminum protective case and benefit from metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance. The Xact series servos are available in multiple form factors and configurations to fit many different model types especially where power, reliability, and precision are required.

These high-quality servos support the FBUS protocol, which allows telemetry data (like real-time current, voltage, temperature, etc.) of Xact servos to be transmitted back to the radio by connecting either FBUS capable receiver or flight controller. The Xact servos offer configurable servo travel (90° / 120° / 180°). Servo travel along with other options are now available to be set via the ETHOS Xact configuration tool or the Freelink app.

FEATURES:

• Supports F.Port 2.0 (FBUS), SBUS and PWM protocol
• High durability with metal gear and all-aluminum CNC machined protective case
• 8.4V high voltage capable operation with good speed performance
• Built-in dual precision balls bearing with hall sensor
• Supports over-current and over-hot monitor and alarm
• Updatable firmware ensures the performance superior

SPECIFICATIONS:
