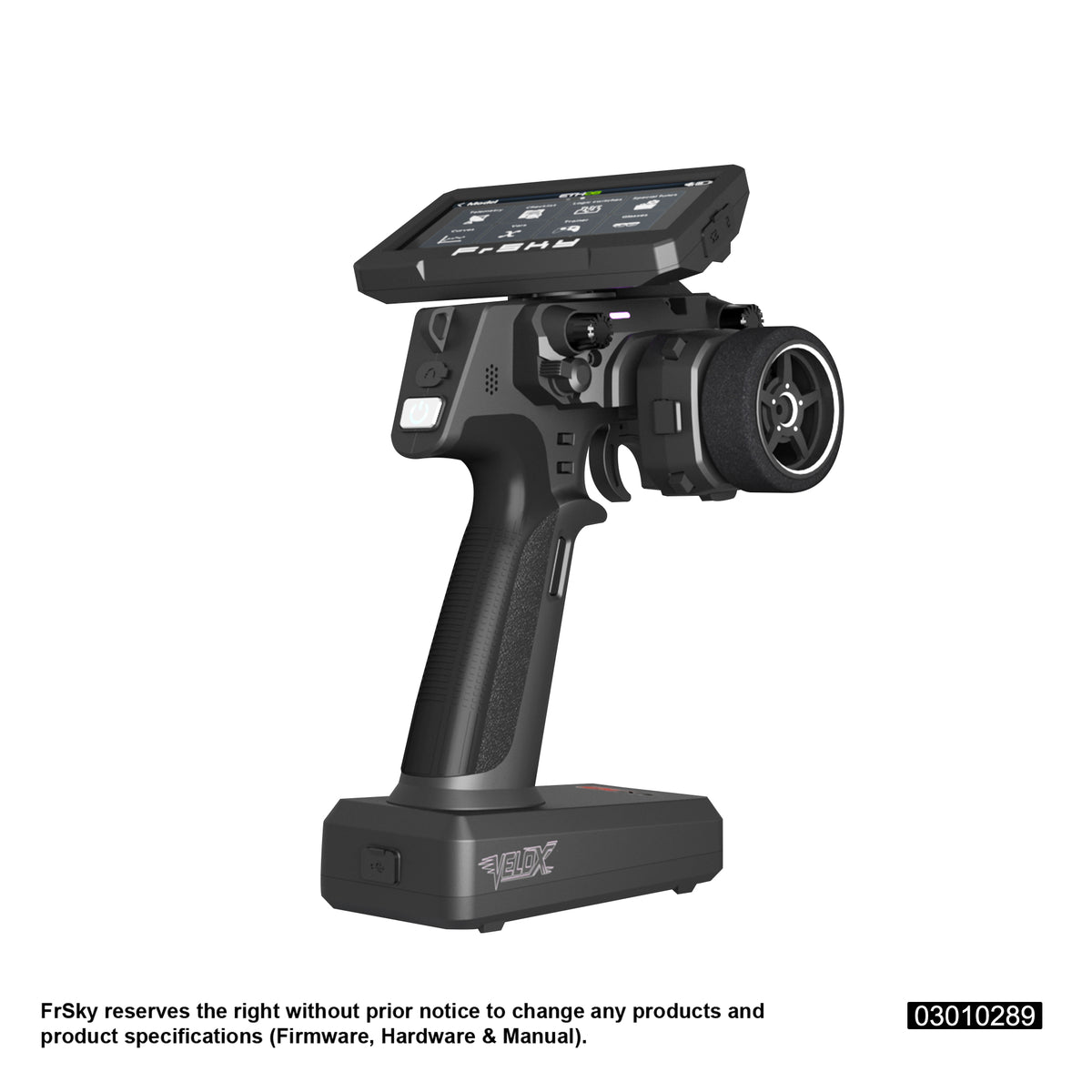

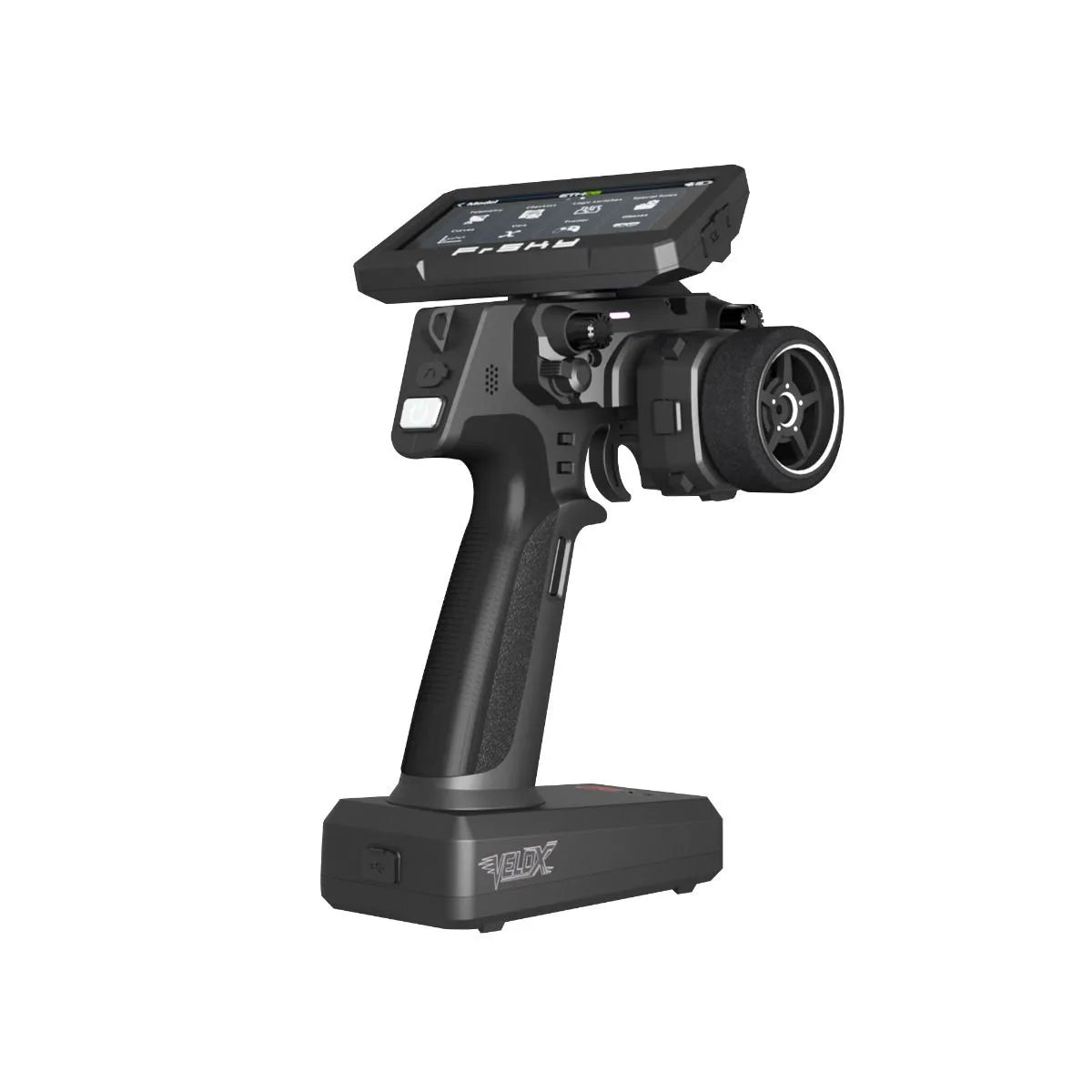

FrSky VELOX VX10 Surface Radio

FrSky VELOX VX10 Surface Radio

The FrSky VELOX VX10 in Meteorite Grey combines ETHOS Surface Edition, dual-band RF technology, and adjustable left- or right-handed controls for RC cars and boats. A battery is included.

ETHOS Surface Edition & Flexible RF Module Solutions

The VELOX VX10 features an ETHOS operating system specifically optimized for RC cars and boats. Its surface-focused interface helps reduce the learning curve while providing extensive configuration flexibility and low-latency control.

The built-in 900MHz/2.4GHz TD-ISRM RS RF module supports FrSky receivers using TD, TW, ACCESS, and ACCST D16 protocols. A Lite-type external module bay allows additional compatible RF or functional modules to be installed.

Ambidextrous Controls & Comprehensive Adjustments

The steering wheel module and external RF module can be swapped using screws to configure the radio for left- or right-handed operation. The 180° rotatable color touchscreen adapts to either layout for convenient setup and use.

The steering wheel offers adjustable inward and outward travel, up to 26° in each direction, with positioning through damping holes. Dedicated adjustment points allow steering spring tension to be tailored to your preferences.

The throttle/brake trigger supports multiple sizes and a convenient replacement system. Adjustable fore/aft mounting positions help accommodate different hand sizes. An optional metal trigger is available separately.

The steering wheel module and grip provide two knobs, two three-position switches, four momentary buttons, and six trim buttons. T5, T6, and SF controls are mirrored on both sides of the grip to preserve access in either handed configuration.

Storage, Connectivity & Charging

Built-in flash storage and a TF card slot provide expandable storage. S.Port supports configuration and firmware upgrades for compatible FrSky devices.

Connect through USB-C to use FrSky Suite for system updates, file management, and model configuration. USB-C also supports charging a compatible 2S lithium battery, while the large battery compartment accommodates compatible higher-capacity options.

A built-in speaker and 3.5mm headphone jack provide audio output.

Features

• ETHOS operating system optimized for surface radios
• Built-in 900MHz/2.4GHz TD-ISRM RS RF module
• Supports TD, TW, ACCESS, and ACCST D16 modes
• Lite-type external module bay for additional compatible modules
• Swappable steering and external RF modules for left- or right-handed operation
• 180° rotatable, high-brightness color touchscreen with 800 × 480 resolution
• Mirrored trim controls and momentary button on both sides of the grip
• Built-in flash storage and TF card expansion slot
• S.Port interface for compatible device configuration and upgrades
• High-speed PARA wireless training system
• USB-C for 2S Li-ion battery charging, system updates, and data transfer
• Multiple trigger sizes with adjustable fore/aft positioning
• Optional metal trigger available separately
• Adjustable steering spring tension, inner/outer deflection angles, and positioning damping
• Two knobs, two three-position switches, four momentary buttons, and six trim buttons
• Built-in speaker and 3.5mm headphone jack
• Large battery compartment for compatible battery capacity upgrades
• Supports an optional one-handed control accessory
• Battery included

Specifications

• Color: Meteorite Grey
• Dimensions: 192 × 193 × 72 mm (L × W × H)
• Weight: 560 g, including battery
• Operating system: ETHOS
• Internal RF module: TD-ISRM RS
• Display: 4.3-inch touchscreen, 800 × 480 resolution
• Channels: Up to 24
• Operating voltage: 6.5–8.4V, 2S lithium battery
• Typical operating current: 400mA at 7.4V
• Operating temperature: −10°C to 60°C / 14°F to 140°F
• Battery bay: 93.5 × 55 × 21.5 mm (L × W × H)
• Data and charging interface: USB Type-C
• USB adapter voltage and current: 5V + 0.2V, ≥2.0A (as specified by the manufacturer)
• Compatibility: ACCST D16, ACCESS, TW, and TD modes
• Battery: Included
• Soft case: Not included; available later as a separate accessory

Frequently Asked Questions

When will my preorder ship?
Stock is expected to arrive in mid-to-late November 2026. Your order will ship after we receive it. Timing may change based on production and delivery.

When is payment collected?
Full payment is collected at checkout when you place your preorder.

Can the VX10 be configured for left-handed use?
Yes. The steering and external RF modules can be swapped, and the touchscreen rotates 180°.

Does this model include HDMI or AV video features?
No. Those features apply to the separate VX10 HD edition. This listing is for the standard VX10.

Is a battery included?
Yes, a battery is included.

Is a soft case included?
No. A soft case will be available later as a separate accessory.

Watch the FrSky VELOX Announcement

The announcement covers both the VX10 and VX10 HD. This listing is for the standard VX10 in Meteorite Grey.

Product Resources

• Official FrSky Product Page
• VELOX VX10 Hardware Manual
• Watch on YouTube
