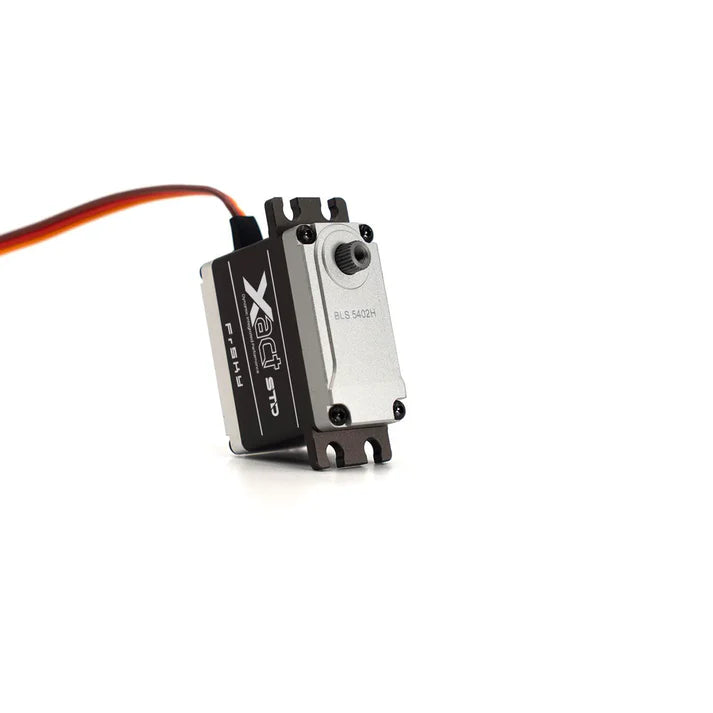

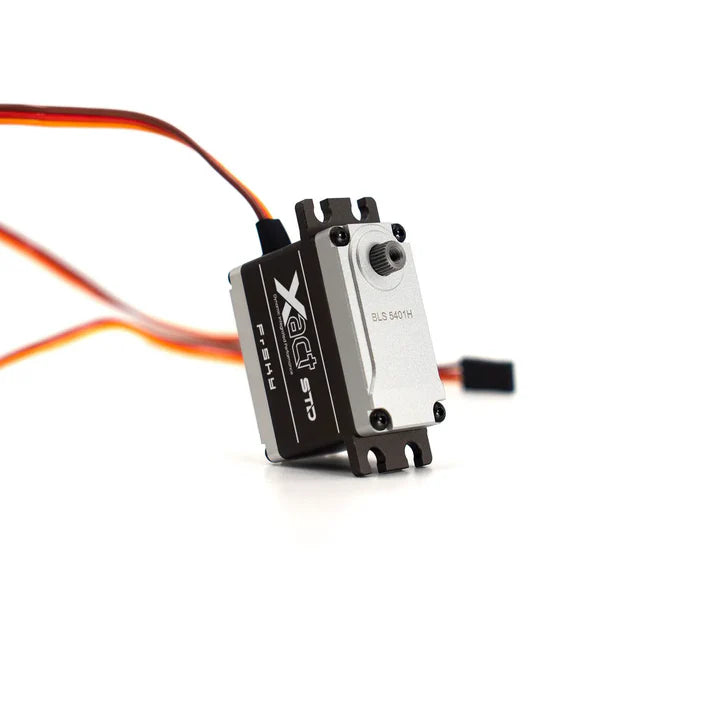

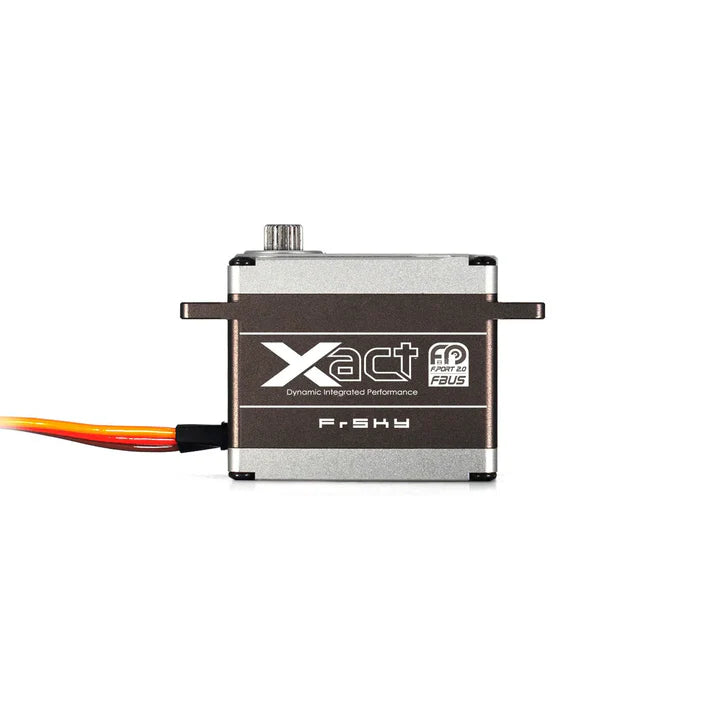

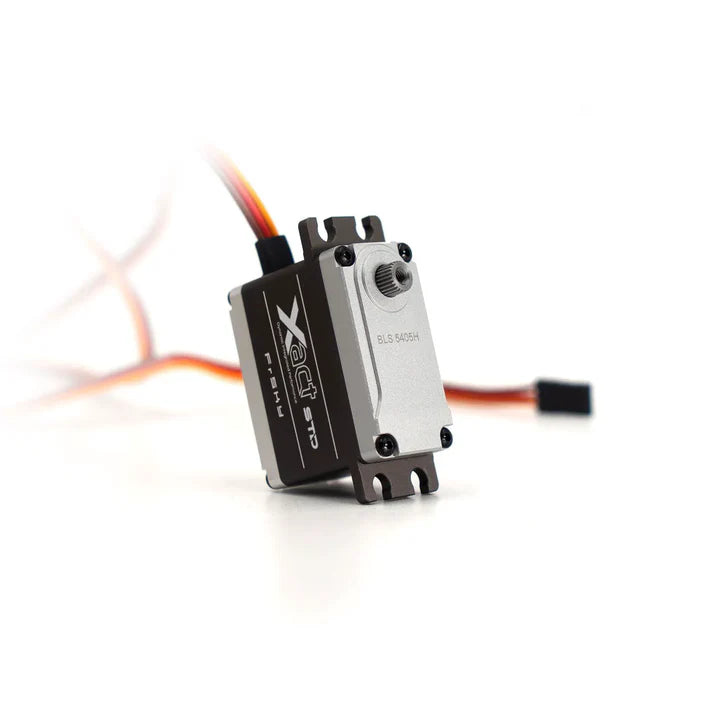

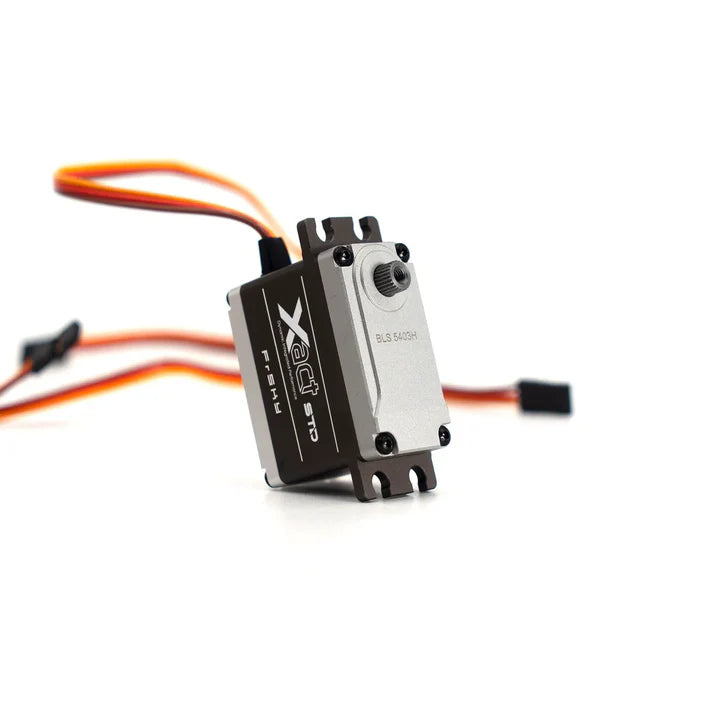

FrSky Xact Brushless 5400 Series Servo ( BLS5401H / BLS5402H / BLS5403H / BLS5404H / BLS5405H)

FrSky Xact Brushless 5400 Series Servo ( BLS5401H / BLS5402H / BLS5403H / BLS5404H / BLS5405H)

Do you want a great set of full size brushless programmable HV servos for 500+ size RC Helicopters? Try the new BLS5401 on Tail, and BLS5402 on Cyclic.

FrSky XACT Servos can be programmed in three different ways.

1. You can use any FrSky Archer/TD/TW to program them using FBUS
2. Plug them directly into FrSky Radio 3pin servo port on top of radio
3. Purchase the FrSky STK USB Toolkit (install FrSky FreeLink app and drivers) to program them ( https://www.frsky-rc.com/stk/ )

Yes you can adjust the 1520/760us pulse width, and program the neutral center point.

Compares to Xact coreless servo lines, the Xact brushless servos feature faster speed with higher torque performance, but a smaller form factor. The Xact series utilizes all CNC machined aluminum protective cases and metal gears and offers multiple configurations to fit for different model types and precision usage.

Working with the FBUS (F.Port 2.0) protocol, the telemetry data (like real-time current and voltage) of Xact servos can be achieved and transmitted back to the radio by connecting either FBUS capable receiver or flight controller. All the preset servo travel degrees can be changed directly on an ACCESS-capable radio (via ETHOS or LUA script) through the host device of the FBUS line.

FEATURES

• Supports FBUS (F.Port 2.0), SBUS and PWM protocol
• High durability with metal gear and all-aluminum CNC machined protective case
• 8.4V high voltage capable operation with high speed and big torque performance
• Built-in dual precision balls bearing with hall sensor
• Supports telemetry feedback(Current, Voltage, and Temp.)through FBUS mode
• Updatable firmware ensures the performance superior

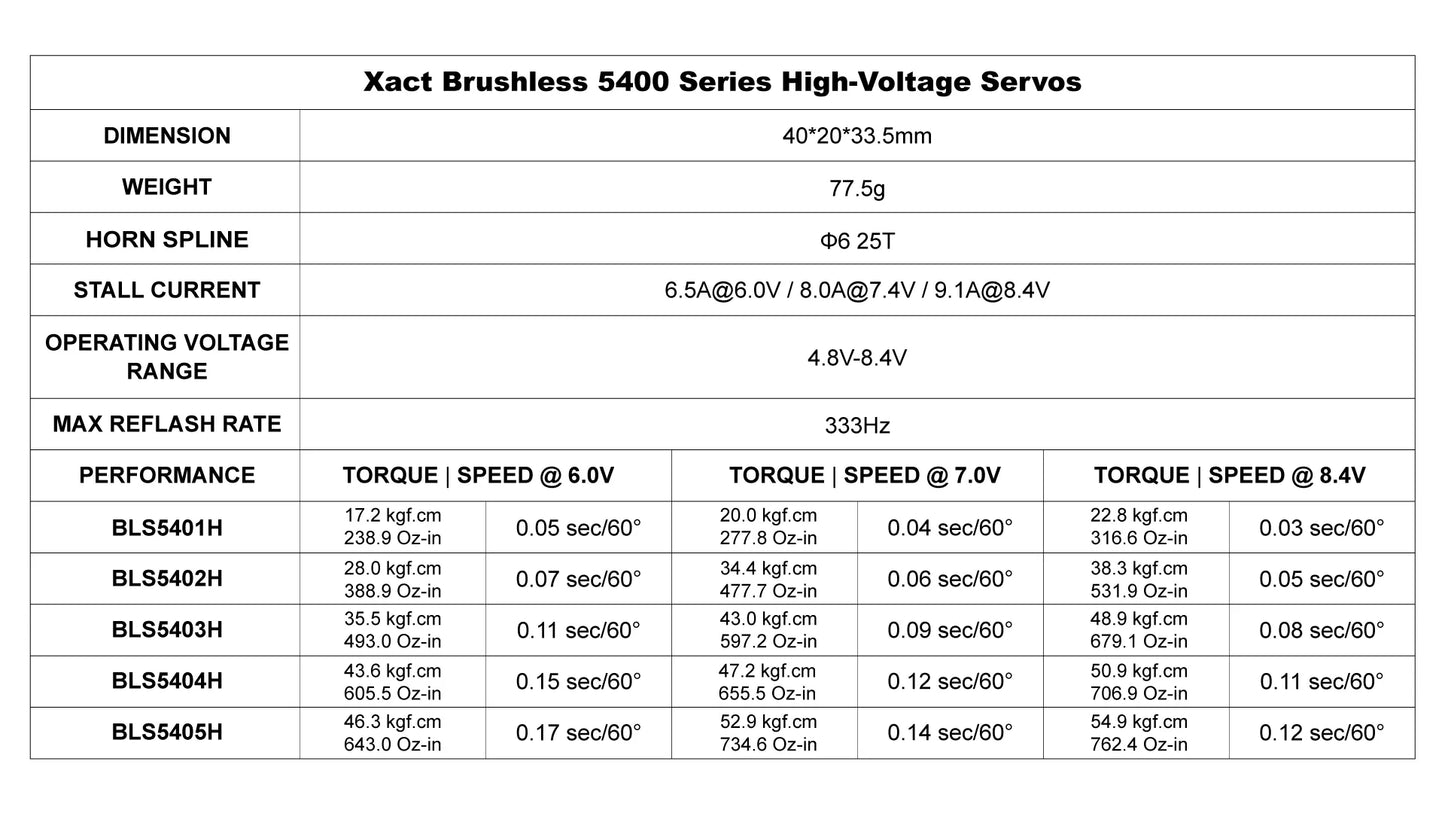

SPECIFICATIONS
