FrSky TW Mini Receiver——Resilience and long-range communications, typically tens of kilometers are achievable

TWIN series TW Mini receiver features a new stable TW protocol that benefits from simultaneously integrating dual active 2.4G frequency bands. The TW active-active protocol is different from the general active-standby redundancy solutions (where one receiver takes over signal control only when the other is in Failsafe mode), with the TW protocol, dual 2.4G frequency bands are active on the TW series receiver at the same time.

This receiver is designed for RC users who want to benefit from resilience and long-range in their radio communications, typically tens of kilometers are achievable. The TW Mini receiver is lightweight and tiny, making it suitable for building into racing drones or airplanes with limited installation space and weight constraints.

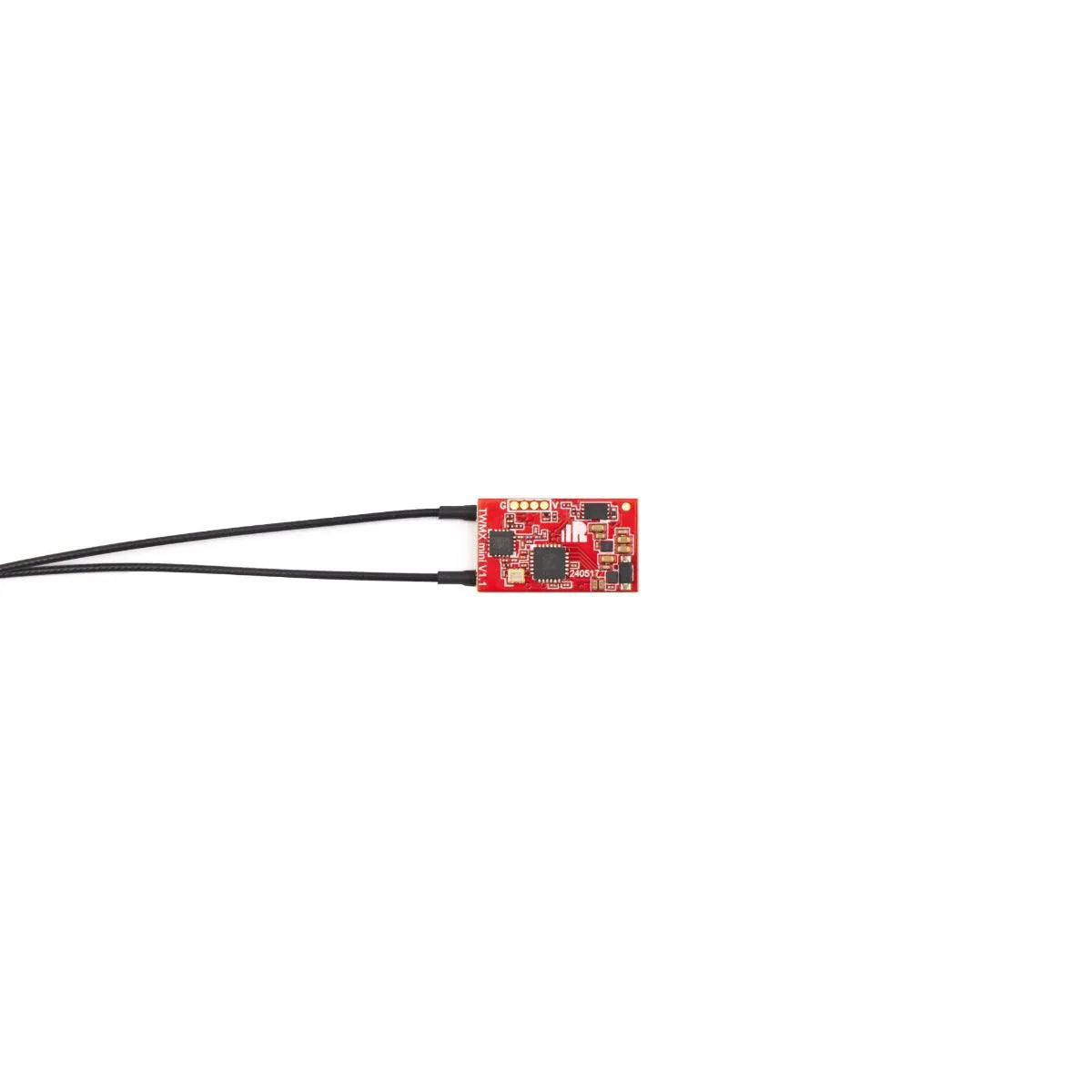

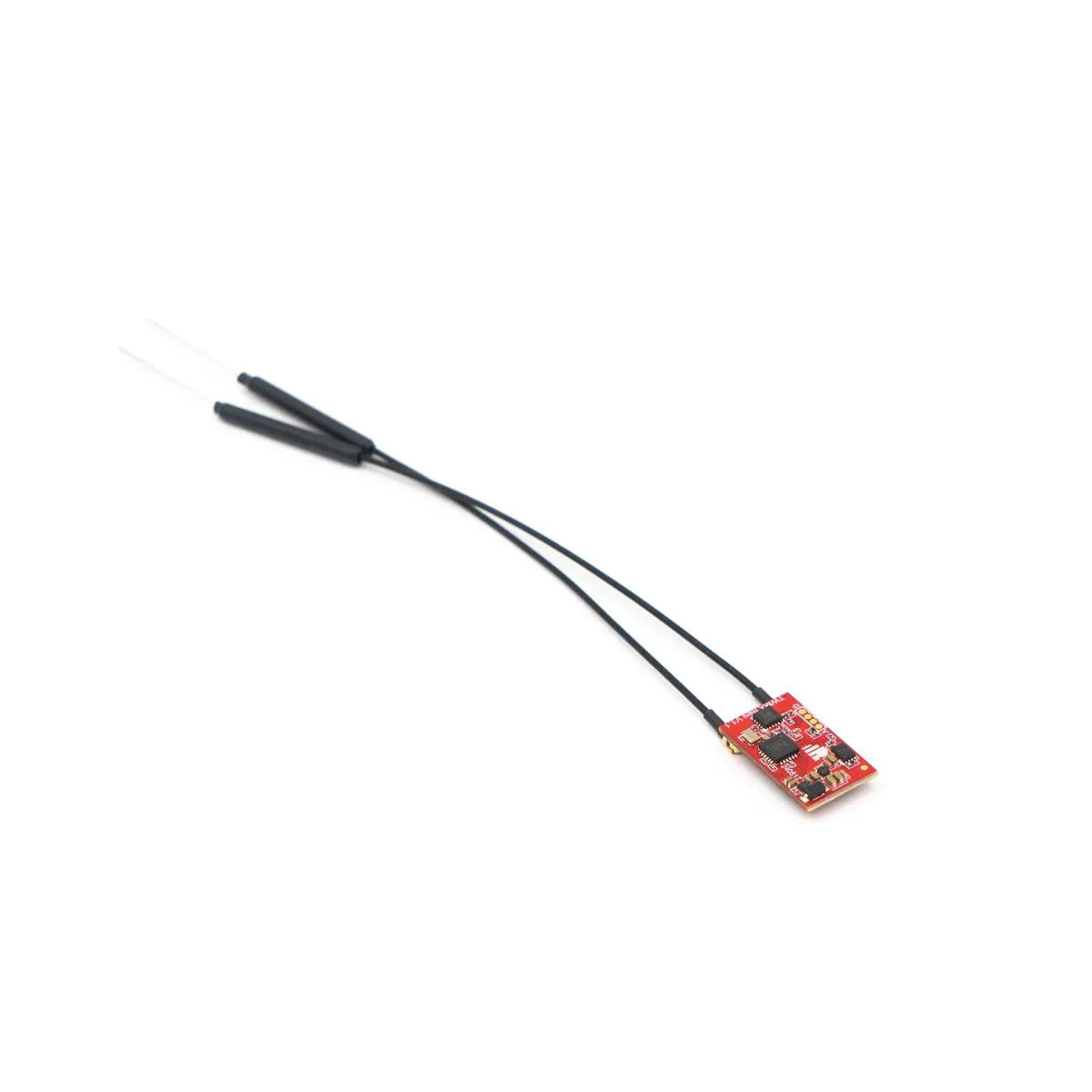

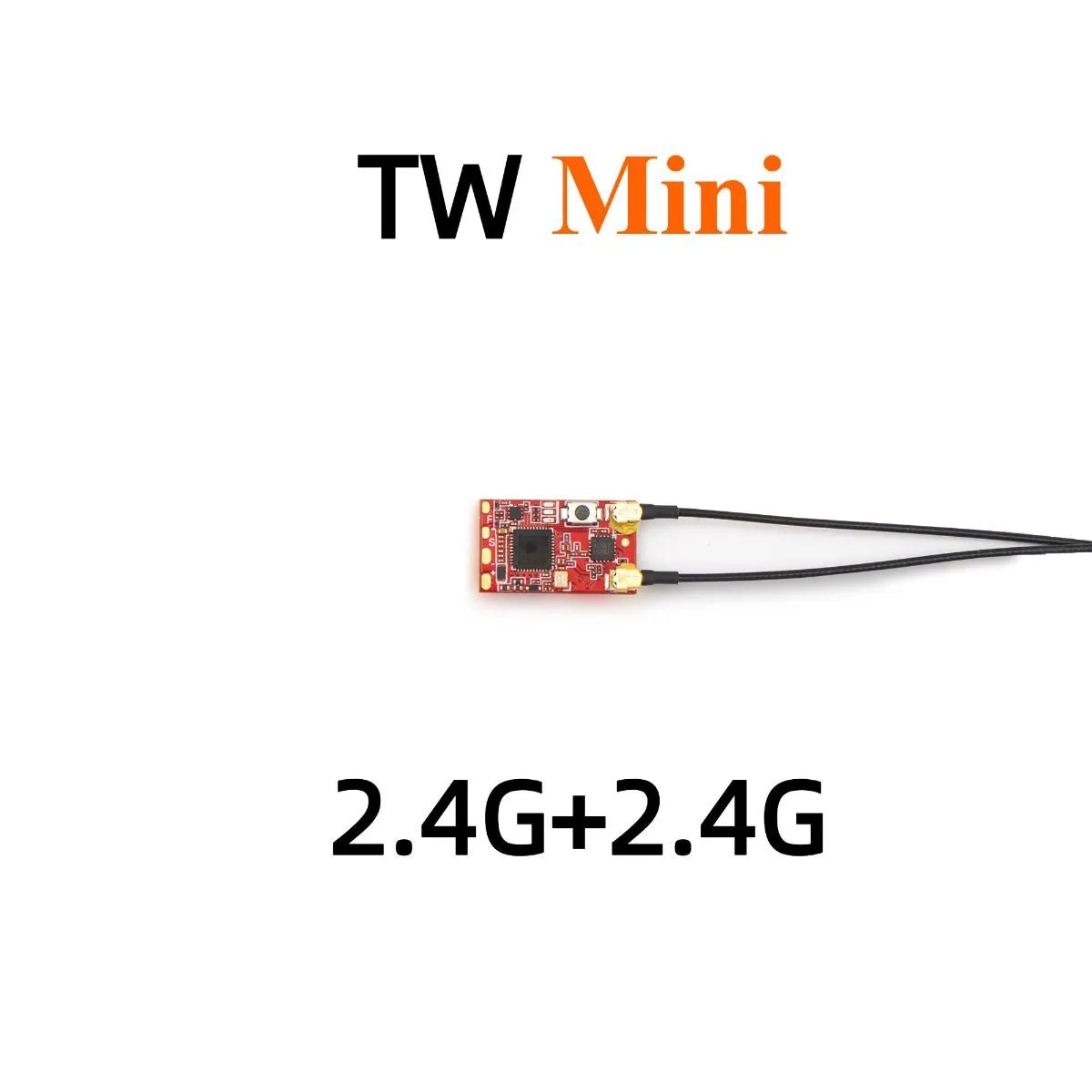

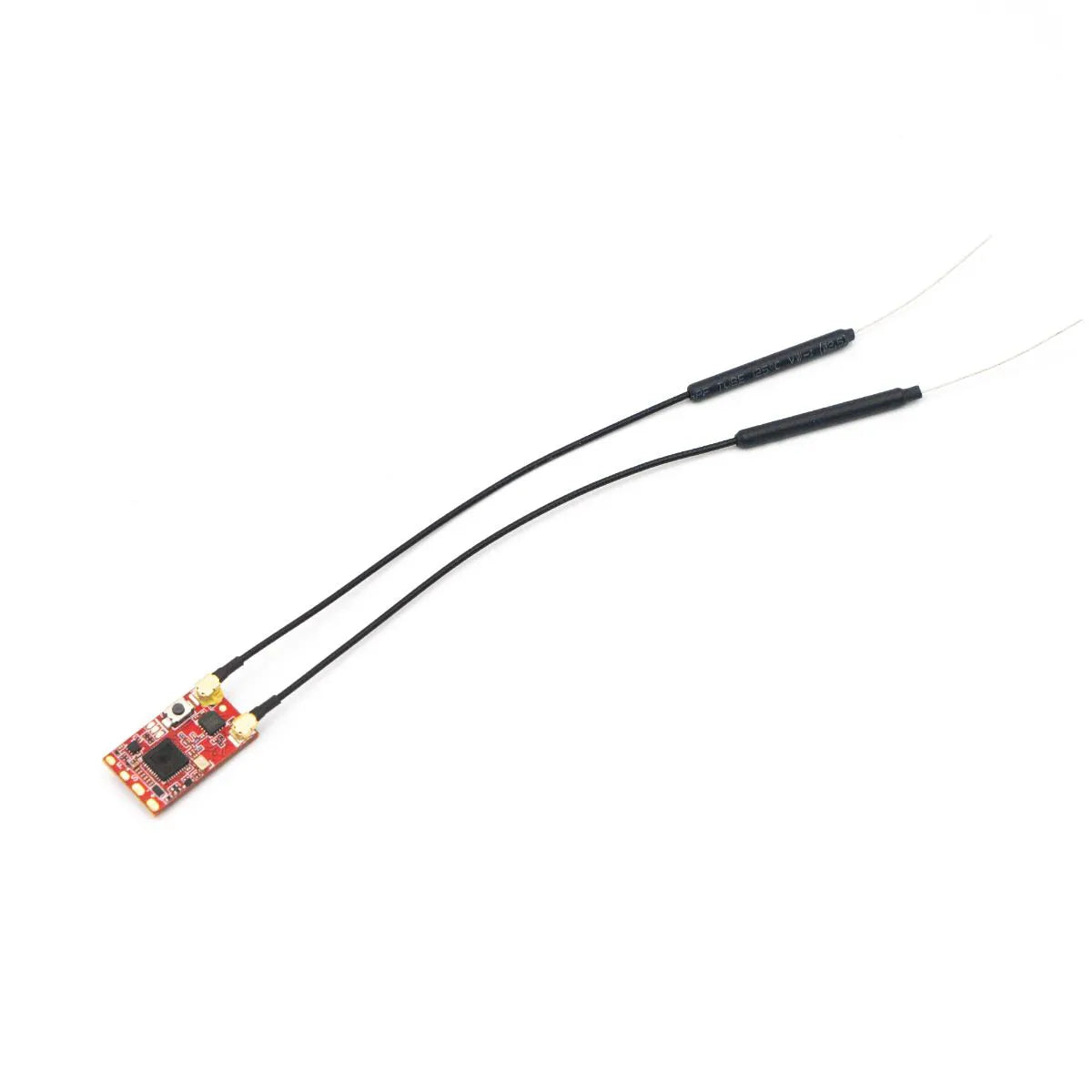

The TW Mini receiver is equipped with 2x 2.4G antennas. The TW Mini includes one SBUS output channel, it supports telemetry functions through FBUS / S.Port. By setting the TW Mini to use FBUS protocol in the ETHOS system, the signal control and telemetry can be connected to any device that supports FBUS protocol through only one line to achieve bidirectional transmission, also simplifying the model build using fewer wires.

Features

Simultaneous working dual 2.4G TW mode
Black Box function
Long control range (Range varies based on the RF Power settings.)
Over-The-Air (OTA) FW update
SBUS Out (Supports 16CH / 24CH mode)
FBUS/S.Port/F.Port
Specifications

Frequency: Dual 2.4GHz
Dimension: 20.5×12mm (L*W)
Weight: 2.2g
Operating Voltage: 3.5-10V (Please ensure the supplied voltage exceeds 2.8V during the use.)
Operating Current: ≤50mA@5V
Antenna connector: IPEX1
Compatibility: TWIN series Radio & RF module in TW mode
