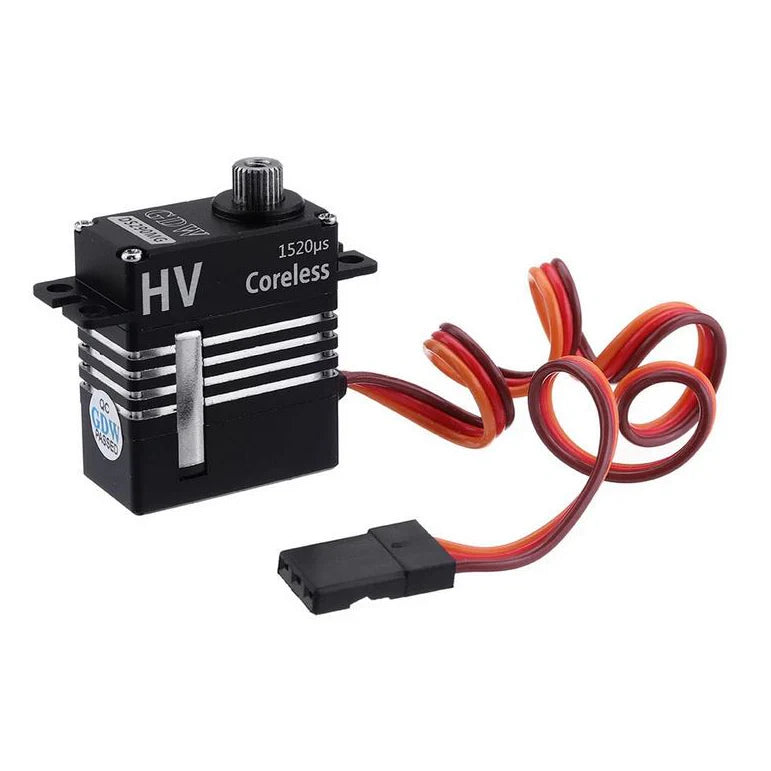

GDW-DS290MG GDW DS290MG 5.6kg 20g Micro Digital Coreless Servo

GDW-DS290MG GDW DS290MG 5.6kg 20g Micro Digital Coreless Servo

Specifications:

• Working Frequency: 1520us/333Hz
• Operating voltage range: 4.8V – 8.4V
• Motor: Coreless
• Dimensions: 23mm (32mm) x 12mm x 27.3mm
• Motor type: Coreless motor 12mm
• Horn gear spline: 25T ⌀ 4.9mm
• Wire diameter: 0.15mm2
• Number of wire cores: 30
• Weight: 21g ± 1g
• Speed:
  • 0.052sec/60 @ 8.4V
  • 0.065sec/60 @ 7.4V
  • 0.072sec/60 @ 6.0V
• Torque:
  • 5.6Kg/cm @ 8.4V
  • 4.8Kg/cm 7.4V
  • 4.1Kg/cm 6.0V

Package Includes:
1 x GDW DS290MG Digital Servo
1 x Servo horn set
