GDW-DS595MG GDW DS595MG 5.5kg 0.03sec Mini Metal HV Digital Tail Servo Coreless Servo

GDW-DS596MG GDW DS596MG 15kg 0.085sec Mini Metal HV Digital Servo Coreless Servo

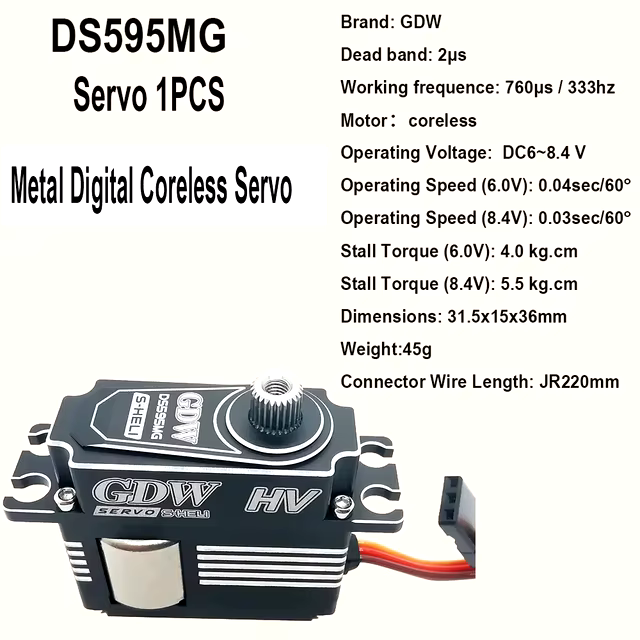

Model: DS595MG

• Brand: GDW
• Dead band: 2μs
• Working frequency: 760μs / 333hz
• Motor：Coreless
• Operating Voltage: DC6~8.4 V
• Operating Speed (6.0V): 0.04sec/60°
• Operating Speed (8.4V): 0.03sec/60°
• Stall Torque (6.0V): 4.0 kg.cm
• Stall Torque (8.4V): 5.5 kg.cm
• Dimensions: 31.5x15x36mm
• Weight:45g
• Connector Wire Length: JR220mm
• Bearing: 2BB
