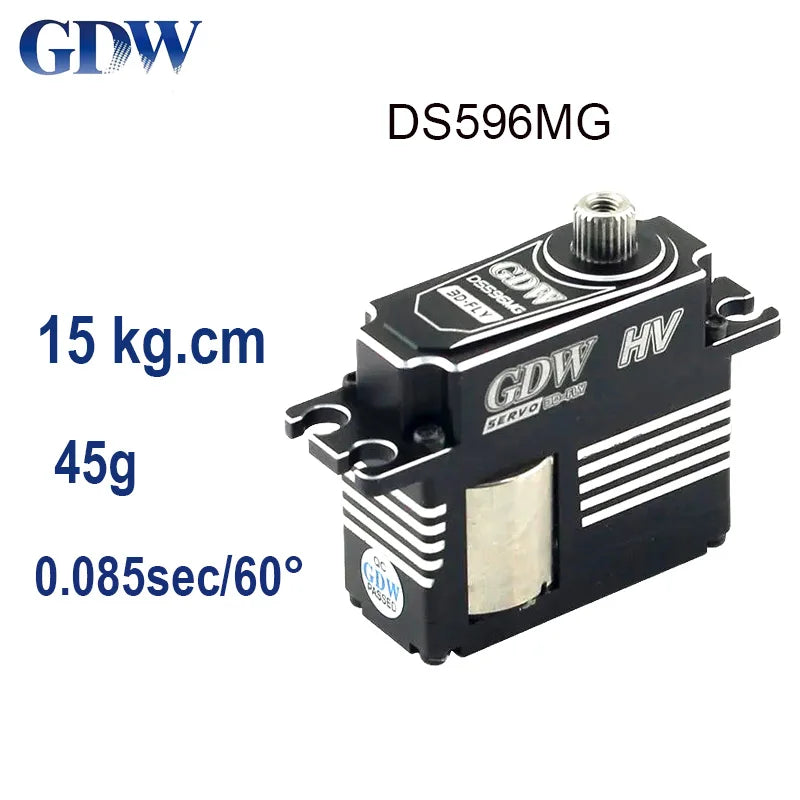

GDW-DS596MG GDW DS596MG 15kg 0.085sec Mini Metal HV Digital Servo Coreless Servo

GDW-DS596MG GDW DS596MG 15kg 0.085sec Mini Metal HV Digital Servo Coreless Servo

Model: DS596MG

• Brand: GDW
• Dead band: 2μs
• Working frequency: 1520μs / 333hz
• Motor：Coreless
• Operating Voltage: DC6~8.4 V
• Operating Speed (6.0V): 0.12sec/60°
• Operating Speed (8.4V): 0.085sec/60°
• Stall Torque (6.0V): 11 kg.cm
• Stall Torque (8.4V): 15 kg.cm
• Dimensions: 31.5x15x36mm
• Weight:45g
• Connector Wire Length: JR220mm
• Bearing: 2BB
