GDW Servos

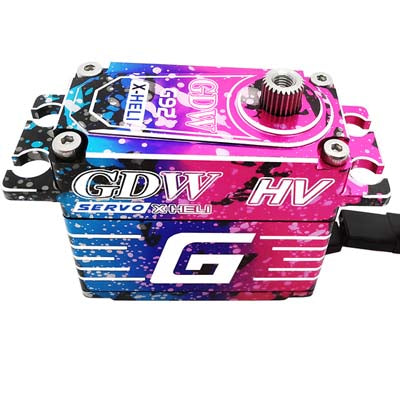

GDW-G92 GDW G92 HIGH VOLTAGE BRUSHLESS X-HELI 43kg 0.09s 1520us/333hz 40mm FULL SIZE SERVO 25T FUTABA SPLINE

GDW-G92 GDW G92 HIGH VOLTAGE BRUSHLESS X-HELI 43kg 0.09s 1520us/333hz 40mm FULL SIZE SERVO 25T FUTABA SPLINE

Regular price $89.99 USD
Regular price Sale price $89.99 USD
Sale Sold out
Shipping calculated at checkout.

GDW-G92 GDW G92 HIGH VOLTAGE BRUSHLESS X-HELI 43kg 0.09s 1520us/333hz 40mm FULL SIZE SERVO 25T FUTABA SPLINE

  • GDW G92 HV Brushless Standard swashplate Servo for helicopters
  • Standard Size Servo
  • Operating voltage range: 4.8V – 8.4V
  • Working frequency: 1520µs / 333Hz

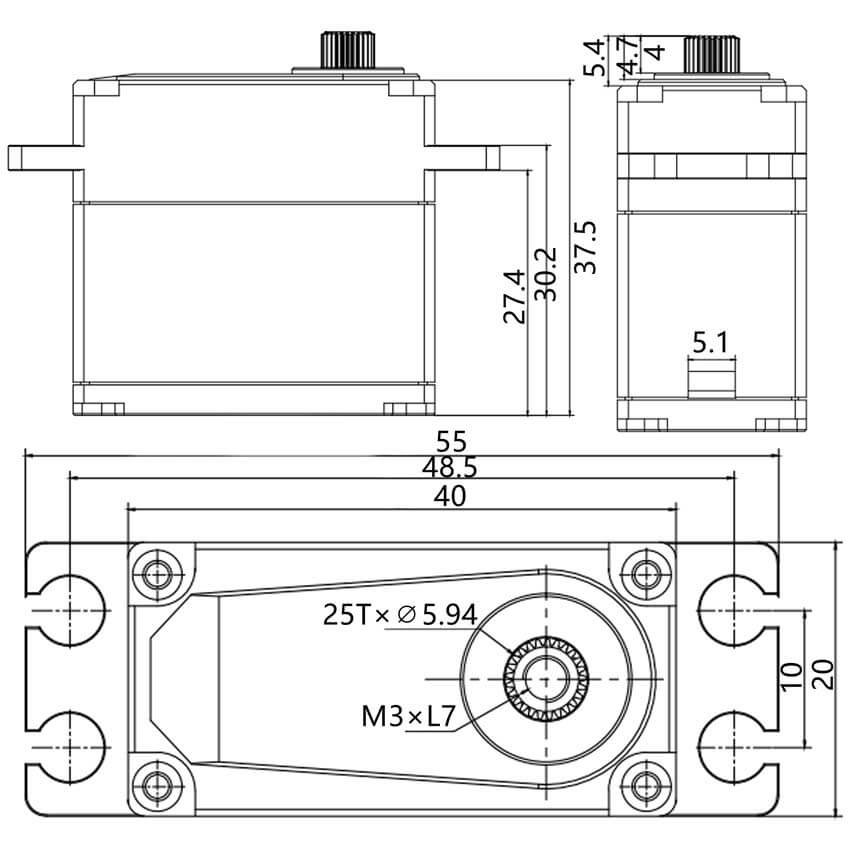

  • Dimensions: 40mm (55mm) x 20mm x 37.5mm
  • Weight: 77g ± 1g
  • Bench test values:
    31kg.cm/0.125sec/60°@6.0V
    38kg.cm/0.1sec/60°@7.4V
    43kg.cm/0.09sec/60°@8.4V
  • Dead band: 2µs
  • Motor type: Brushless motor 17mm x 18mm
  • Gear material: steel
  • Horn gear spline: 25T ⌀ 5.9mm
  • Wire length: 330mm ± 5mm
  • Wire diameter: 0.3mm2
  • Number of wire cores: 60
  • Feature:
    Race-class helicopter steering gear
    Helicopter high-speed digital steering gear
    Stainless steel output teeth, double bearings
    Tough and wear-resistant
    Quick response, extraordinary response
    28KG 0.055S
    Standard swashplate, for helicopters
    Competition level configuration, player selection
    High speed and stable
Motor Type

Brushless Motor 17*18mm

Operating Frequency

1520us/333Hz

Torque,Speed,Size

31Kg.cm/0.125sec/60°@6.0V
38Kg.cm/0.10sec/60°@7.4V
43Kg.cm/0.09sec/60°@8.4V
55×37.5x20mm
