HTC-RDX2-200 Hitec RDX2 200 AC/DC 200W 10A 6S Dual Port Battery Charger / Discharger

HTC-RDX2-200 Hitec RDX2 200 AC/DC 200W 10A 6S Dual Port Battery Charger / Discharger

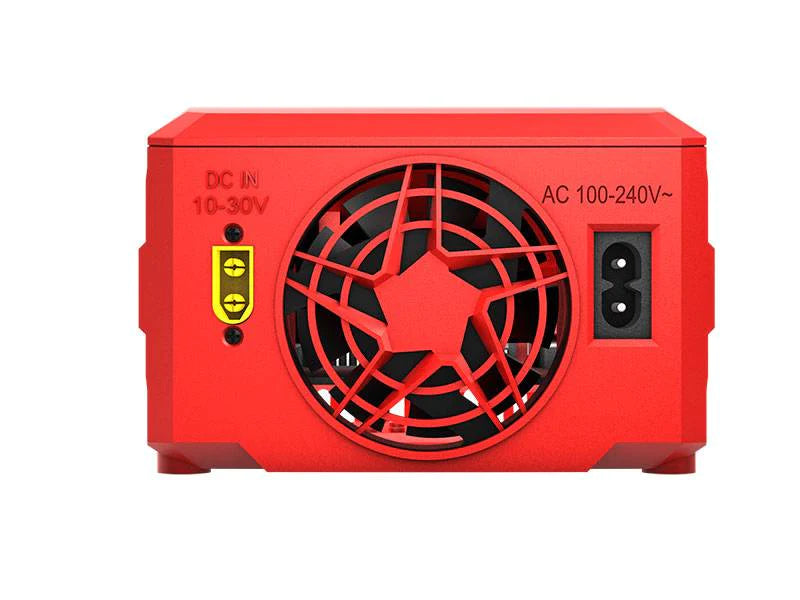

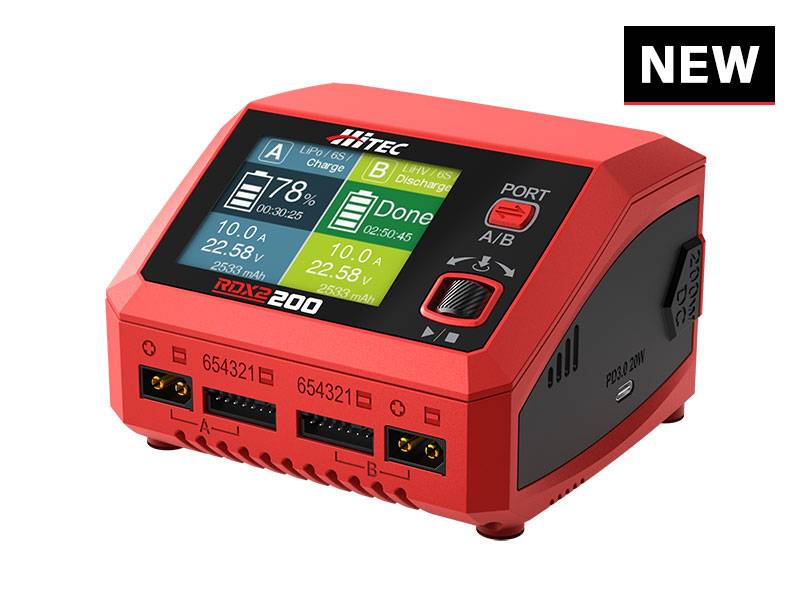

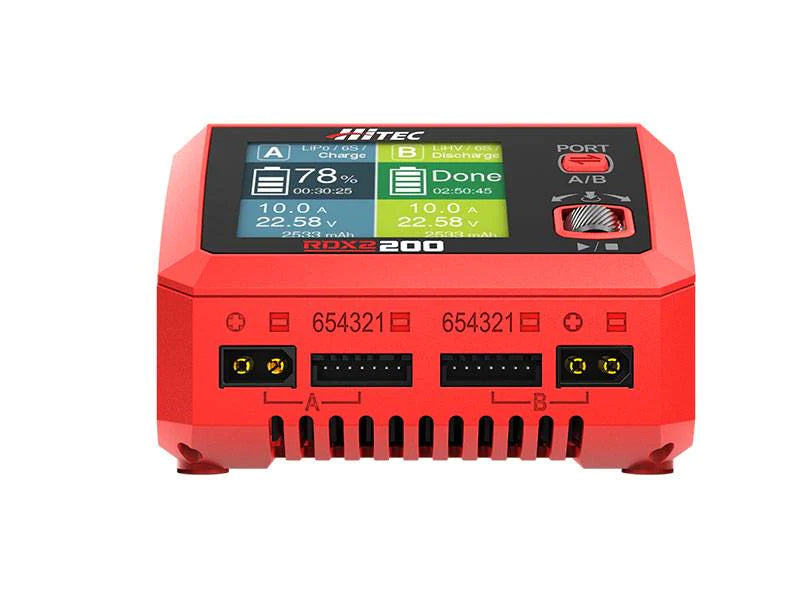

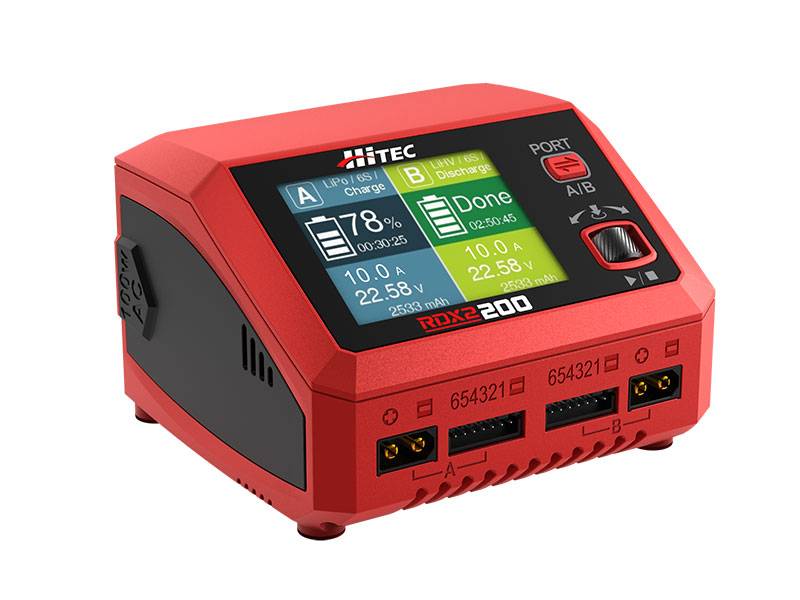

Hitec RDX2 200 AC/DC 200W 10A 6S Battery Charger / Discharger

Capable of charging two batteries simultaneously, regardless of chemistry or capacity, the RDX2 200 allows you to connect different battery chemistries (NiMH/NiCd/LiPo/LiFe/Lilo/LiHV/Pb) into any of the two charging ports (100W per port, 200W total power) and features integrated balancing for 6-cell LiPo batteries.

Designed with an easy-to-read LCD screen and sleek metal scroll wheel for simple setting selection, this twin-channel charger is also compatible with Hitec’s “Charge Master” PC software & "Charge Manager" Mac software that allows charger operation and firmware updates from a personal computer. Whether you run sport-level 1/10th and 1/8th scale electric vehicles, 600+ size helicopters or sport and giant-scale planes using up to 6S batteries, the RDX2 200 is the compact, affordable charging option for your hobby.

Features

• User-Friendly Interface
• Balance, Standard, Storage and Cycle Modes for All Lithium Battery Chemistries
• Battery Resistance Meter
• Terminal Voltage Control
• Re-Peak Charge Mode and Delta-Peak Sensitivity for NiMH/NiCd Batteries
• Capacity Cut-Off Limit
• Smart Ventilation Fan
• Built-in Power Supply Function for Powering Devices up to 27V @ 10A

Technical Specifications

• 100V – 240V AC Operating Voltage Range
• LiPo, LiFe & LiIon Cell Count: 1-6 Cells
• NiCd/NiMH Cell Count: 1-15 Cells
• Pb Lead-Acid Based Cell Count: 2-20V
• Charge Circuit Power: 100W AC / 200W DC (Max 100W per port)
• Discharge Circuit Power: 5W per port
• PC Interface with Downloadable Software
• Dimensions: 4.6 x 4.3 x 3.1 in.
• Weight: 1.04 lbs

Manual
