Hobbywing

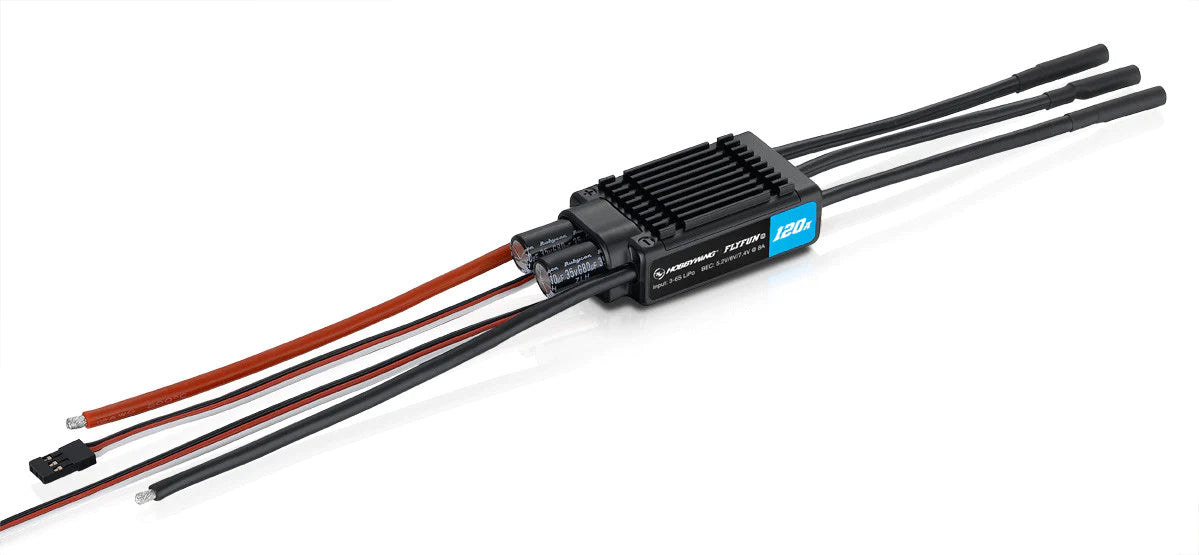

HW30201400 FLYFUN ESC V5 - 120A CONT 150A PEAK (3S-8S) SBEC 8A CONT 20A PEAK

HW30201400 FLYFUN ESC V5 - 120A CONT 150A PEAK (3S-8S) SBEC 8A CONT 20A PEAK

Regular price $99.99 USD
Regular price Sale price $99.99 USD
Sale Sold out
Shipping calculated at checkout.

We Are An Authorized Hobbywing Dealer!!!

Manufacturer limited warranty for North America customers

DEO Technology / Active Freewheeling

The DEO technology (Driving Efficiency Optimization) implemented in the
ESC has multiple advantages:
● Rapider and smoother throttle response, better stability and flexibility during flight.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature, more reliable operation.

 New Design & Great performance

New design brings exquisite look and good heat-dissipating performance.
Imported components, the high-performance 32-bit microprocessor, and the PCB
(printed circuit board) with extremely low impedance adopted by the ESC guarantee
great current endurance, excellent performance and high reliability. The ESC is
available in high-voltage/regular version with different Amps.

Multiple Protections

Multiple protection features include start-up,
over-current, ESC thermal, capacitor thermal,
overload, throttle signal loss (or Fail Safe),
and abnormal input voltage effectively
prolongs the service life of the ESC.

High-power BEC

High-power switch-mode BEC with continuous/peak current of
8A/20A and voltage adjustable among 5.2V, 6.0V and 7.4V allows
users to have more electronic devices or devices with higher power
like servo, flight controller, and on-board light on their aircraft.

Soft Start-ups & Reverse Brake

Always Disable Brake/Reverse Brake for RC Helicopters

New soft start-up modes are applicable to regular propeller aircraft and
EDF aircraft with different sizes. With Reverse Brake mode enabled when
landing can effectively shorten the sliding distance of the aircraft to
simulate the landing of a real aircraft (within a super short distance,
the FLYFUN 130A/160A-HV-OPTO-V5 doesn’t have this function).


Normal Brake Mode, Proportional Brake mode, and Brake Disabled mode
are also available; the brake amount is adjustable in normal brake mode
while in proportional brake mode, the brake force will be automatically
allotted on the basis of the position of radio throttle stick.

Always Disable Brake/Reverse Brake for RC Helicopters

Multiple Programmable Parameters

Multiple programmable parameters for setups of different fixed-wing
aircraft are adjustable via transmitter or Hobbywing LED program box.
