HW30203100 Hobbywing 260A Platinum HV V5 SBEC ESC (700–800 Electric Helicopter)
HW30203100 Hobbywing 260A Platinum HV V5 SBEC ESC (700–800 Electric Helicopter)
Regular price
$469.99 USD
Regular price
$519.99 USD
Sale price
$469.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
HW30203100 Hobbywing 260A Platinum HV V5 SBEC ESC (700–800 Electric Helicopter)

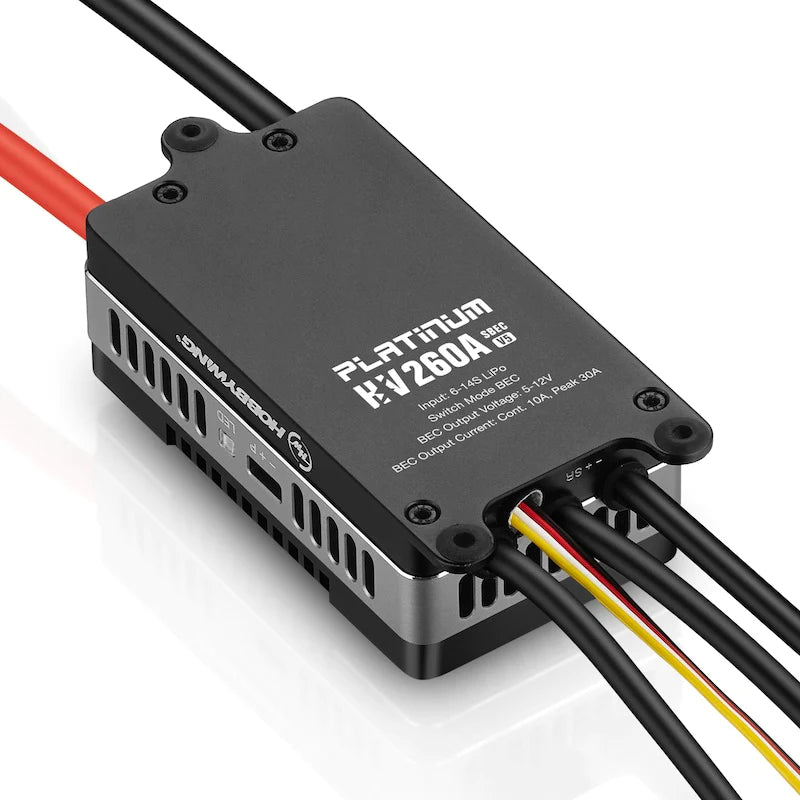

The Hobbywing Platinum 260A HV V5 SBEC ESC is designed for high-performance 700–800 class electric helicopters requiring reliable high-current power delivery with an integrated SBEC.
✔ Designed for 700–800 class electric helicopters
✔ Integrated SBEC — no external BEC required
✔ Genuine Hobbywing product stocked in the USA
✔ Integrated SBEC — no external BEC required
✔ Genuine Hobbywing product stocked in the USA
We Are An Authorized Hobbywing North America Dealer!!!
✔ Rotorflight Compatible
✔ Telemetry Supported
✔ Helicopter Optimized ESC
Manufacturer limited warranty for North America customers
Programming devices
- Firmware upgrade and programming via OTA Programmer or LCD program box (purchase separately)
Download
Note: Any products purchased through Hong Kong/Chinese eBay stores are considered gray products, which are not covered under the HOBBYWING manufacturer warranty in North America.
Learn more Platinum V5 ESC series >
Platinum V5 series
Specifications
-
Telemetry Function: Mikado VBar；Futaba S.Bus2；MSH iKon；Brain and etc.
| Model | 260A V5 ESC | 150A V5 ESC |
| SKU | SBEC: 30203100 OPTO: 30203101 |
30203500 |
| Application | 700-800 class helicopter (main rotor length 690-880mm),or fixed-wing) |
500-580 class Helicopter |
| Input Voltage | 6-14S LiPo | 3-8S Lipo |
| Cont./Peak Current (10s) | 260A / 400A | 150A/180A |

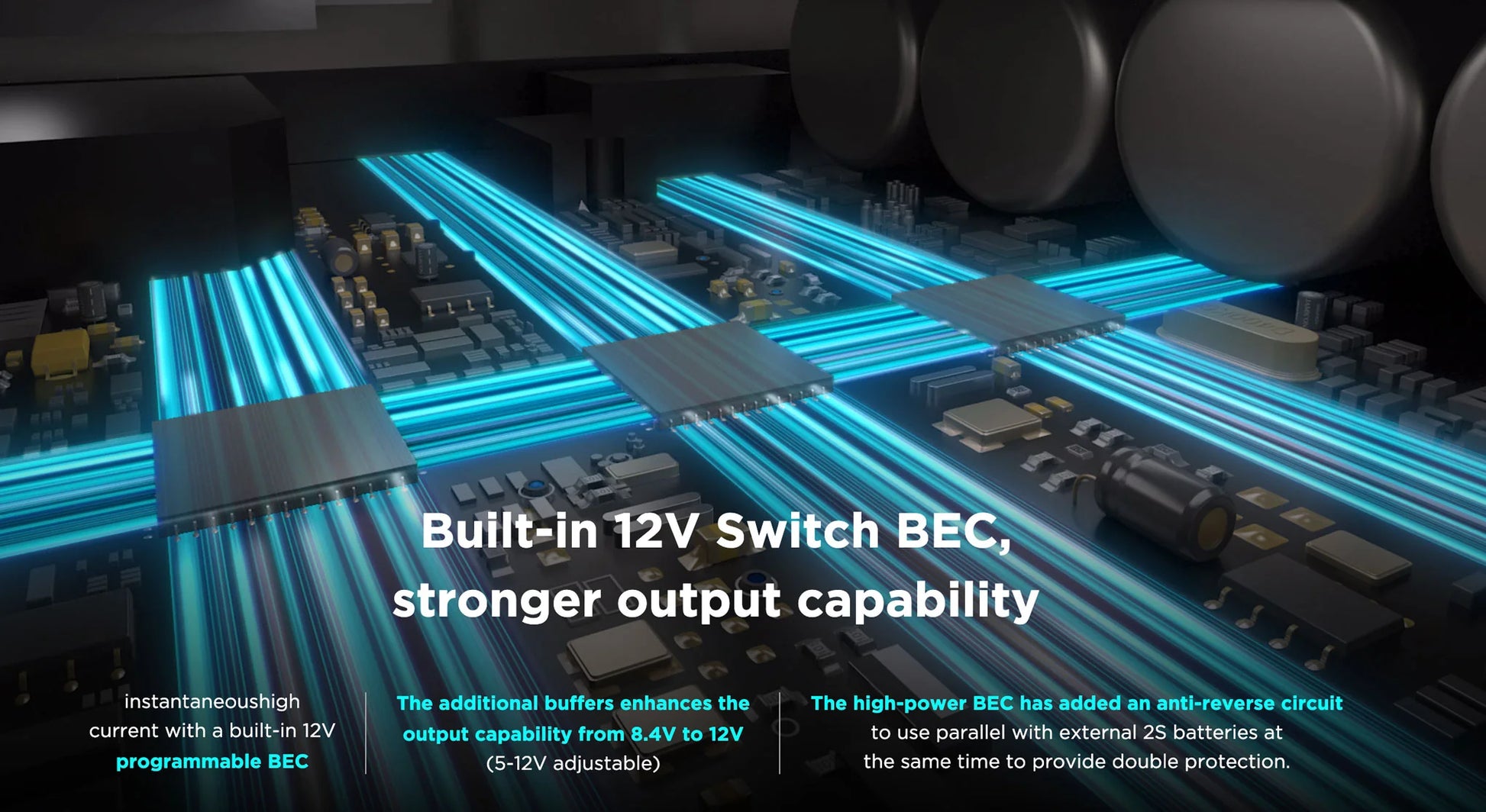

| (Switch-mode) BEC |
SBEC: 5-12V/10A (Step: 0.1V) OPTO: none |
5.4V-8.4V Adjustable (Step: 0.1V), 10A/30A Cont./Peak |
| Separate Programming Port | Tunalyzer / LCD Program Box / OTA Programmer | Tunalyzer / LCD Program Box / OTA Programmer |
| Input Wires | Red-8AWG-150mm*1/Black-8AWG-150mm* | Red-10AWG-150mm*1/Black-10AWG-150mm* |
| Output Wires | Black-10AWG-100mm*3 | Black-12AWG-100mm*3 |
| Output connector | no | 4.0mm Gold Connectors (Female) |
| Size | 89 x 50 x 34mm | 83x37x16.5mm |
| Mounting Holes | M3-3mm, 39 x 98mm |
M3-3mm, 37.5 x 16.5mm |
| Weight | SBEC: 297g (w/wires) OPTO: 287g (w/wires) |
140g (with wires) |
