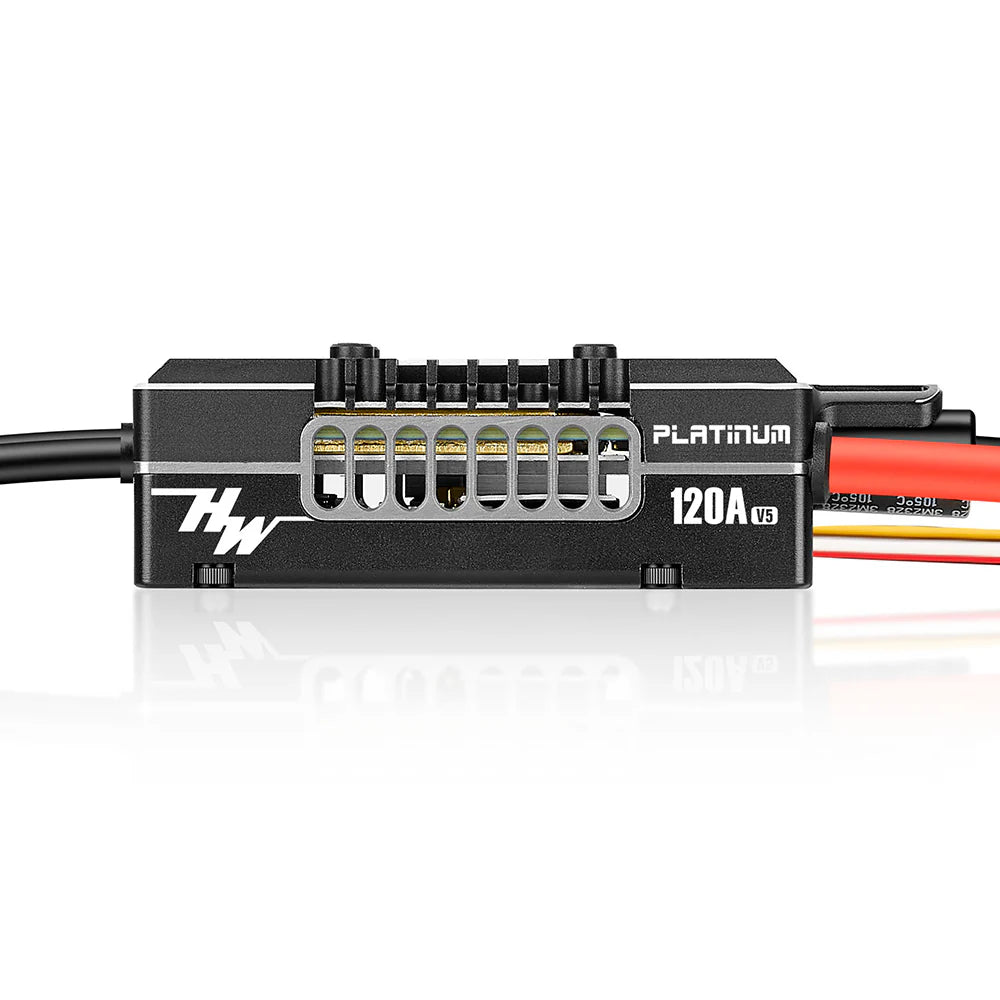

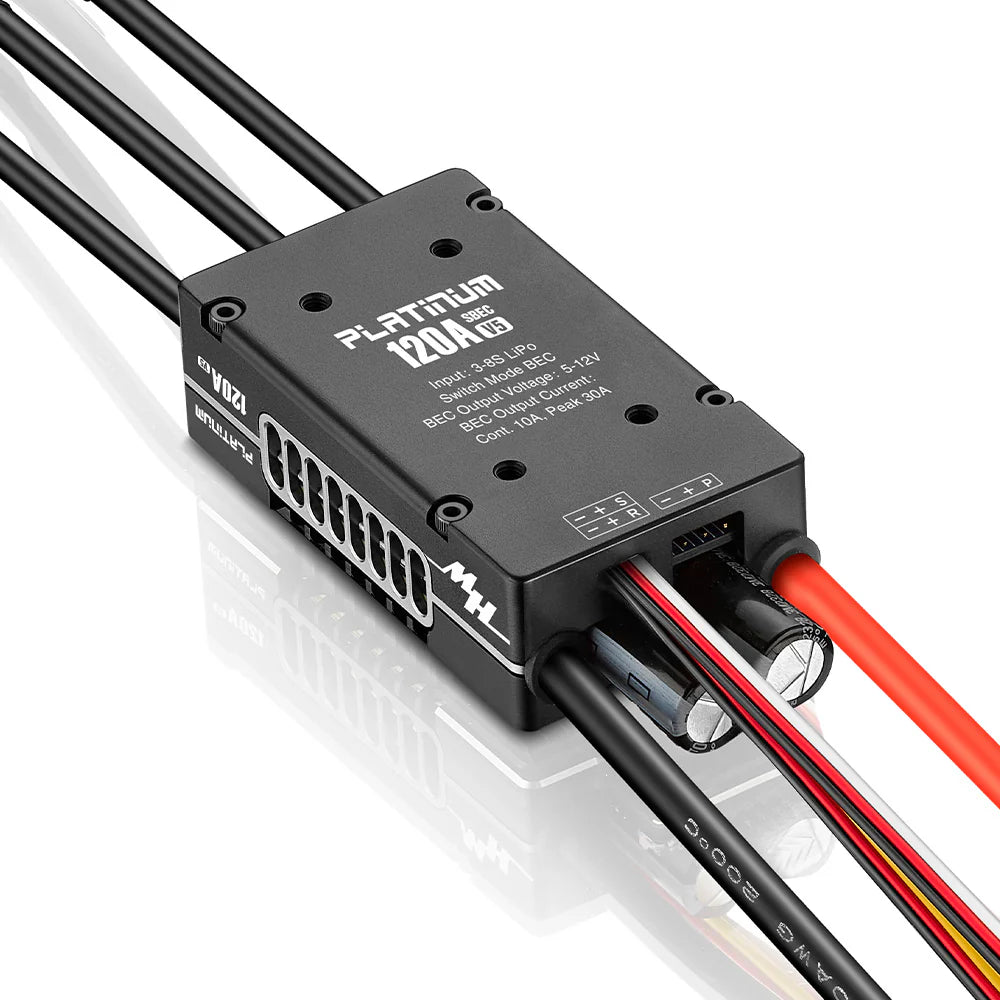

HW30203402 Platinum 120A V5 ESC 3-8S 5-12v SBEC 8A CONT 10A PEAK 30A

HW30203402 Platinum 120A V5 ESC 3-8S 5-12v SBEC 8A CONT 10A PEAK 30A

We Are An Authorized Hobbywing North America Dealer!!!

Manufacturer limited warranty for North America customers

• Firmware upgrade and programming via OTA programmer  or LCD program box  (purchase separately)

• Synchronous Rectification Technology with multiple advantages
• The Platinum V5 Series features a new double-sided heat sink with additional "side windows" for better cooling.
• Multiple protections, Extra Safety: It has multiple protection functions, to effectively prolonging the lifespan of the ESC.
• Built-in 12V Switch BEC for greater output capability:  With an instantaneous high current and a built-in 12V programmable BEC, the maximum output voltage is 12V (adjustable from 5-12V) and the maximum output current is up to 25A. The high-power BEC features an anti-reverse circuit, allowing it to be used in parallel with external batteries, providing double protection.

• Constant Speed Performance Upgrade, Ultimate Flight Experience; The 32-bit processor combined with the RPM accuracy algorithm makes the ESC more powerful and consistent, maximizing RPM accuracy to enhance overall performance. Compared with the previous ESC, the RPM accuracy algorithm significantly improves power and consistency. The adjustable constant speed sensitivity allows every pilot to easily find a setting that suits their flying style.

User Manual > Manual_Platinum-120A-V5.pdf

Product Catalog >  Platinum  120A V5 leafiets EN.pdf
