MAT-G474-HELI MATEK Mateksys RC HELICOPTER FLYBARLESS CONTROLLER G474-HELI STM32G474, ICM42688P, SPL06L, 2x BEC, Rotorflight

MAT-G474-HELI MATEK Mateksys RC HELICOPTER FLYBARLESS CONTROLLER G474-HELI STM32G474, ICM42688P, SPL06L, 2x BEC, Rotorflight

Regular price $62.99 USD
Regular price Sale price $62.99 USD
Sale Sold out
Shipping calculated at checkout.

MAT-G474-HELI MATEK Mateksys RC HELICOPTER FLYBARLESS CONTROLLER G474-HELI STM32G474, ICM42688P, SPL06L, 2x BEC, Rotorflight

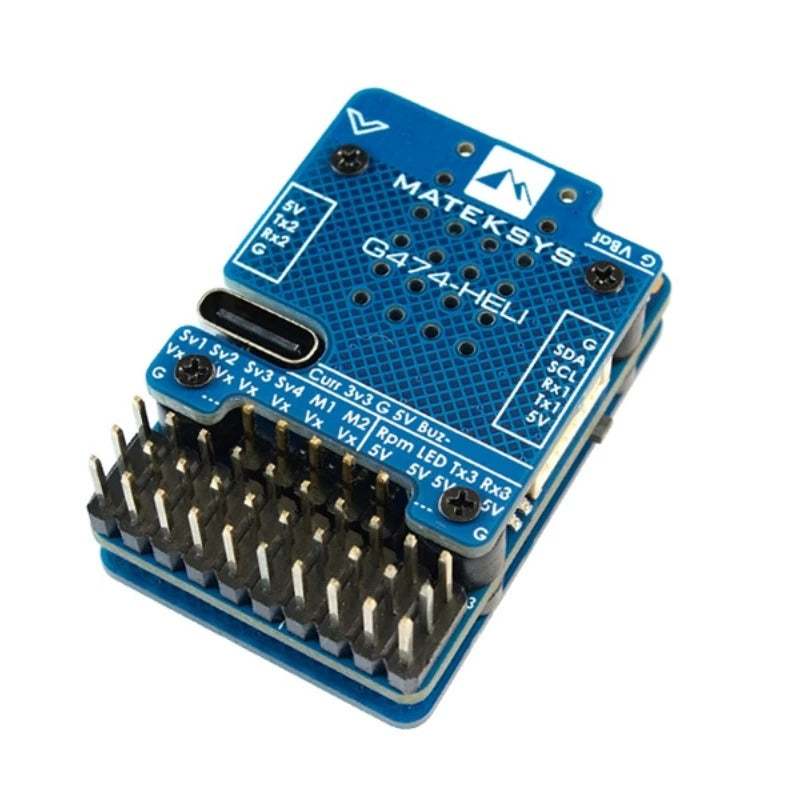

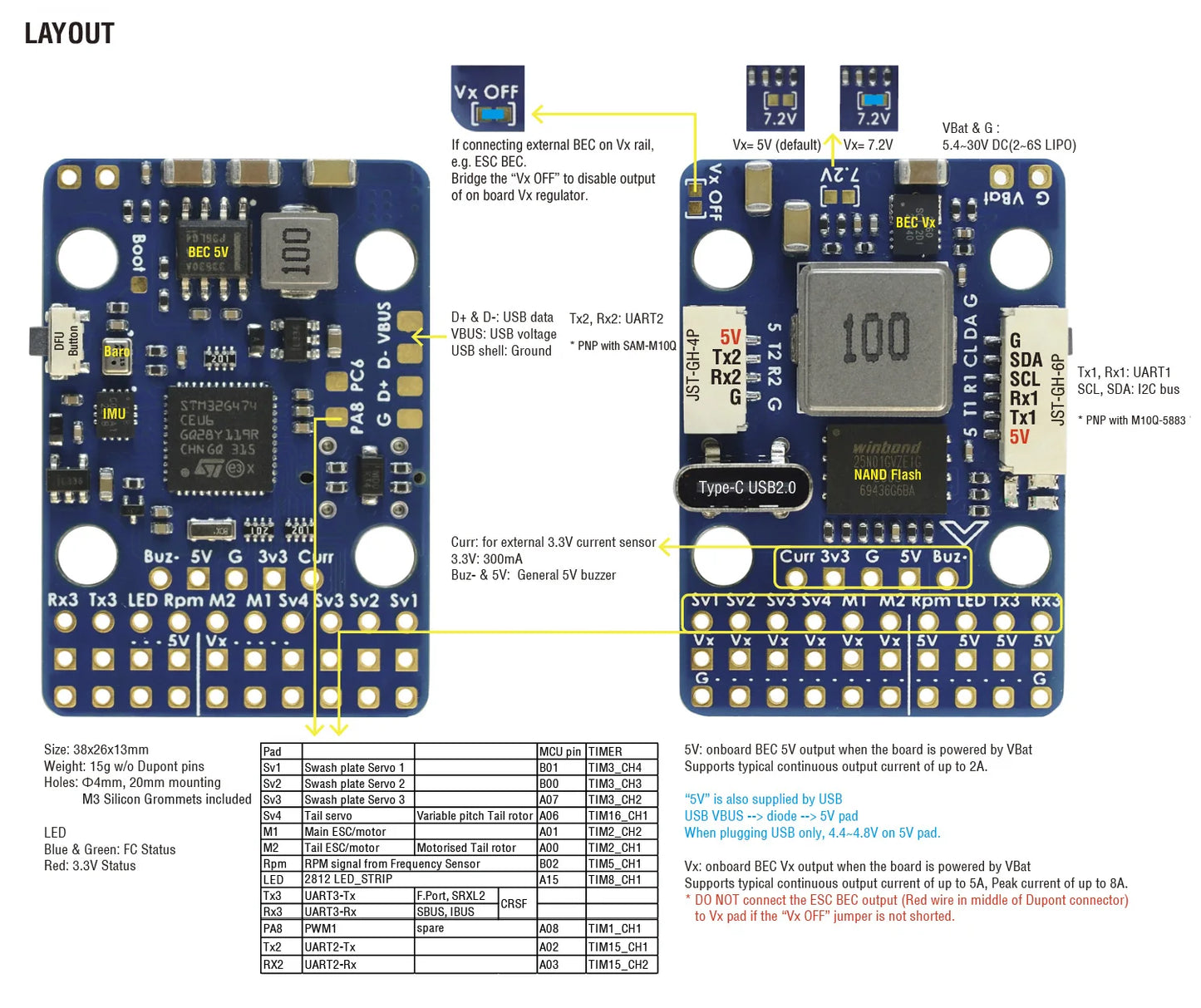

Specifications

Electrical characteristics:

  • Input voltage range: 5.4V~30V (2~6S LiPo)

  • No current sensor integrated, support external 3.3V based current sensor.

  • Battery Voltage divider 1K:10K (Scale 110)

  • BEC 5V 2A for FC and peripherals

  • BEC Vx 5A cont. 8A Peak for servos (5V, 7.2V option)

  • 3.3V 300mA

    Firmware/config:

    • Rotorflight 1.x /2.x  / MATEKG474HELI

      Physical:

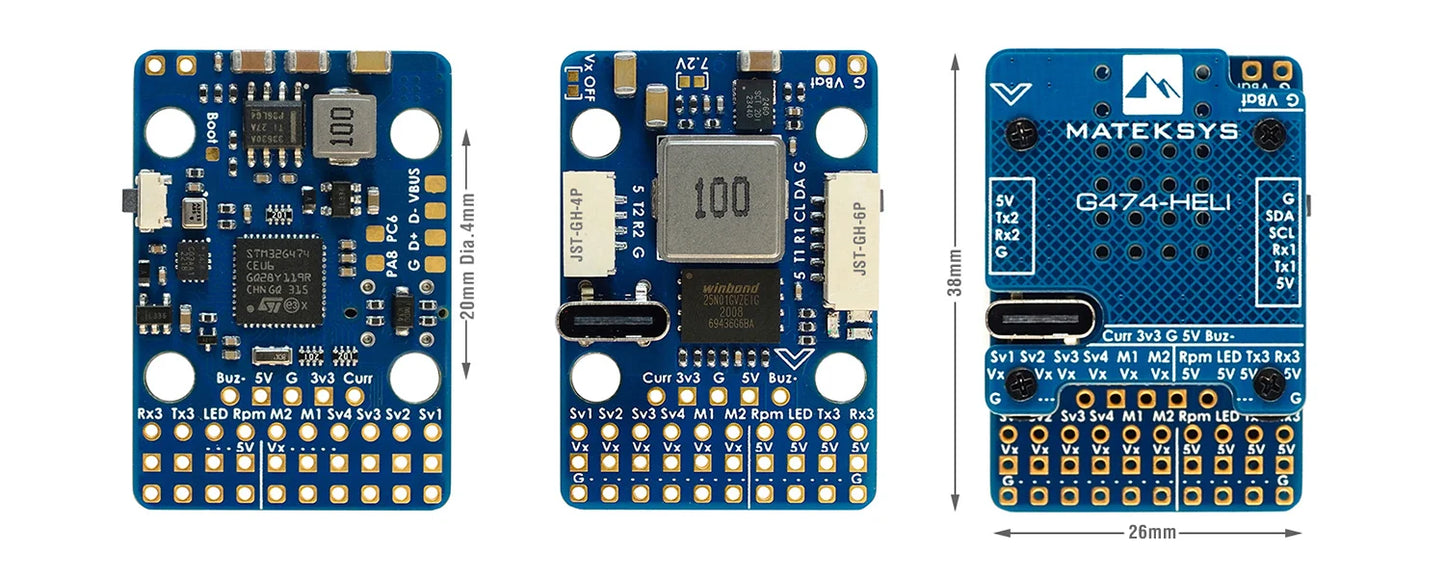

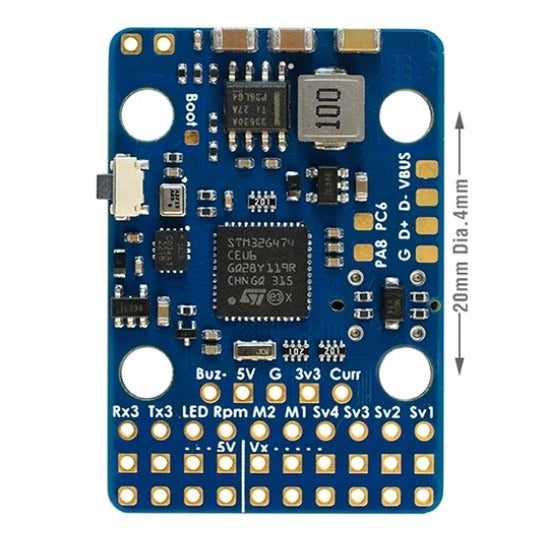

      • Mounting: 20 x 20mm, Φ4mm with Grommets Φ3mm

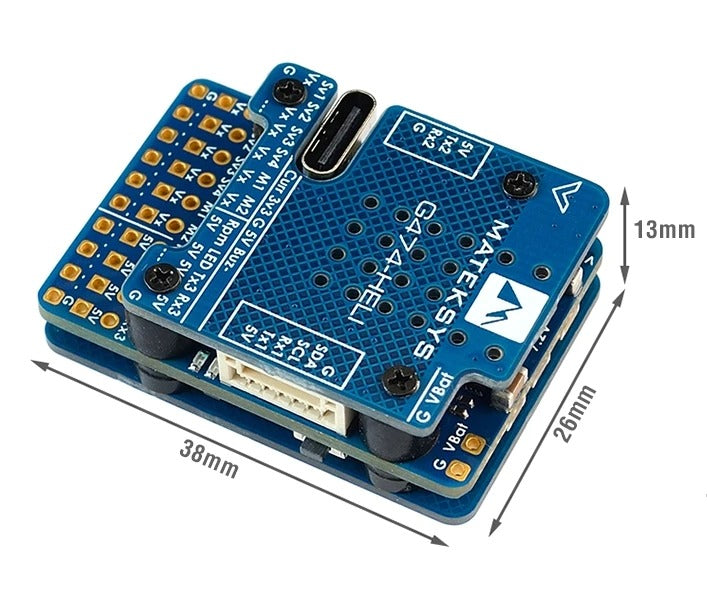

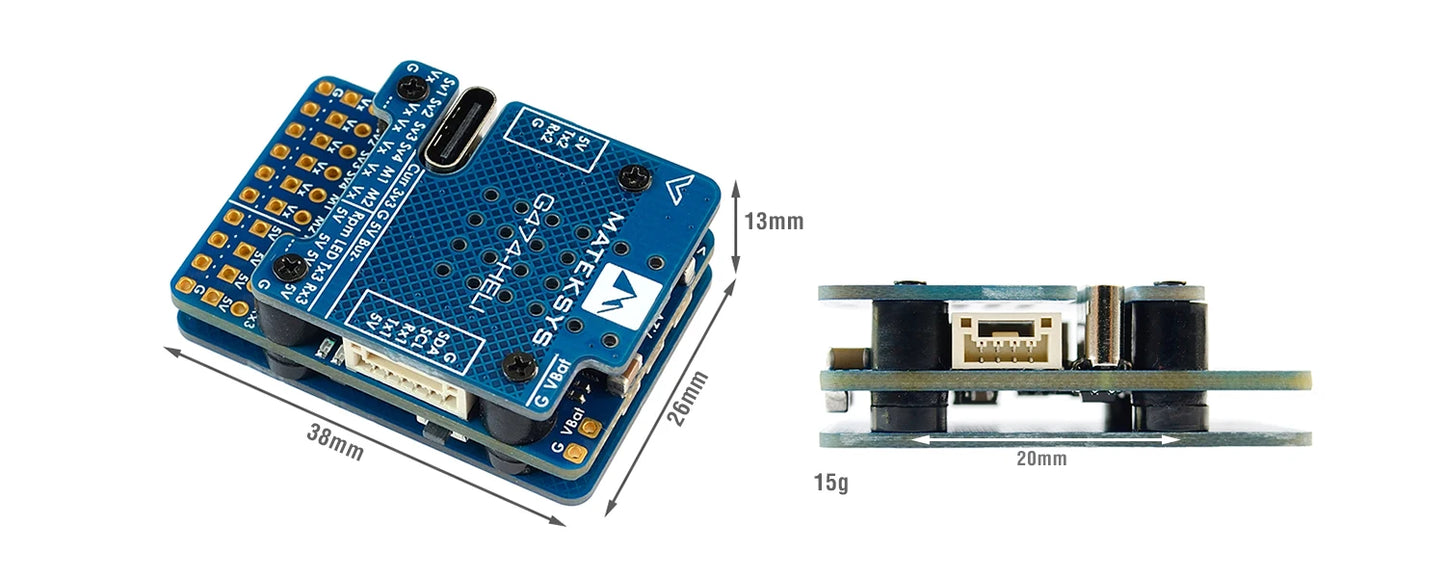

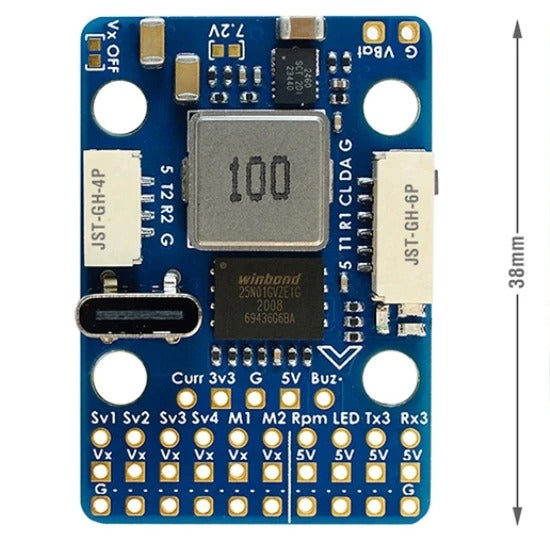

      • Dimensions: 38 x 26 x 13 mm

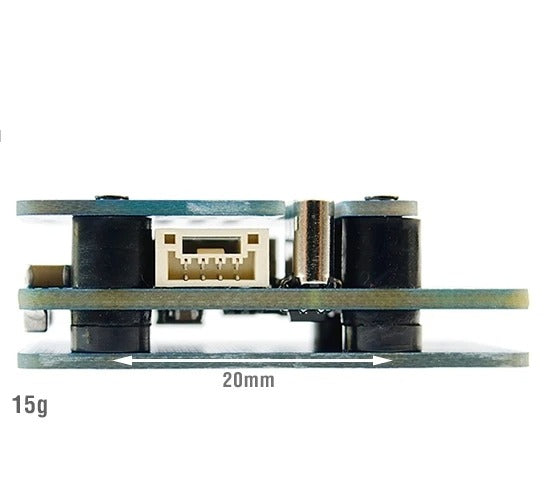

      • Weight: 15g (w/o pins)

        Includes:

        • 1x G474-HELI

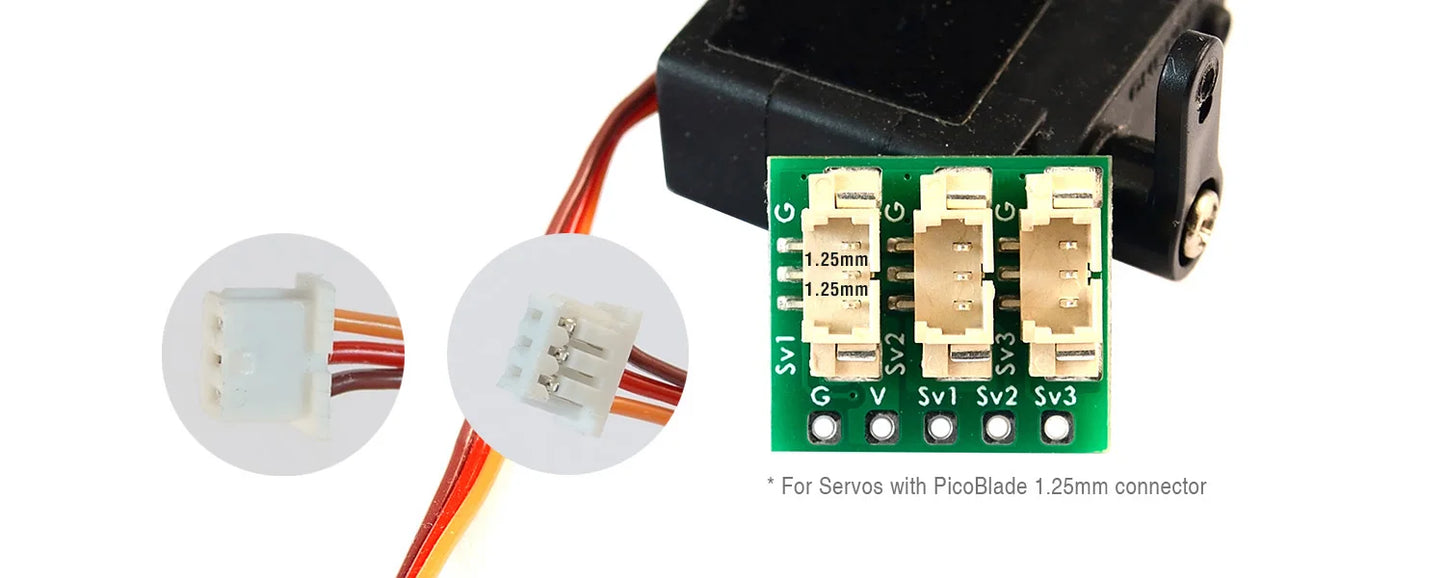

        • 1x PicoBlade 1.25mm Servo adapter (M2/S2 servos)

        • 1x 20cm JST-GH-4P to JST-GH-4P cable

        • 1x 20cm JST-GH-6P to JST-GH-6P cable

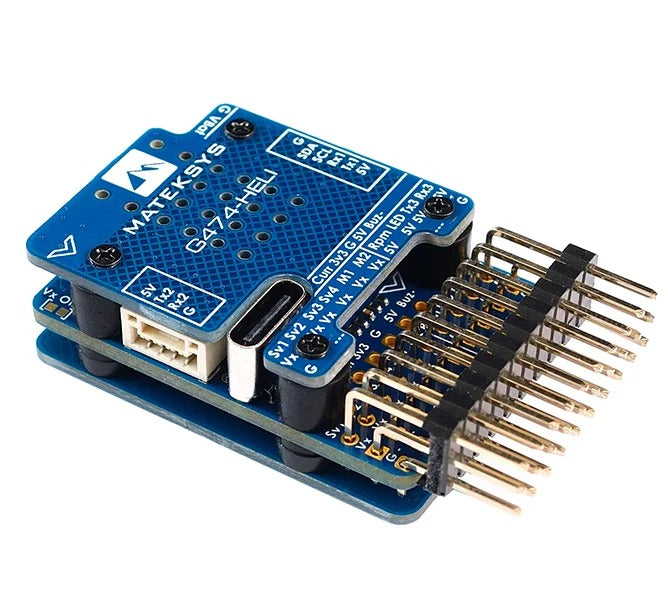

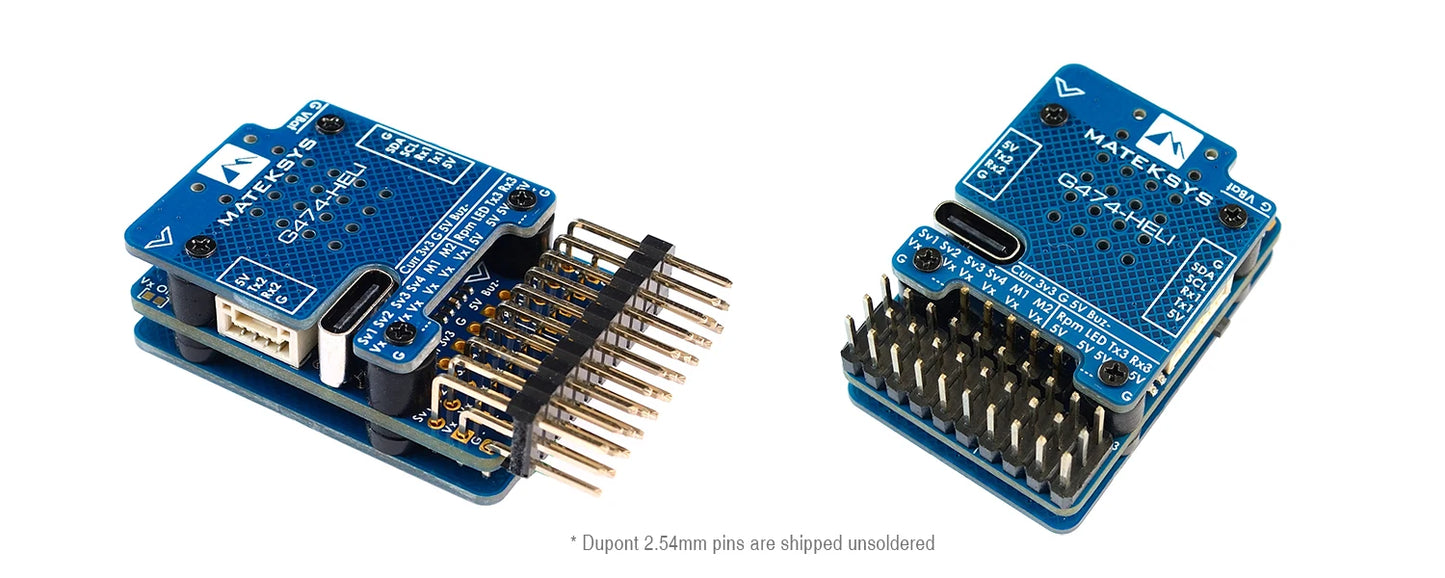

        • Dupont 2.54 pins  (Board is shipped unsoldered)

          Tips

          • If GPS, Receiver or other peripherals are connected to UART2(Tx2,Rx2)  and these peripherals are powered ON while connecting USB.   STM32G474 will not go into DFU mode. It is related to DFU protocol used in the STM32G474 bootloader.  Pls unplug peripherals from UART2 before you try flashing the FC.

          • If using Frsky SBUS+SmartPort receivers. you may remap one of PWM pins to softserial_tx for SmartPort, e.g.  LED pin, “resource serial_tx 11 A15”, “feature softserial”.

          • Due to leakage voltage on MCU I/O, there is floating current readout when no external current sensor connected.  If you don’t use external current sensor.  “set current_meter = NONE”.

          • There is no UART4 breakout on this board.

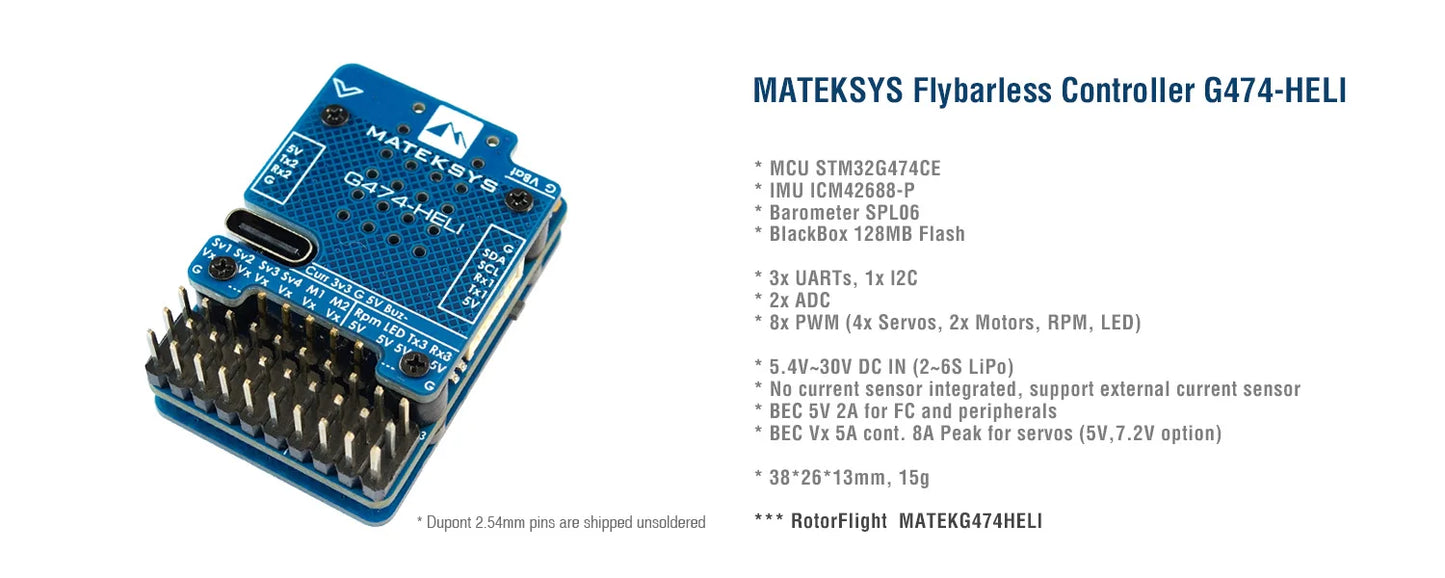

            RC HELICOPTER FLYBARLESS CONTROLLER G474-HELI

            STM32G474, ICM42688P, SPL06L, 2x BEC, Rotorflight firmware
