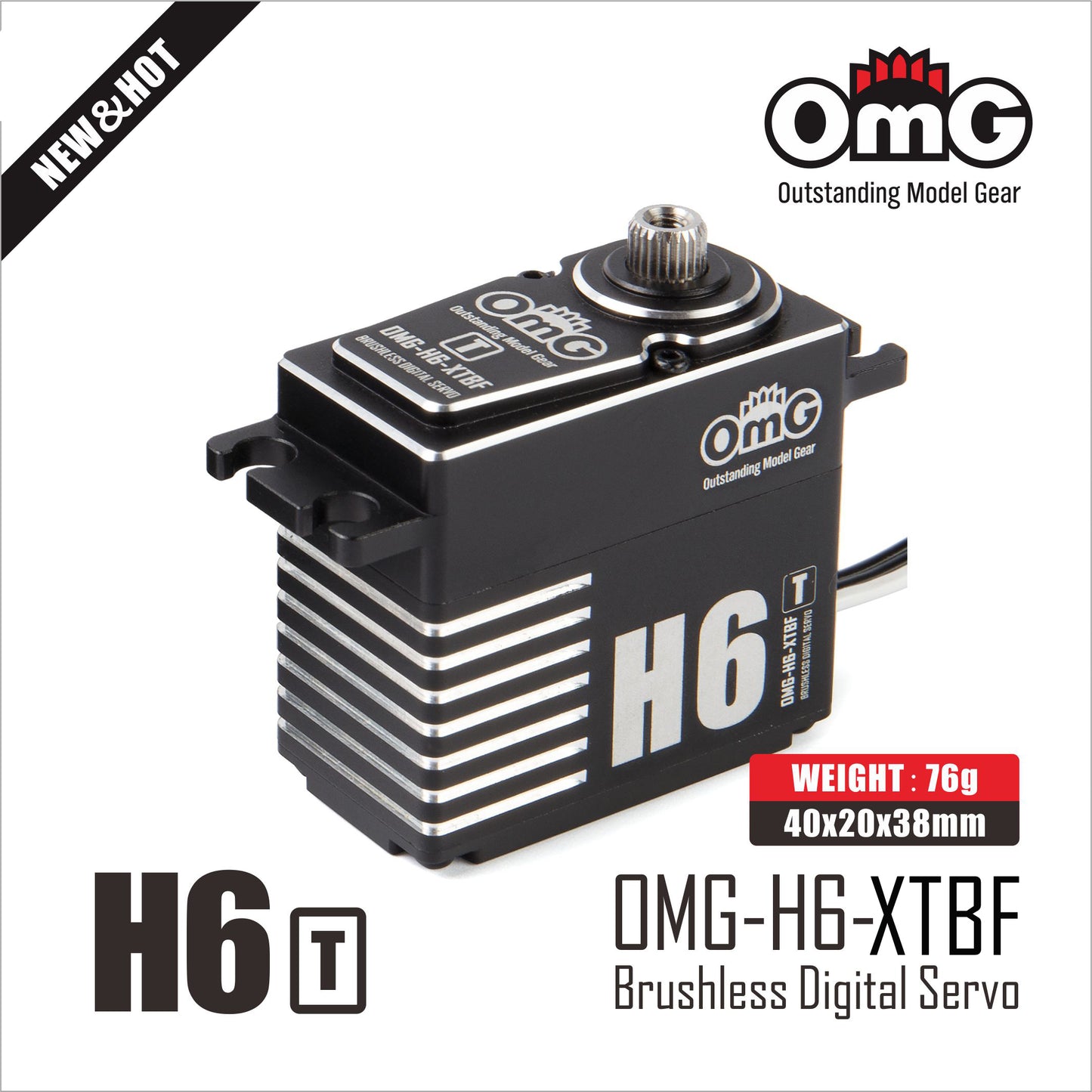

OMG-H6-XTBF OMG H6-T 22KG 0.04sec Full Size Digital Brushless HV Helicopter Tail Servo
OMG-H6-XTBF OMG H6-T 22KG 0.04sec Full Size Digital Brushless HV Helicopter Tail Servo
Low stock
Couldn't load pickup availability
OMG-H6-XTBF OMG H6-T 22KG 0.04sec Full Size Digital Brushless HV Helicopter Tail Servo
Standard size full metal brushless high voltage digital Servo, full case in CNC precise engraving, matte cover. Fit for 600-700 level helicopter tail with a narrow frequency for helicopter fbl/gyro.
Product details
Item No. OMG-H6-XTBF
Operating voltage: 4.8-8.4V
Operating speed:
6.0V-0.052sec/60°
7.4V-0.045sec/60°
8.4V-0.041sec/60°
Stall torque:
6.0V-19kgf.cm (264oz-in)
7.4V-20kgf.cm (278oz-in)
8.4V-22kgf.cm (306oz-in)
Gear material: Stainless steel
Horn gear spline:25T Φ5.9
Size:40x20x38mm(1.57x0.79x1.50in)
Case Material: Full Metal
Weight:76g
Bearing:3BB
Motor type: Brushless
Operating temperature:-15℃~+70℃
Operating travel :≈180±10°
Frequency:760μsec
Refresh rate:666Hz
Pules width range:500-2500μsec
Dead band width:2μsec
Connector wire length:300mm
Waterproof level: Dust & Water Splash Resistance
Programmable: No
