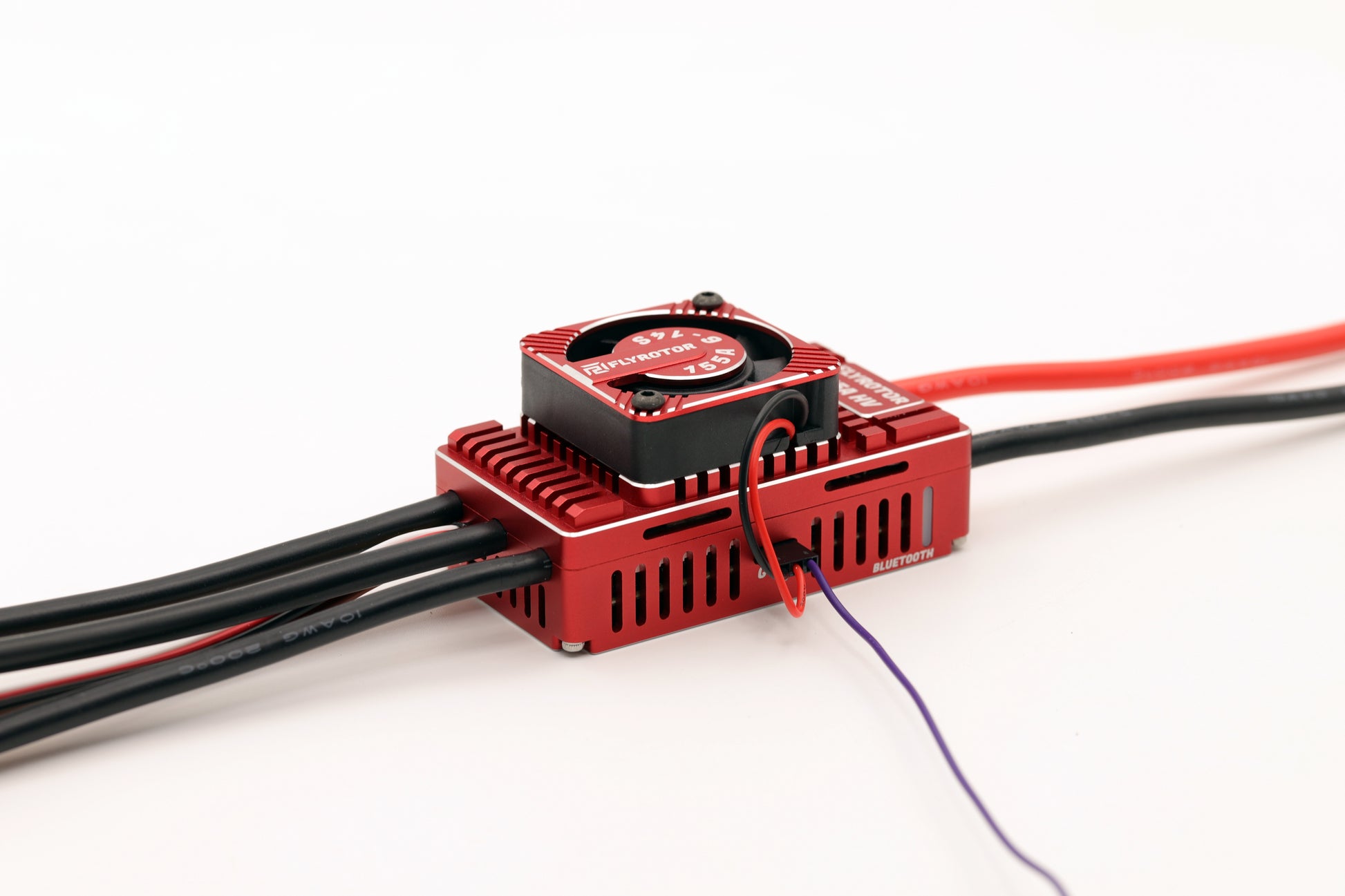

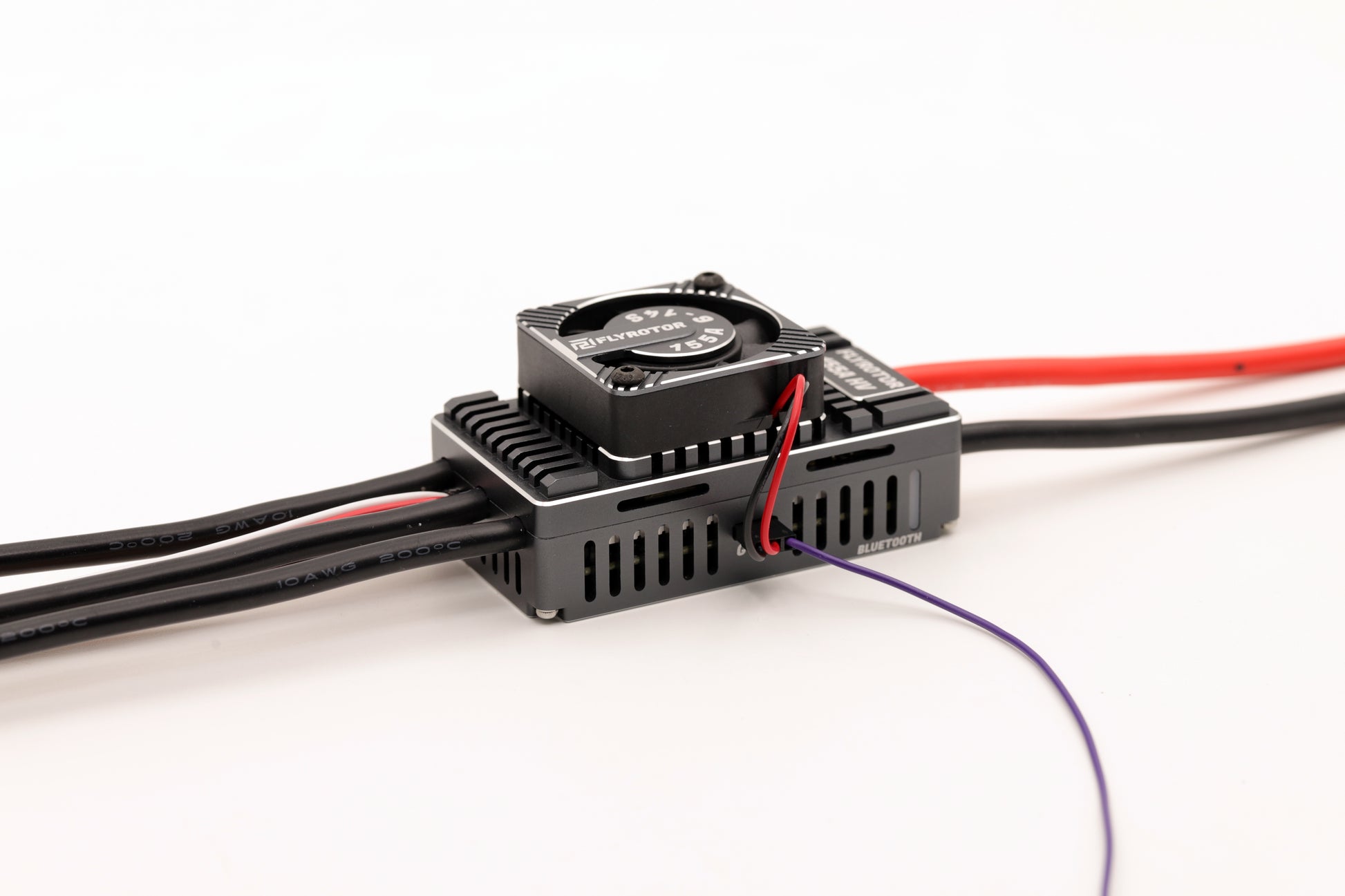

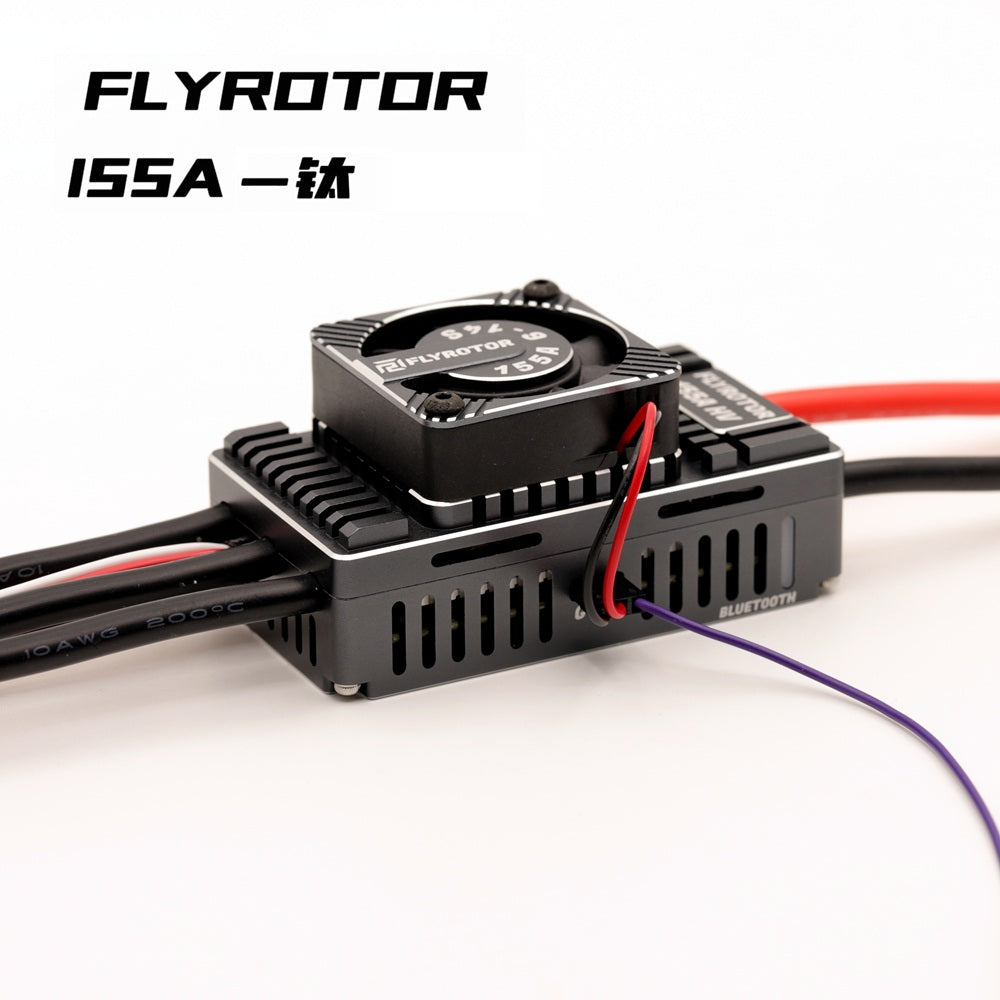

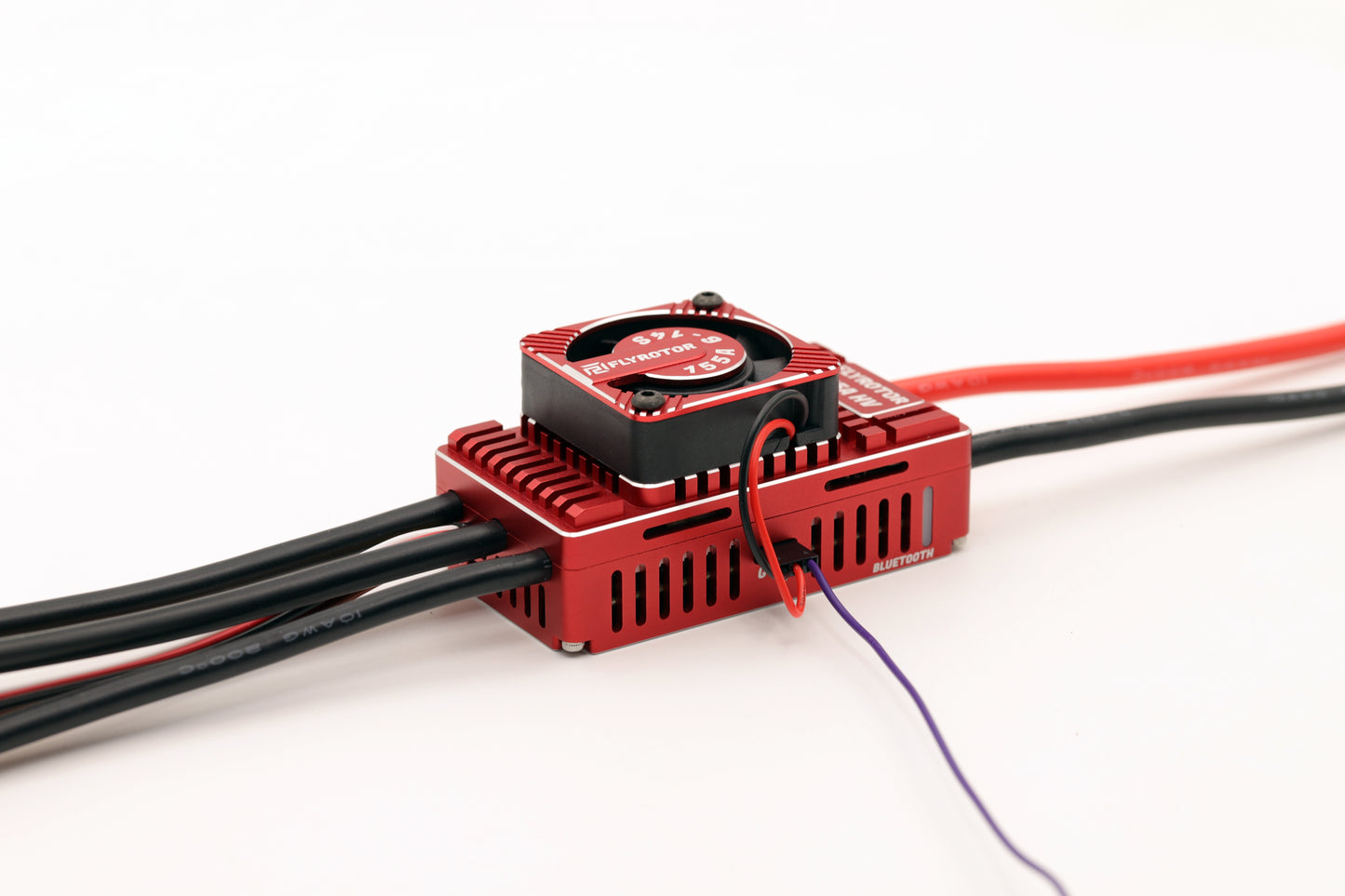

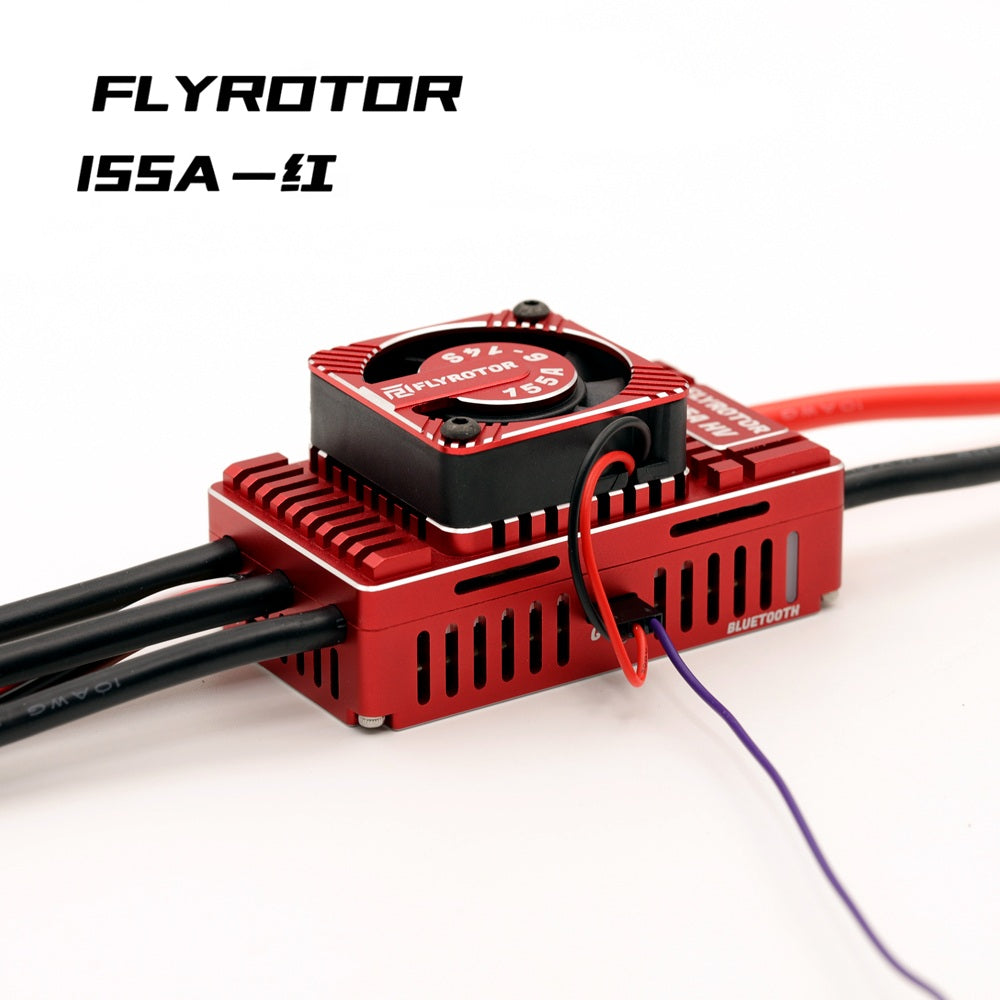

FLYROTOR 155A HV Brushless ESC (6–14S) – 30A BEC, USB + Bluetooth, Rotorflight Ready

Overview

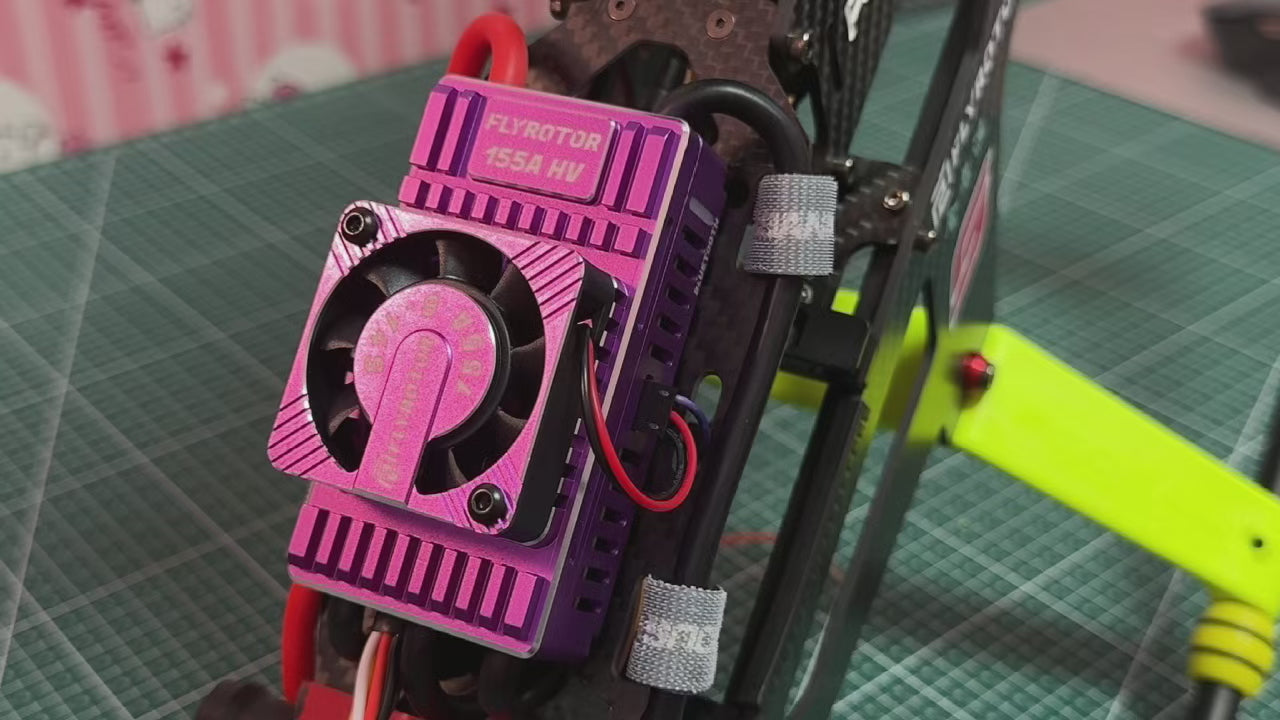

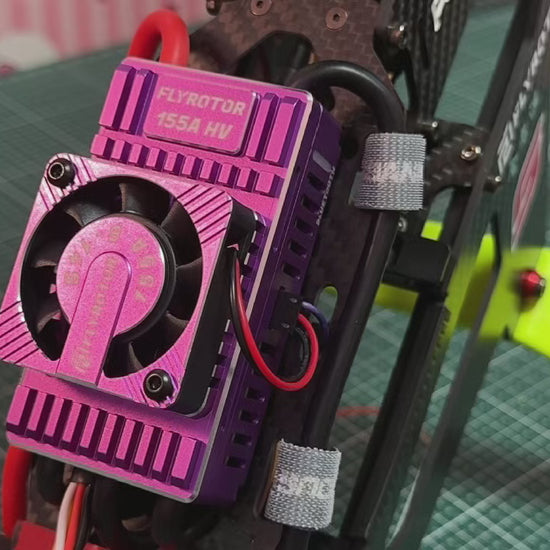

Designed for 550–650 class helicopters stepping into high-voltage (6–14S) setups.

The FLYROTOR 155A HV ESC is a high-performance electronic speed controller built for demanding RC helicopters and large electric aircraft.

Built around a 32-bit RISC-V MCU running at 120MHz, it delivers fast response, precise governor control, and stable high-current operation.

Integrated USB-C and Bluetooth allow direct configuration without additional hardware, while advanced telemetry and a powerful SBEC make it ideal for modern Rotorflight, EdgeTX, and ETHOS ecosystems.

Key Features

• Supports 6S–14S LiPo / LiHV
• 155A continuous / 255A burst
• Integrated 10A / 30A peak SBEC
• Adjustable BEC output: 7.5V / 8.0V / 8.5V / 12V

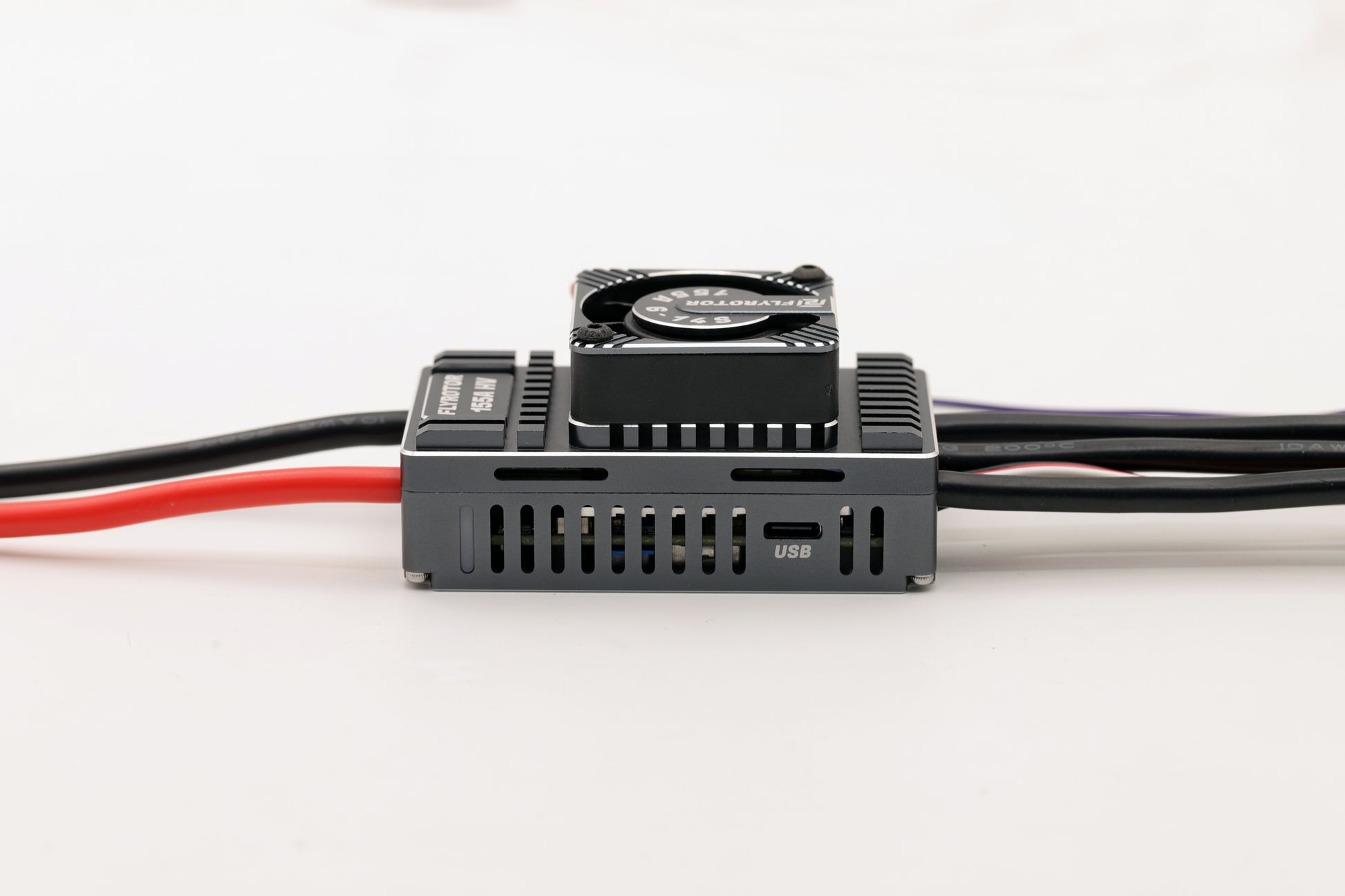

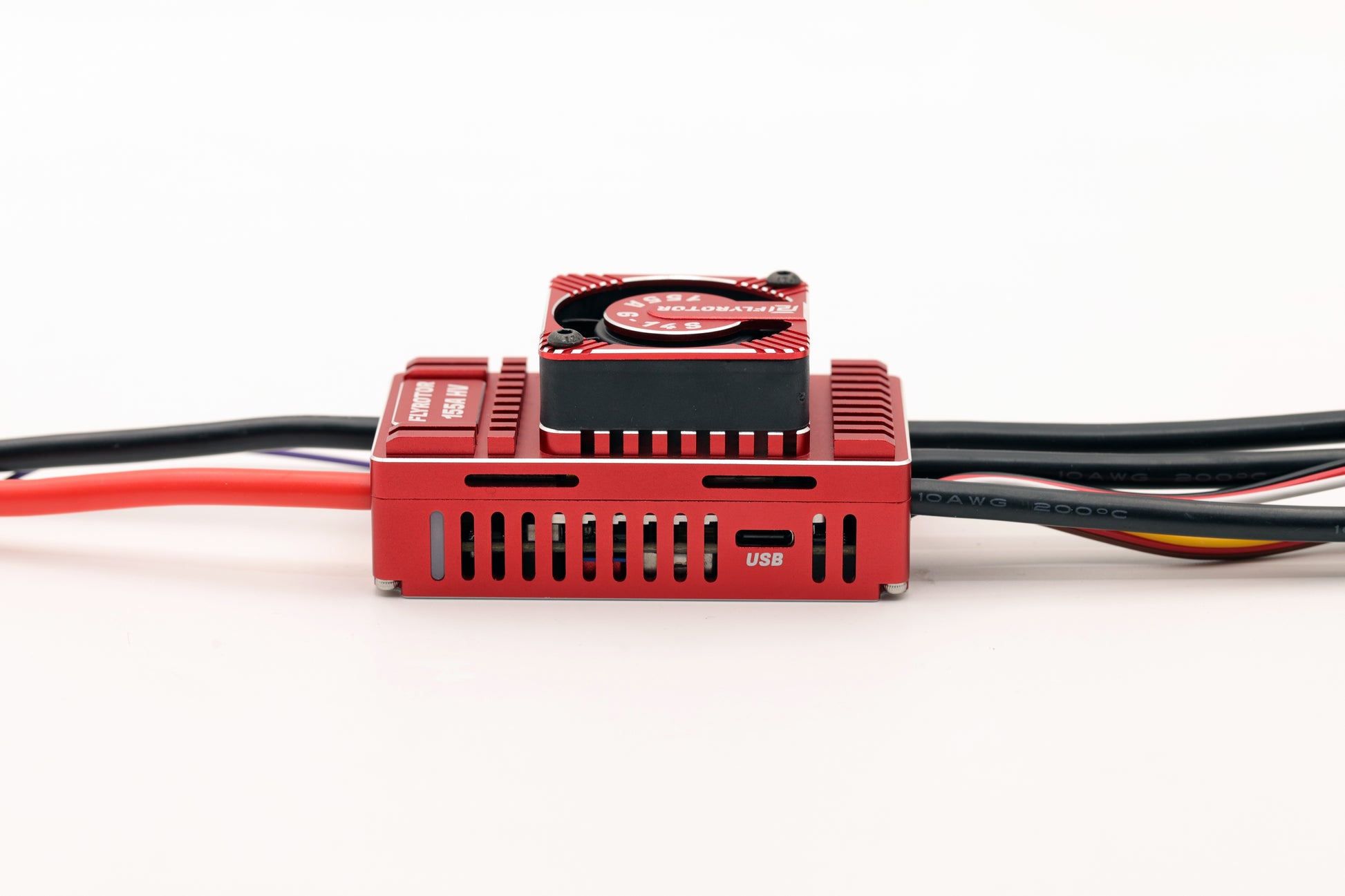

• Built-in USB-C + Bluetooth (no programmer required)
• Governor modes (ESC internal + Rotorflight governor support)
• Energy recovery braking + synchronous rectification
• Integrated data logging (last flight)
• Aluminum case with active cooling fan (4010)
• Motor temperature sensor support (NTC)

📱 Configuration & Apps

• Windows configuration app
• Android app (APK)
• iOS app — now available on the Apple App Store (https://apps.apple.com/cn/app/flyrotor-esc/id6761365354?l=en-GB)
• CLI tools (Windows / Linux / macOS)
• EdgeTX / ETHOS LUA script support

📡 Telemetry Support

• FLYROTOR (native)
• KISS Telemetry
• Futaba S.BUS2
• FrSky Smart Port (S.PORT)
• FlySky iBUS2
• TBS Crossfire (CRSF)
• Graupner HoTT

Performance & Control

• PWM frequency: 10–24kHz
• Throttle range: 1100–1940µs (default)
• Smooth soft-start + restart logic
• Adjustable governor P / I parameters
• Fast response tuning (1–15 scale)

Protection Systems

• Low voltage cutoff
• Overcurrent protection
• MOSFET temperature protection
• Motor temperature protection
• Stall / desync protection
• SBEC fault / overvoltage / backflow protection

Rotorflight / Modern Ecosystem Ready

• Full Rotorflight governor compatibility
• Clean telemetry integration into flight controller or radio
• Works with EdgeTX / ETHOS radios via LUA + telemetry

Configuration & Firmware

Download tools, firmware, and apps:
https://github.com/BskyRui/flydragon-downloads

File Types:

• .fw → USB wired flashing
• .ota → Bluetooth OTA update

Specifications

• Model: FLYROTOR 155A HV
• Input Voltage: 6–14S LiPo
• Current: 155A continuous / 255A peak
• BEC Output: 7.5V / 8.0V / 8.5V / 12V
• BEC Current: 10A continuous / 30A peak
• Size: 80 × 43.5 × 26mm (38.5mm w/ fan)
• Weight: ~205g (230g w/ fan)
• Wire: 10AWG input/output
• Cooling: Aluminum case + 4010 fan

Compatibility

• 550–650 class RC helicopters
• High-power electric fixed wing aircraft
• Rotorflight, Spirit, and modern FBL systems

⚠️ Important Notes

• Designed for high-power systems — setup matters
• Verify motor, gearing, and battery compatibility before use
• Improper installation or configuration can cause damage or injury
• Follow manufacturer guidelines — use at your own risk
