FrSky GPS ADV Plus FBUS/S.Port GPS Telemetry Sensor

FrSky GPS ADV Plus

The FrSky GPS ADV Plus expands on the original GPS ADV sensor with enhanced GPS performance, built-in variometer and compass sensors, and two versatile operating modes. It supports both FBUS and S.Port for straightforward integration with compatible FrSky receivers.

GPS Telemetry and ETHOS Time Synchronization

The GPS ADV Plus provides real-time telemetry data including position, altitude, speed and UTC time. When used with the Auto Adjust from GPS function in FrSky ETHOS, the transmitter clock and recorded telemetry data can be synchronized with accurate GPS time.

Two Operating Modes

• Receiver telemetry mode: Connects directly to a compatible receiver using FBUS or S.Port.
• Flight controller mode: Connects to a compatible flight controller using its I2C and serial interfaces.

The integrated variometer and compass can provide a compatible flight controller with real-time altitude and heading information for navigation-related functions.

Key Features

• FBUS and S.Port compatible
• 10Hz GPS data rate
• Built-in variometer and compass sensors
• GPS position, speed, altitude and UTC time telemetry
• Supports ETHOS GPS time synchronization
• Direct receiver or flight-controller operation
• Compact 12g design

Specifications

• Dimensions: 34.9 × 26 × 9.2mm (L × W × H)
• Weight: 12g
• Operating voltage: DC 4–10V
• Current draw: 60mA at 5V
• Operating temperature: -40°C to 85°C
• Data rate: 10Hz
• Cold-start time to fix: Approximately 29 seconds
• Speed accuracy: Approximately 0.05m/s
• Sensitivity: -166dBm
• Antenna: Built-in soldered antenna
• Position accuracy: Approximately 2.0m CEP
• Dynamic limit: 4g
• Altitude limit: 80,000m
• Velocity limit: 500m/s
• Protocols: FBUS and S.Port

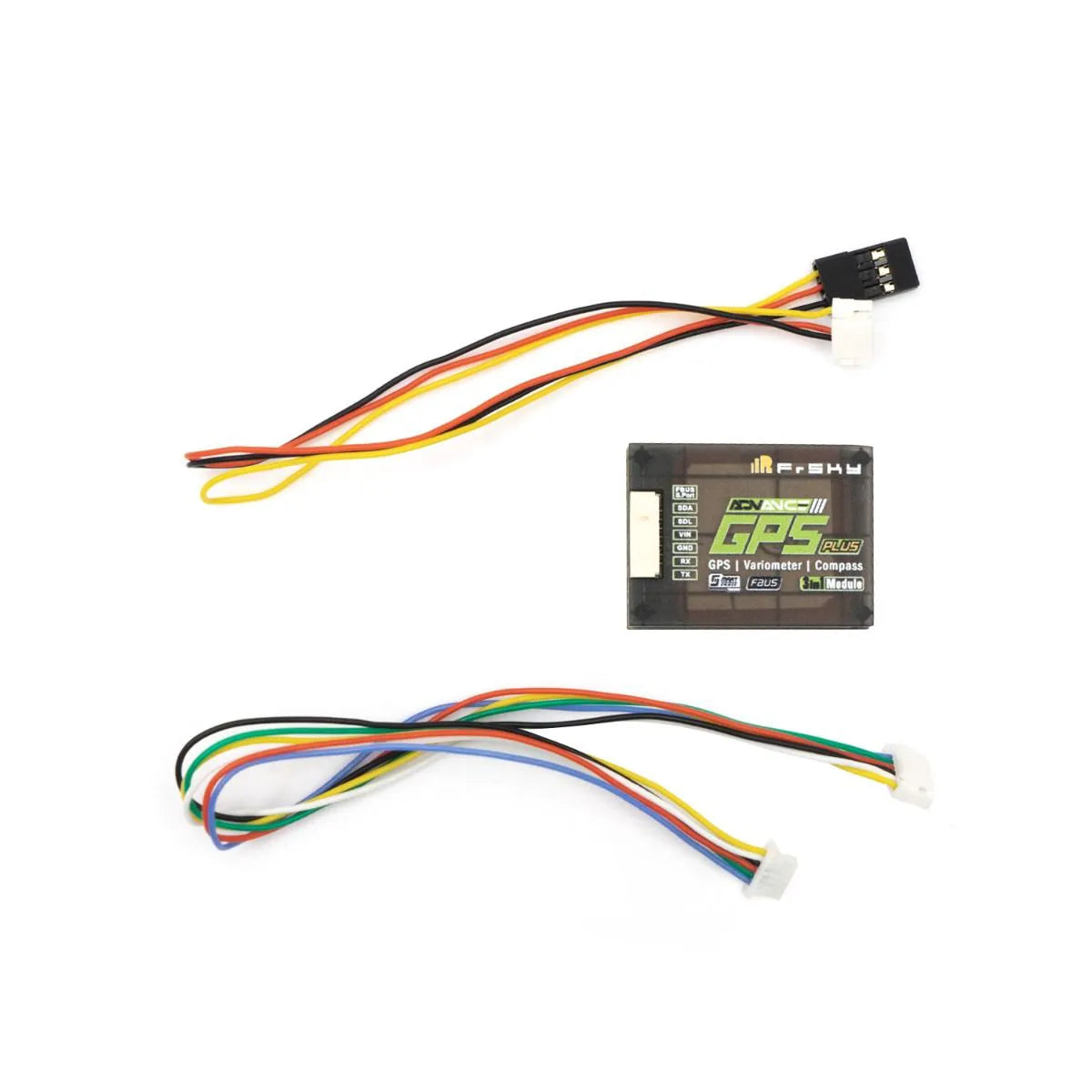

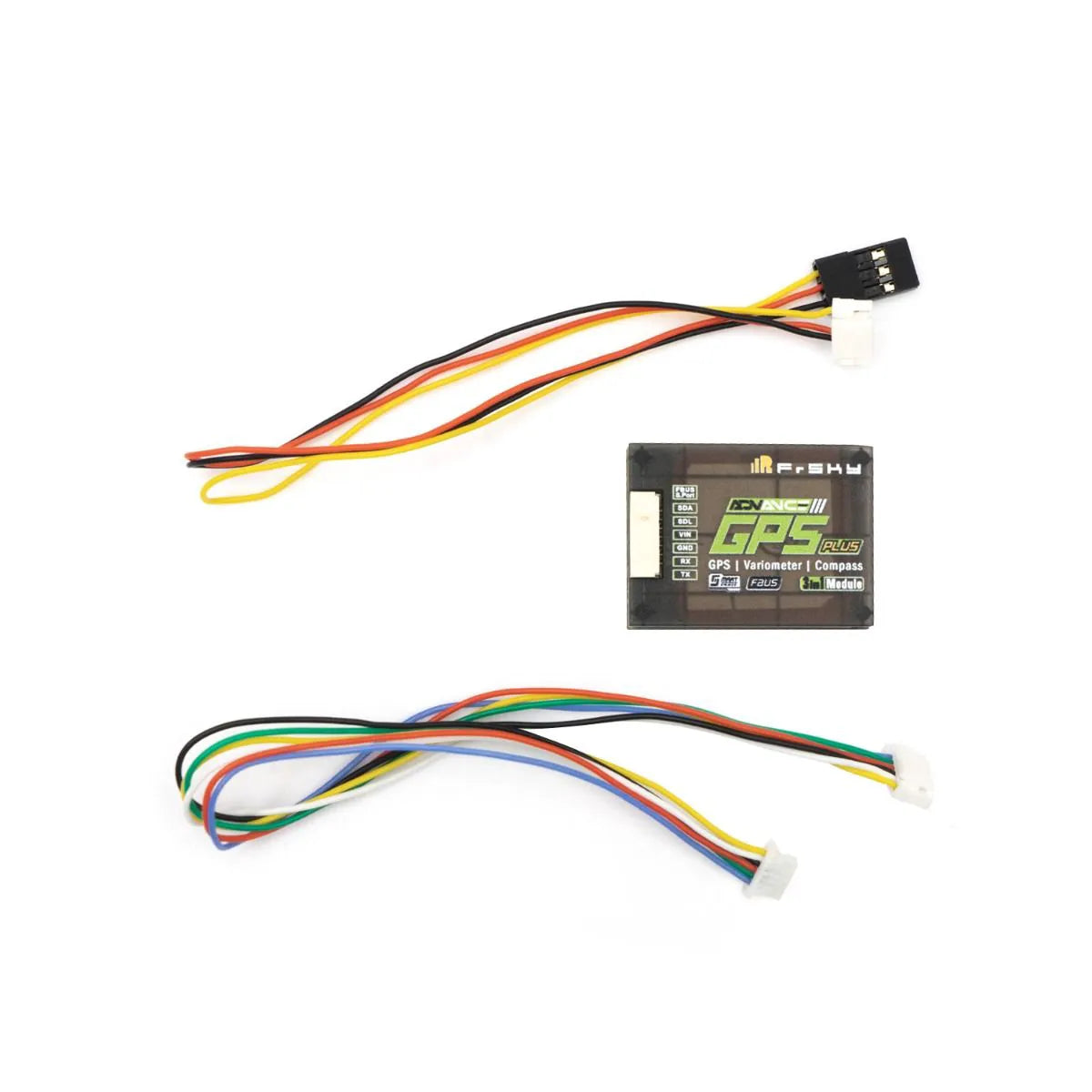

Package Includes

• 1 × FrSky GPS ADV Plus sensor

Compatibility note: Flight-controller functions depend on the controller, firmware and available interface support. Confirm compatibility before installation.
