FrSky Hall RPM ADV Sensor – Magnetic RPM Telemetry, FBUS & Smart Port

The FrSky Hall RPM ADV sensor provides accurate rotational speed measurement using a magnetic pickup system, making it ideal for helicopters and rotating assemblies where direct shaft sensing is needed.

Part of the ADV sensor series, it supports both FBUS and Smart Port (S.Port) for seamless integration into modern FrSky telemetry systems.

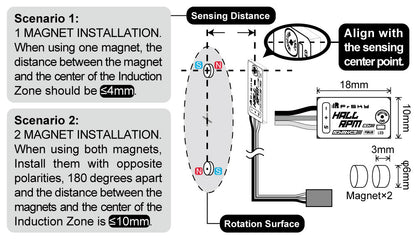

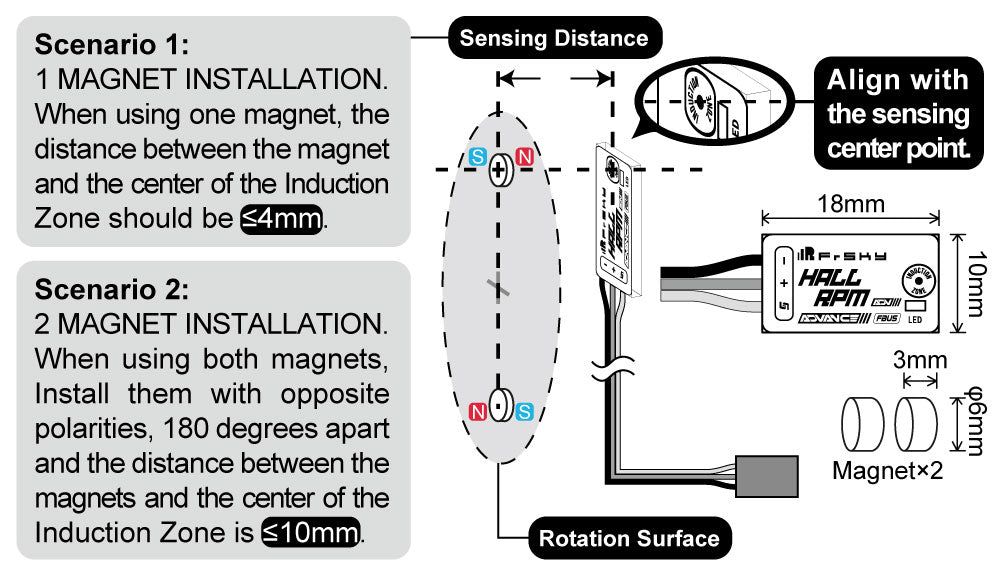

Install the included magnet on a rotating component, position the sensor nearby, and get real-time RPM telemetry directly on your radio.

🧲 MAGNET-BASED RPM SENSING

• Uses included magnet + Hall sensor
• Reliable detection even in dusty/oily environments
• Ideal for:
  • Helicopter main gear / motor setups
  • Rotating shafts
  • Custom builds

📡 TELEMETRY + FLEXIBLE OUTPUT

• Direct FBUS / S.Port telemetry output
• Real-time RPM data on ETHOS / EdgeTX radios
• Optional PWM mode:
  • Outputs RPM signal to compatible devices (ESC / FC)

🔌 FBUS + ADV SERIES BENEFITS

• Full FBUS compatibility (clean single-wire setup)
• Backward compatible with Smart Port
• Improved performance over legacy sensors

📦 SPECIFICATIONS

• Sensor Size: 18 × 10 mm
• Magnet Size: 6 × 3 mm
• Sensor Weight: 2.5g
• Magnet Weight: 0.64g
• Voltage: 3.7V – 8.4V
• RPM Range: 400 – 60,000 RPM
• Compatibility: FBUS & Smart Port receivers

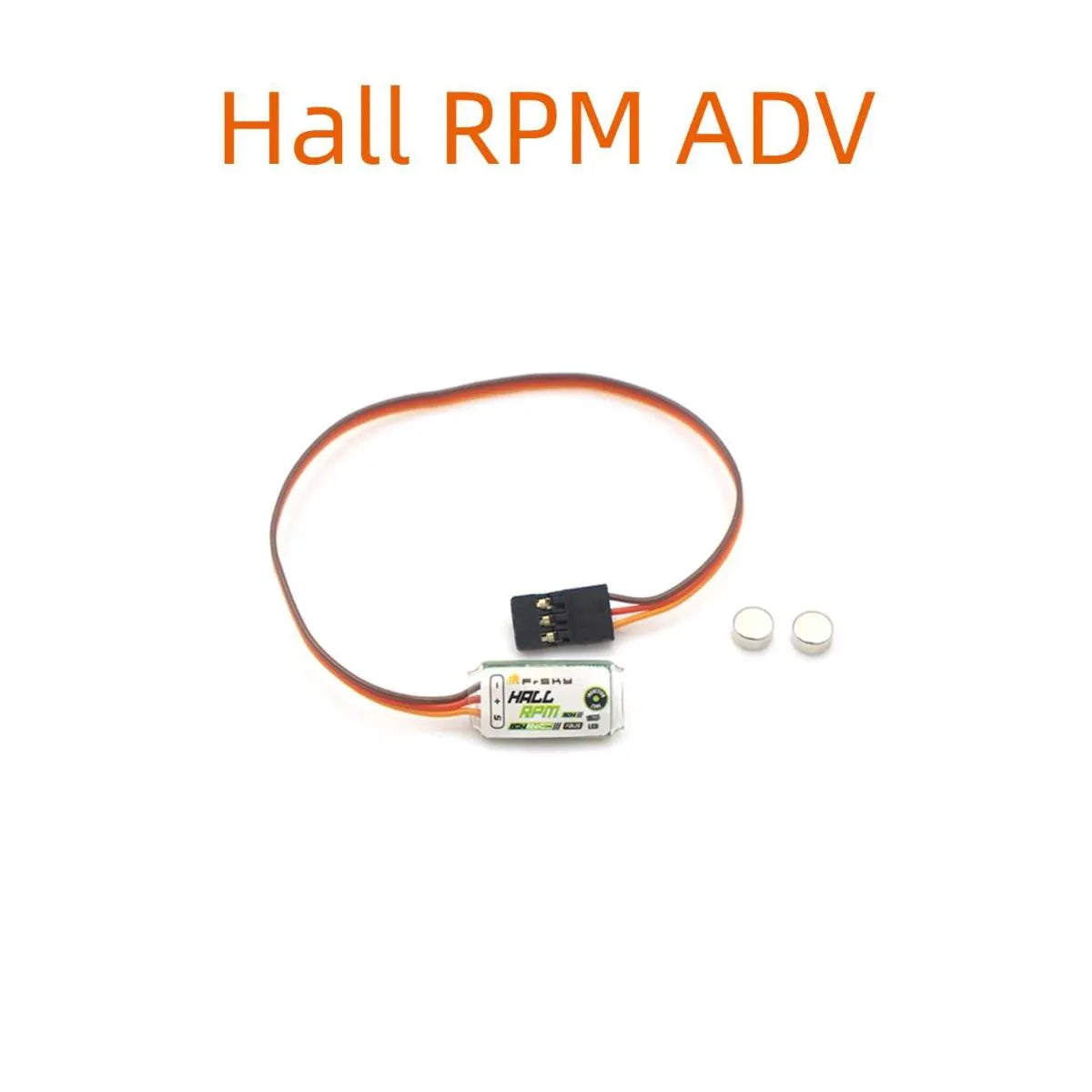

📦 INCLUDES

• (1) Hall RPM Sensor
• (1) Magnet

💡 BEST USE

• RC helicopters (primary use)
• Gear-driven systems
• High-vibration environments where optical fails
