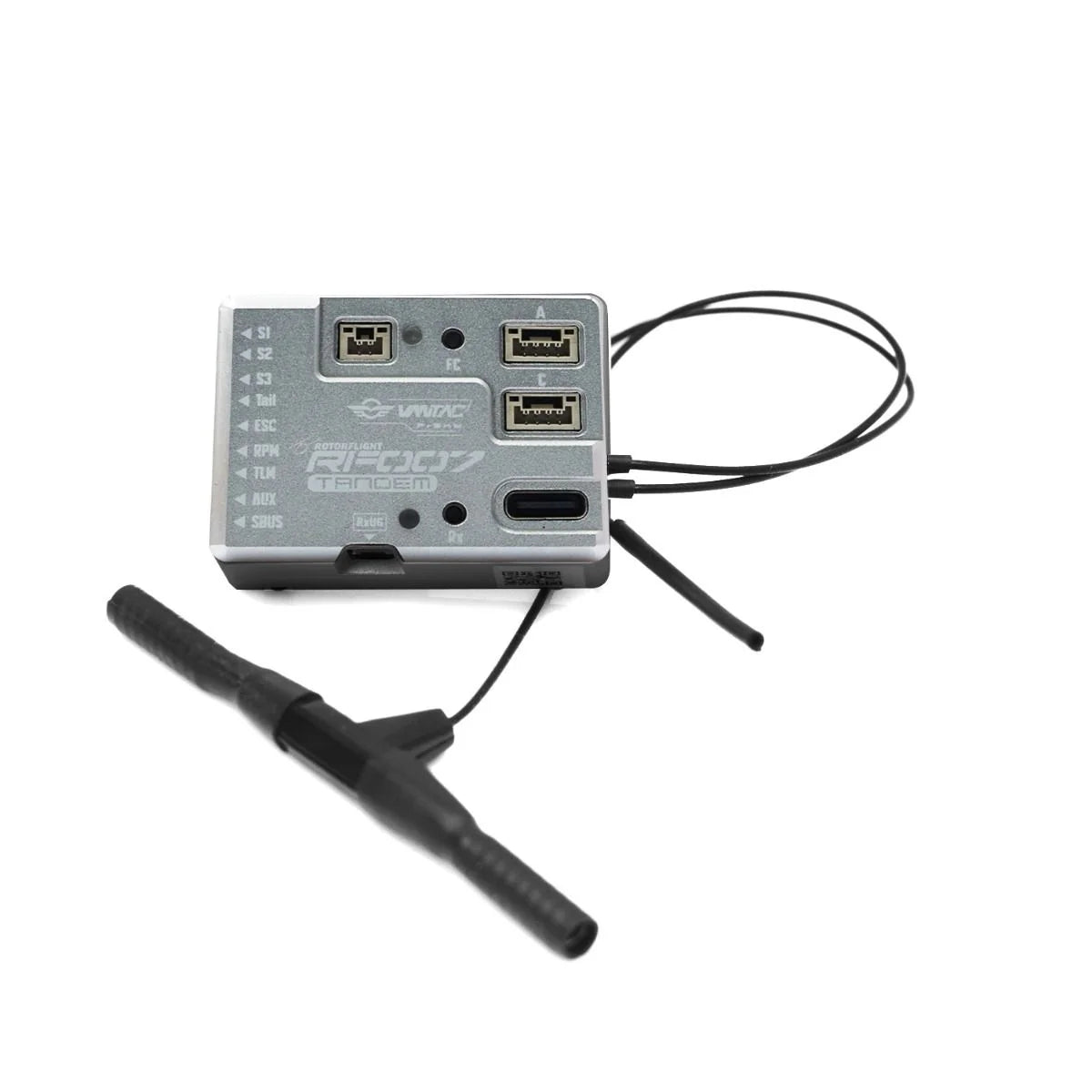

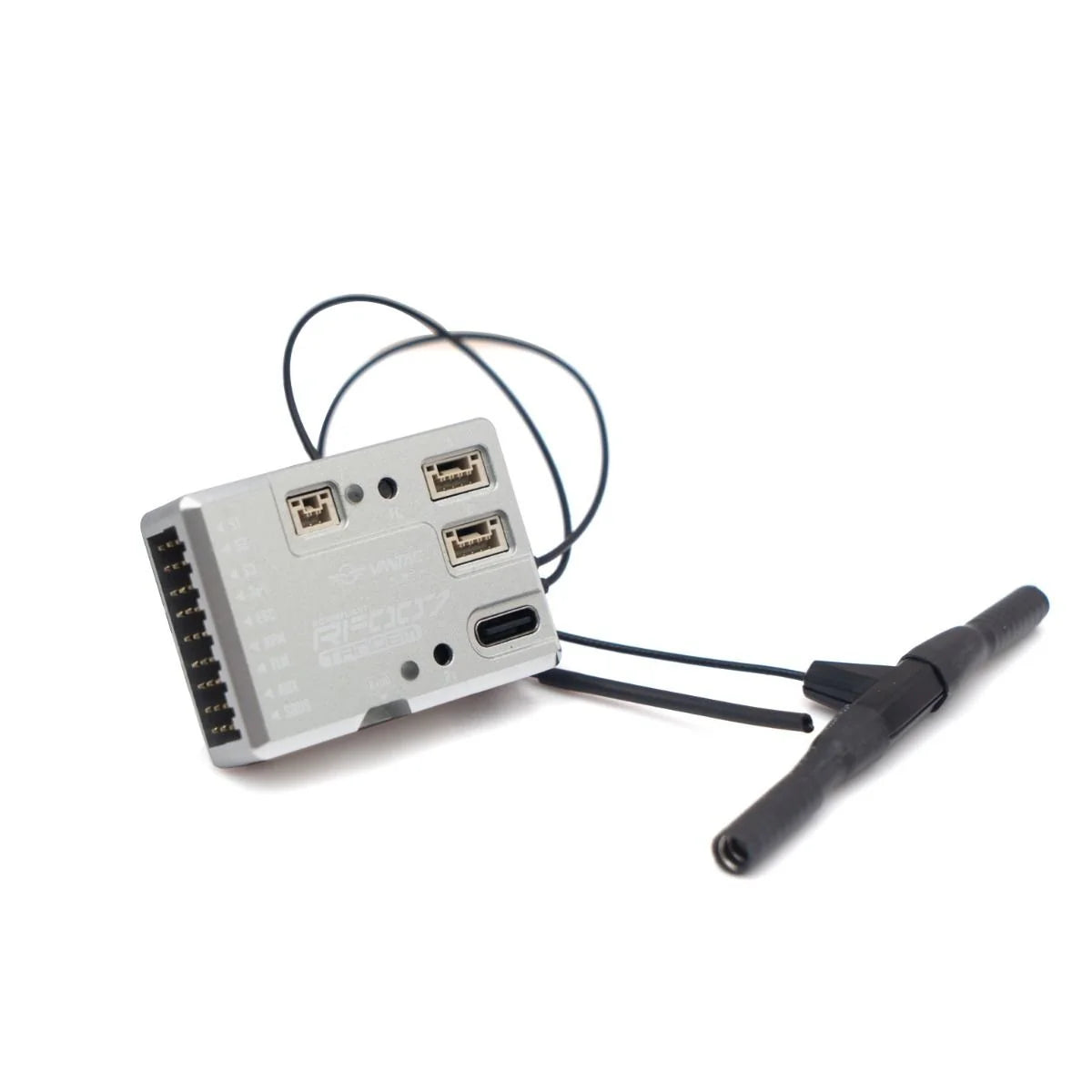

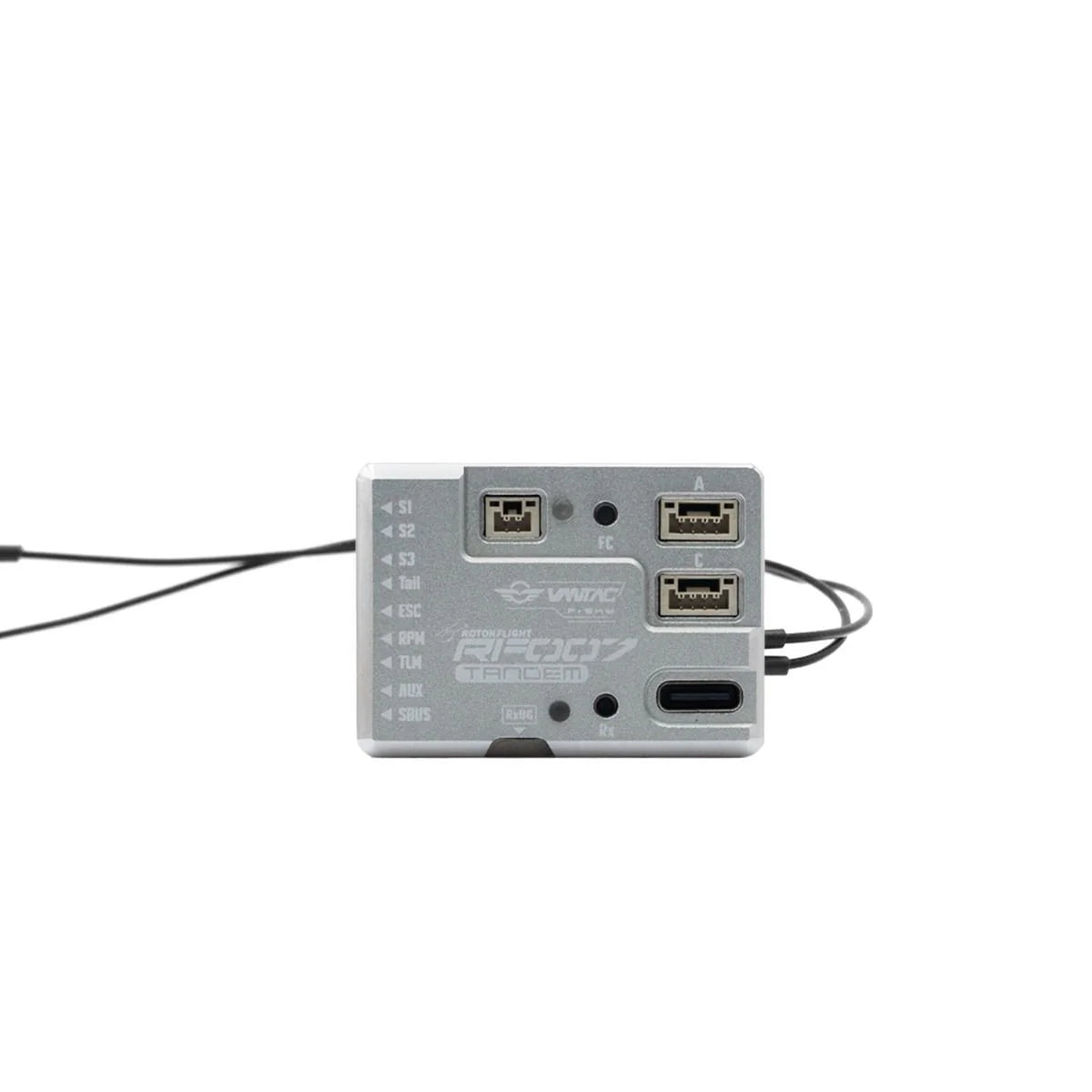

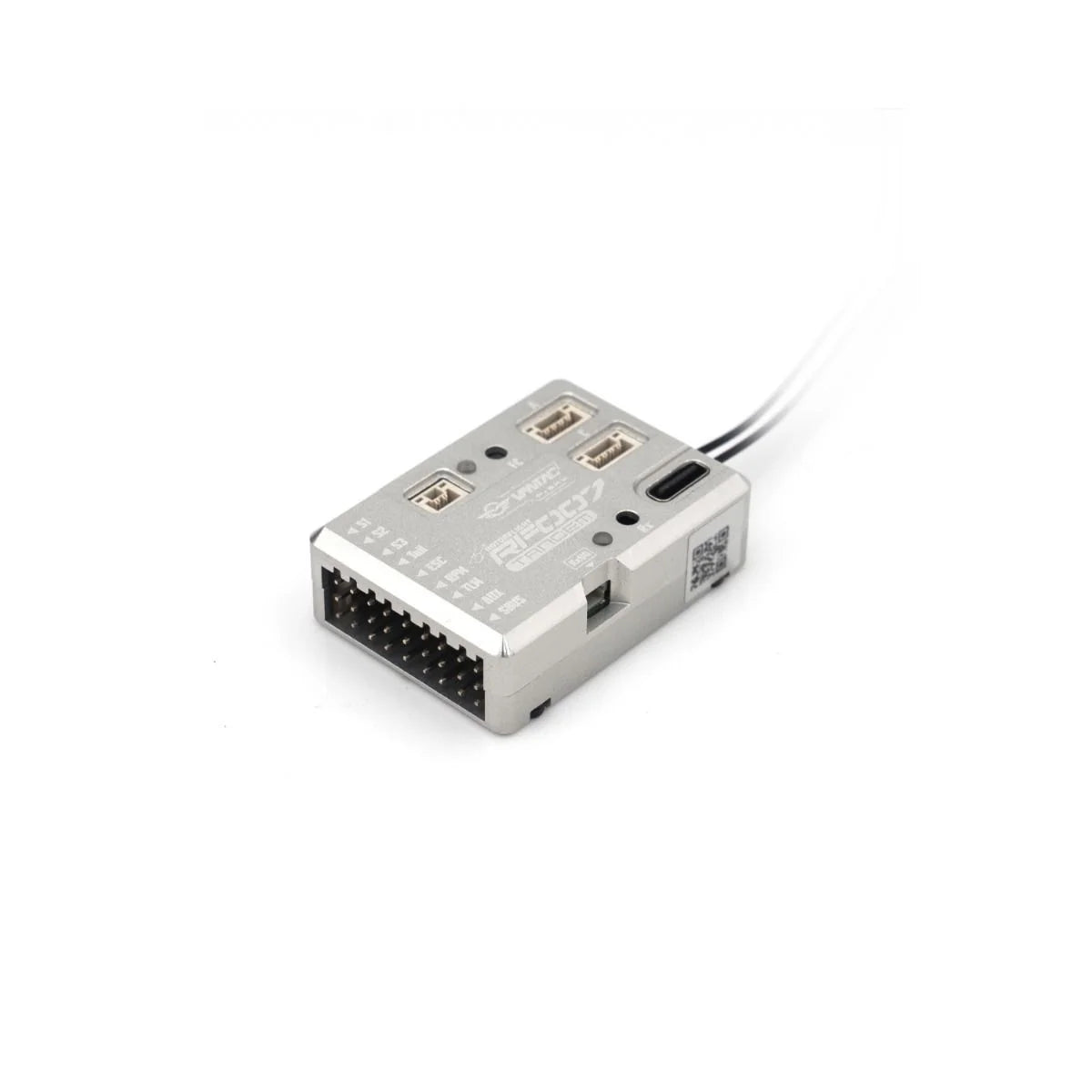

FSK-03021863 FrSky RF007 TD FBL Rotorflight Flybarless Controller Tandem Protocol

Specifications

● Flight Controller Firmware: Rotorflight 2.x
● Dimension: 43.5×31.2×13.7mm
● Weight: 25.2g
● Receiver Options:
- RF007 ARCHER+: Built-In 2.4G Archer Plus RS Receiver
- RF007 TWIN: Built-In Dual 2.4G TW R6 Receiver
- RF007 TANDEM: Built-In 2.4G&900M Dual-Band TD MX receiver
● Operating Voltage Range: 5-16V
● Operating Current (FC Only): 125mA@5V
● Voltage Measurement Range via AIN (External device): 0-80V
● RxUG Port: For Upgrading Internal RX Firmware (In case of OTA upgrade failure)
- Note: When powering this RxUG port, do not introduce additional power input from other ports to ensure the safe operation of the connected devices.
==========================================================
● MCU: STM32F722RET6
● Gyroscope (IMU): ICM-42688P
● Barometer: SPL06-001
● Blackbox Flash: 128MB
● Servo Ports: Servo 1, Servo 2, Servo 3, Tail
● ESC Ports: ESC (Throttle), RPM (Sensor), TLM (ESC Telemetry or other functions)
● Other Ports: AUX and SBUS Out/In
● Expansion Ports: Port A, C, and RxUG

Features

● Runs Rotorflight 2.x Helicopter Control Software
● Built-In FrSky FBUS-Capable Receiver (TW or AP Protocol)
● Robust CNC Aluminum Case, Functional Heatsink for MCU
● STM32F722 Microcontroller for Power and Flexibility
● Precision Barometer, 3-Axis Gyroscope and 3-Axis Accelerometer
● 128MB Blackbox Function for Tuning/Troubleshooting
● 9 Primary Main Header Pins for Flexibility and Power Distribution

RF007 Manual Link
