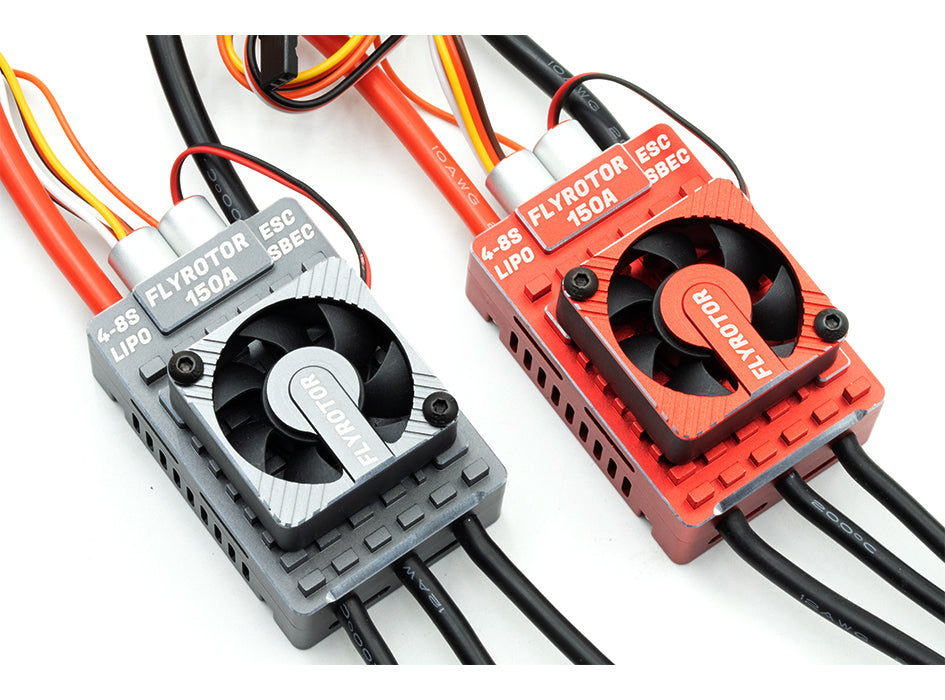

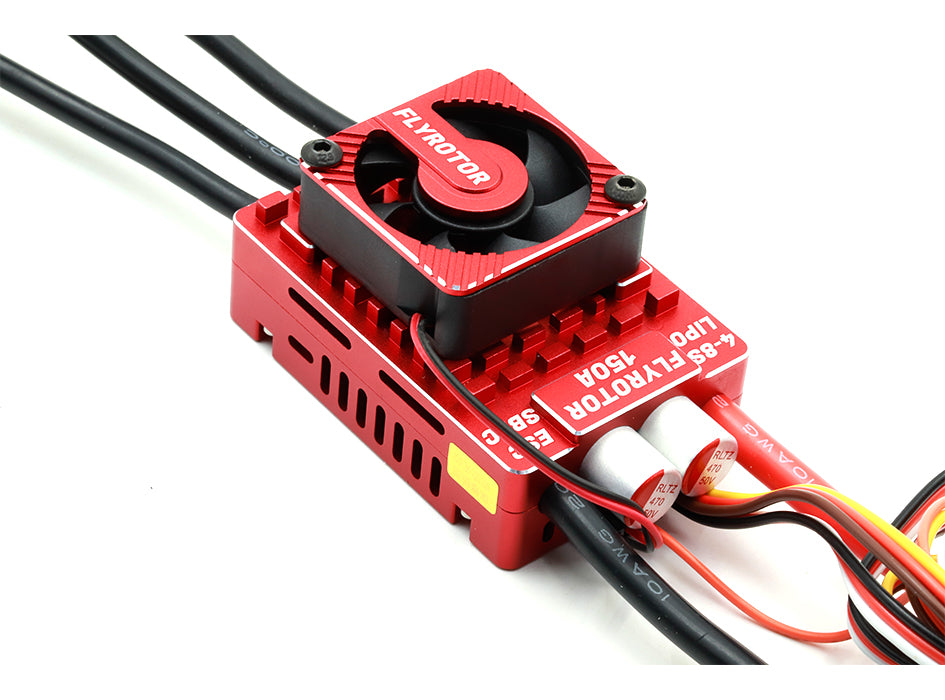

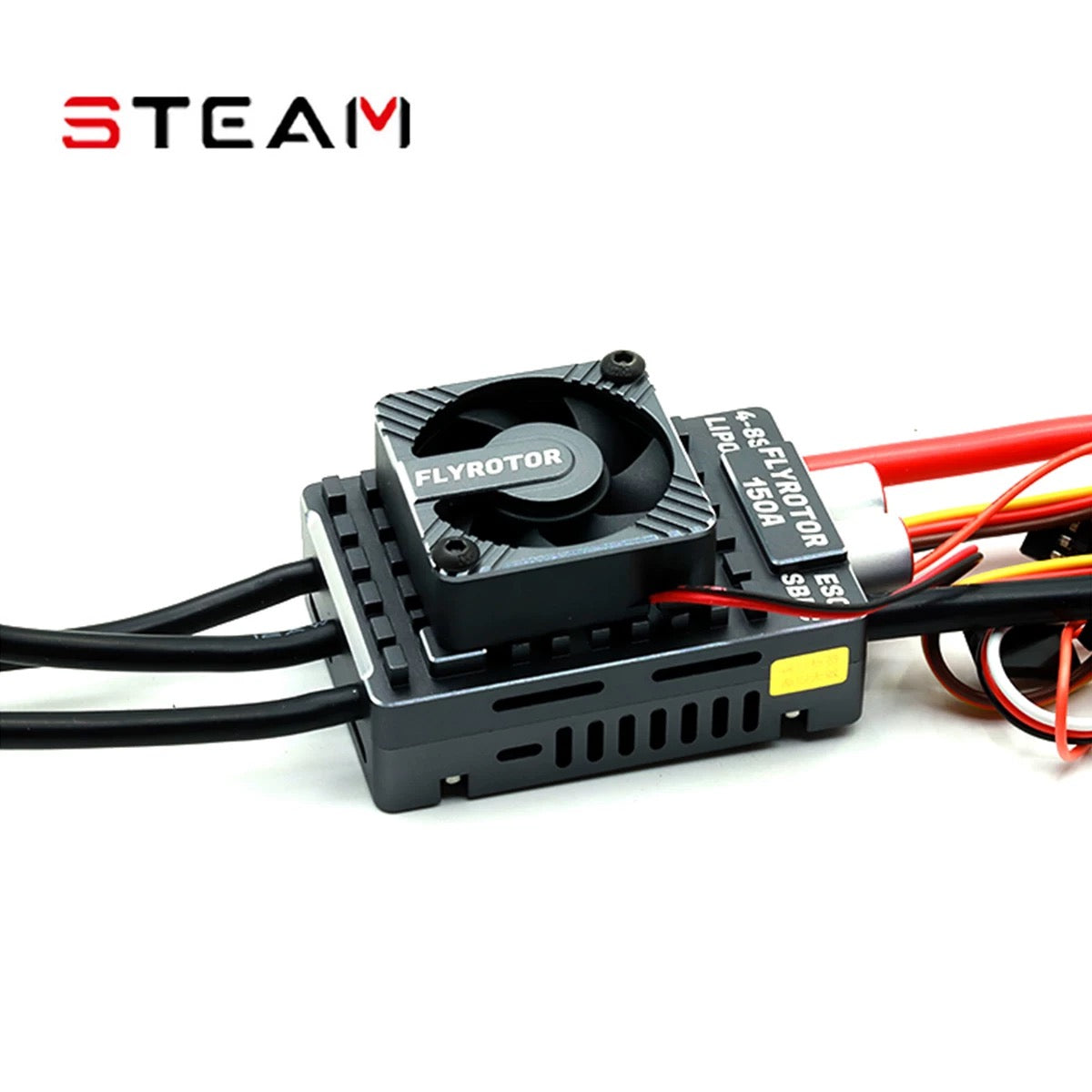

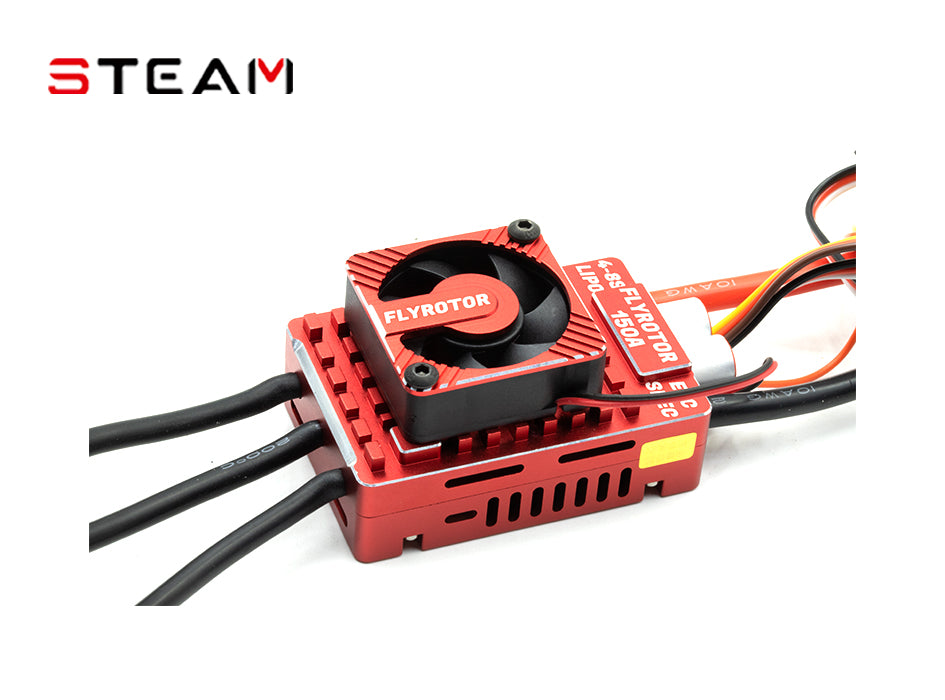

FY-150A FLYROTOR 150A ESC 4-8S FY-150A

Y-150A FLYROTOR 150A ESC 4-8S FY-150A

FLYROTOR 4-8S-150A ESC is suitable for 550-580 helicopters, fixed-wing aircraft, or drones, etc.

• Helicopter Size: Recommended 550-580 on 6-8S
• Input voltage: 4-8S lithium battery
• Continuous current/Peak current (10 seconds): 150A / 200A
• BEC - Continuous 10A, peak 25A
• Onboard Governor or External Governor w/ PWM RPM Output

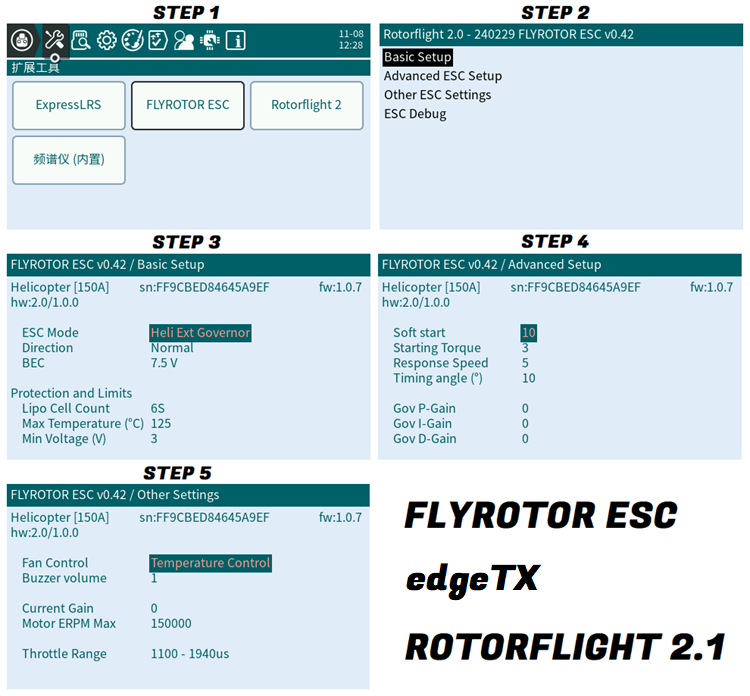

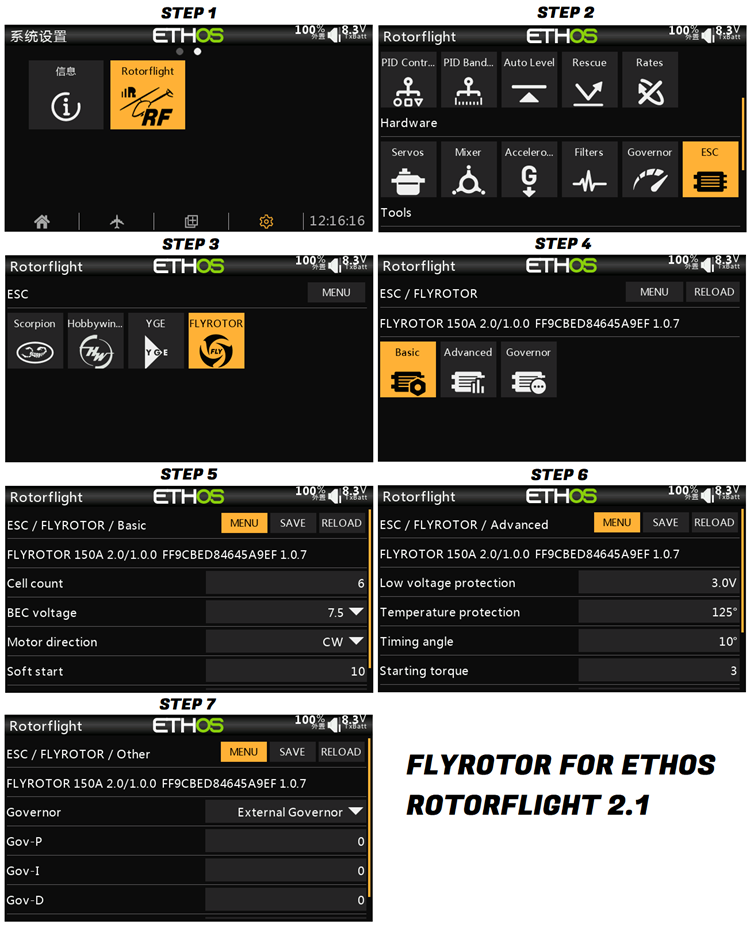

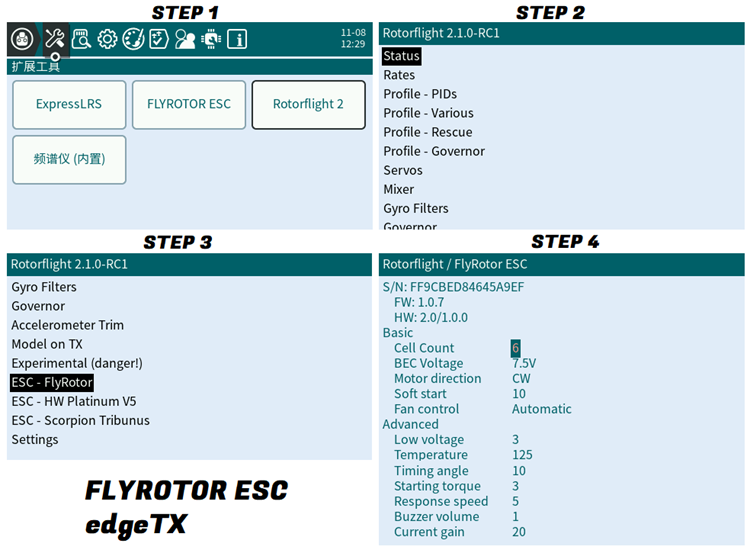

• Rotorflight 2.1 Forward Programming Support through RF LUAs (EdgeTX or ETHOS)
• Full featured ESC telemetry (RPM, Current, Voltage, BEC Voltage, Capacity, ESC Temp, MCU Temp, Status, Mode)
• Adjustable BEC (7.5v, 8.0v, 8.5v,12v)
• High Speed Anodized Metal Brushless Cooling Fan
• NTC Port for External NTC Thermistor to attach to Motor for temperature (details coming soon...)

Telemetry Items and FlyRotor ESC Protection Alarms:

FlyRotor Windows Configuration Software:
https://github.com/Jiki-Mo/ESC-Configurator/releases/download/v1.1.0/FLYROTOR_ESC_1.1.0_20241230.zip

FlyRotor 150a ESC Specifications:

https://cdn.shopify.com/s/files/1/0582/8558/8558/files/FLYROTOR_150A___v1.3.zh-CN.en.pdf?v=1736600658
