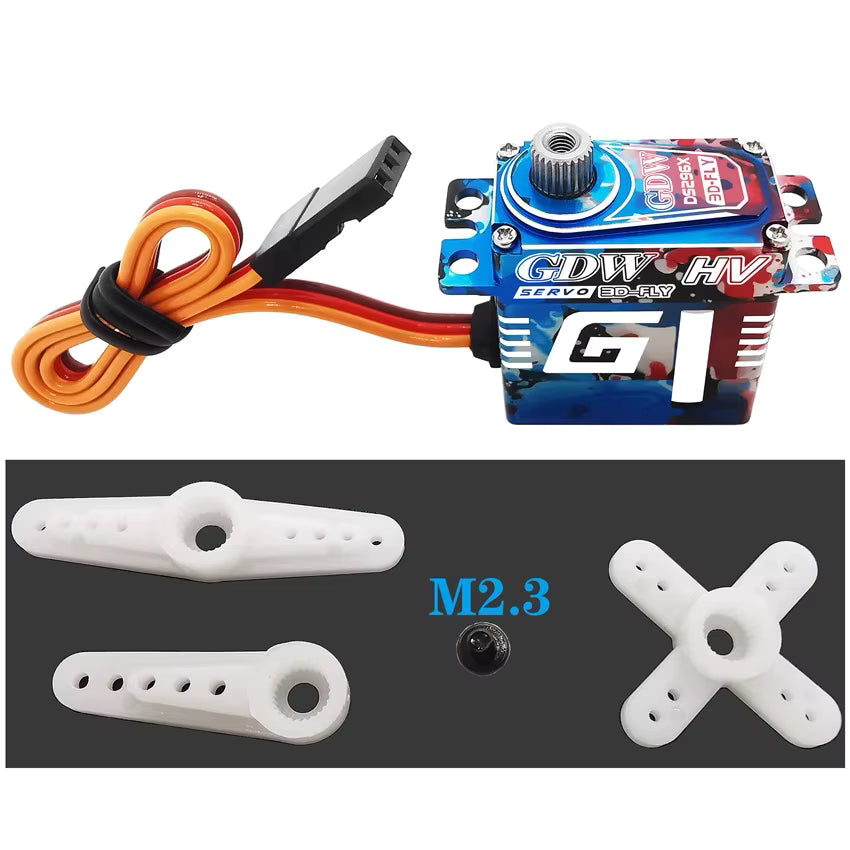

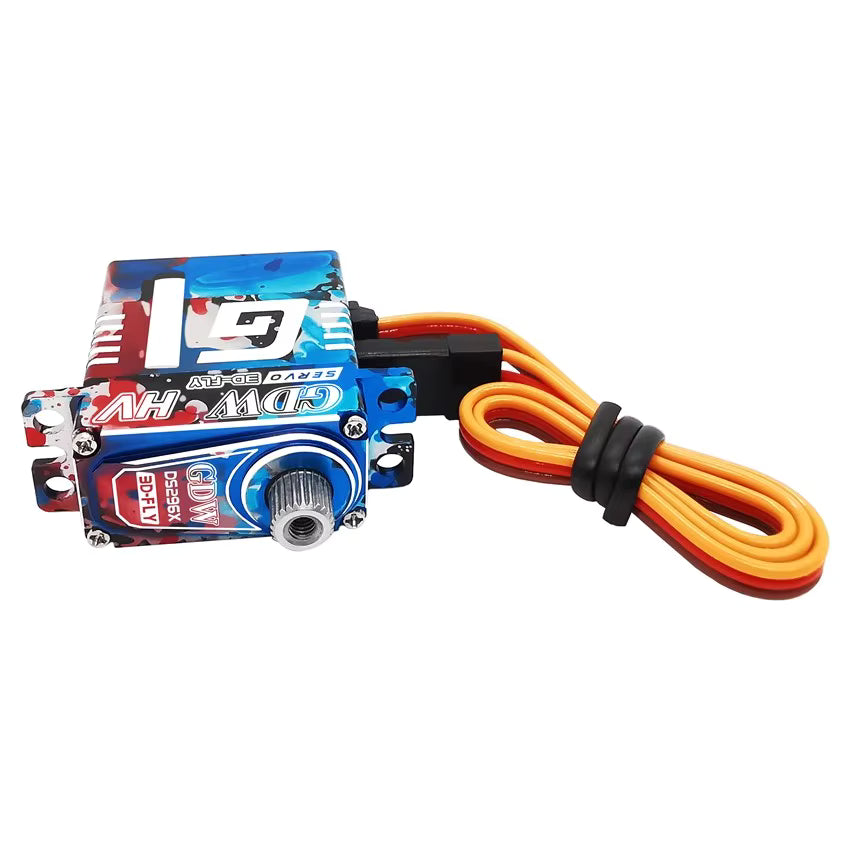

GDW-DS296X GDW DS296X 10kg .09s 20g Micro Digital Coreless Servo

GDW-DS296X GDW DS296X 10kg .09s 20g Micro Digital Coreless Servo

SPECIFICATIONS:

• Model: DS296X
• Brand: GDW
• Dead band: 3μs
• Working frequency: 1520μs / 333hz
• Motor：Coreless
• Operating Voltage: DC6~8.4 V
• Operating Speed (6V): 0.11sec/60°
• Operating Speed (8.4V): 0.09sec/60°
• Stall Torque (6V): 7.8 kg.cm
• Stall Torque (8.4V): 10 kg.cm
• Dimensions: 22.90*11.9*26.mm
• Connector Wire Length: JR/220mm
• Bearing: 2BB
