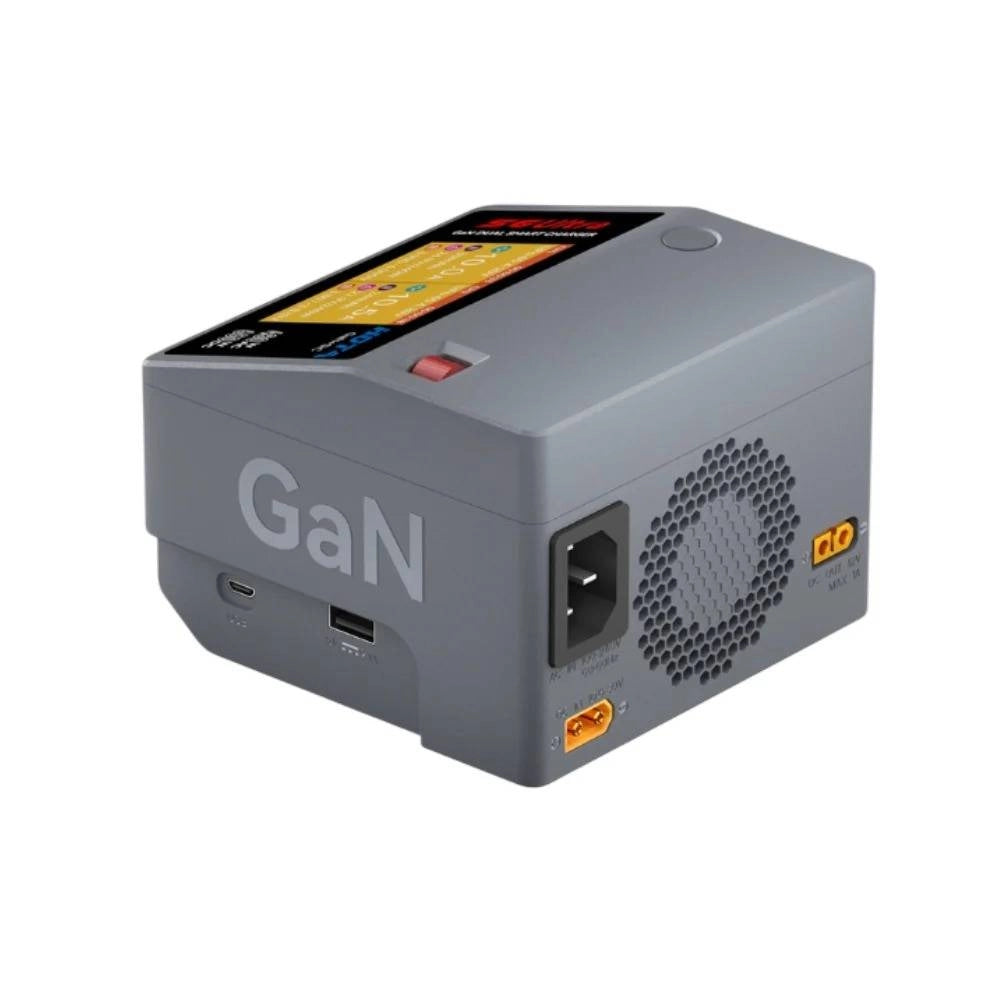

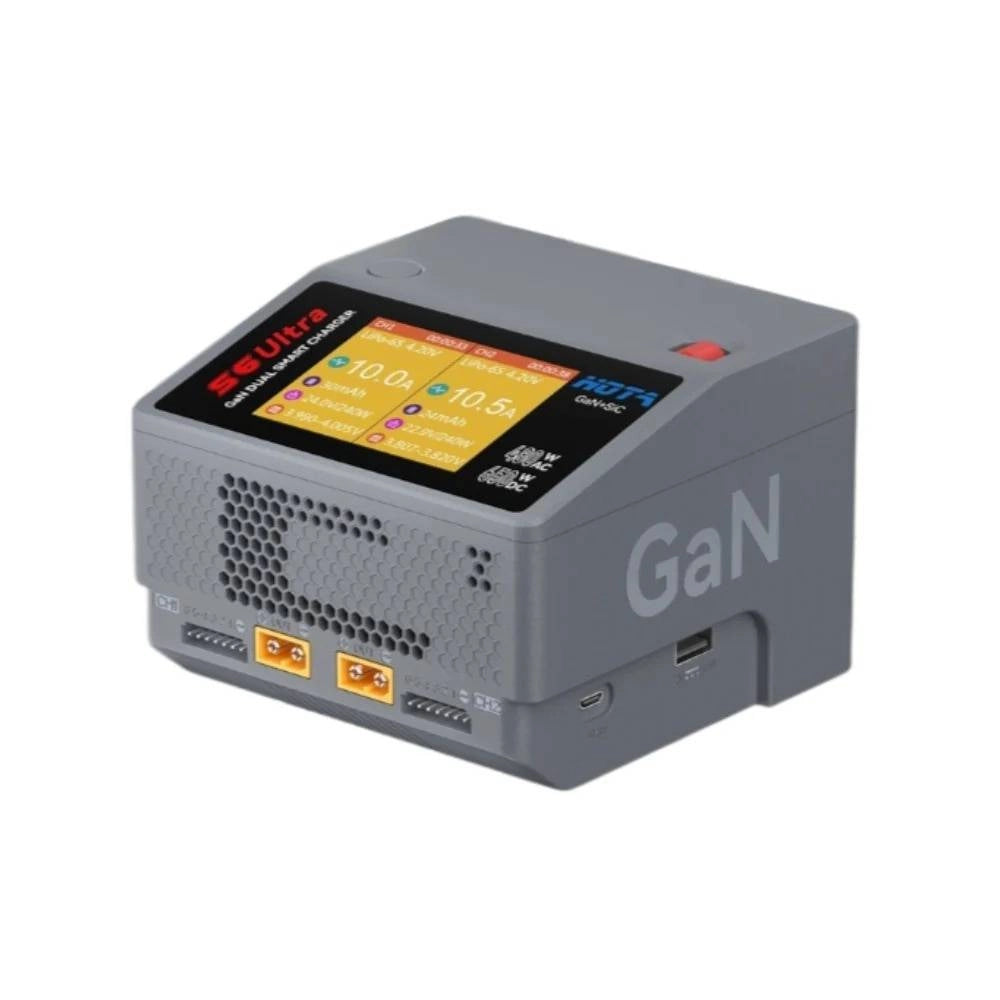

HOTA S6 Ultra Dual Channel Smart Charger (GaN+SiC, 480W AC / 650W DC, 1–6S)

The HOTA S6 Ultra is the next-generation upgrade to the proven S6 platform, now featuring GaN (Gallium Nitride) + SiC (Silicon Carbide) power supply technology for improved efficiency, reduced heat, and better real-world performance.

Maintaining a compact dual-channel design, the S6 Ultra delivers strong output on both AC and DC, with improved thermal handling and higher balance current for faster, more stable charging.

This is the ideal charger for users who want serious performance in a dual-port setup without stepping up to larger multi-channel units.

Key Features

• GaN + SiC Power Supply Technology
  • Higher efficiency
  • Lower heat output
  • Improved power density
• Dual Channel Charging (2 Independent Outputs)
• Up to 325W per channel (DC input)
• 480W total output on AC (shared)
• Power distribution across channels
• Synchronous charging mode (combined output)
• High balance current (1600mA per channel)
• USB-A + USB-C output (up to 45W Type-C)

Specifications

• Input Voltage:
  • AC: 100–240V
  • DC: 6.5–30V
• Charge Current:
  • 0.1–15A × 2
• Charge Power:
  • DC: 325W × 2 (requires >26V input)
  • AC: 480W total (supports power distribution)
• Combined Charging:
  • Power: 500W @ >24V input
  • Current: 0.1–22A
• Discharge Power:
  • Internal: 15W × 2 (balance port 10W × 2)
  • External: 325W × 2 (650W total)
• Battery Support:
  • LiPo / LiHV / LiFe / Li-ion: 1–6S
  • NiZn / NiCd / NiMH: 1–16S
  • Smart Battery: 1–6S
  • Pb: 2–24V
  • Eneloop: 1–16S
• Balance Current:
  • 1600mA × 2
• Discharge Current:
  • 0.1–3A × 2
• Outputs:
  • USB-A: 5V / 2.1A × 2
  • USB-C: up to 45W
• Dimensions:
  • 116 × 116 × 85 mm
• Weight:
  • ~800g

What’s Included

• 1x HOTA S6 Ultra 650W GaN+SiC Dual Channel Smart Charger
