HS-5055MG Hitec 11.9g Metal Gear Digital Micro Servo

HS-5055MG Hitec 11.9g Metal Gear Digital Micro Servo

In stock — Ready to ship

⚡ Ships Fast from Massachusetts

$29.99 USD
$41.95 USD $29.99 USD
Sale Sold out
Shipping calculated at checkout.
✔ Covered by our Warranty Policy and Return Policy .
  • Ships from USA
  • RC Specialists
  • Local Pickup

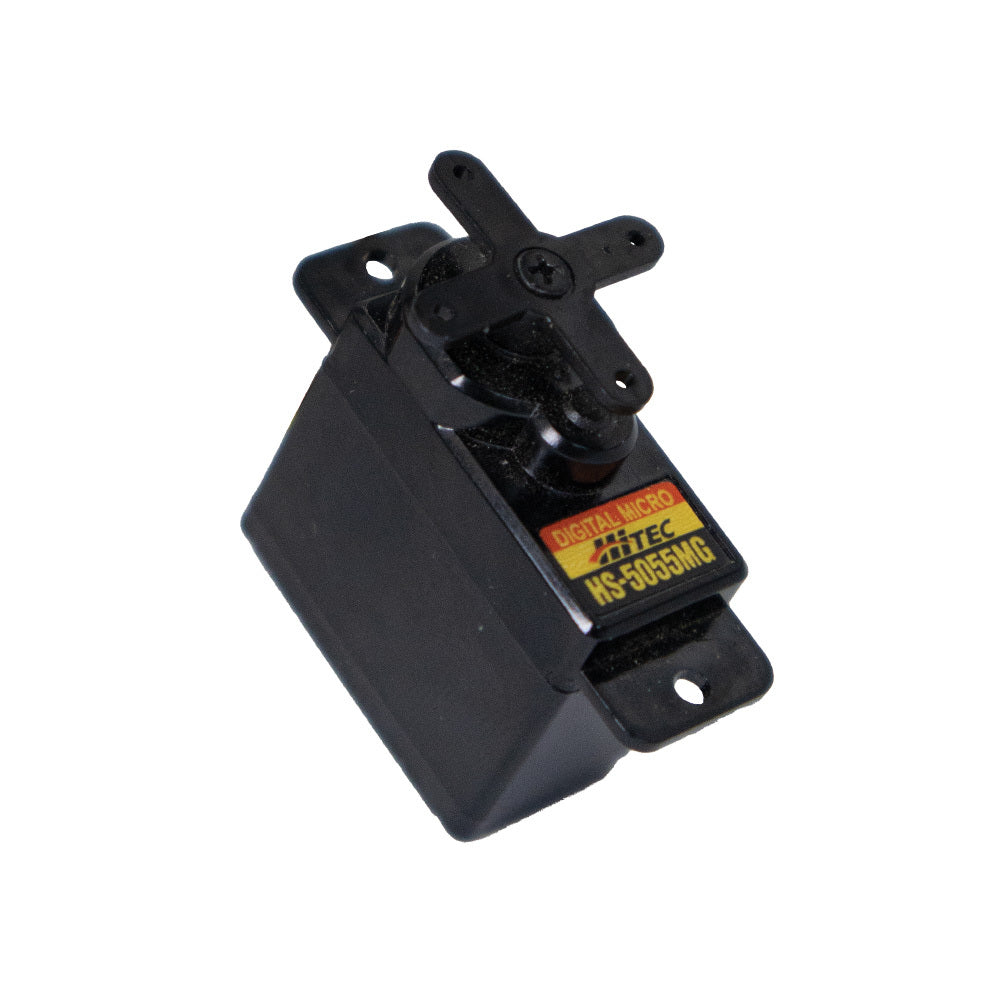

HS-5055MG 11.9g Metal Gear Digital Micro Servo

The HS-5055MG takes ultra micro performance to the next level without breaking the bank. It's a perfect choice for ” smaller” high performance electric helicopters, aircraft and sail planes. It is the digital metal-geared version of the HS-55, and continues the tradition as the standard for affordable performance, offering precision components that have been engineered to provide long lasting trouble free service.

Features

  • Digital Circuit for Increased Performance and Holding Power
  • Smooth Coreless Motor
  • Rugged Metal Gears
  • Standard Programmable Digital Circuit
  • Economical, Feather, Digital Servo

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset


HS-5055MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.20 ~ 0.17
Maximum Torque Range oz. / in. 18 ~ 22
Maximum Torque Range kg. / cm. 1.3 ~ 1.6
Current Draw at Idle 8 mA
No Load Operating Current Draw 120 mA
Stall Current Draw 700 mA
Dead Band Width 6 µs

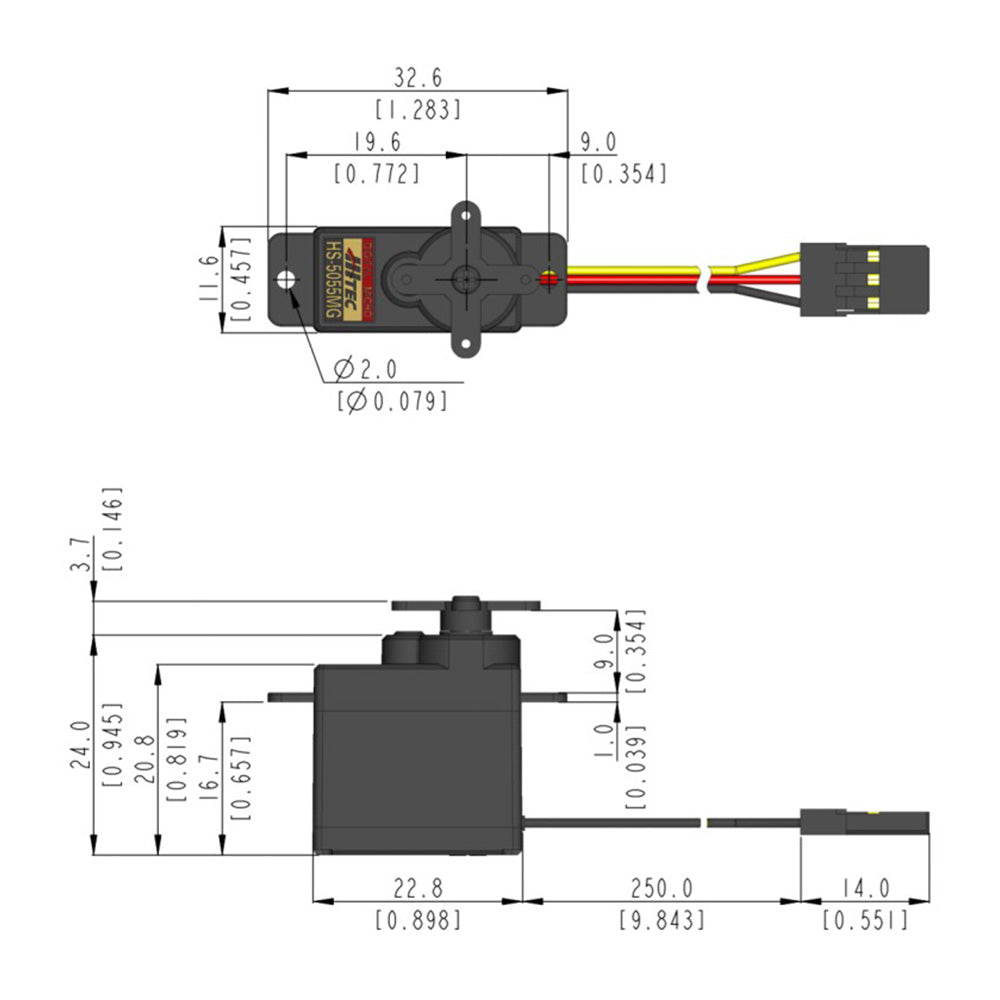

Physical Specifications
Dimensions (Inches) 0.89 x 0.45 x 0.94
Dimensions (Metric) 22.8 x 11.6 x 24.0
Weight (Ounces) 0.33
Weight (Gram) 9.5
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type None
Output Shaft (type / Ømm) Feather 15
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
Radio Control Applications
Parkflyer < 36 oz.
Sport Plane 20 - 35 oz.
Sailplane <2 meter / DLG
3D Performance Foamie
Scale N / A
Electric Helicopter 200mm
Gas Helicopter N / A
On Road N / A
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck N / A
Crawlers N / A
Sail Boat N / A
Power Boat 1/18th
