KC3D OMP M1 V3 PRO 6-Port GY15 Parallel Charging Board

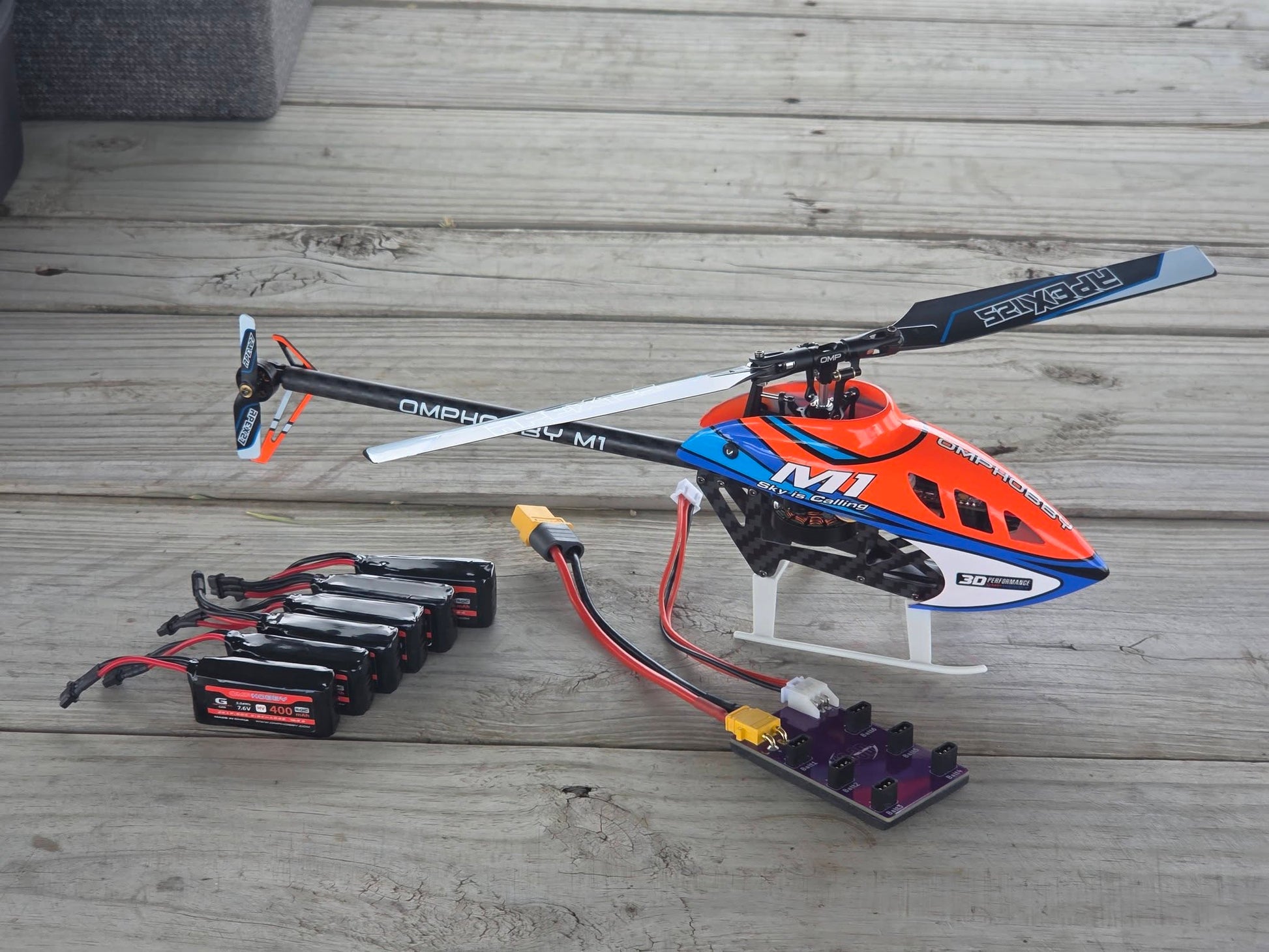

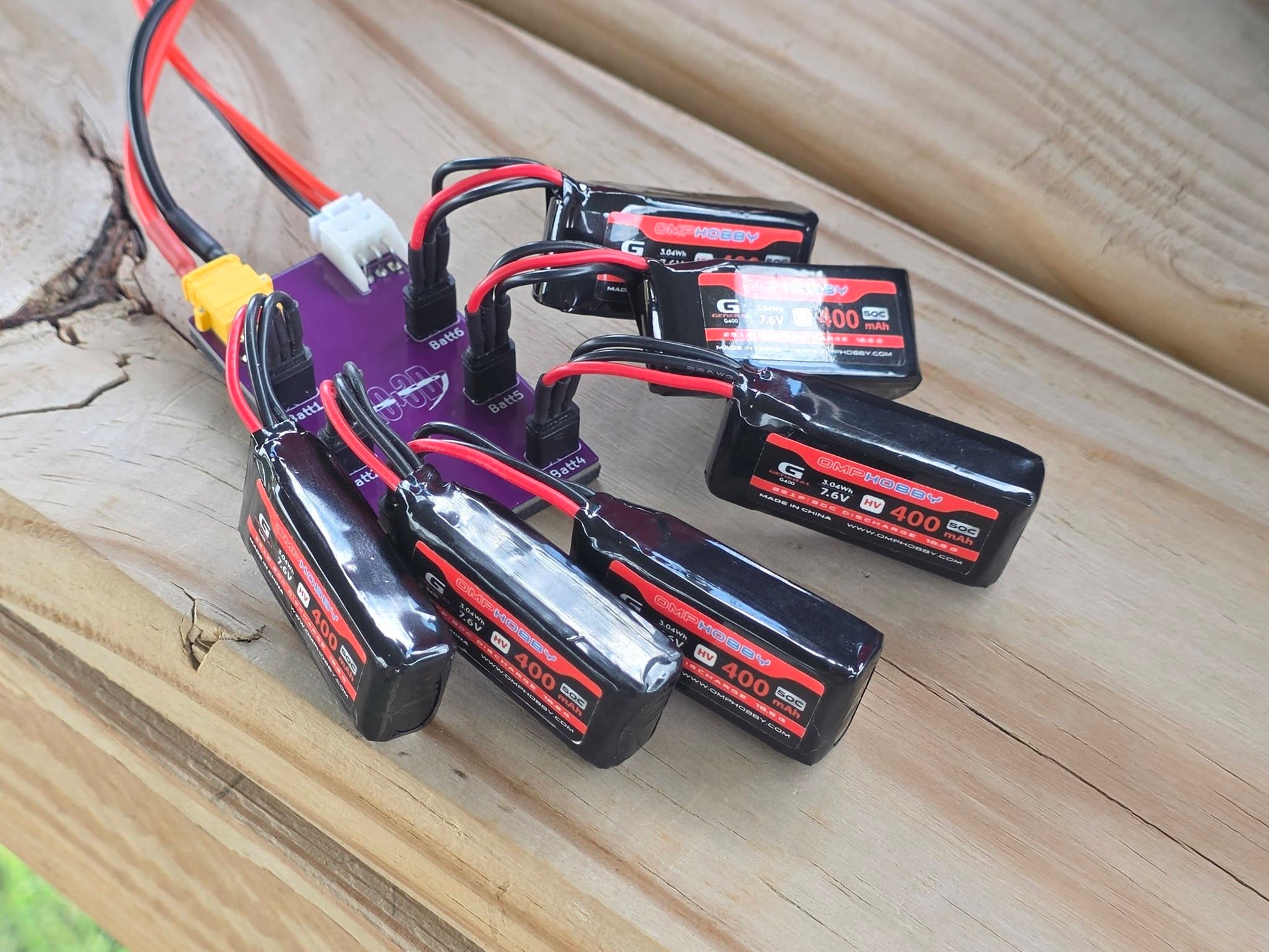

Charge up to six OMPHOBBY M1 V3 PRO batteries at once using a compatible balance charger. The board is designed for the model's 2S LiHV packs and GY15 battery connectors.

Charge Settings

• Battery type: 2S LiHV
• Cell voltage: 4.35V per cell
• Connector: GY15
• Battery count: Up to six packs at once

Charge Rate Guide

For six 400mAh 2S LiHV packs connected in parallel:

• 2.4A: 1C charge rate
• 4.8A: 2C charge rate
• 6.0A: 2.5C charge rate

Important Safety Notes

• Use only compatible 2S LiHV batteries with GY15 connectors.
• Set the charger correctly before connecting batteries.
• Only connect packs with the same cell count and chemistry and similar voltage.
• Inspect batteries and connectors before charging.
• Never leave batteries charging unattended.
