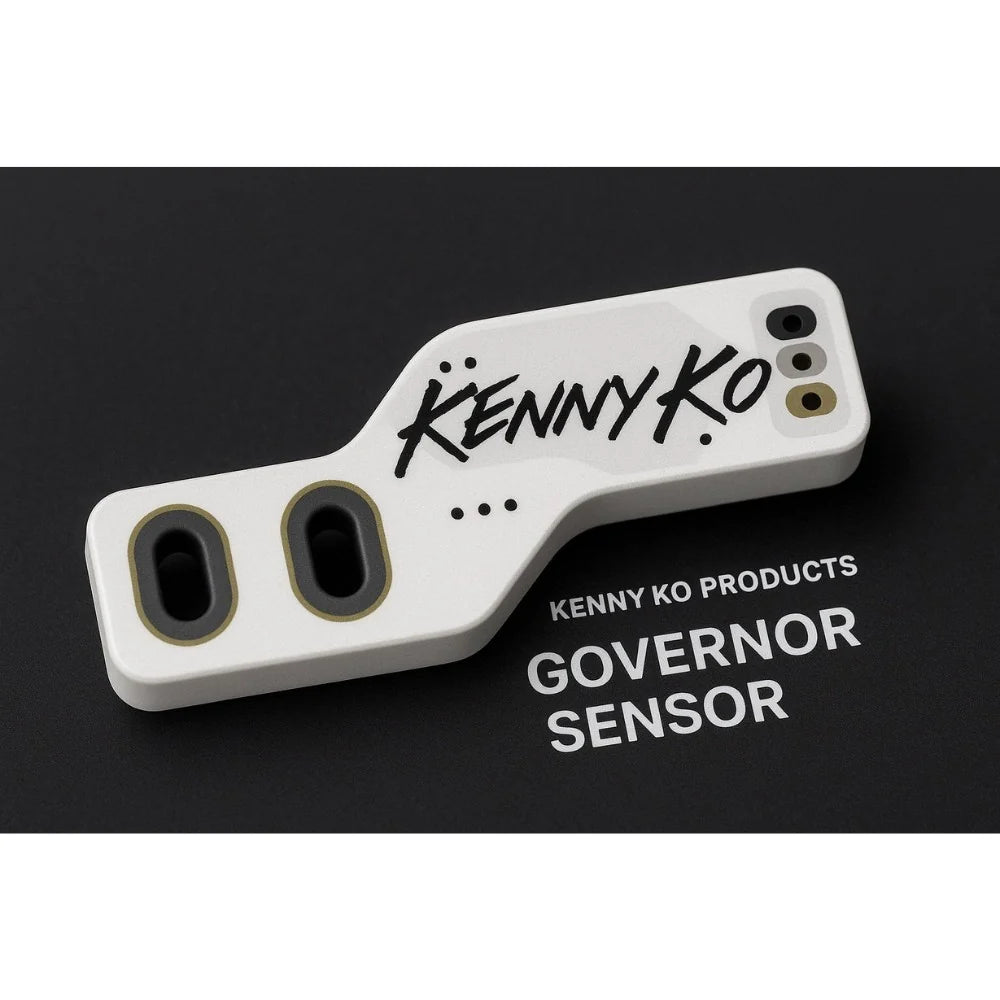

Kenny Ko Products Governor Sensor

Kenny Ko Products Governor Sensor

The Kenny Ko Products Governor Sensor is a high-precision Hall Effect RPM sensor designed for use with most gyro systems. Its built-in LED illuminates when a magnet is detected, helping simplify installation and signal verification during setup.

Features

• High-precision Hall Effect governor sensor
• Compatible with most gyro systems
• Built-in magnetic detection LED indicator
• LED lights when a magnet is detected for easier installation and signal verification
• Designed to make governor setup more convenient and efficient

Specifications

• Supply Voltage: 4.5–24 V
• Signal Output: NPN open drain
• Signal Indicator: Magnetic pole active, LED on
• Cable Length: 300 mm

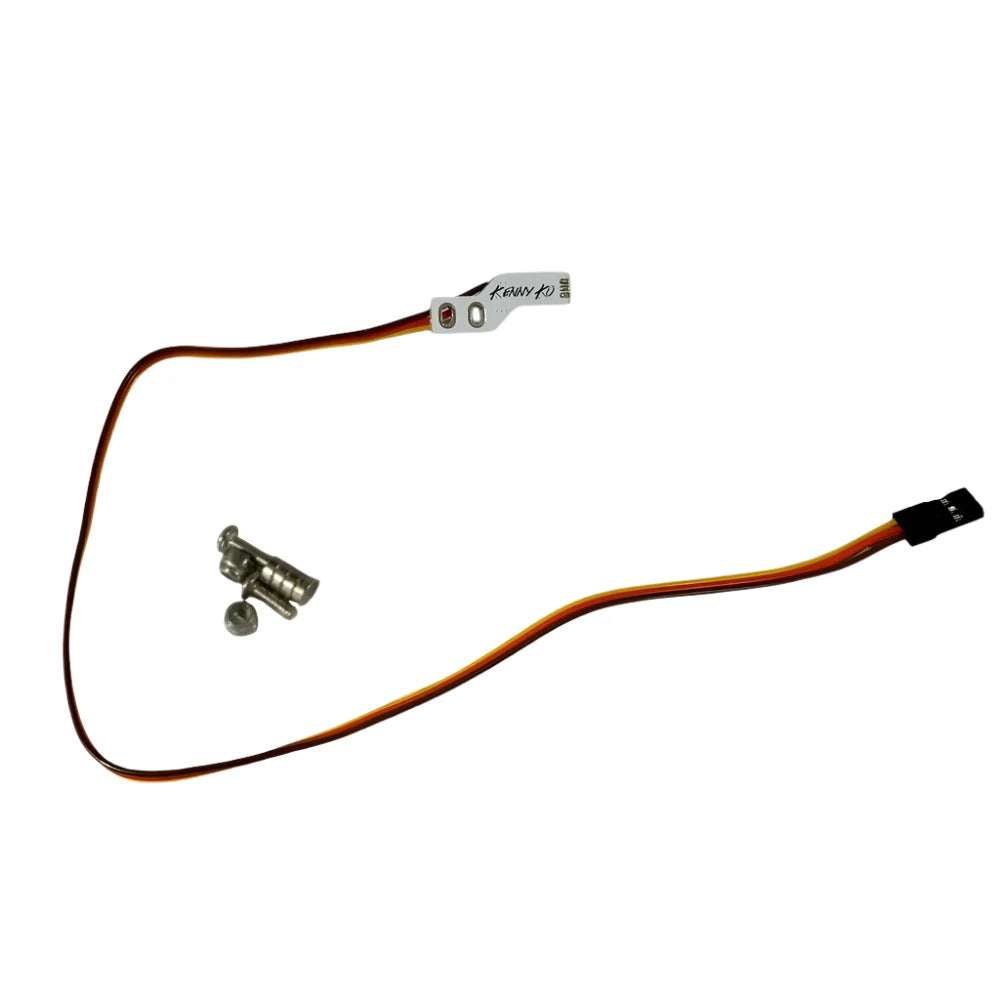

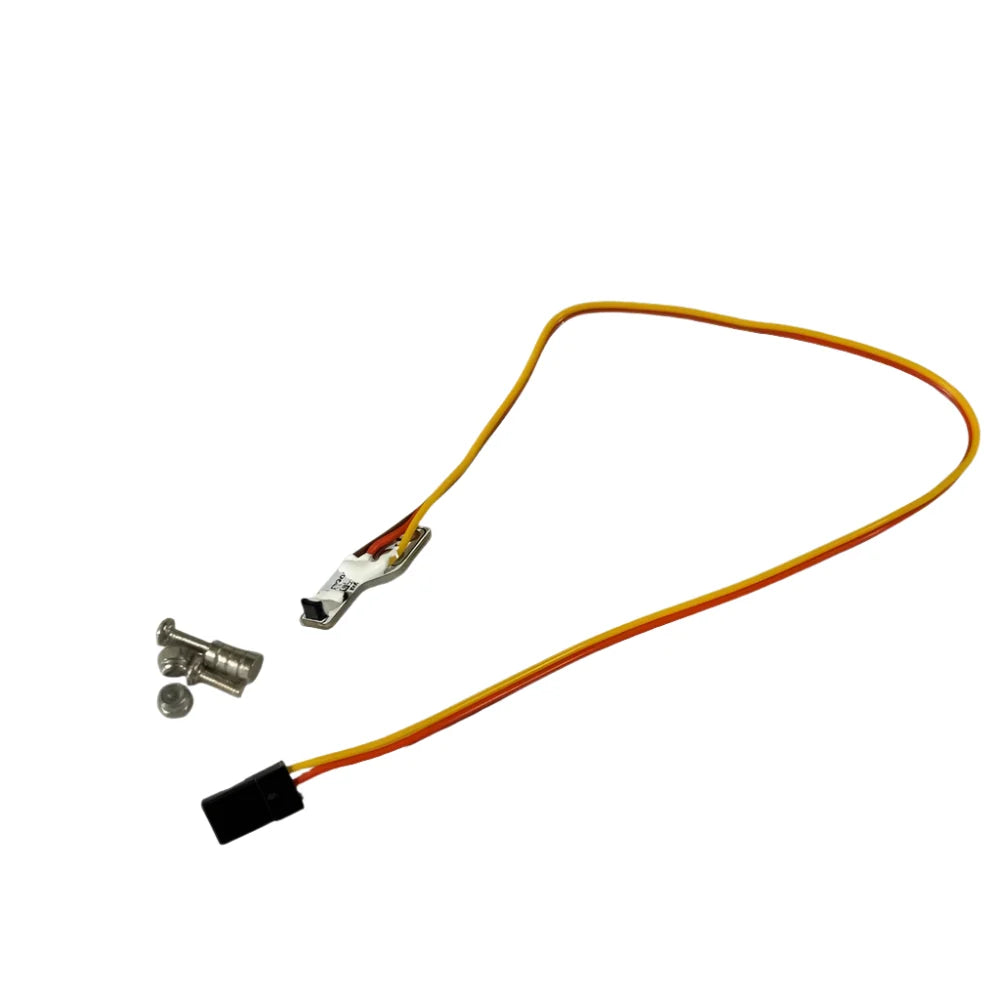

Package Includes

• 1 × RPM sensor
• 4 × 4 × 1.5 mm magnets
• 2 × M2 × 8 mm socket head cap screws
• 2 × M2 self-locking nuts

FAQ

What does the LED indicator show?
The LED illuminates when the sensor detects a magnet, helping verify sensor position and signal detection during installation.

What voltage does the sensor support?
The specified supply-voltage range is 4.5–24 V.

Are magnets and mounting hardware included?
Yes. The package includes four magnets, two M2 × 8 mm socket head cap screws, and two M2 self-locking nuts.
