KST Servos

KST-X15-1208 KST X15-1208 Digital Servo HV 8.4V 0.07s 13.5kg.cm 188oz.in

KST-X15-1208 KST X15-1208 Digital Servo HV 8.4V 0.07s 13.5kg.cm 188oz.in

Regular price $84.99 USD
Regular price Sale price $84.99 USD
Sale Sold out
Shipping calculated at checkout.

KST-X15-1208 KST X15-1208 Digital Servo HV 8.4V 0.07s 13.5kg.cm 188oz.in

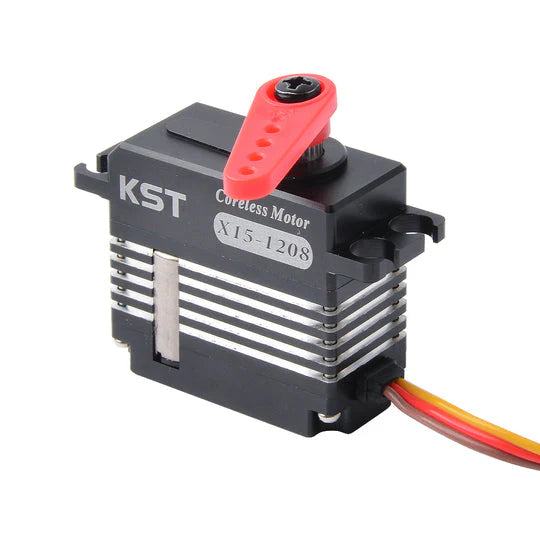

KST X15-1208 Mini Size Digital Servo is a great choice for helicopters ranging from 430mm-570mm rotor blade size requiring mini servos such as the Align T-Rex 500, Mikado Logo 480, MSH Protos 500, and SAB Goblin 570. Additionally these servos can be used in other RC applications where the physical dimensions, and torque/speed ratings suit the need of the RC application.

Features

  • Hardened Steel Gears
  • Extreme Torque and Excellent Speed
  • CNC Aluminium Case
  • Two Ball Bearings

Specification

  • Item: X15-1208 Mini Size Digital Servo
  • Operating Voltage: 6-8.4V
  • Size: 35.5*15*32.5mm
  • Torque: 9.8Kg.cm@6.0V, 12Kg.cm@7.4V,  13.5Kg.cm@8.4V
  • Speed: 0.10sec/60@6.0V,  0.08sec/60 @7.4V,  0.07sec/60@8.4V
  • Weight: 40g
  • Working Frequency: 1520us/333Hz, 800us - 2200us
  • Motor: Coreless
  • Ball Bearing: 2BB
  • Output Gear: 25T Futaba

    Size

    Package Including

    • 1 * X15-1208 Digital Servo
    • 1 * Accessories



    X15-1208 Servo Technical Specification
