KST-X15-755X KST X15-755X Digital Servo HV 8.4V 0.04s 10.2kg.cm 142oz.in

KST-X15-755X KST X15-755X Digital Servo HV 8.4V 0.04s 10.2kg.cm 142oz.in

KST X15-755X Mini Size Digital Servo is a great choice for helicopters ranging from 325mm-425mm rotor blade size requiring mini servos on the tail rotor! It's critical to ensure your gyro has the capability to operate 760uS Tail Servos, ensuring that the KST X15-755 operates correctly.

Features

• Hardened Steel Gears
• Extreme Torque and Excellent Speed
• CNC Aluminium Case
• Two Ball Bearings

Specification

• Item: X15-755X Servo
• Operating Voltage: 6-8.4V

• Size: 35.5*15*32.5mm

• Pulse Width: 760uS

• Torque: 7.2kg.cm@6.0V,  10.2kg.cm@8.4V

• Speed: 0.06sec/60°@6.0V,  0.04sec/60°@8.4V

• Weight: 40g

• Working Frequency: 760us/560Hz

• Motor: Coreless

• Ball Bearing: 2BB

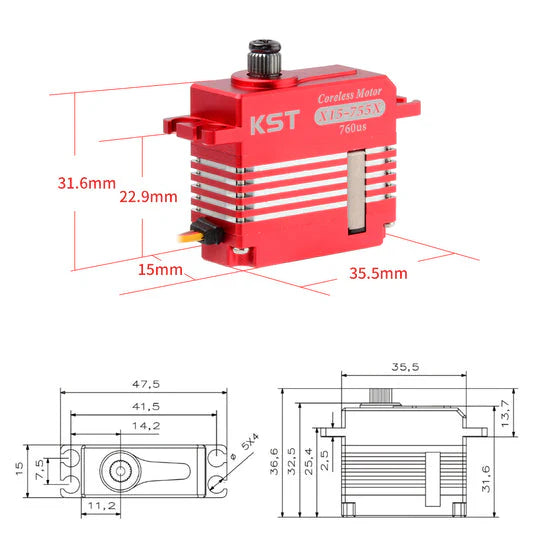

Size

Package Including

• 1 * X15-755X Digital Servo
• 1 * Accessories


• X15-755X Servo Technical Specification
