Microheli Aluminum Main Blade Grip w/ Thrust Bearing - BLADE 250 CFX / 230S / 230S V2 / Smart

Microheli Aluminum Main Blade Grip w/ Thrust Bearing - BLADE 250 CFX / 230S / 230S V2 / Smart

Regular price $29.99 USD
Regular price Sale price $29.99 USD
Sale Sold out
Shipping calculated at checkout.
Color

Microheli Aluminum Main Blade Grip w/ Thrust Bearing - BLADE 250 CFX / 230S / 230S V2 / Smart

The design of the Aluminum Main Blade Grip with Thrust Bearing was to optimize for rigidity, stability, durability and overall performance of the BLADE 250 CFX / 230S / 230S V2 / Smart helicopter. It is directly replaced the stock plastic.

The new upgrade product is designed with Thrust Bearing in the inner side of the Aluminum Main Blade Grip, to increase Spindle Shaft and Radial Bearings support and significantly reduce play. Radial Bearing system is technically re-engineered more reasonably with the Thrust Bearing between two Radial Bearings, instead of placing the Thrust Bearing outside like the stock plastic Main Grip. No more pressure from the Spindle Shaft Screw lock, or come apart, or lost easily during installation when the Thrust Bearing is placed in the inner side.

*Note: The Aluminum Main Blade Grip with Thrust Bearing is compatible with both 2-blade and Microheli 3-blade head system (BLADE 250 CFX / 230S / 230S V2 / Smart).



  Includes

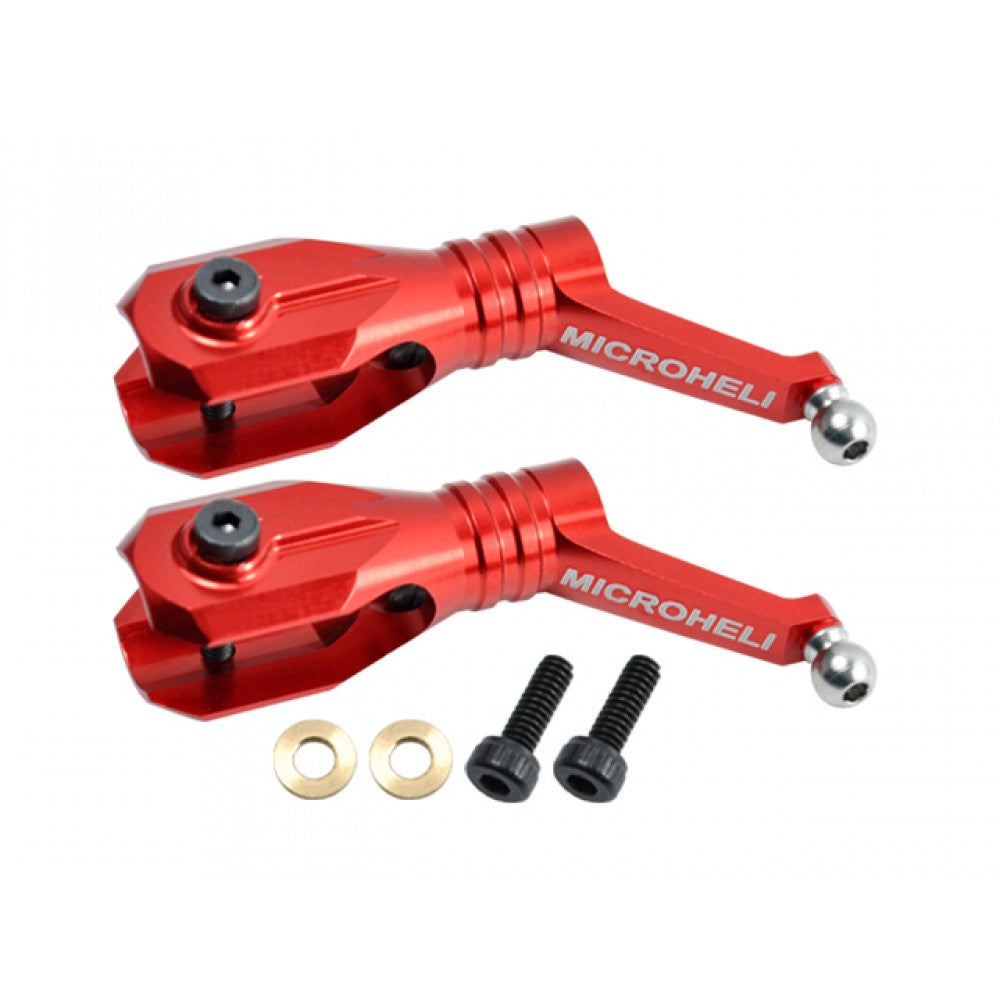

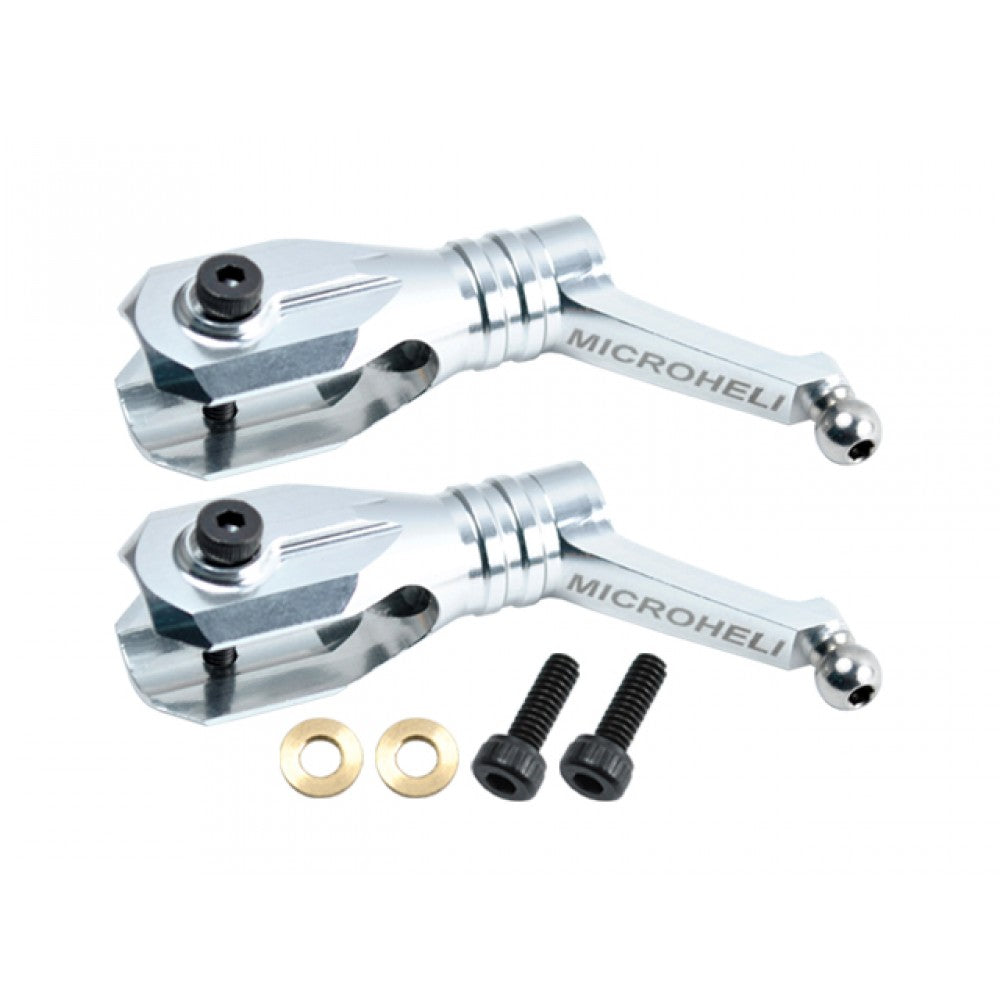

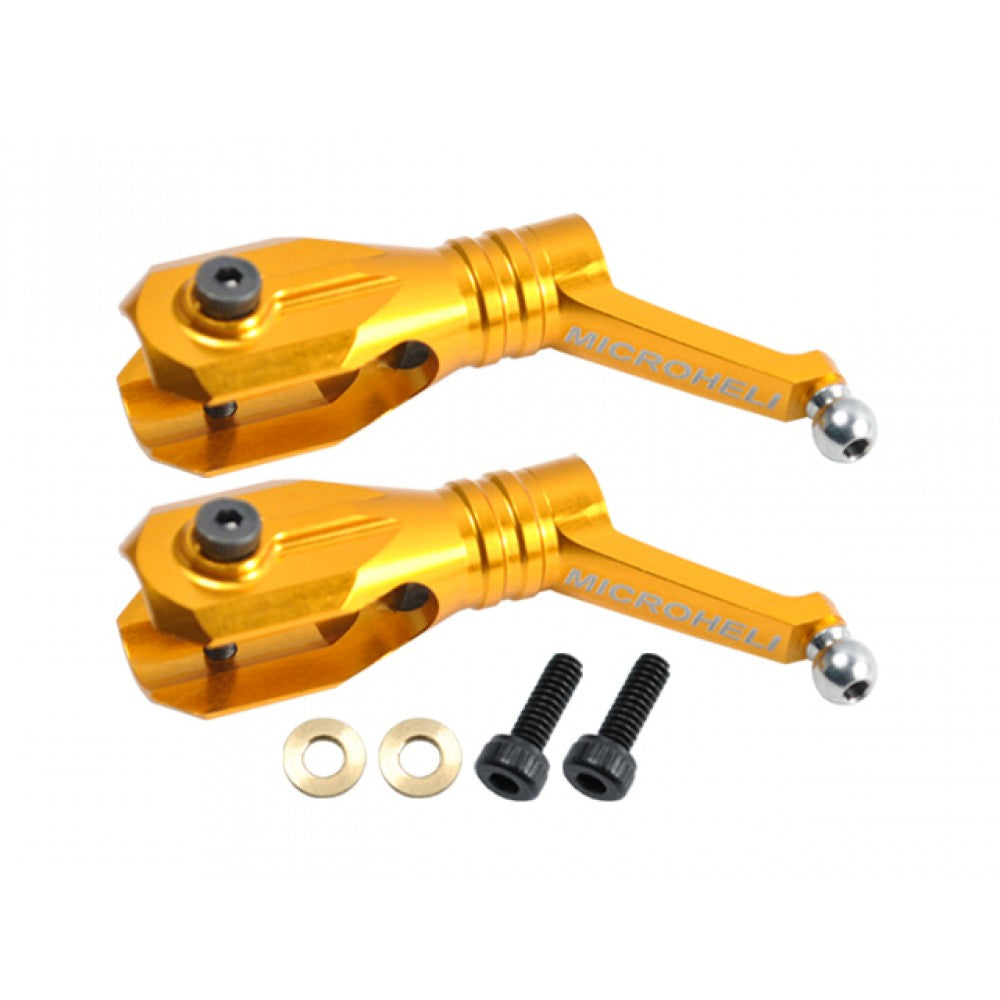

2 x Aluminum Main Blade Grip with Thrust Bearing
Hardwares



  Materials
Aluminum
Stainless Steel



  Features
Optimizes for rigidity, stability, durability and overall performance
Designed with Thrust Bearing in the inner side of the Aluminum Main Blade Grip, to increase Spindle Shaft and Radial Bearings support and significantly reduce play
Technically re-engineered more reasonably with the Thrust Bearing between two Radial Bearings, instead of placing the Thrust Bearing outside like the stock plastic Main Grip
No more pressure from the Spindle Shaft Screw lock, or come apart, or lost easily during installation when the Thrust Bearing is placed in the inner side
Compatible with both 2-blade and Microheli 3-blade head system (Blade 230 S/ 250 CFX)
Unique and stylish CNC Aluminum, Stainless Steel material

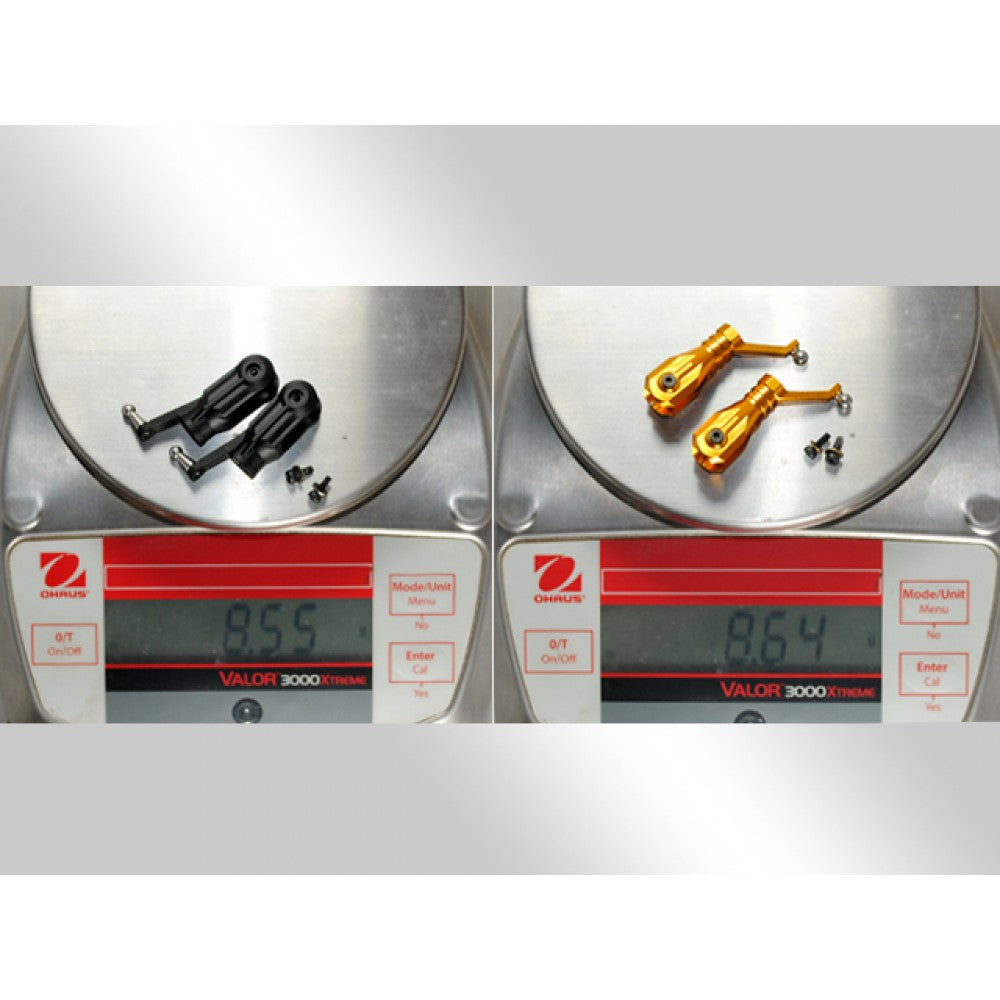

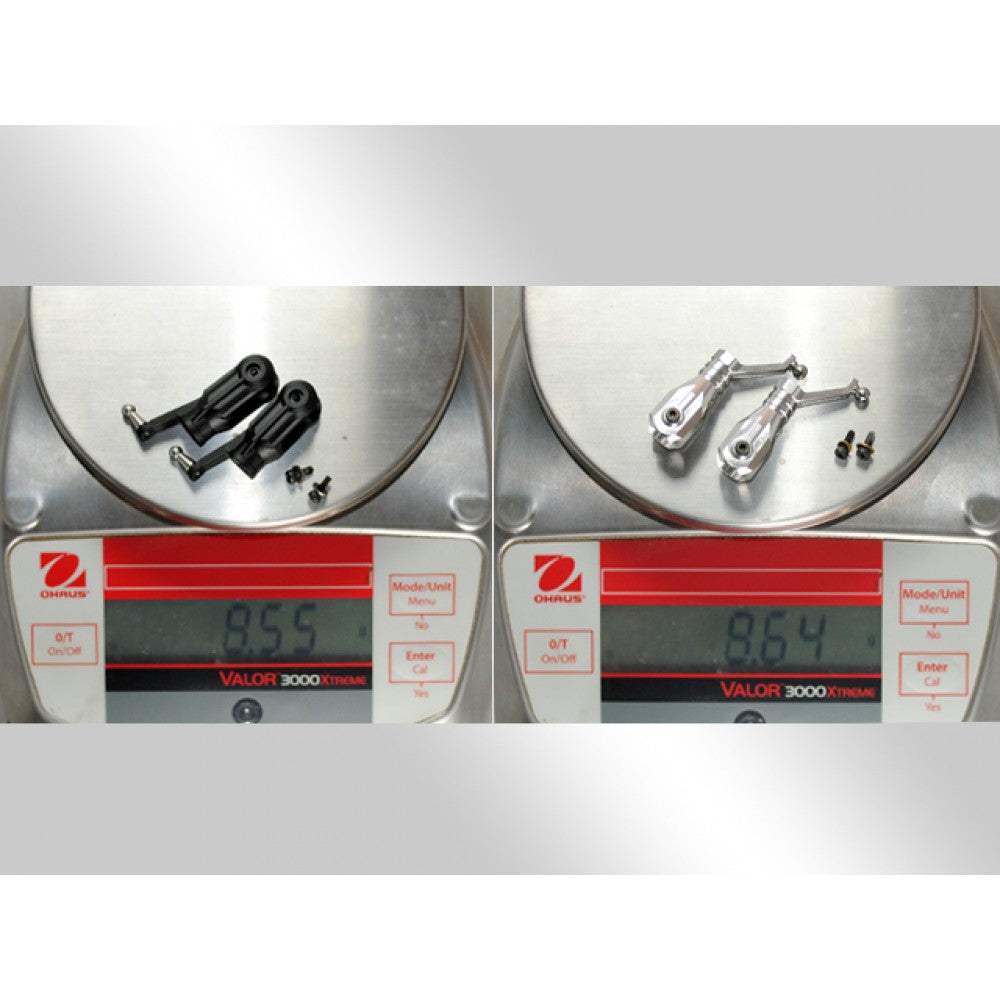

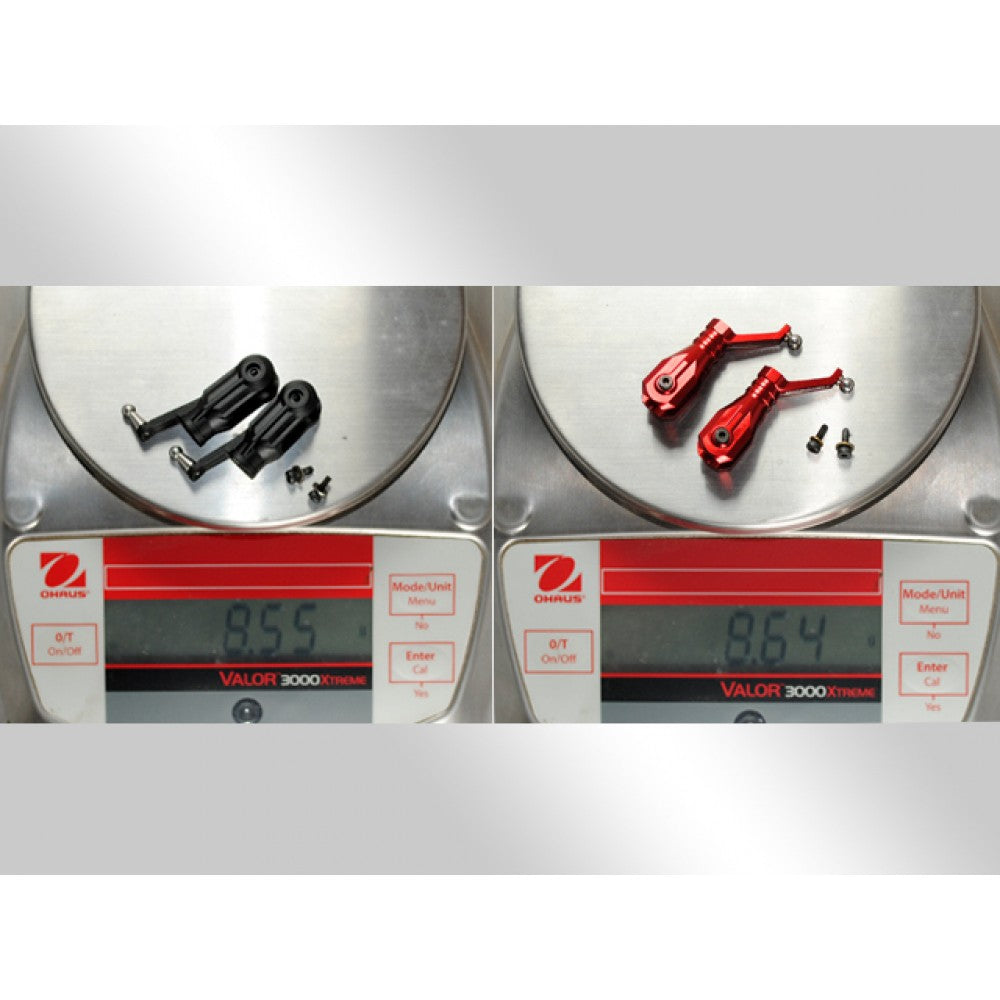

  Weight
8.64g



  Usage
Use for BLADE 250 CFX / 230S / 230S V2 / Smart (Both 2-blade and Microheli 3-blade head system)



  Requires
Read and follow the Assembly Instruction carefully
Loctite (#242 is recommended) is required to apply to all mechanical screws for safety precaution
Basic hand tools



  Instruction
Manual and Instruction included
