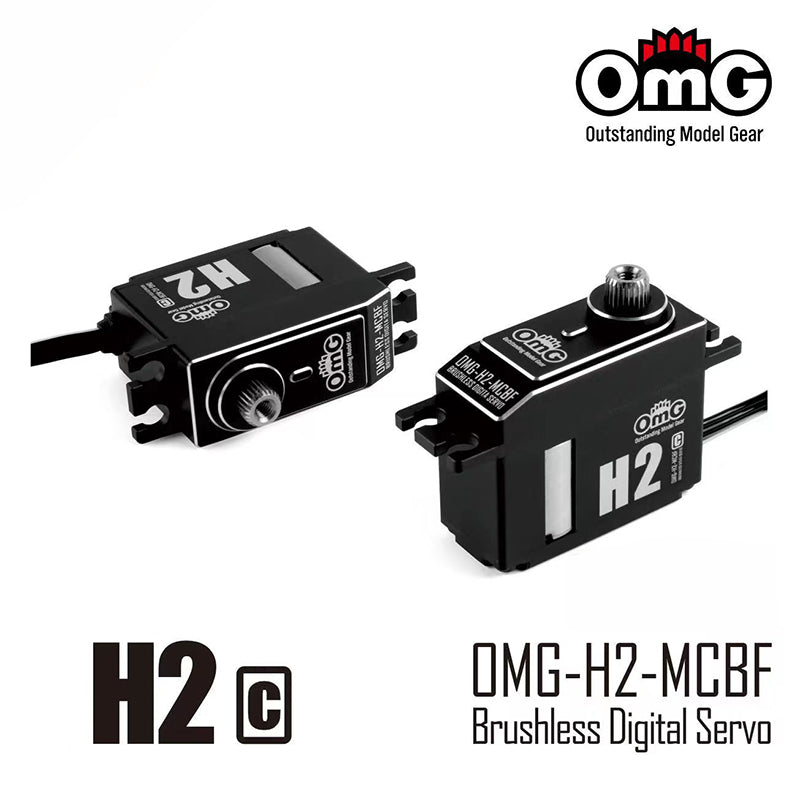

OMG-H2-MCBF OMG H2-C 14KG 0.08sec helicopter swashplate brushless mini servo

OMG-H2-MCBF OMG H2-C 14KG 0.08sec helicopter swashplate brushless mini servo

Fit for 500-550 level helicopter swashplate (cyclic, default frequency 1520/333Hz), and turbine aircraft, large scale glider, etc.

Full metal brushless high voltage servo. Steel gear, middle scale.

• Operating voltage:4.8-8.4V
• Operating speed:
  • 6.0V-0.085sec/60°
  • 7.4V-0.080sec/60°

• Stall torque:
  • 6.0V-13kgf.cm (181oz-in)
  • 7.4V-14kgf.cm (194oz-in)
• Gear material: Stainless steel
• Horn gear spline:25T Φ5.9
• Size:1.42x0.59x1.16in
• Case material:Full Metal
• Bearing:2BB

• Motor type: Brushless
• Operating temperature:-15℃~+70℃
• Operating travel :≈180±10°
• Neutral position :1520μsec
• Frequency:1520uS
• Refresh rate:333Hz
• Pules width range :500-2500μsec
• Dead band width:2μsec
• Connector wire length:300mm
• Waterproof level: Dust & Water Splash Resistance
