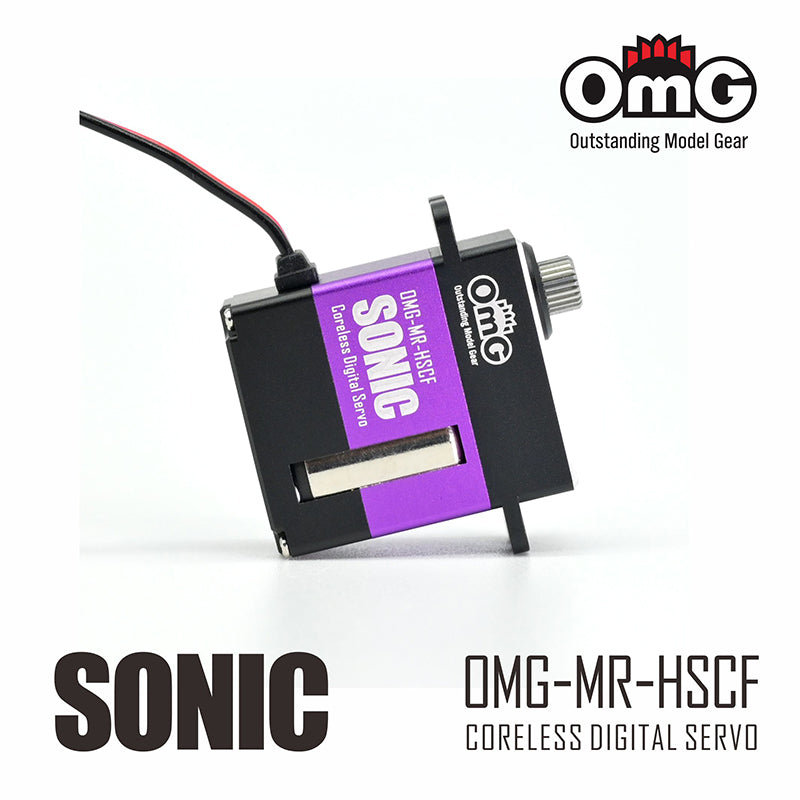

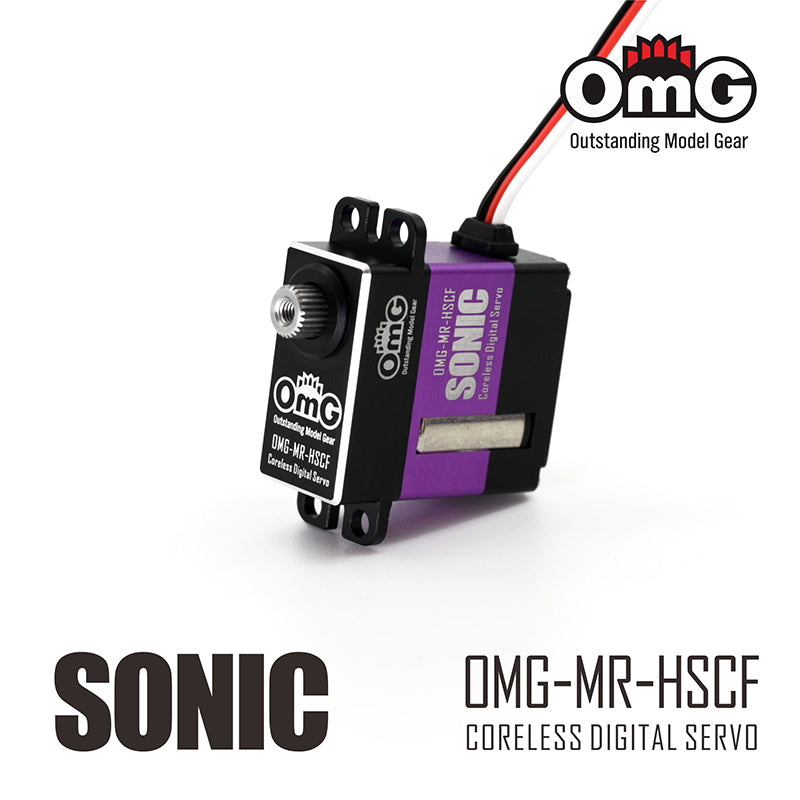

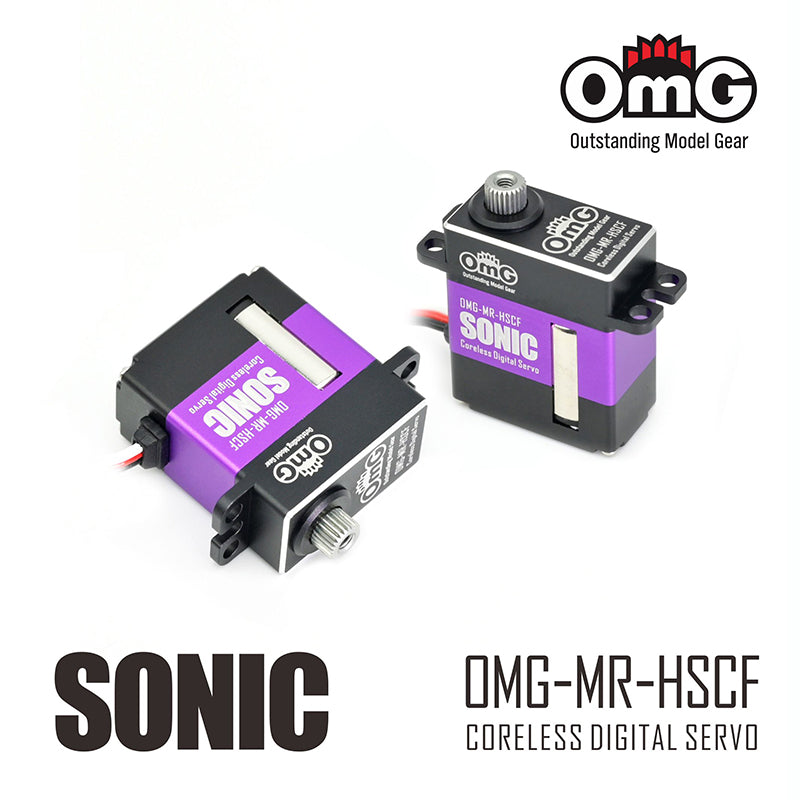

OMG-MR-HSCF OMG Sonic 8.2KG 0.07sec coreless micro servo helicopter swashplate

OMG-MR-HSCF OMG Sonic 8.2KG 0.07sec coreless micro servo helicopter swashplate

Fit for 380-420 helicopter swashplate, rc airplane, full metal coreless high voltage servo.Micro size.

• Operating voltage: 4.8-8.4V
• Operating speed:
  • 7.4V-0.09sec/60°
  • 8.4V-0.07sec/60°

• Stall torque:
  • 7.4V-6.8kgf.cm(94oz-in)
  • 8.4V-8.2kgf.cm(114oz-in)

• Gear Material: Alum/Titanium
• Horn gear spline:25T Φ4.9

• Size:0.91x0.47x1.08in
• Case Material: Full metal
• Bearing: 2BB
• Motor type: Coreless
• Operating Temperature:-15℃~+70℃
• Operating travel :≈180±10°
• Neutral position :1520μsec
• Frequency:1520uS
• Refresh rate:333Hz
• Pules width range :500-2500μsec
• Dead band width:2μsec
• Connector wire length:180mm
• Waterproof level: Dust & Water Splash Resistance
• Programmable: No
