SEQURE 3625 1800KV High Performance Brushless Motor High Torque 1/10 RC Crawler Vehicles
SEQURE 3625 1800KV High Performance Brushless Motor High Torque 1/10 RC Crawler Vehicles
Regular price
$34.99 USD
Regular price
Sale price
$34.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SEQURE 3625 1800KV High Performance Brushless Motor High Torque 1/10 RC Crawler Vehicles
Recommended SQESC 2670 (ESCape32) + BEC + WiFi-Link
Recommended battery: 2S–3S. Use of 4S is not recommended, as it may damage the 2670.
|
Model |
SEQURE 3625 Brushless Motor |
|
Working Voltage |
2-4S Lipo |
|
Slot Pole/Magnetic Pole |
12N/14P |
|
Stator Size |
30*12mm |
|
Output Shaft Diameter |
3.17mm |
|
KV Value |
1800KV |
|
Motor Wire |
16AWG 200mm |
|
Mounting Hole Spacing |
24.5mm |
|
Banana Plug |
3.5mm Male |
|
Size(Without Shaft ) |
36*25mm |
|
Weight（With Wire） |
90g |
|
Recommend ESC |
70A ESC (or above) |

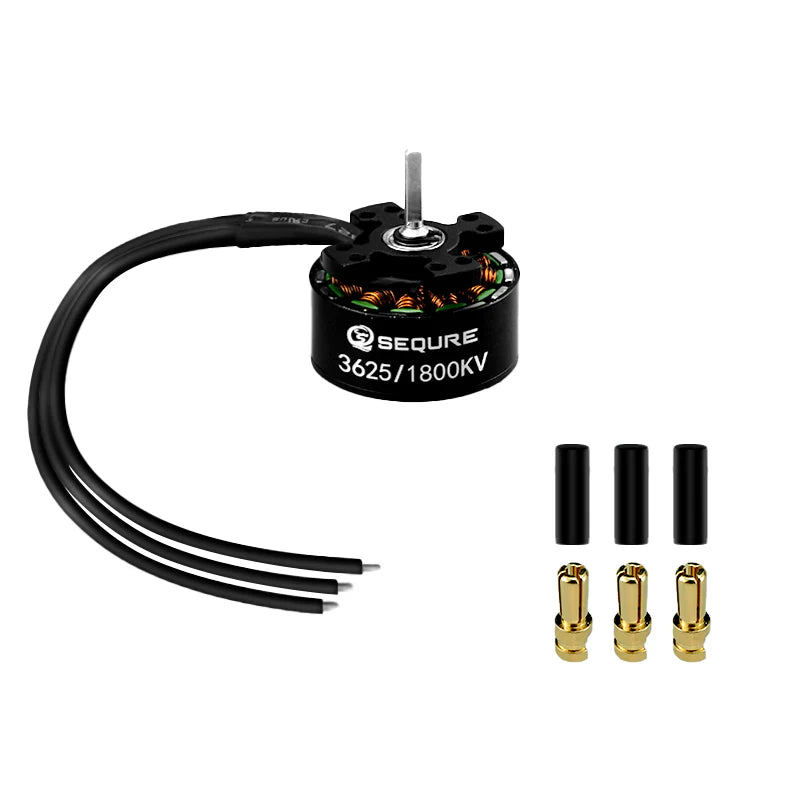

3625 Motor Package includes:
- SEQURE 3625 brushless motor × 1
- 3.5mm banana plug × 3
- Heat shrink tube × 3

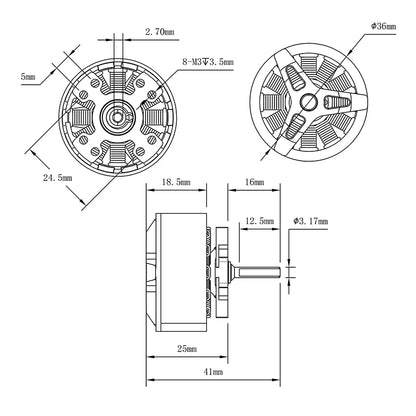

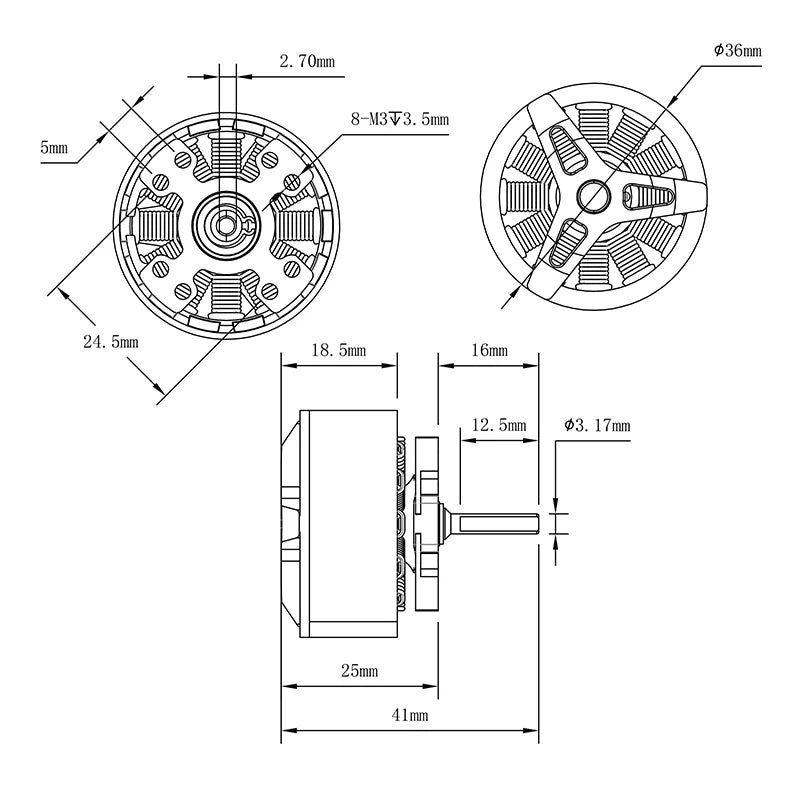

Overall Dimensions:
(1) Product Size: /

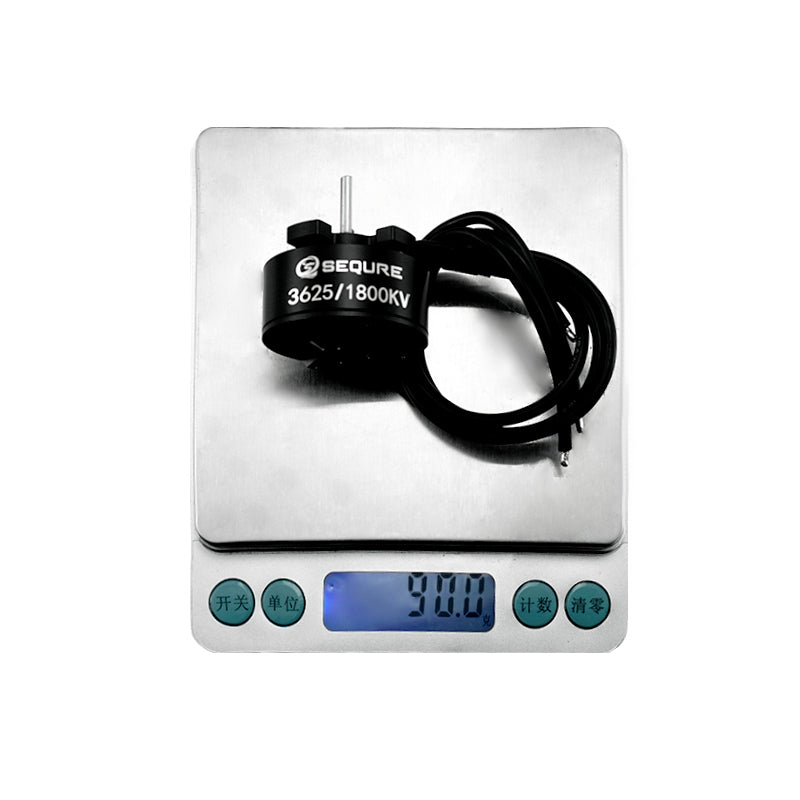

Net Weight Of Product: 90g
(2) Package Size: 65*65*40mm
Packing Weight: 115g
(3) Package Size (Including Outer Carton)：150*150*50mm
Packing Weight (Including Outer Carton)：170g
