SEQURE ANT ESC / 1520 Motor / WiFi-Link Combo 2-3S ESCape32 3A BEC 6V High Performance Brushless Power Kit Suitable for 1/24, 1/18, 1/16 RC Crawlers
SEQURE ANT ESC / 1520 Motor / WiFi-Link Combo 2-3S ESCape32 3A BEC 6V High Performance Brushless Power Kit Suitable for 1/24, 1/18, 1/16 RC Crawlers
Couldn't load pickup availability
SEQURE ANT ESC / 1520 Motor / WiFi-Link Combo 2-3S ESCape32 3A BEC 6V High Performance Brushless Power Kit Suitable for 1/24, 1/18, 1/16 RC Crawlers
NOTE: These units are all flashed with Escape32 Firmware (not BLHELI or AM32)
Latest Escape32 Releases Found Here: https://github.com/neoxic/ESCape32/releases
Escape32 Wiki Here: https://github.com/neoxic/ESCape32/wiki
|
Model |

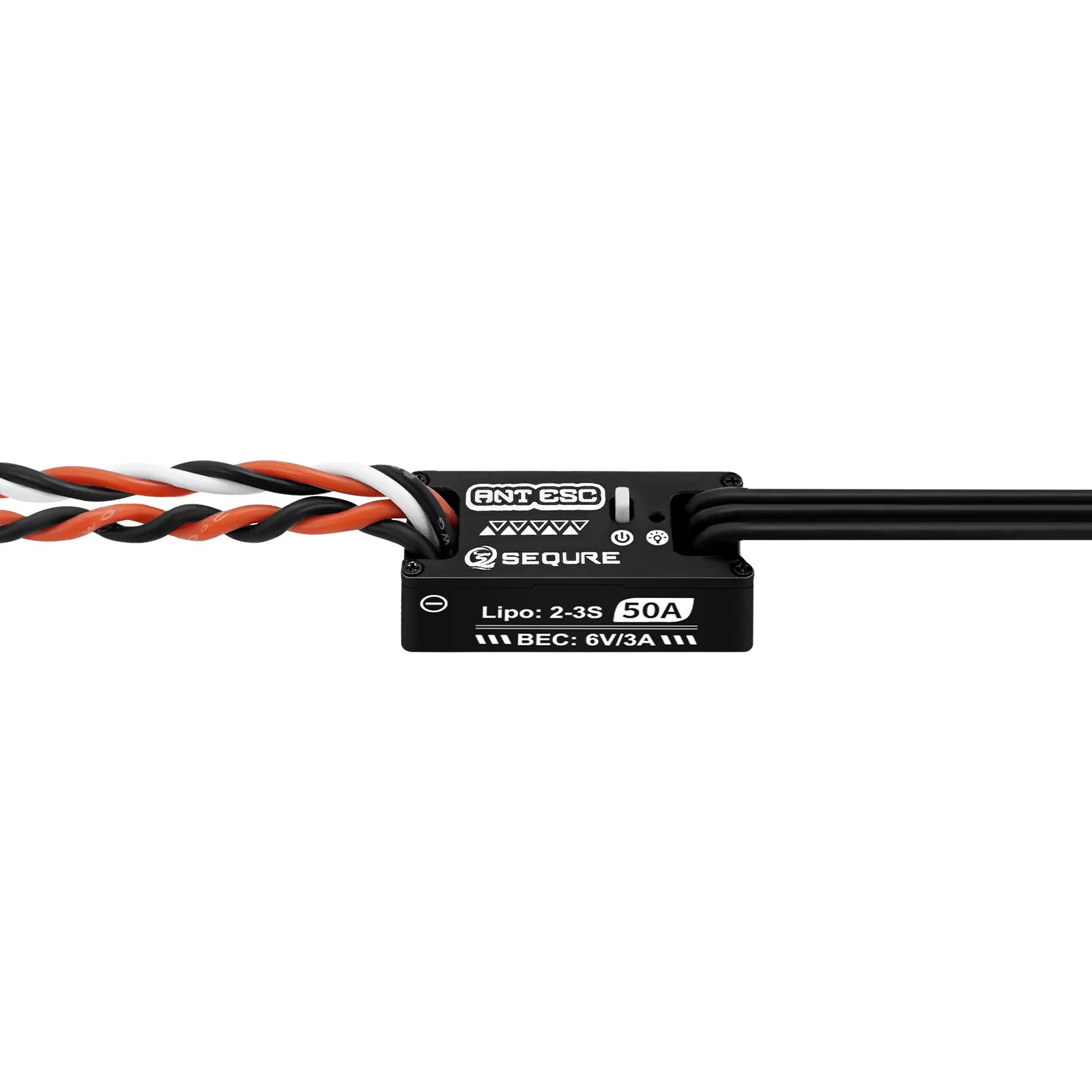

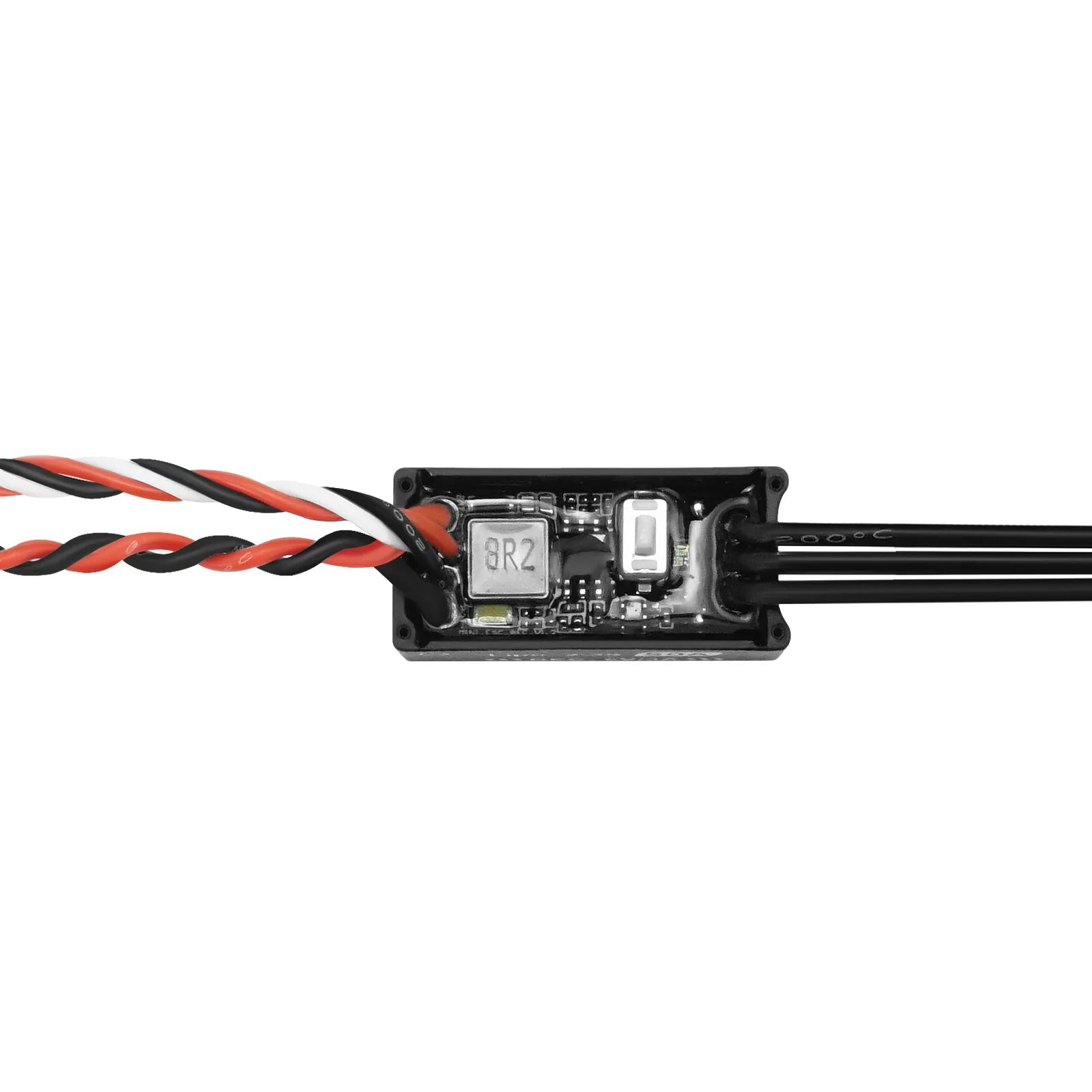

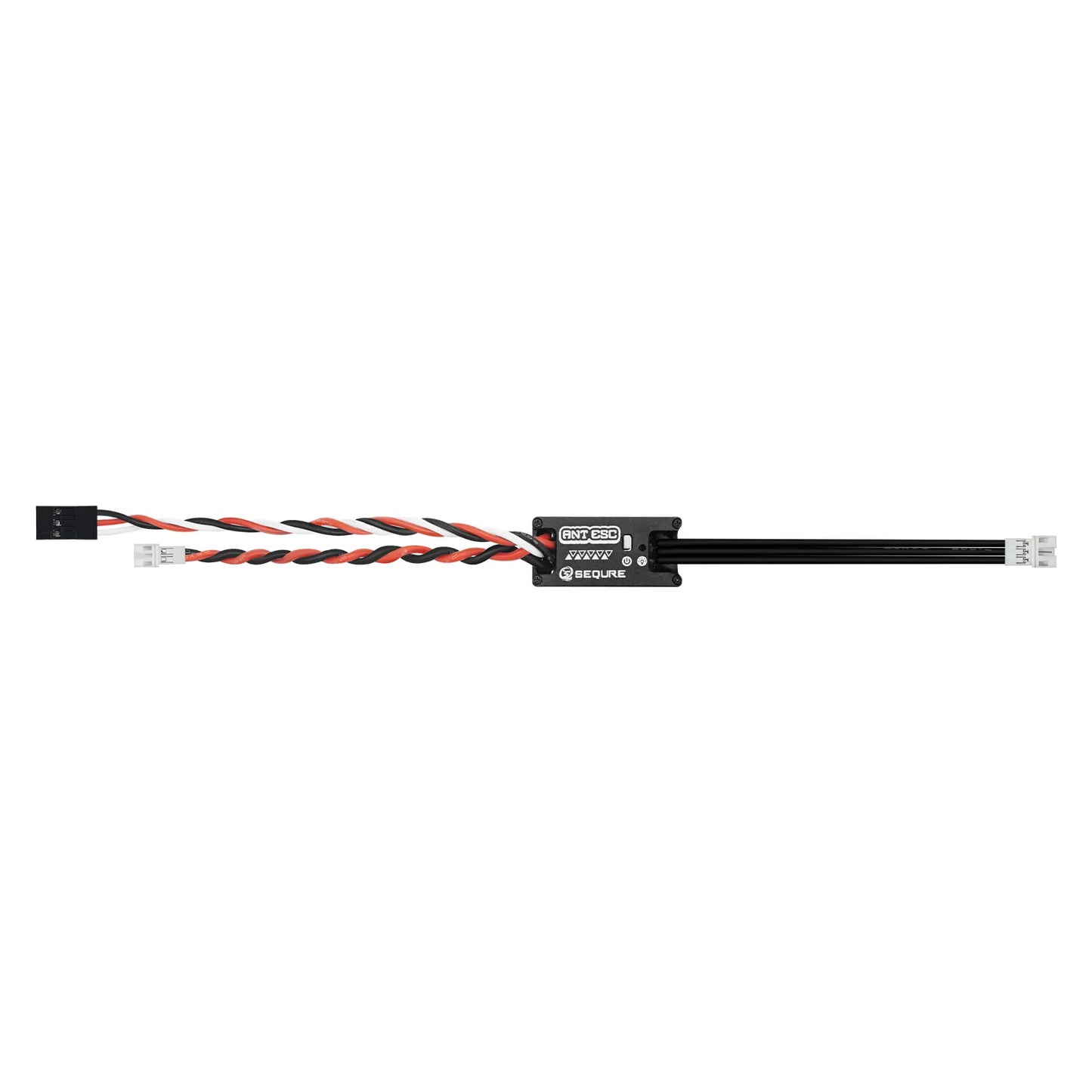

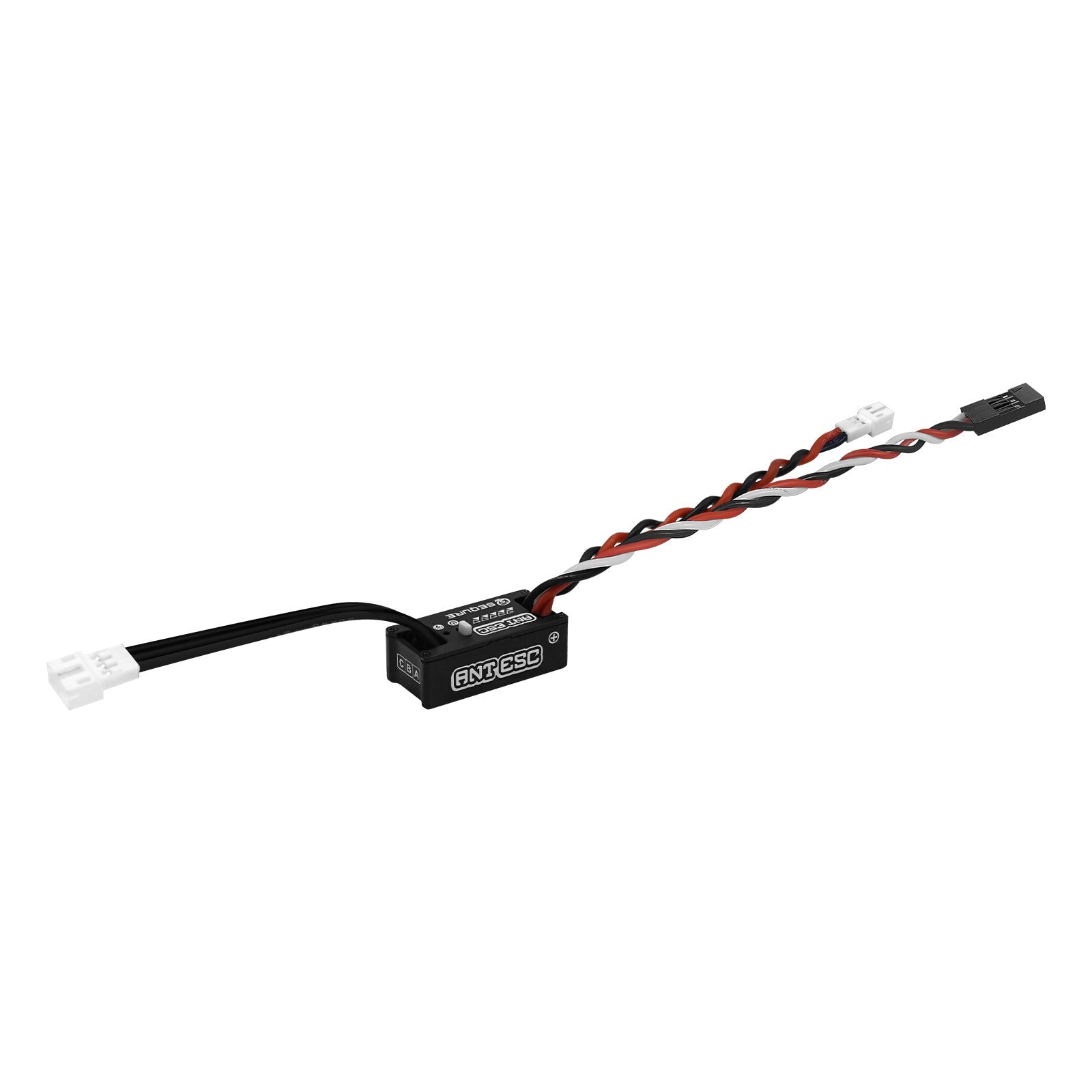

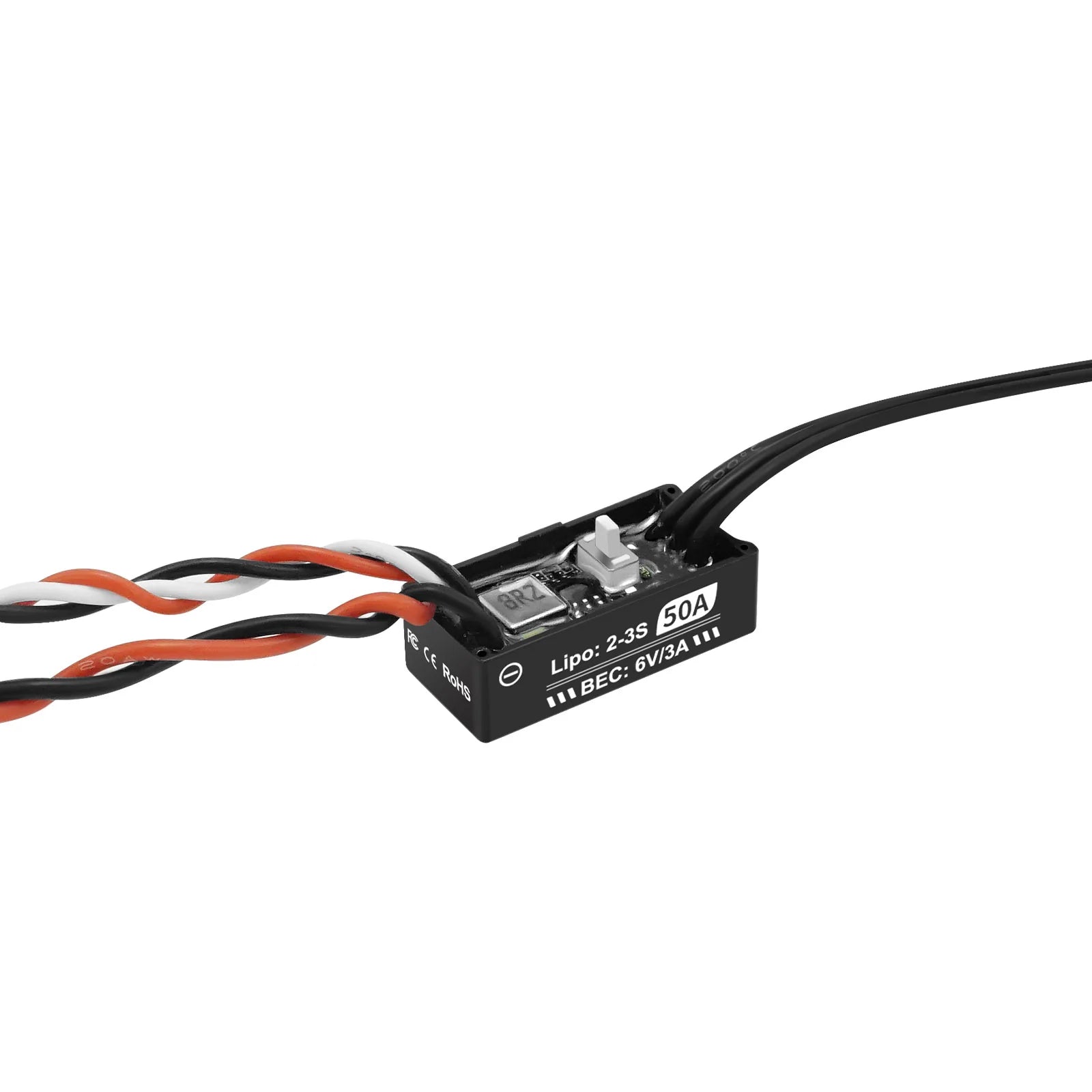

ANT ESC |
|
Input voltage |
DC 7V-13V（2-3S Lipo） |
|
Continuous current (good heat dissipation) |
50A |
|
Maximum current (good heat dissipation) |
100A |
|
Firmware |
ESCape32 |
|
Signal protocol |
Dshot (all), PWM, Oneshot, Multishot, etc. |
|
Programming parameters |
Support |
|
Current detection |
Support |
|
RGB LED color light |
Support |
|
BEC |
6V / 3A (continuous current) |
|
Electronic switch |
Single press to start up, long press to shut down |
|
Wire specifications |

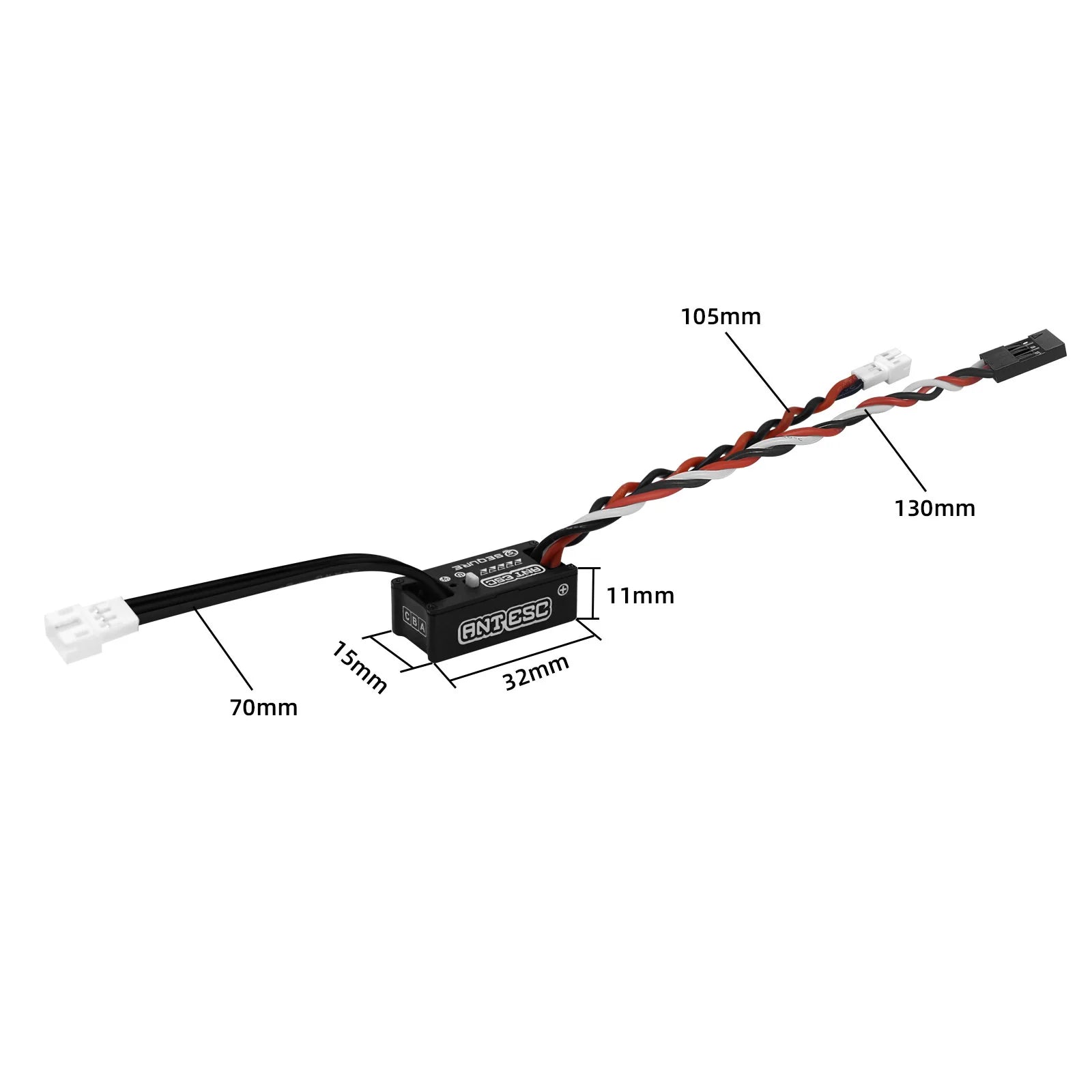

Power cable (105mm), motor cable (70mm), signal cable (130mm) |
|
Product size |
32*15*11mm (excluding wire) |
|

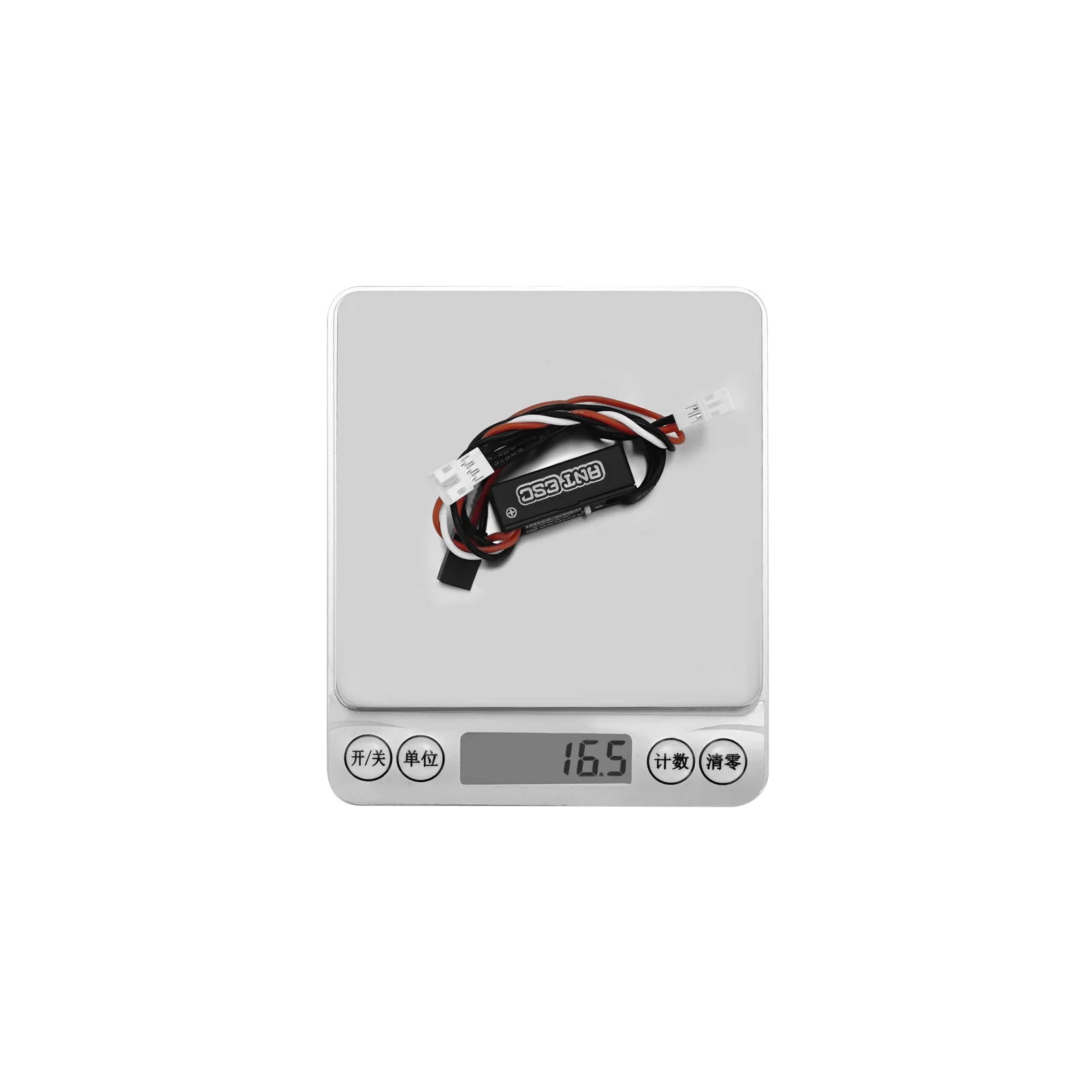

Product weight |
16.5g (including wire) |
|
Application scenarios |
1/12, 1/16, 1/18, 1/24 models |
|

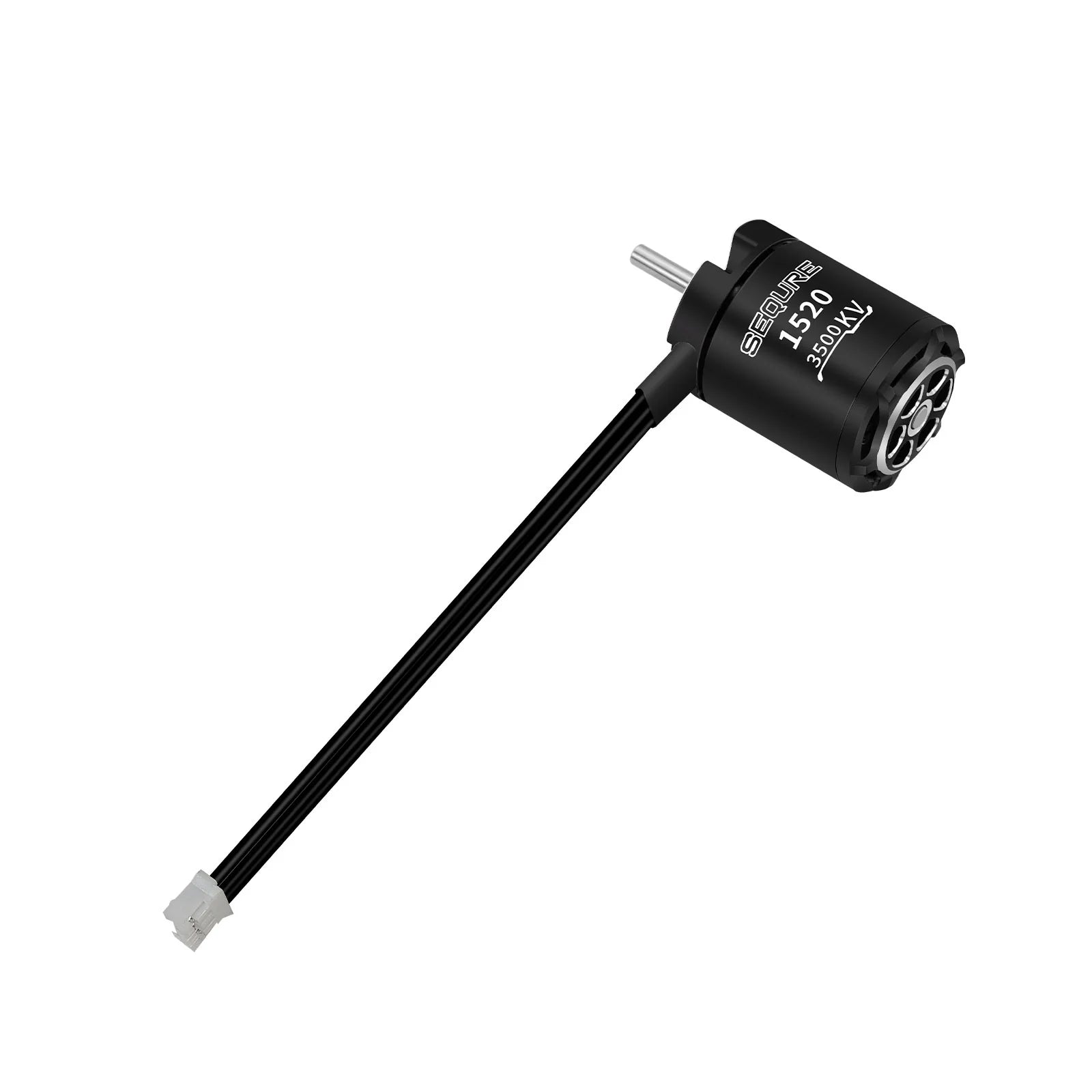

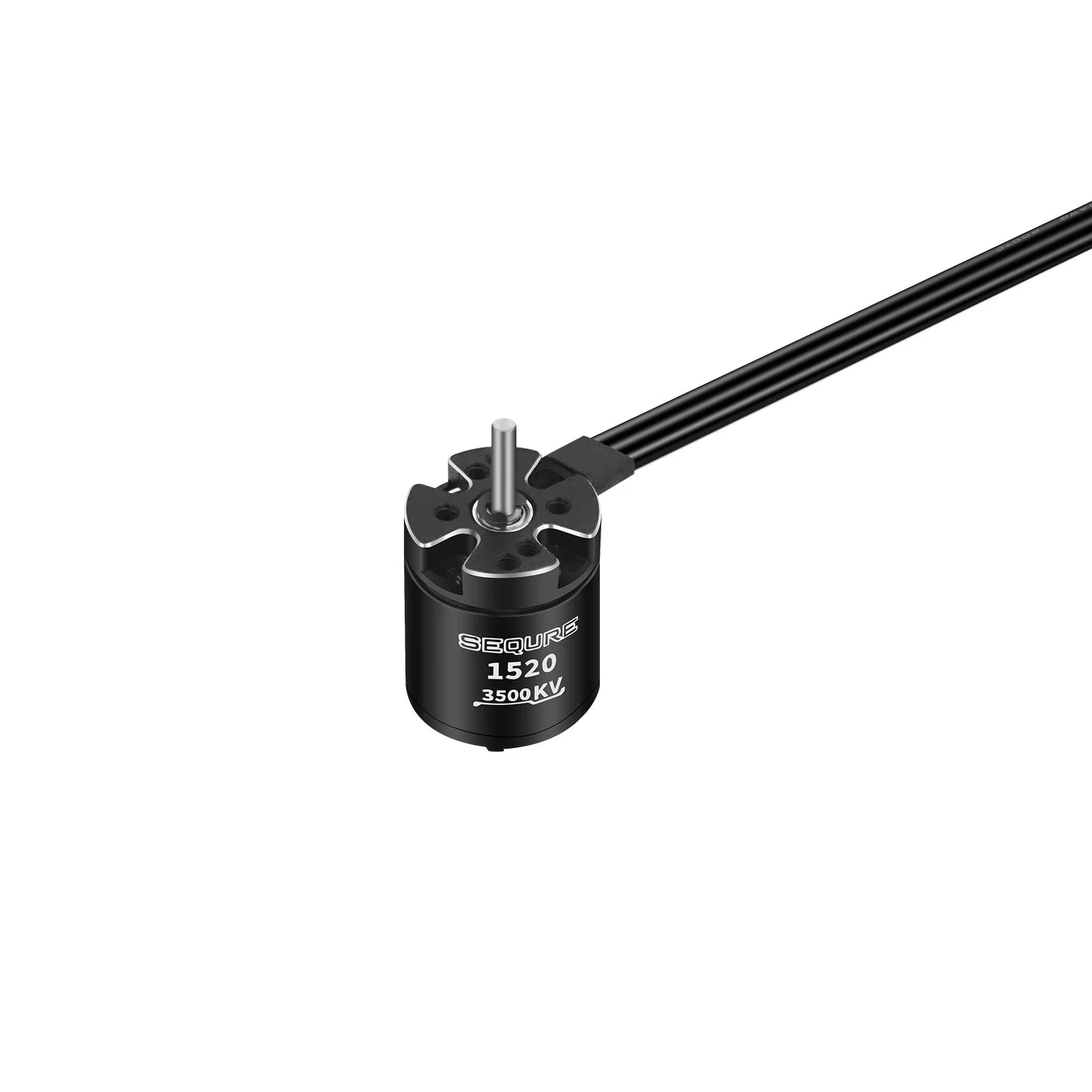

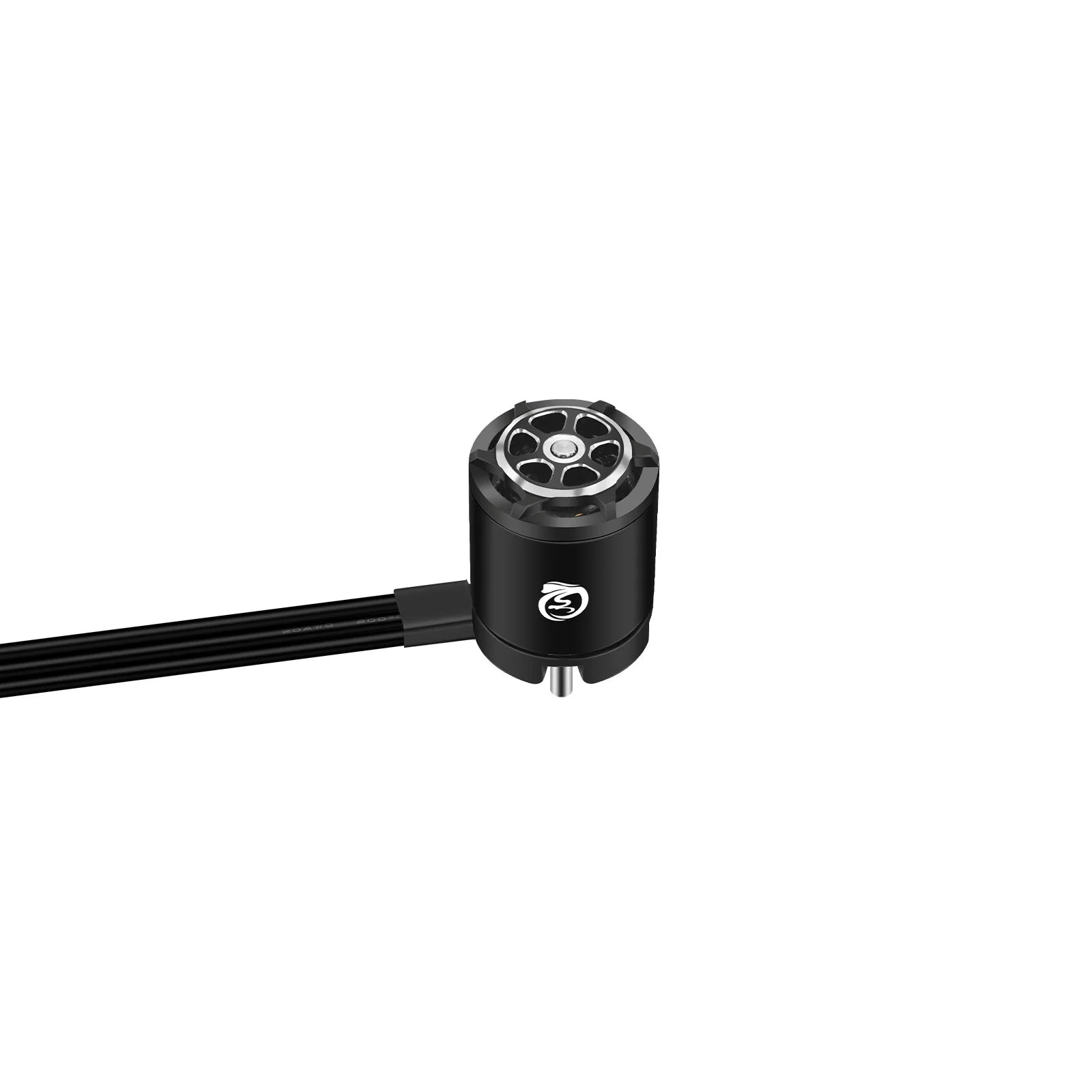

Model |

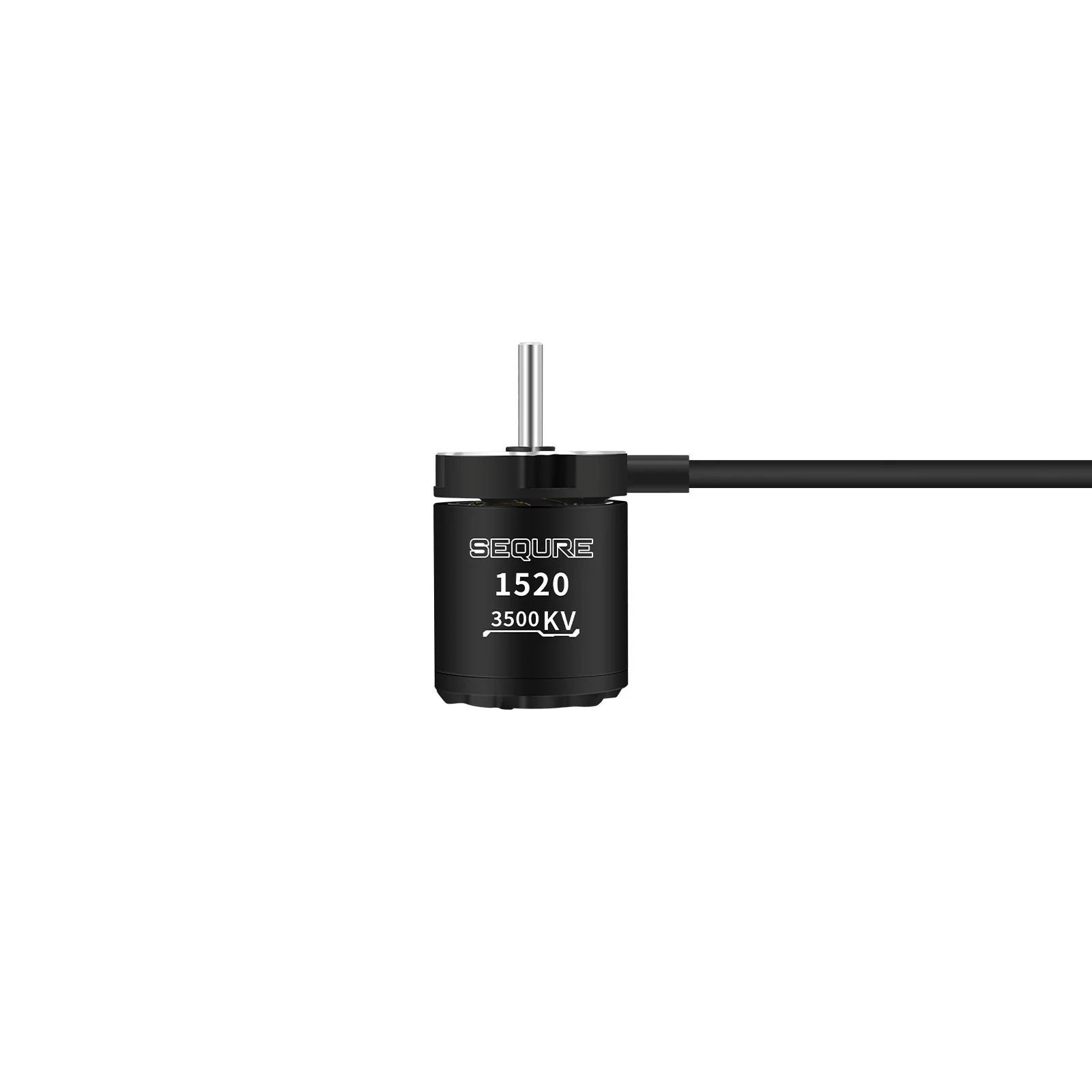

1520 Motor |
|
Working voltage |
2-3S Lipo |
|
Number of slots/magnetic poles |
9N12P |
|
Output shaft diameter |
2.0mm |
|
Output shaft length |
9mm |
|
KV value |
3500KV |
|
Motor wire |
20AWG 100mm，PH2.0-3P male connector |
|

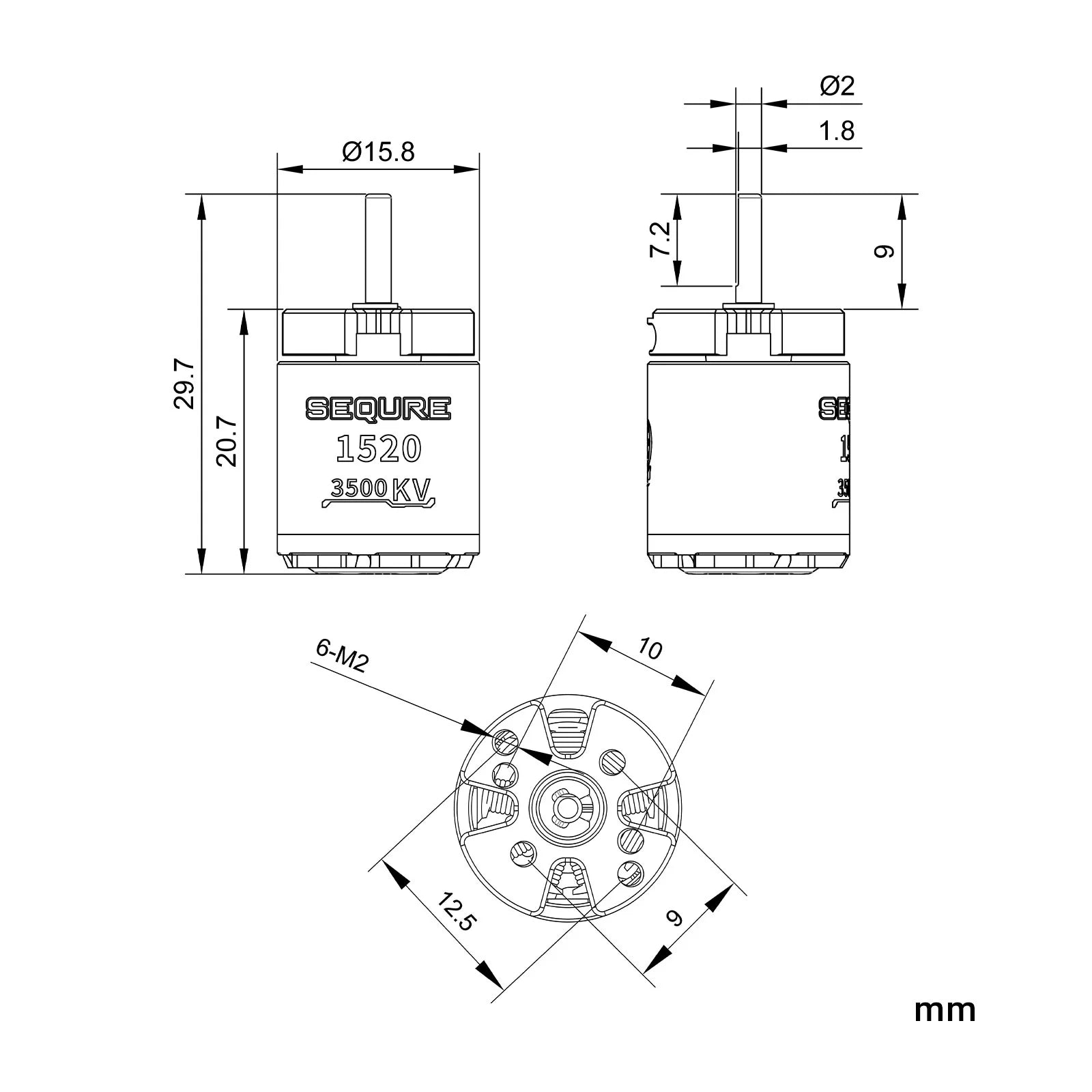

Mounting hole spacing |
M2 screw holes, with spacings of 9mm/10mm/12.5mm |
|
Product size |
15.8*20.7mm（excluding wire） |
|
Product weight |

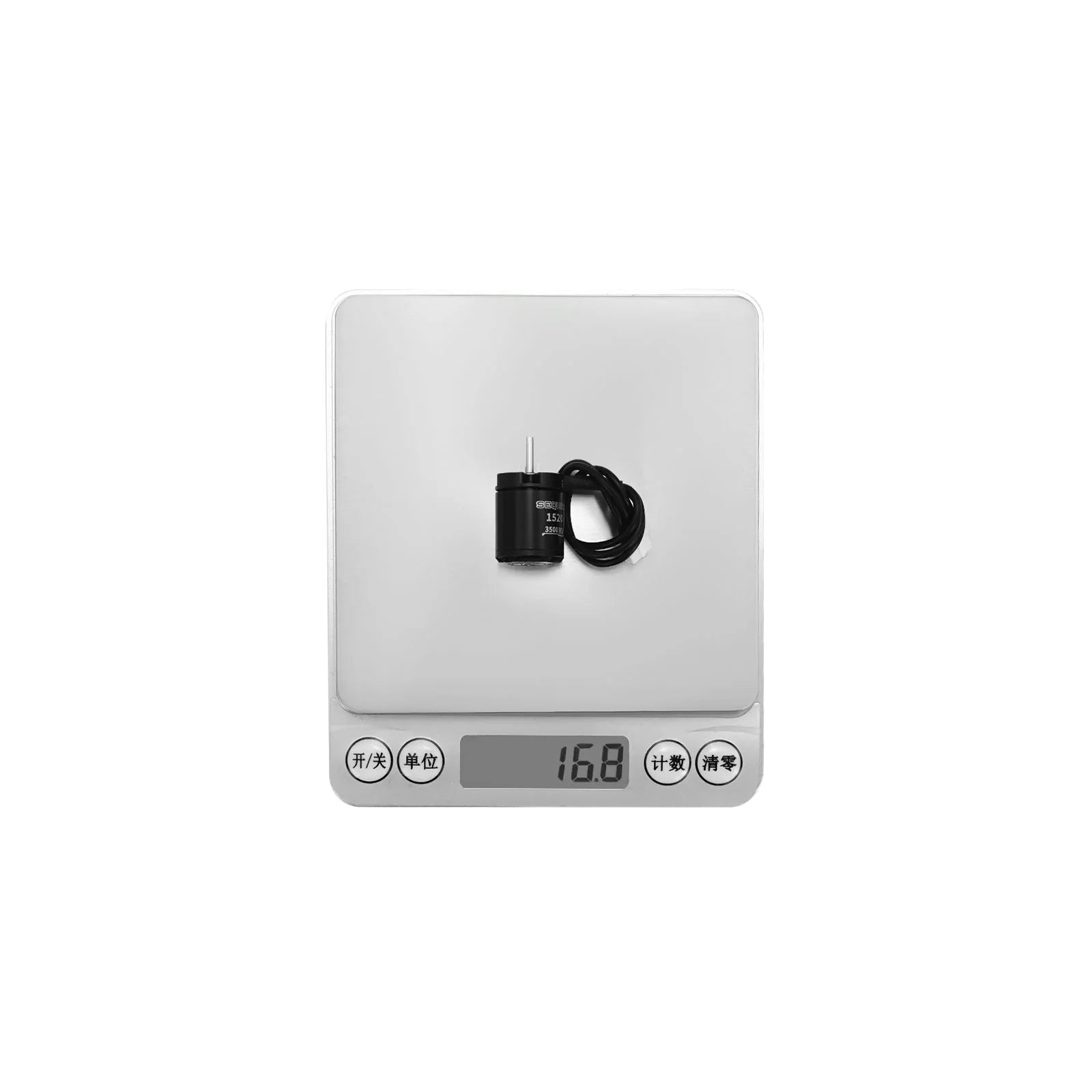

16.8g(including wire) |
|
Application scenarios |
1/16, 1/18, 1/24 models |

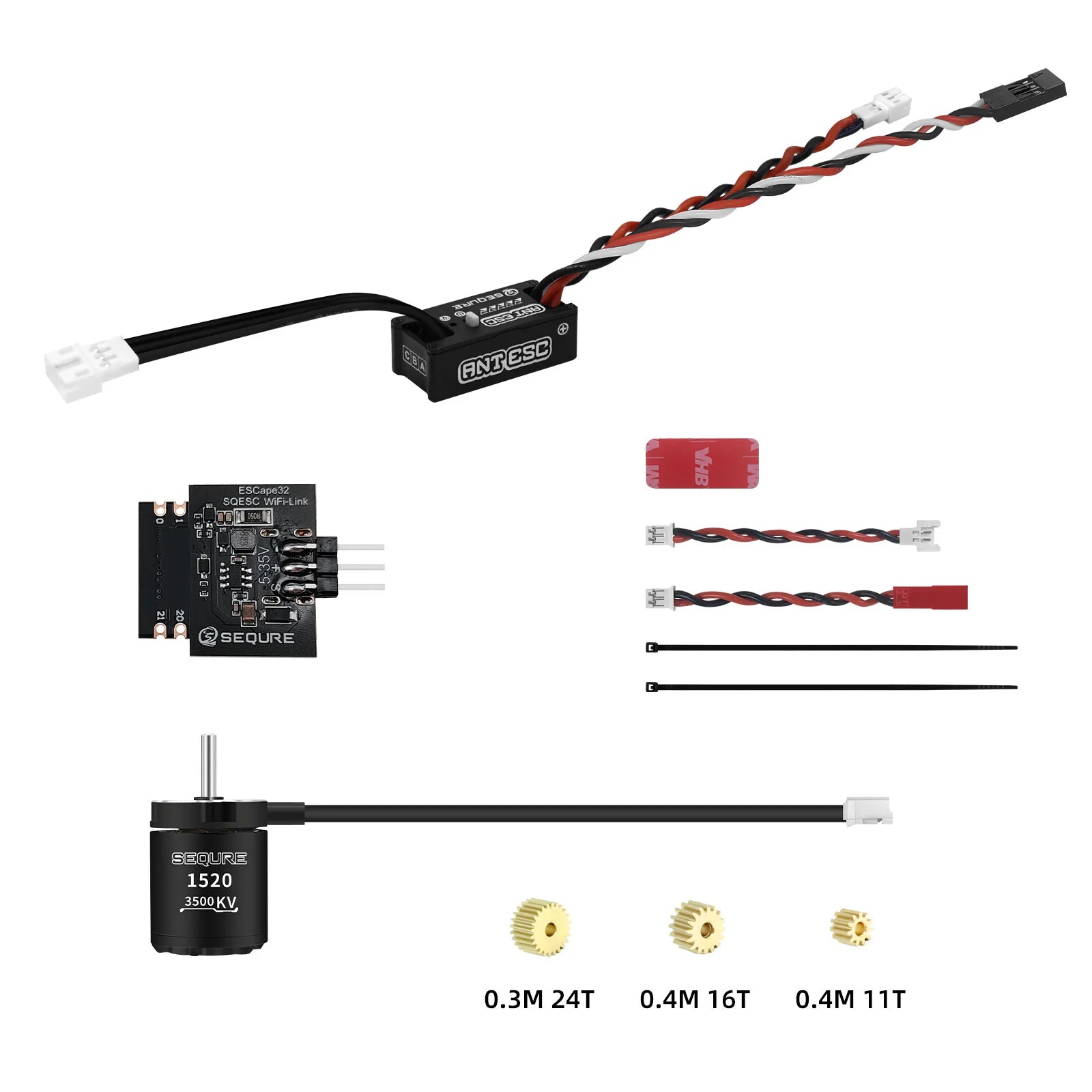

ANT ESC & 1520 Motor & WiFi-Link Package Includes:
- ANT ESC×1
- PH2.0 to JST cable ×1
- PH2.0 to MX2.0 cable × 1
- 3M adhesive tape × 1
- Cable ties ×2
- 1520 motor ×1
- 0.3M 24T gear ×1
- 0.4M 16T gear ×1
- 0.4M 11T gear ×1
- WIFI-LINK×1
Overall Dimensions:
ANT ESC & 1520 Motor & WiFi-Link
(1) Product Size: /
Net Weight Of Product: 36.2g
(2) Package Size: 65*65*40mm
Packing Weight: 64.5g
(3) Package Size (Including Outer Carton)：155*105*40mm
Packing Weight (Including Outer Carton)：102g
