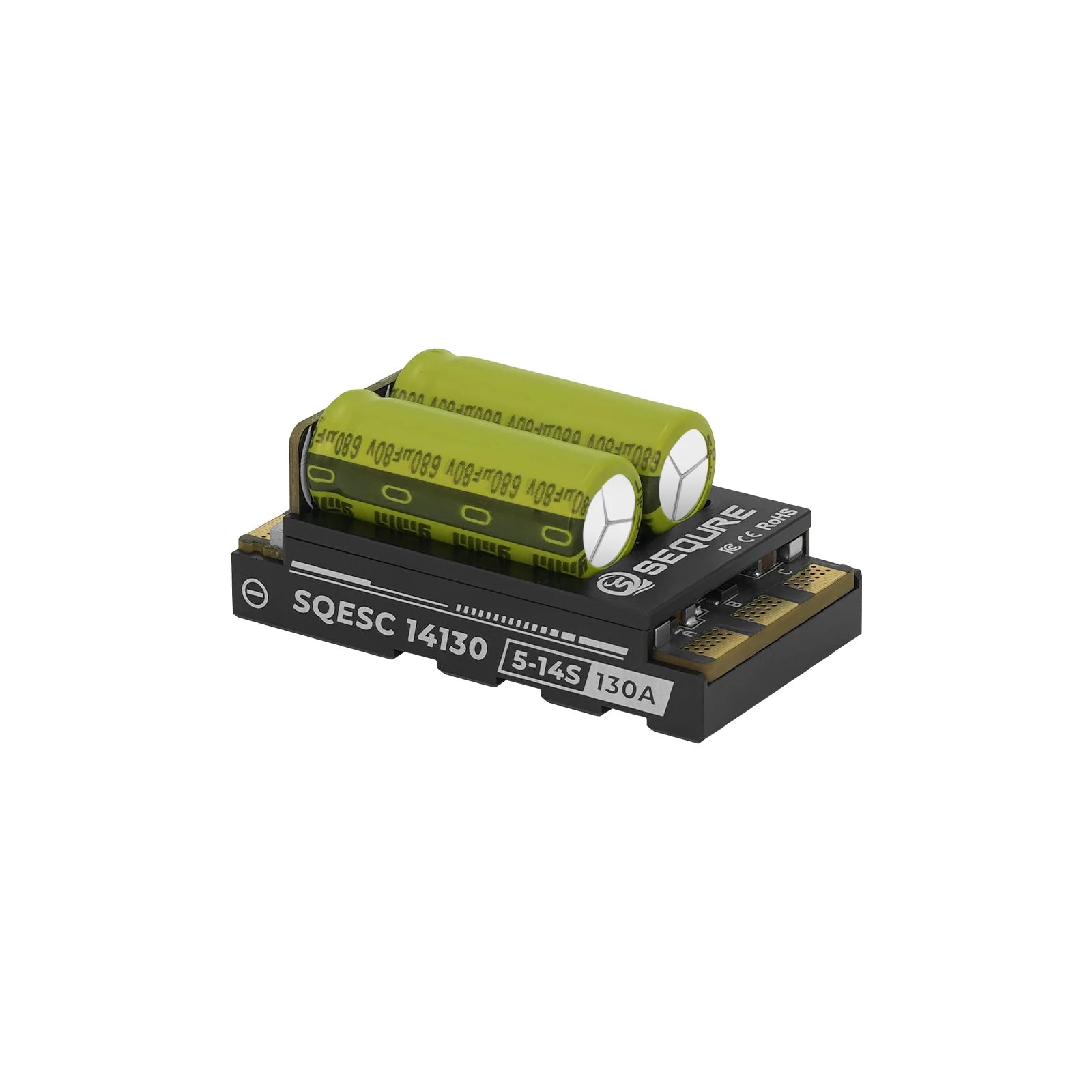

SEQURE SQESC 14130 Brushless ESC 5-14S ESCape32 (No BEC)
SEQURE SQESC 14130 Brushless ESC 5-14S ESCape32 (No BEC)
Couldn't load pickup availability
SEQURE SQESC 14130 Brushless ESC 5-14S ESCape32 (No BEC)
Important — Builder / Installation Required
This product is a bare electronic control board intended for experienced builders and integrators. It requires soldering, wiring, configuration, and proper electrical setup before use.
NOTE: These units are all flashed with Escape32 Firmware (not BLHELI or AM32)
NOTE: WiFi-Link Sold Separately Required for Escape32 Programming
https://newenglandrc.us/products/sequre-wifi-link-for-sqesc-escape32
NOTE: Do not use Escape32's SINE Mode on RC Helicopters
NOTE: ESC AMP Rating is with sufficient cooling/airflow. Without this, you derate them 50% of actual capacity when used in a closed fuselage.
Latest Escape32 Releases Found Here: https://github.com/neoxic/ESCape32/releases
Escape32 Wiki Here: https://github.com/neoxic/ESCape32/wiki
Parameters of Product:
|
Model Name |
SQESC 14130 |
|
Processor |
STM32G071 |
|
Input Voltage |
DC 18V-59V（5-14S Lipo） |
|
Continuous Current (Good Heat Dissipation) |
130A |
|
Maximum current (Good Heat Dissipation) |
220A |
|
Support Firmware |
AM32，ESCape32，BLHeli_32 |
|
Signal Protocol |
Dshot(All), PWM, Oneshot, Multishot, etc. |
|
RPM Signal Line |
AM32（YES），ESCape32（YES），BLHeli_32（NO) |
|
Programming Parameter Adjustment |
Support |
|
Throttle Calibration |
Support |
|
Timing Angle Setting |
Support |
|
Current Detection |
Support |
|
Telemetry Signal |
Support |
|
Motor Steering Settings |
Support |
|
RGB LED Color Lights |
Support |
|
BEC |
NO |
|

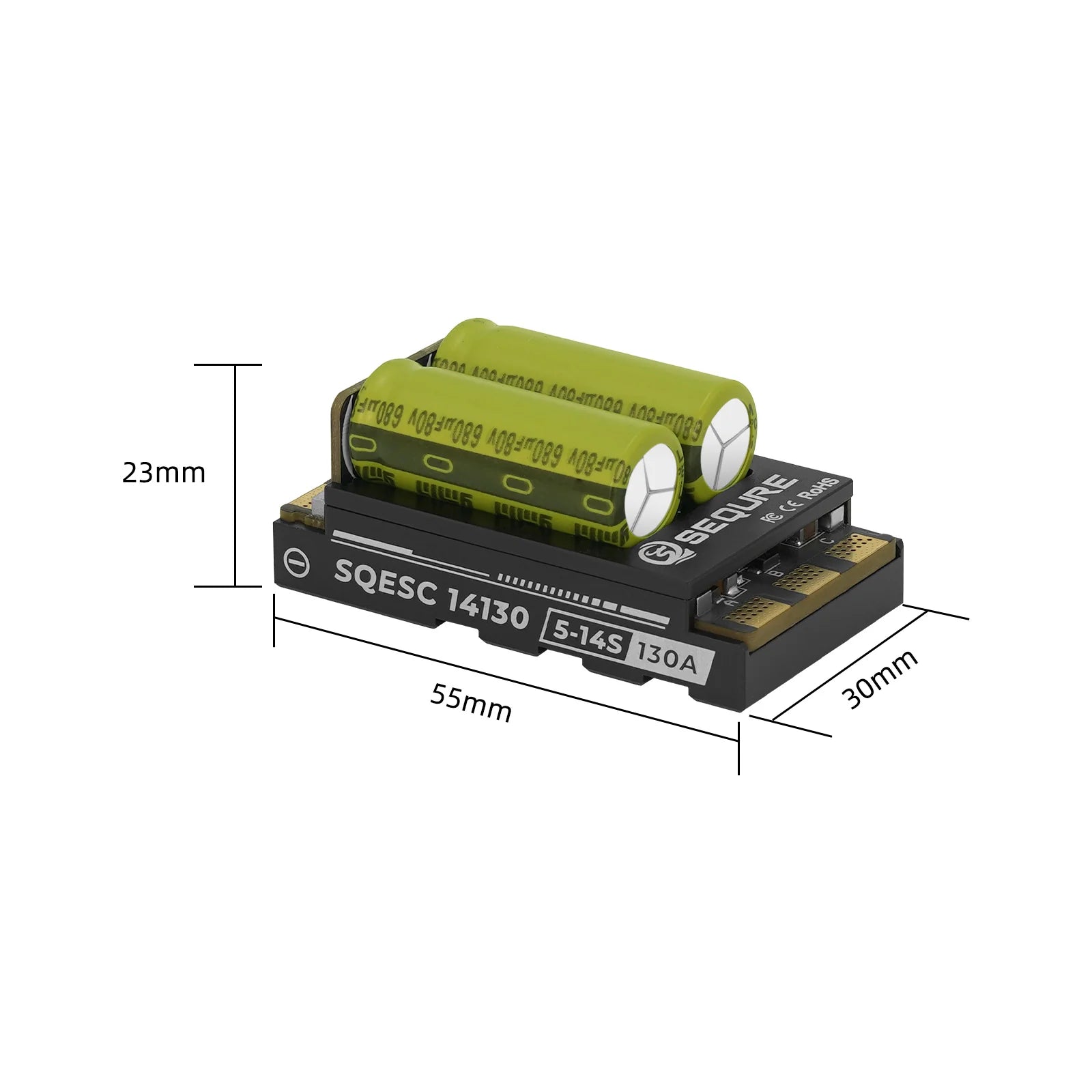

Product Size |
55*30*23mm(L*W*H) |
|

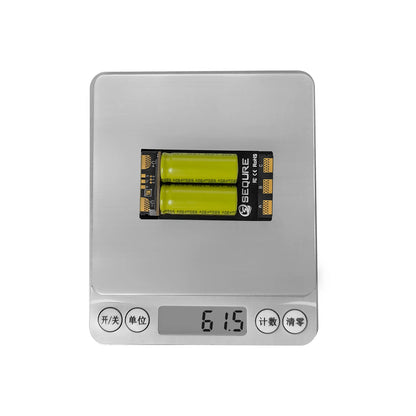

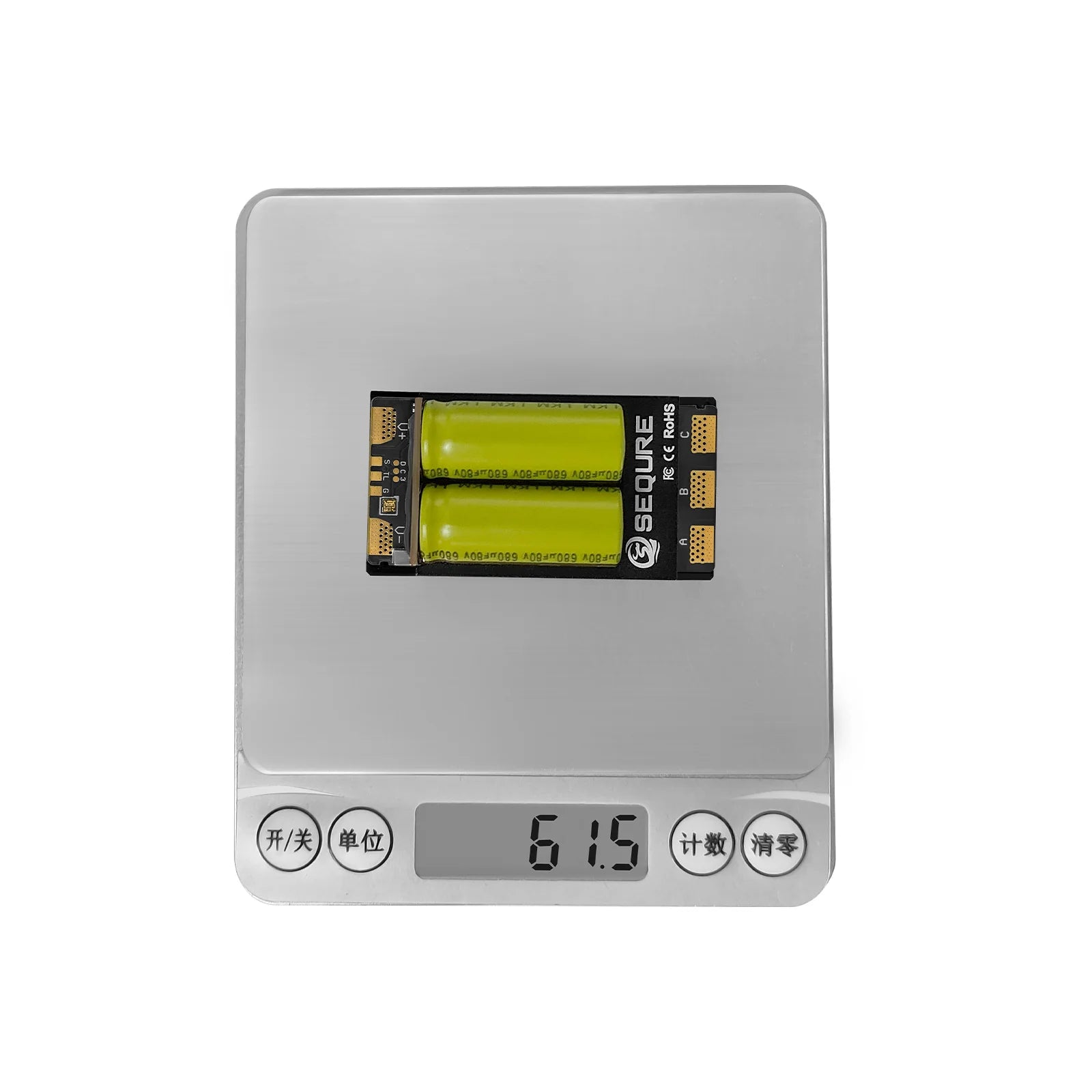

Product Weight |
61.5g |
|
Application Scenarios |
Multi-axis UAV, fixed-wing drones, crop protection aircraft, helicopters, multi rotor drones, climbing cars, off-road model vehicles, model ships, surfboards, water sports products, etc |
Improper installation can permanently damage the board.
-
Not plug-and-play
-
Not recommended for beginners
-
Requires correct soldering technique and tools
-
Requires correct voltage, wiring, and configuration
Damage caused during installation is not considered a manufacturing defect.
Once wires are soldered or the board is installed into a build, the product is considered modified and no longer eligible for standard return.
Warranty covers manufacturing defects only.
The following are not covered:
-
Soldering damage
-
Lifted pads
-
Reversed polarity
-
Short circuits
-
Overheating during installation
-
Incorrect wiring or wire gauge
-
Operation outside rated voltage/current
Boards are electrically tested prior to shipment.
