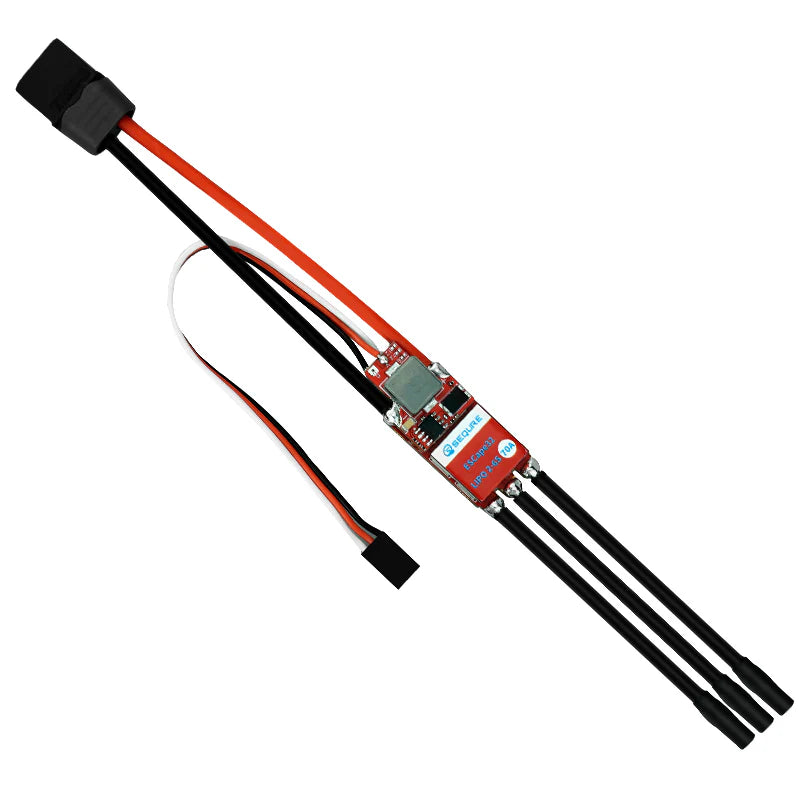

SEQURE SQESC 2670 Brushless ESC 2-6S 70A ESCape32 4A BEC 12V
SEQURE SQESC 2670 Brushless ESC 2-6S 70A ESCape32 4A BEC 12V
Couldn't load pickup availability
SEQURE SQESC 2670 Brushless ESC 2-6S 70A ESCape32 4A BEC 12V
NOTE: These units are all flashed with Escape32 Firmware (not BLHELI or AM32)
NOTE: WiFi-Link Sold Separately Required for Escape32 Programming
https://newenglandrc.us/products/sequre-wifi-link-for-sqesc-escape32
NOTE: Do not use Escape32's SINE Mode on RC Helicopters
NOTE: ESC AMP Rating is with sufficient cooling/airflow. Without this, you derate them 50% of actual capacity when used in a closed fuselage.
Latest Escape32 Releases Found Here: https://github.com/neoxic/ESCape32/releases
Escape32 Wiki Here: https://github.com/neoxic/ESCape32/wiki
|
Model |
SQESC 2670 |
|
Processor |
STM32G071 |
|
Input voltage |
DC 7V-25.2V（2-6S Lipo） |
|
Continuous current (good heat dissipation) |
70A |
|
Maximum current (good heat dissipation) |
110A |
|
Support firmware |
BLHeli_32，AM32, ESCape32 |
|
BLHeli_32 firmware |
SEQURE_G071_01 |
|
AM32 firmware |
SEQURE_G071 |
|
Signal protocol |
Dshot (All), PWM, Oneshot, Multishot, etc. |
|
Programming parameter adjustment |
Support |
|
Throttle calibration |
Support |
|
Timing angle setting |
Support |
|
Current detection |
Support |
|
Telemetry signal |
Support |
|
Motor steering settings |
Support |
|
RGB LED color lights |
Support |
|
BEC (if any) |

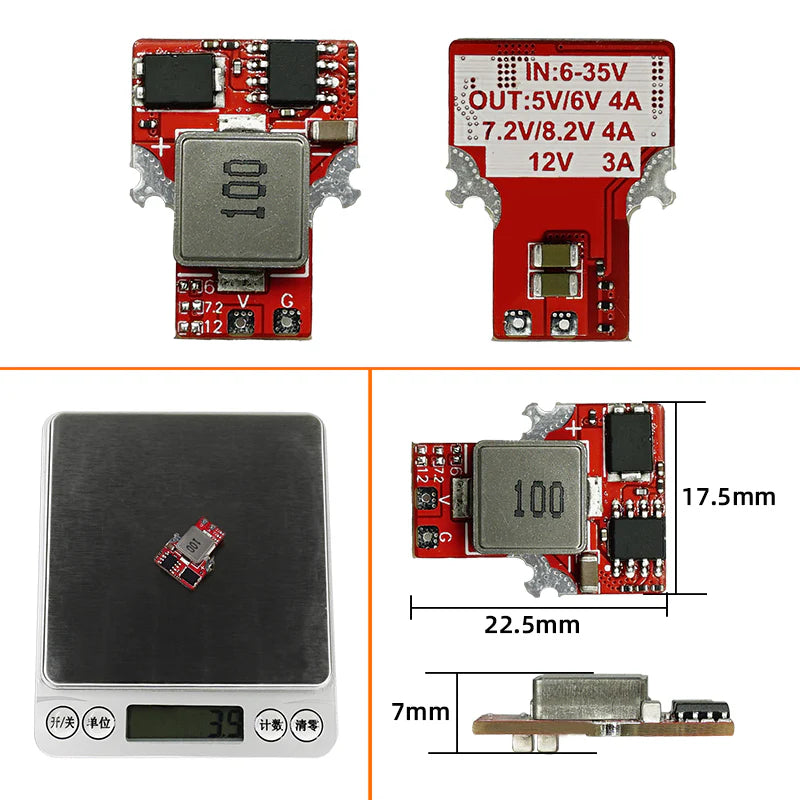

5V/4A，6V/4A，7.2V/4A，8.2V/4A，12V/3A adjustable |
|
Application scenarios |
FPV racing drones, multi-axis drones, fixed-wing UAV, model ships, climbing vehicles, model cars, etc. |
2670（ESCape32）+BEC Package includes:
(depicted in image)

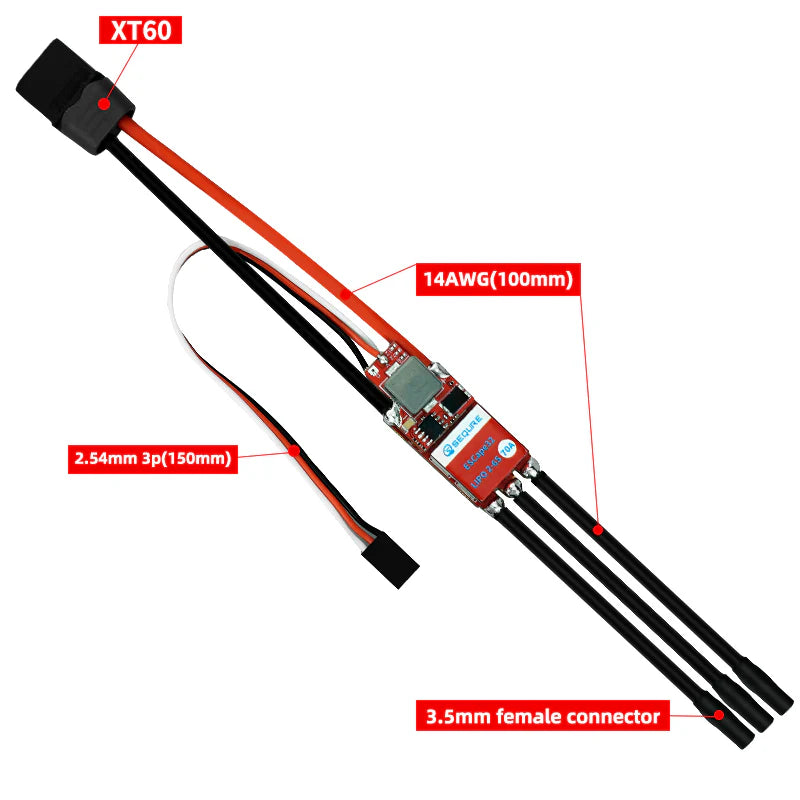

Product Size: 190*18*11mm

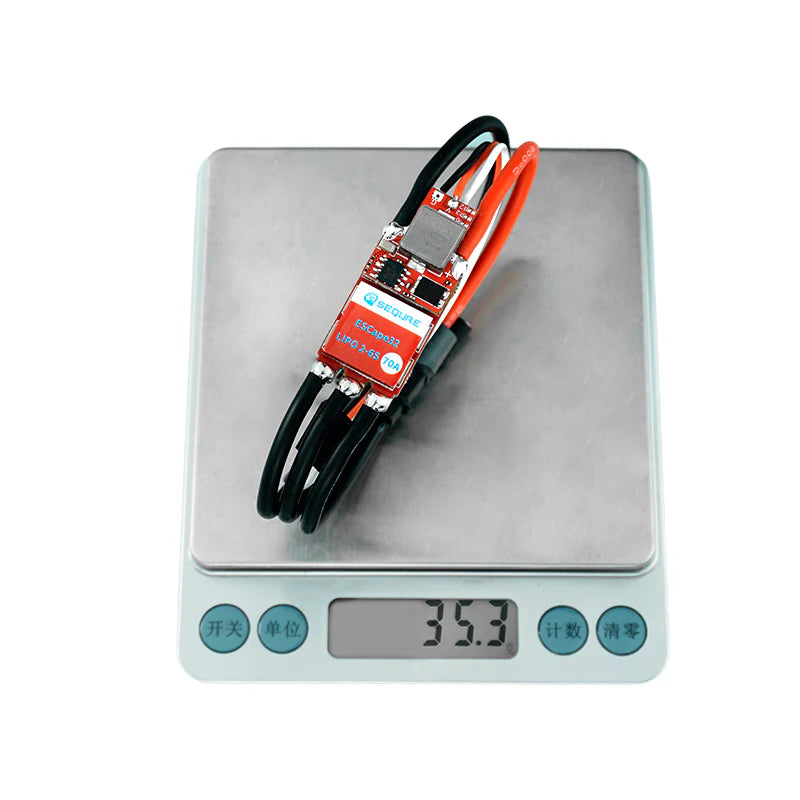

Net Weight Of Product: 22g
Package Size: 150*100*12mm
Packing Weight: 24g
Package Size (Including Outer Carton)：200*110*40mm
Packing Weight (Including Outer Carton)：68g
