SEQURE SQESC 28120 Brushless 2-8S 120A ESCape32 10A BEC 12V
SEQURE SQESC 28120 Brushless 2-8S 120A ESCape32 10A BEC 12V
Couldn't load pickup availability
SEQURE SQESC 28120 Brushless 2-8S 120A ESCape32 10A BEC 12V
NOTE: These units are all flashed with Escape32 Firmware (not BLHELI or AM32)
NOTE: WiFi-Link Sold Separately Required for Escape32 Programming
https://newenglandrc.us/products/sequre-wifi-link-for-sqesc-escape32
NOTE: Do not use Escape32's SINE Mode on RC Helicopters
NOTE: ESC AMP Rating is with sufficient cooling/airflow. Without this, you derate them 50% of actual capacity when used in a closed fuselage.
Latest Escape32 Releases Found Here: https://github.com/neoxic/ESCape32/releases
Escape32 Wiki Here: https://github.com/neoxic/ESCape32/wiki
|
Model |
SQESC 28120 |
|
Processor |
STM32G071 |
|
Input voltage |
DC 7V-35V（2-8S Lipo） |
|
Continuous current (good heat dissipation) |
120A |
|
Maximum current (good heat dissipation) |
150A |
|
Support firmware |
BLHeli_32，AM32, ESCape32 |
|
BEC(if any) |
5V/10A，6V/10A，7.2V/10A，8.2V/10A，12V/10A adjustable |
|
Signal protocol |
Dshot (All),PWM,Oneshot,Multishot,etc. |
|
Programming parameter adjustment |
Support |
|
Throttle calibration |
Support |
|
Timing angle setting |
Support |
|
Current detection |
Support |
|
Telemetry signal |
Support |
|
Motor steering settings |
Support |
|
RGB LED color lights |
Support |
|
Power cable(if any) |
14AWG |
|
Application scenarios |
Suitable for multi-axis drones, fixed-wing aircraft models, multi-rotor drones, plant protection machines, model ships, RC model cars, rock crawlers，and Helicopter 500. |
28120（ESCape32）+BEC
（1）Product Size: /

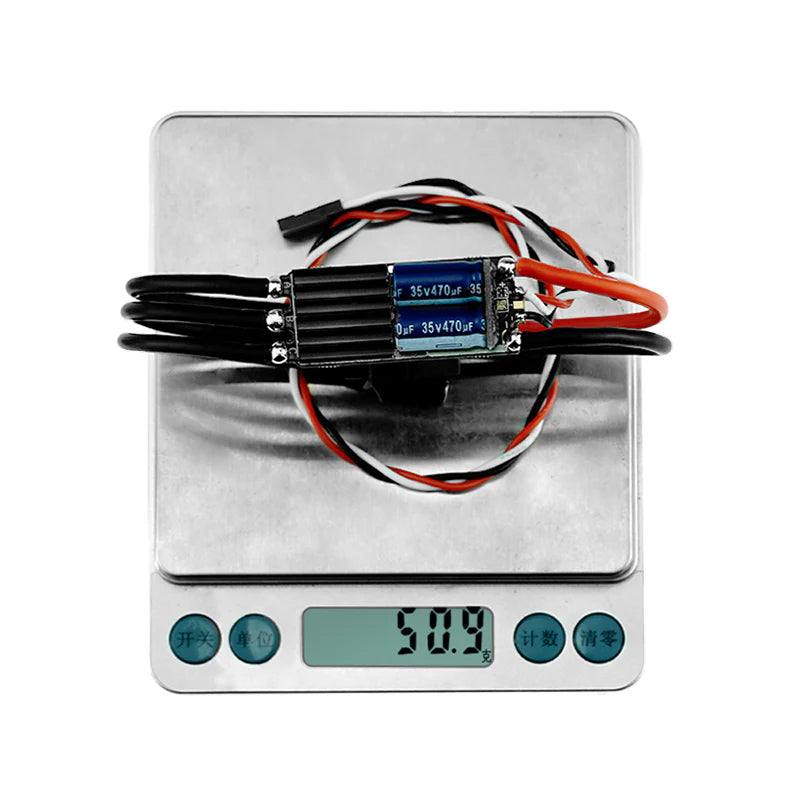

Net Weight Of Product: 52g
（2）Package Size: 150*100*30mm
Packing Weight: 59g
（3）Package Size (Including Outer Carton)：200*110*40mm
Packing Weight (Including Outer Carton)：104g
