OMP Hobby M4 MAX Tail Servo Set OSHM4X002
OMP Hobby M4 MAX Tail Servo Set OSHM4X002
Regular price
$64.99 USD
Regular price
$64.99 USD
Sale price
$64.99 USD
Unit price
/
per
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
OMP M4 Max Tail Servo DS3515T : OSHM4X002
Specification:
- Operating Voltage: 4.8V-8.4V
- Working pulse length: 500-1000us
- Max Freq: PWM max.560Hz
- Connector: 3P Dupont
- Wire length: 220mm
- Servo Arm: 5mm 25T (Futaba spline)
- Operation Angle: 140 Deg
- Dead Band: 2u
- Weight: 43g
When operated at 7.4 Volts:
- Stall Current: 3.4A
- Operating Speed (no load): 0.051sec/60°
- Torque: 4.5kg.cm
- Stall Torque: 9.5kg.cm

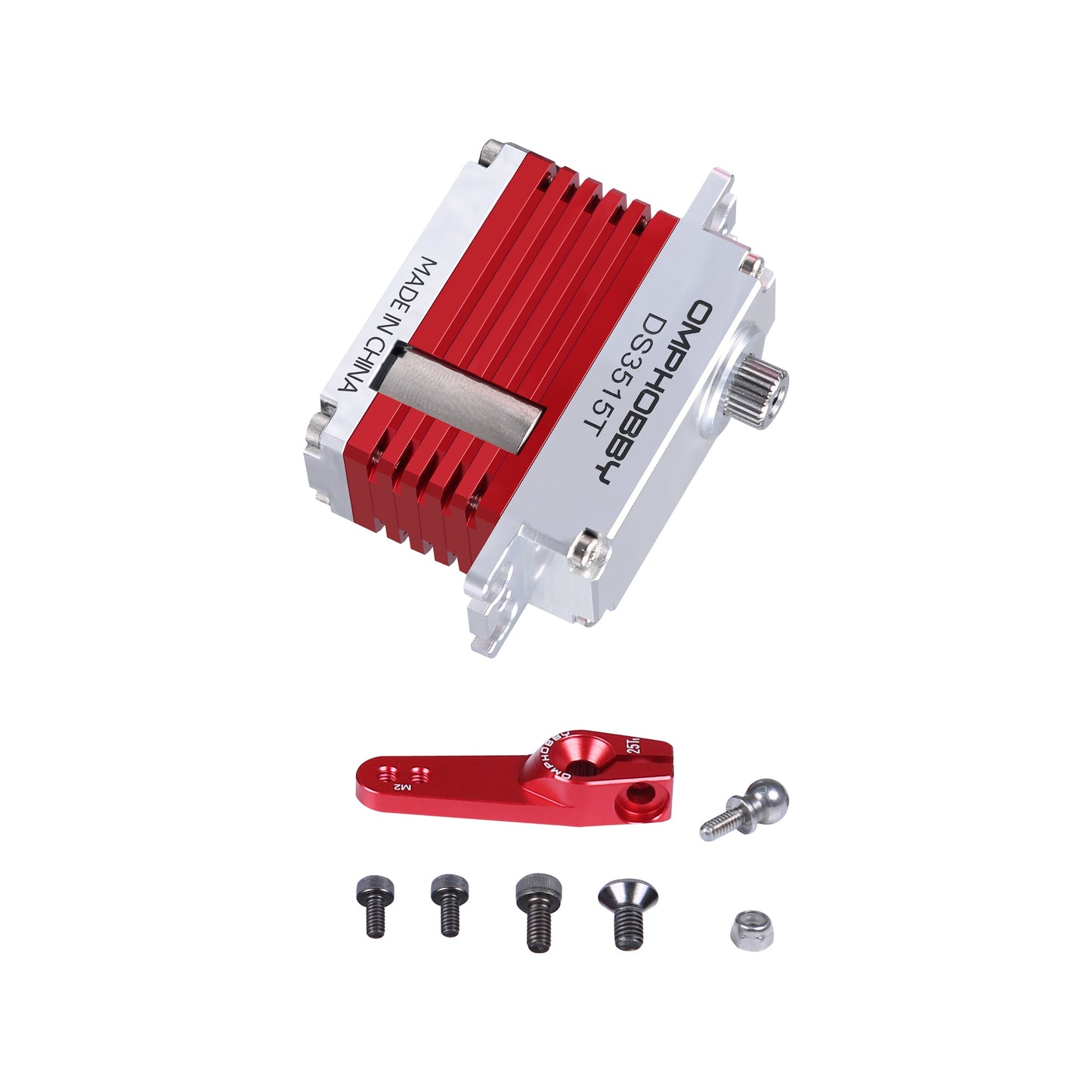

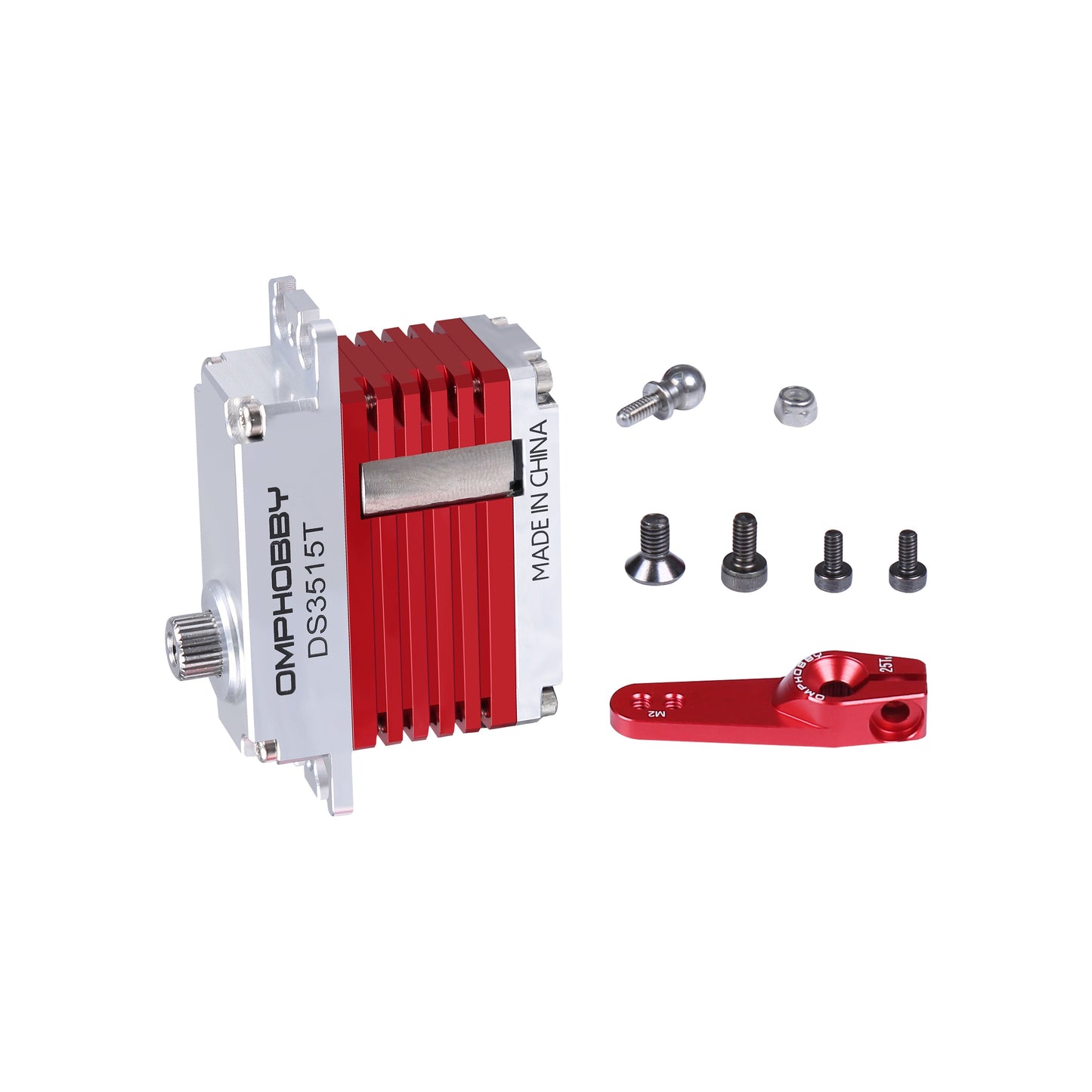

OMP Hobby M4 MAX Tail Servo Set OSHM4X002
tail servo-1
Ball head screw-L4.65-1
Middle servo metal swing arm-1
Round head internal hexagon M2x4 screws-2
M2 nylon self-locking nut-1
Round head internal hexagon M2.5x5 screw-1
M M3x6 countersunk head screw-1
