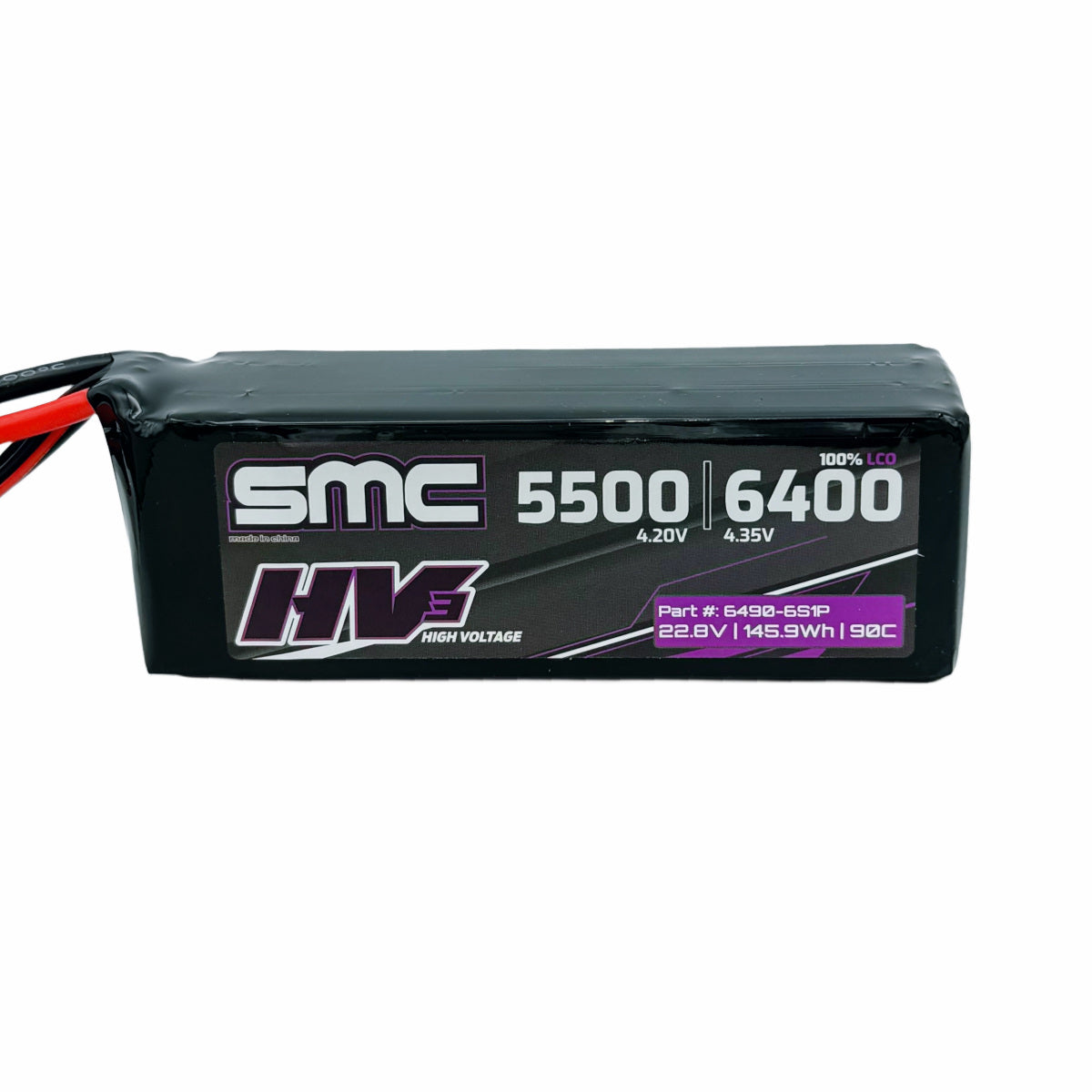

SMC HV3 Flight 22.8V 6400mAh 6S 90C SC5 / EC5 / IC5 LiHV Battery Pack - 6490-6S1P

SMC HV3 Flight 22.8V 6400mAh 6S 90C SC5 / EC5 / IC5 LiHV Battery Pack

The SMC HV3 Flight 6400mAh 6S LiHV Battery Pack is the updated replacement for the previous 5900mAh HV2 packs. This pack is designed for applications where a standard non-HV 5000mAh to 5200mAh 6S pack is normally used, offering increased capacity and potential flight time at a similar weight.

SMC’s HV3 4.35V Flight Series is the next evolution of their high-voltage flight packs, following the original HV series released in 2022 and the HV2 series released in 2024. These packs are built for pilots looking for strong power output, high watt-per-gram performance, and improved flight time.

Important HV Battery Notice:

HV LiPo packs require proper care and temperature monitoring. These packs can run hot depending on flying style, aircraft setup, gearing, load, and application. Excessive heat can damage cells and reduce cycle life. Always monitor pack temperature and use HV packs only in suitable applications.

Key Features:

• HV3 4.35V high-voltage flight series LiHV pack
• Replaces previous SMC 5900mAh HV2 packs
• Designed for applications normally using 5000mAh to 5200mAh non-HV packs
• Increased 6400mAh capacity for improved flight time
• 90C discharge rating
• SC5 connector installed
• Compatible with EC5 / IC5 style connections
• G10 top and bottom plates for added durability
• 10AWG wire for high-current applications

Specifications:

• Capacity: 6400mAh +/- 5%
• Voltage: 22.8V
• Configuration: 6S1P
• C Rate: 90C
• Connector: SC5 - EC5 / IC5 compatible
• Size: 50mm x 50mm x 150mm
• Weight: 781g +/- 10g
• Wire Size: 10AWG
• Charge Rate: 1C to 5C

Charging Note: Higher charge rates may reduce the amount of mAh put back into the pack and may reduce overall cycle life. For best battery longevity, charge at 1C when possible.

Product Code: 6490-6S1P
