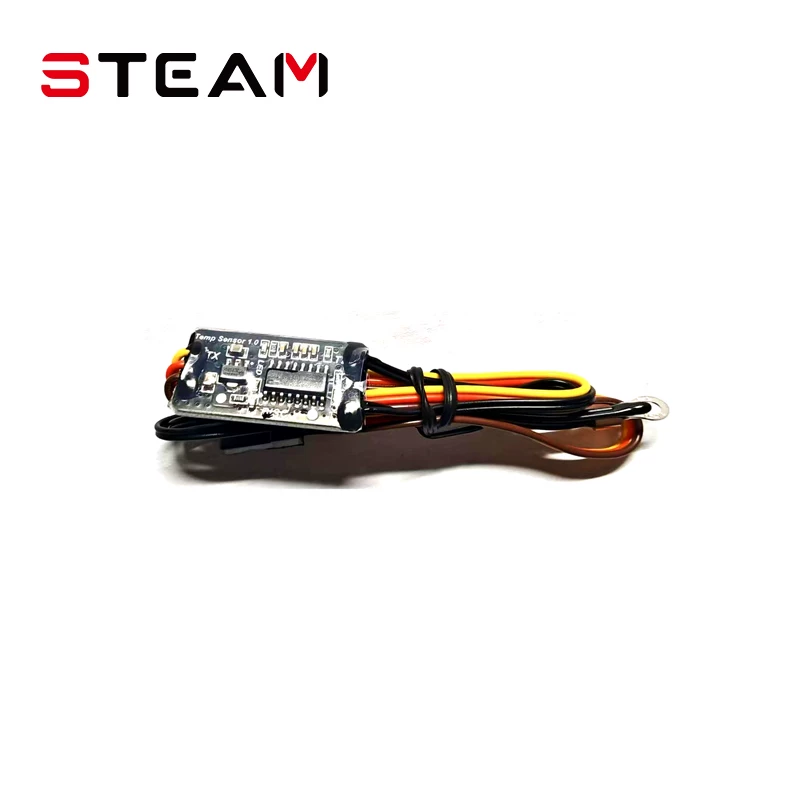

Steam Rotorflight Nitro Engine Temp Sensor – FLYROTOR Telemetry Dual Temperature Sensor

Steam Rotorflight Nitro Engine Temp Sensor

The Steam Rotorflight Nitro Engine Temp Sensor is a compact dual temperature telemetry module designed for Rotorflight-compatible gyro and flight controller setups that support the FLYROTOR telemetry protocol.

This sensor is ideal for nitro and gas RC helicopter applications where engine temperature monitoring is needed directly through your radio telemetry system.

Key Features

• Dual temperature input support
• Supports Rotorflight / FLYROTOR telemetry-compatible gyros
• Wide operating voltage range: 5–25V
• Temperature sampling range: -30°C to 150°C
• Telemetry output for voltage and two temperature channels
• Useful for nitro engine, gas engine, ESC, BEC, or general model temperature monitoring

Specifications

Telemetry Data

The module sends three telemetry data points:

• Vbat – Module power supply voltage
• Tesc – Temperature value from T1
• BecT – Temperature value from T2

Telemetry names listed above are based on EdgeTX. ETHOS telemetry naming may differ depending on receiver, gyro, and radio configuration.

Important Compatibility Note

This temperature sensor module is only suitable for gyroscopes, flight controllers, or telemetry systems that support the FLYROTOR protocol.

Please verify FLYROTOR telemetry support before purchasing.
