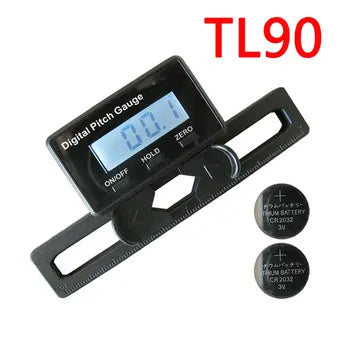

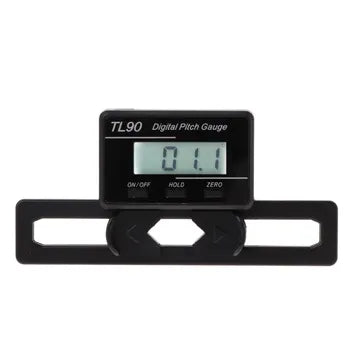

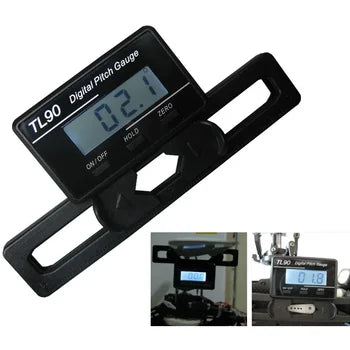

TL90 Digital Pitch Gauge LCD Backlight Display Blades Angle Measurement Tool

TL90 Digital Pitch Gauge LCD Backlight Display Blades Angle Measurement Tool

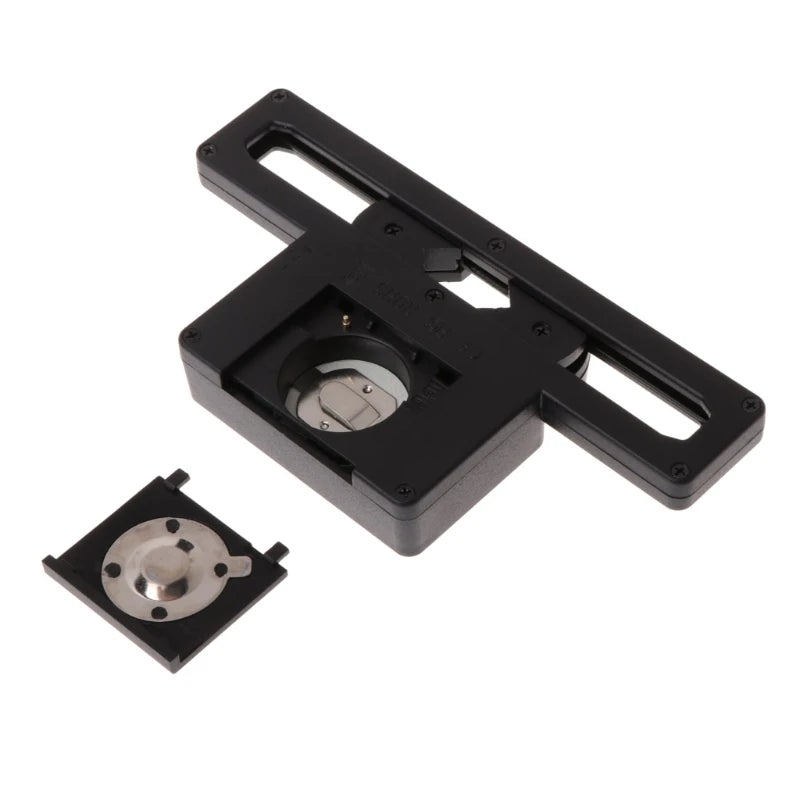

Requires two CR2032 Batteries (not included)

Features:

• This TL90 gauge can be used on the helicopter that is equipped with stabilizer bar or flybarless, the built-in digital gyro can detect the height of the blade automatically and display on the backlight LCD screen.
• Automatically detect the horizontal angle.
• It has automatic screen inversion function.
• It can delay angle back to zero and lock it.

• Specifications:
• Applicable Length Of The Main Rotor: 250mm-800mm(9.84-31.50in)
• Applicable Width Of The Pulp: 20mm-75mm(0.79-2.95in)
• Operating Voltage: 3.0V DC
• Power Supply: 2 x CR2032 (NOT included);
• Operating Temperature: 0-40℃（32~104℉）
• Precision Measurement: 0.1 degree
• Measuring Range: ± 90°
• Body Size: app.108x22mm/4.25x0.87in
• Display Size: app.52x33mm/2.051.30in

  Package includes:
  1 x Digital Pitch Gauge

Requires two CR2032 Batteries (not included)
