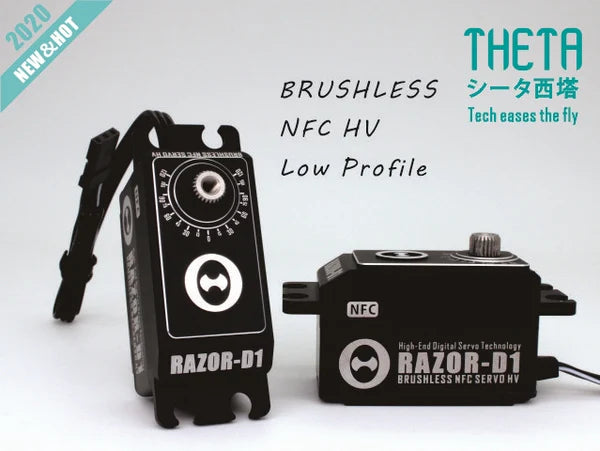

TS-RD1 THETA Razor-D1 NFC HV Low Profile Brushless Servo
TS-RD1 THETA Razor-D1 NFC HV Low Profile Brushless Servo
Limited stock — Order soon
⚡ Ships Fast from Massachusetts
Couldn't load pickup availability
- Ships from USA
- RC Specialists
- Local Pickup
TS-RD1 THETA Razor-D1 NFC HV Low Profile Brushless Servo
High voltage, High-Torque, low profile size brushless servo. Ideal for small machines requiring full size servos, but where weight is a concern, such as 500-600 helis. Suitable for 1/10 scale vehicles.
The Theta servos are at the top of their class due to their ability to be fully programmed via an Android NFC enabled smart phone. You can adjust things such as the center point, refresh rate, acceleration, as well as the PID control loop of the servo. You can make it feel however you want it to!
- High Voltage
- High Speed
- Excellent Centering
- Compatible with Futaba type horns/arms
- Fully programmable via NFC enabled Android smart phones
- Light Weight
|
Voltage(V) |
Current(A) |
Speed (s/60°) |
Torque (kg*cm) |
|
5.0 |
3.0 |
0.108 |
12 |
|
6.0 |
3.0 |
0.09 |
13.5 |
|
7.4 |
3.0 |
0.08 |
15 |
|
8.4 |
3.0 |
0.07 |
16 |
|
5.0 |
5.0 |
0.092 |
14 |
|
6.0 |
5.0 |
0.081 |
15.5 |
|
7.4 |
5.0 |
0.072 |
18 |
|
8.4 |
5.0 |
0.063 |
20 |
